Digital Cameras CMD107 H115 Waterproof IP68 1.3 Mega Pixels 115 degrees Vehicle Reversing Assistance Automatic Parking Camera
Digital Cameras CMD107-H115 Waterproof IP68 1.3 Mega Pixels 115 degrees Vehicle Reversing Assistance Automatic Parking Camera
Digital Cameras CMD107-H115 Waterproof IP68 1.3 Mega Pixels 115 degrees Vehicle Reversing Assistance Automatic Parking Camera
Digital Cameras CMD107-H115 Waterproof IP68 1.3 Mega Pixels 115 degrees Vehicle Reversing Assistance Automatic Parking Camera
Digital Cameras CMD107-H115 Waterproof IP68 1.3 Mega Pixels 115 degrees Vehicle Reversing Assistance Automatic Parking Camera
Digital Cameras CMD107-H115 Waterproof IP68 1.3 Mega Pixels 115 degrees Vehicle Reversing Assistance Automatic Parking Camera
Digital Cameras CMD107-H115 Waterproof IP68 1.3 Mega Pixels 115 degrees Vehicle Reversing Assistance Automatic Parking Camera

Digital Cameras CMD107 H115 Waterproof IP68 1.3 Mega Pixels 115 degrees Vehicle Reversing Assistance Automatic Parking Camera

Share on (11000003431051):


Price:$105.00 - $121.00

Quantity:


Product Overview

Description



Products Description


CMD107 series digital cameras are based on image Sensor OX01F10, integrated with Sensor and ISP, with a resolution ratio of 1.3 million pixels, dynamic range up to 120dB backshot type, with automatic exposure, white balance, automatic gain control. Deserializer uses coaxial cable transmission, transmitting voltage + video signal + control signal simutaneously. It is small size, light weight, low power consumption, stable workability on the basis of professional design of automobile environment,meets scenario image collecting requirements of 360 round view, reversing view, security monitoring, industrial machine vision and other applications .

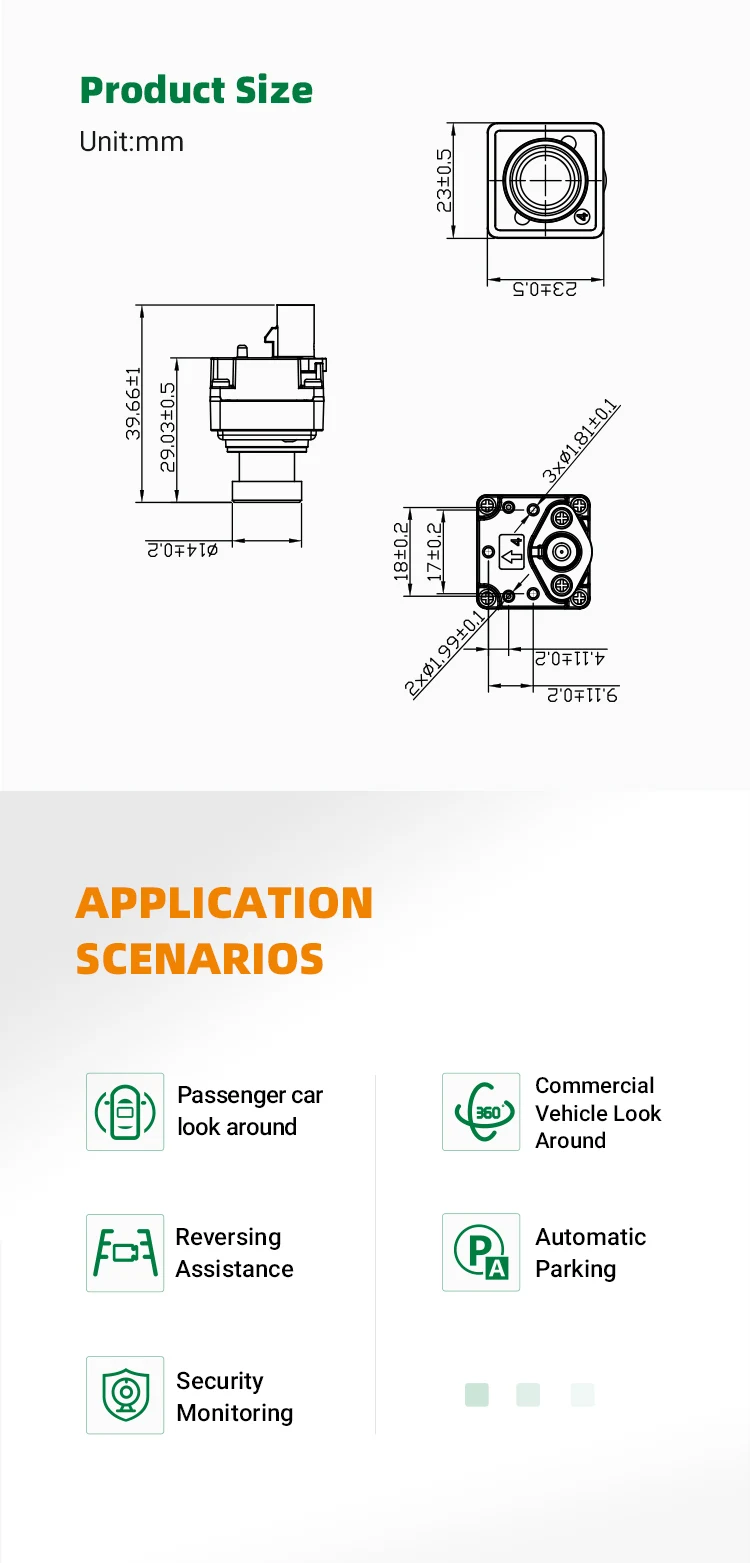

Application Scenarios: Vehicle forward View, Around View, Cockpit Monitoring, Reversing Assistance, Automatic Parking, Security Monitoring.




Specifications


Name
Description
CMOS /ISP
1/4″CMOS, OX01F10
Serializer
MAX96715
Aperture
2.0±5%
View Angle
Horizontal：115°±5°
Optical Distortion
126%
Optical Axial Deviation
≤±5 pixels
Central Resolution
H:≥800TV lines; V≥700TV lines
Resolution Ratio
1280(H) X 960(V)
Video fps
30fps
Exposure Control
AEC
Gain Control
AGC
White Balance Control
AWB
SNR
42dB
DR
>120dB
Lux
<0.5 Lux
Transmission Distance
≤15m
Transmission-line Impedance
45~55(Ω)
Output Format
YUV422,(YUYV 8bit)
FAKRA
1-line，GMSL2 protocol


Name
Description
Voltage
Rated input DC 8V
Operating Current
≤120mA@5V~16V DC
Response Time
300ms≤t≤1000ms
Operating Temperature
-40°C~+85°C
IP
IP68

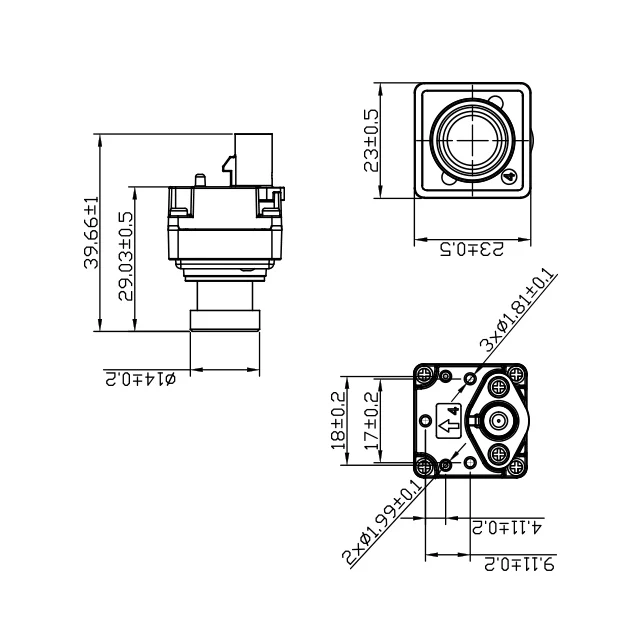

Size
23 * 35.4 * 23mm（L*W*H）






Q1. What is your terms of packing?
A: Packing products in cartons. If you have OEM package, please let us know.

Q2: Are you manufacturer with your own factory or trading company?
A: We are manufacturer with our own factory located in Shenzhen and Susong,engaged in the research and development, production,sale and service of artificial intelligent edge computing products,,intelligent cockpit domain controller,automatic driving domain controller and system solutions,automotive parts,etc. If you are available, welcome to visit us.

Q3: How does your factory do products quality control?
A: We edicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

Q4: How can I get some samples?
A: We are honored to offer you samples, please contact us directly.

Q5. Do you test all your goods before delivery?
A: Yes, please don't worry. we have 100% test before delivery.

If any qustion, pls send your message to us !
