Reci Best Quality 100W 200W 300W RF CO2 Laser Tube for Co2 Laser Engraving/cutting Machines compared with RECI Laser
- Category: >>>
- Supplier: Zhejiang Reci Laser Technology Co. Ltd.
Share on (11000003520569):
Product Overview
Description
Product Description
Model | R100 | R200 | R300 | |
Wavelength(μm) | 10.6/9.3 | |||
Excited Frequency(MHz) | 81 | |||
Peak Power(W) | 250 | 400 | 600 | |
Average Power(W) | 100 | 200 | 300 | |
Duty Cycle Range(%) | 10~30 | 10~35 | 10~40 | |
Beam Quality Factor | M²≤1.2 | |||
Beam Diameter(1/e²) | 7mm ± 0.5mm, at laser output optic | |||
Beam Divergence | ≤ 3mrad | |||
Beam Ellipticity | < 1.2:1 | |||
Pointing Stability | < 0.25mrad (Half angle) | |||
Polarsation | Linear parallel to base | |||
Pulse Duration Range(μs) | 2~970 | |||
Repetition Rate Range(kHz) | 1~200 | |||
Power Instability(%) | <±3.5 | |||
Lifespan(h) | 20000 | |||
Coolant Power(kW) | >3.2 | >5.2 | >7 | |
Cooling Water Tube Diameter(mm) | 14 | |||

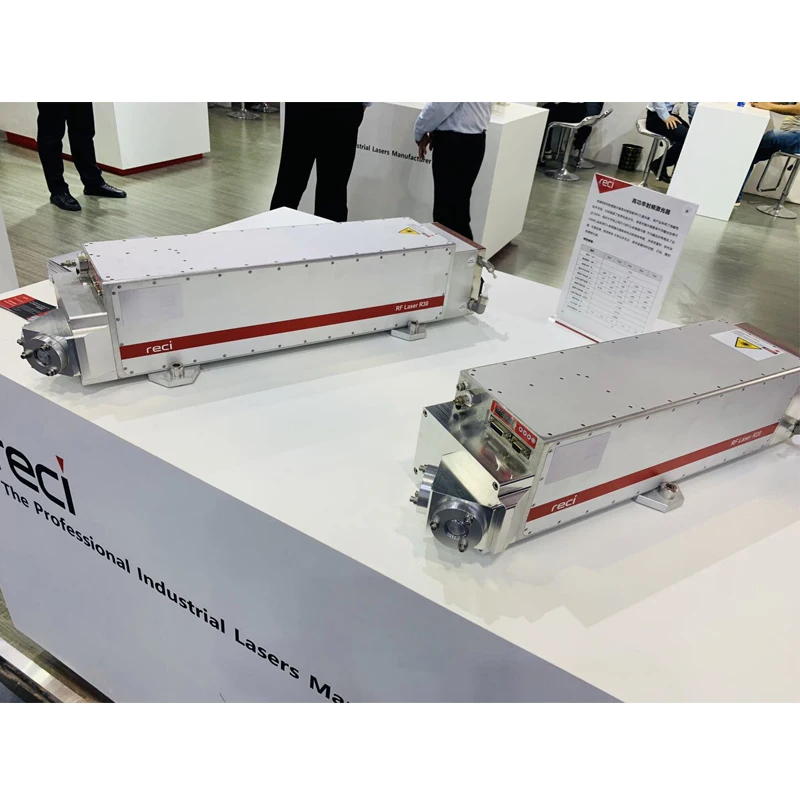

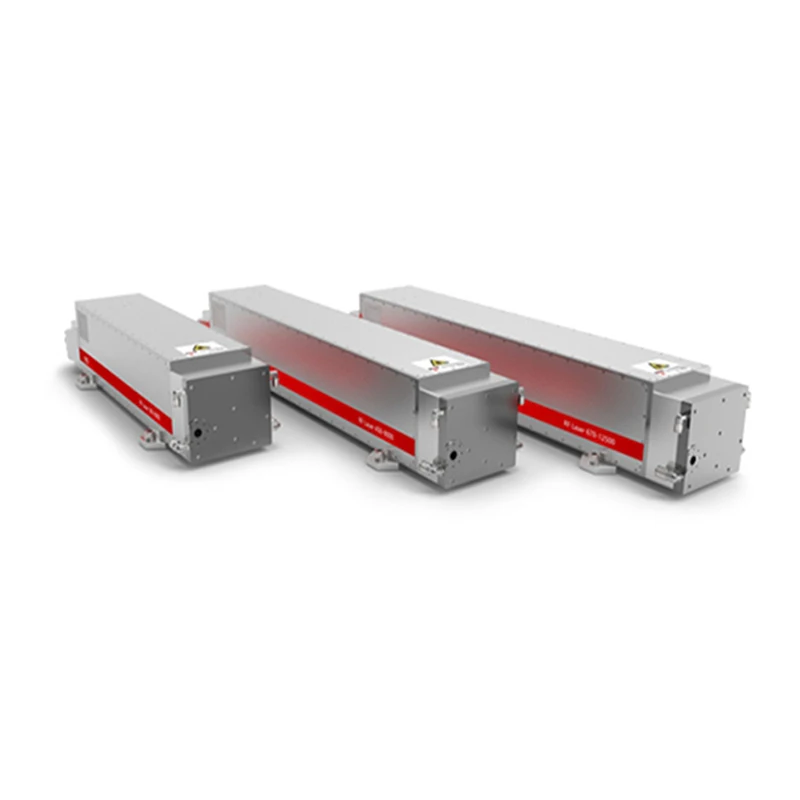

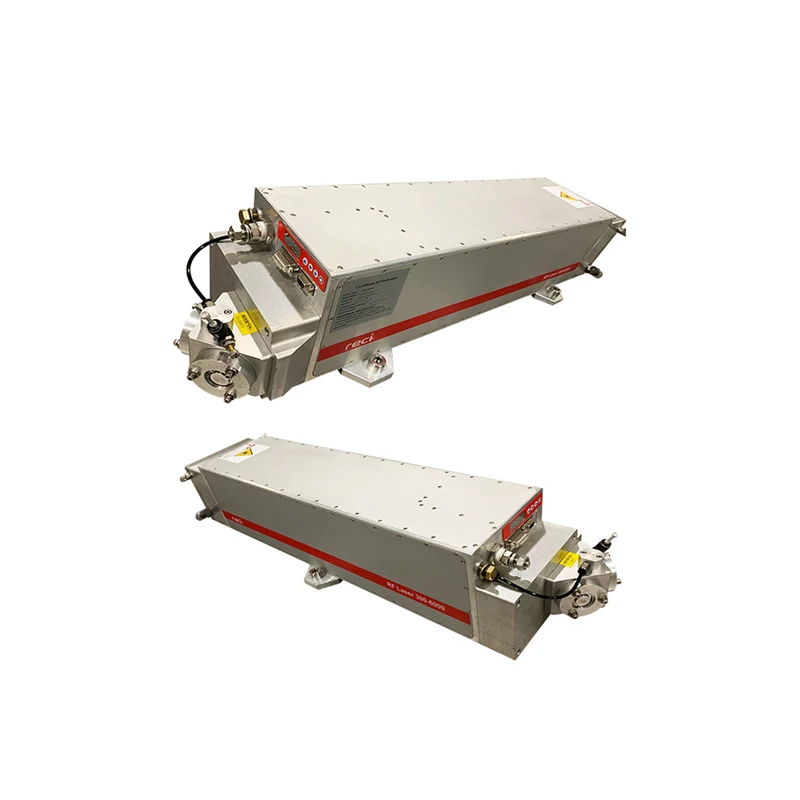

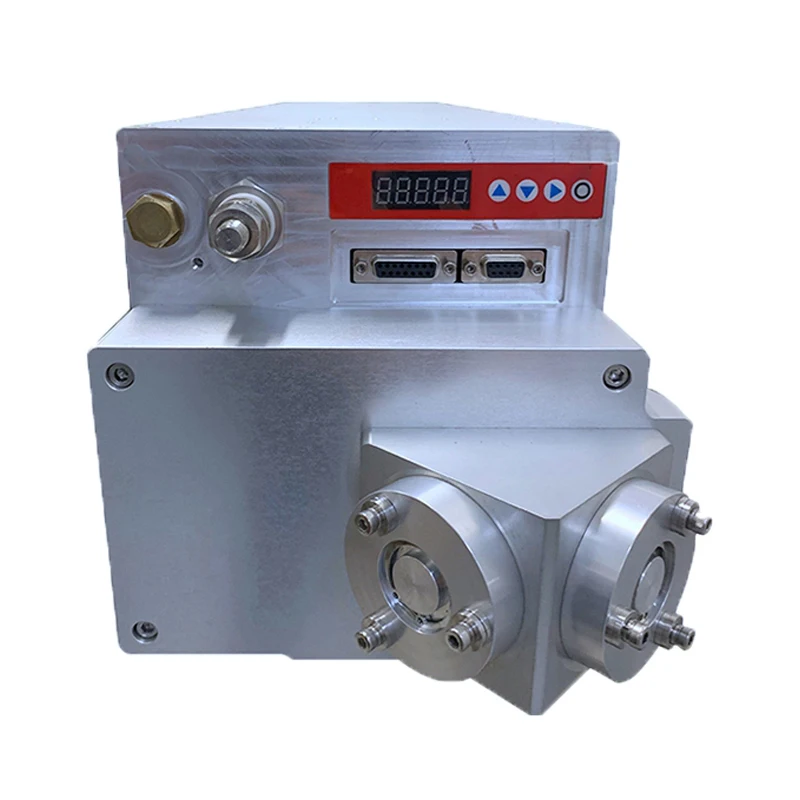

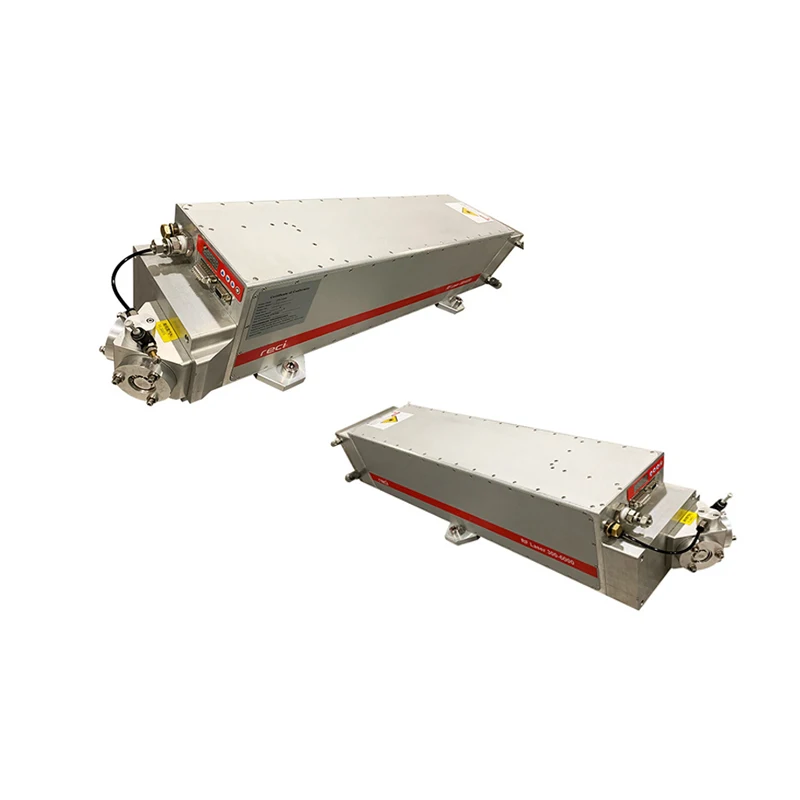

RF Laser
Reci RF laser is a sealed off, modulated-pulsed CO2 laser which adopts breakthrough technology and has surpassed the world advanced level. This series of CO2 RF lasers has many advantages such as high electro-optical conversion efficiency, good beam quality, compact structure, high reliability, and long service life. It is an ideal light source for cutting, marking and engraving of non-metallic materials.
More Products
Product Line
Our Company
Certification
Exhibition
Packaging&Shipping
FAQ
Q: Does it similarly as Rofin Rf Metal Laser?
A: Yes, We have the power from 100W to 700W.
Q: What should I be aware of ?
A: Please be noted as below.
1.The cooling circuit material must be selected to avoid corrosion.
2.In order to avoid blockage caused by oxidation, the cooling circuit are not recommended to be made of aluminum, zinc, mild steel or cast iron.
3.The cooling circuit are recommended to be made of stainless steel, copper, copper alloy and opaque plastic pipe, etc.
4.It's better to recommend an opaque pipeline system to avoid bacteria or moss in the pipeline.
5.The temperature of cooling liquid must be above dew point to avoid condensate on the inner assembly. The high purity nitrogen is needed to protect the laser system before cooling liquid.
6.Before shipment or storage, drain off the contaminated cooling liquid.
Q: Can you do OEM Fiber Lasers?
A: Yes, if you meet the requirements, we can do some OEM for you.
Q: How can I clean when the laser tube lens polluted?
A: Blow the lens surface obliquely with balloon. If the above no effect, user needs to remove the lens and use a cotton ball with a little alcohol to rotate the lens. No need too much alcohol, but the glue layer of the adhesive lens cannot be touched in case of gas inside escaping. The laser cannot be used till alcohol evaporating.
Q: How can I store the laser tubes when I do not use it?
A: The cooling liquid must run out in storage or transportation; The output must be covered with a dust-proof plastic wrap; The storage temperature should be kept between 2-40°C and the humidity between 10-60%.
