Prices of water purification system frp tank 10 x 54 precisely filter water treatment machine
- Category: >>>
- Supplier: Jiangmen Yicheng Technology Co. Ltd.
Share on (11000003524436):
Product Overview
Description
Product Overview

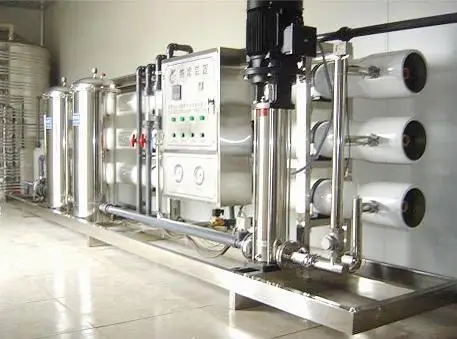

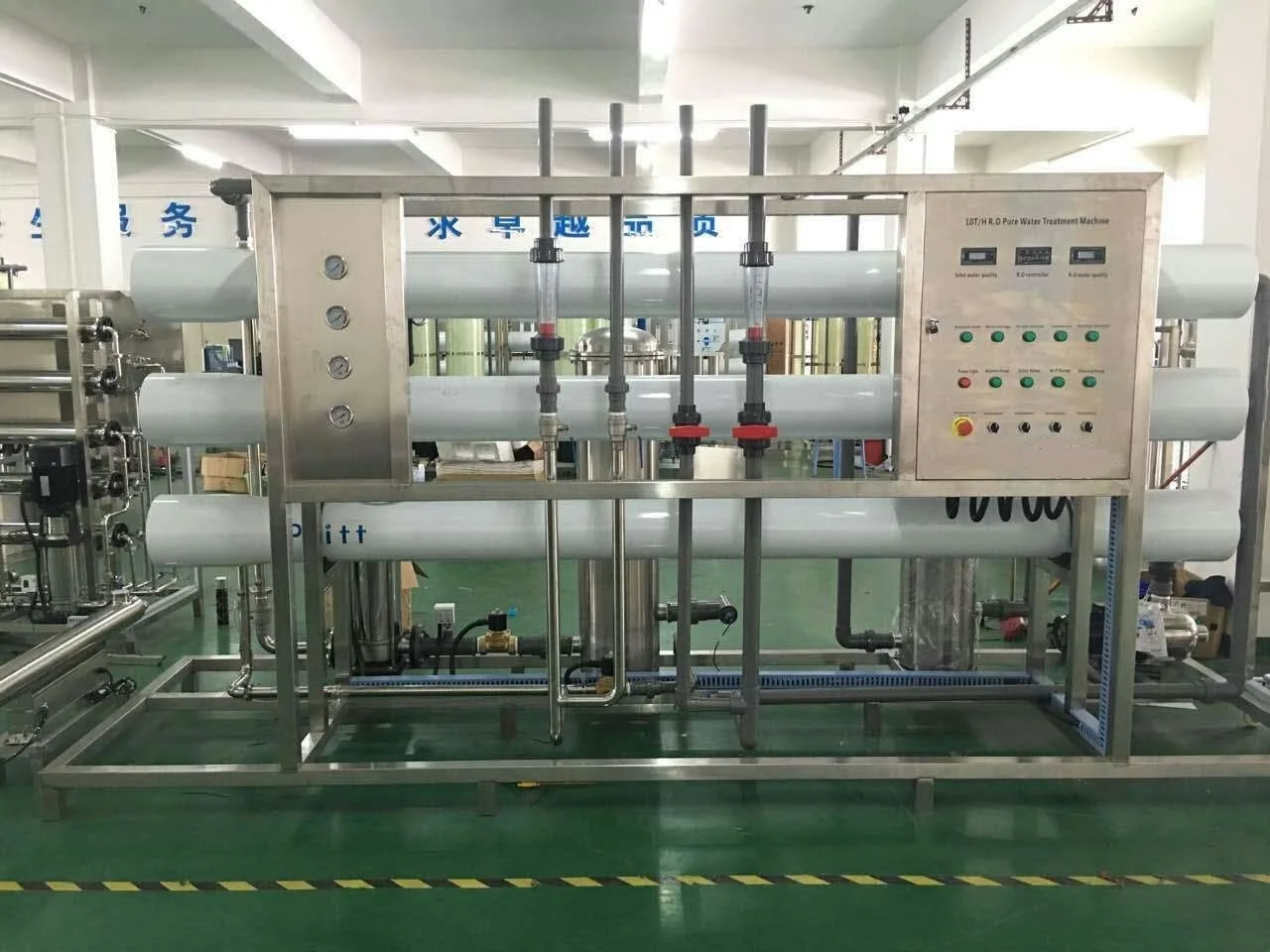

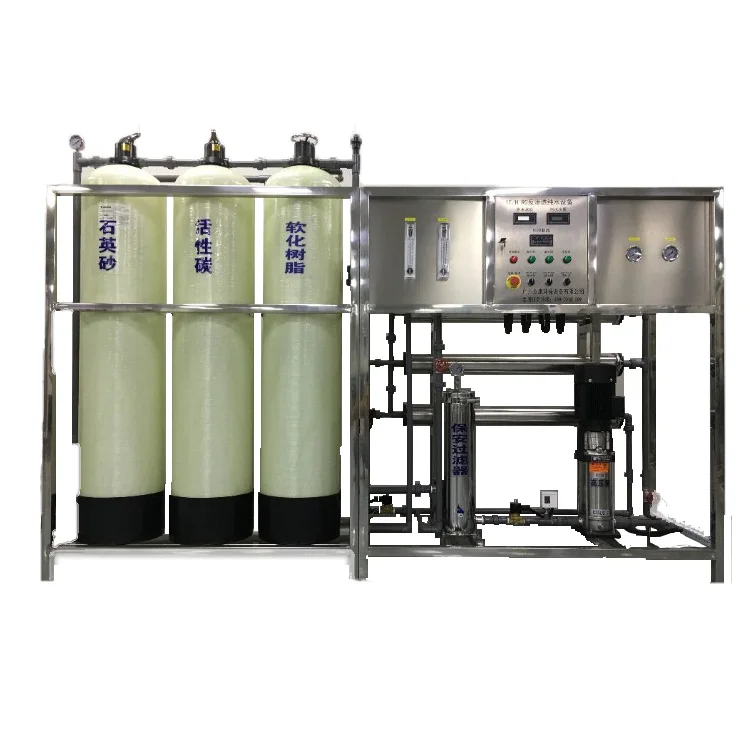

5000 Liter per hour Water purification system
High quality 5000liter per hour Reverse Osmosis water purification system for drinking
1.The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures.
2.The reverse osmosis method to adopt larger osmotic pressures is used to obtain the purpose to separate, extract, purify and condense.
3.More than 97% soluble salts and 99%glues, microbe, particulate and organic substances and etc can be removed with the reverse osmosis.
4.It becomes the most idea equipment for the modem program of pure water, hyper pure water, and airspace water. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high water quality, easy operation and maintenance.
1.The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Different materials have different osmotic pressures.
2.The reverse osmosis method to adopt larger osmotic pressures is used to obtain the purpose to separate, extract, purify and condense.
3.More than 97% soluble salts and 99%glues, microbe, particulate and organic substances and etc can be removed with the reverse osmosis.
4.It becomes the most idea equipment for the modem program of pure water, hyper pure water, and airspace water. The remarkable characteristics of the equipment are shown as lower energy consumption, no pollution, simple techniques, high water quality, easy operation and maintenance.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
7 * 1.5 * 2 meter
SAFETY FRAME:
S.S304
SIMPLE CONTROL
Automatic control value
EASY MAINTENANCE

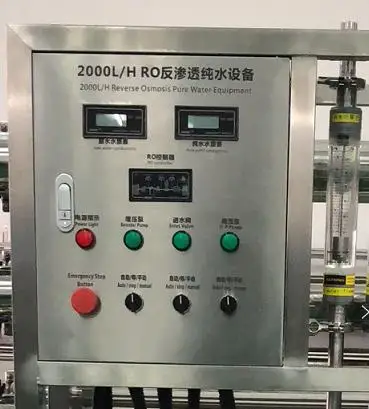

1 Control box
Reverse osmosis membrane
R.O machine
Part
PRODUCT SPECIFICATIONS
No | Item | Model /Brand | Model | Quantity |
1 | Raw water pump (Booster pump) | CNP material: stainless steel | CHL8-30 | 1 set |
2 | Quartz sand filter Active carbon filter Softener with brine tank Fiber glass reinforced plastics | Sand Carbon Ion exchange Washing control: Manual control valve | 50kg/ bag 25kg/ bag 50kg/bag | |
3 | Security membrane filter | Stainless steel 304 Type: vertical cylinder | PP 5μm 40” 1μm 40” | 10 pcs 10 pcs |
4 | Membrane filter | 5 units | 8040 | 8 pcs |
5 | Housing membrane | Fiber glass reinforced plastics Against pressure: 20kg/cm2 | 8040 | 8 pcs |
6 | High pressure pump | CNP | CDL8-14 | 1 set |
7 | Control box | PLC | Touch screen | 1 set |
8 | Dosing pump | PSEKO | AKS 603 | 1 set |
PRODUCT CONFIGURATION
Automatic control valve

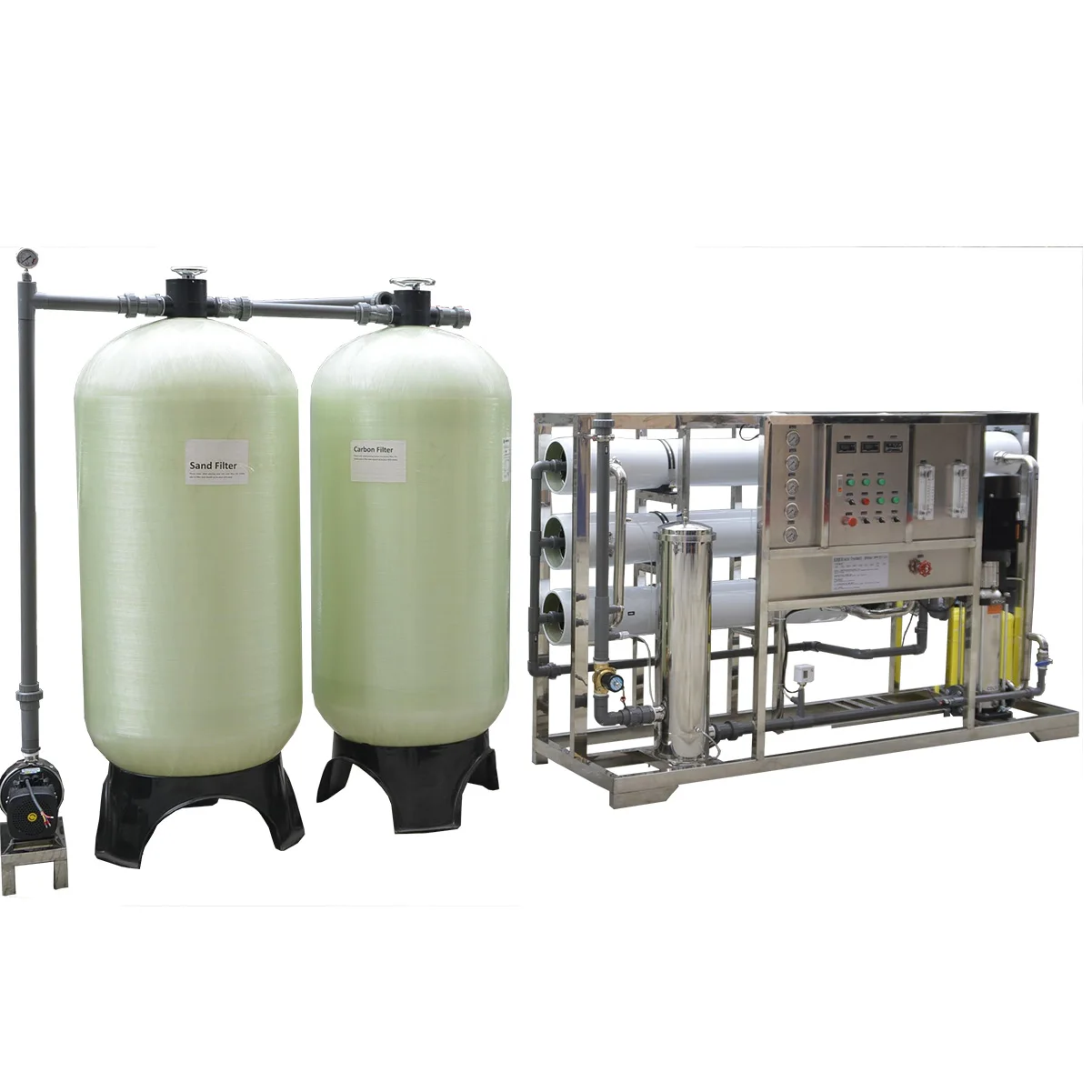

FRP filter
Stainless steel 304 filter tank
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Nigeria
