Product Overview
Description
Product Overview
Three SD card Mobile DVR 4G WiFi GPS 1080P Telematic Mobile DVR with ADAS+DSM
1. High Level SOC: Novatek NT98321,Built-in the NPU algorithm ability.can extend to add AI algorithms such as DMS\\ADAS\\BSD, driver's face recognition, camera-Cover alarm, and leftover detection.
2. Support Three memory cards slot,including Two SD card,one TF card slot, Single card supports up to 512GB.
3. Powerful GPS function, which can meet and above the functions required of traditional GPS tracker.
4. Support GLP server.
5. Easy assemble and replace.Achieve Three types of upgrades: GPS+4G function, GPS+4G+2CH video, GPS+4G+4CH video under only replace the cables and upgrade different versions of software with no need to dissemble the MDVR machine.
6. Support different UPS capacities to support delayed shutdown (1-3 hours)
2. Support Three memory cards slot,including Two SD card,one TF card slot, Single card supports up to 512GB.
3. Powerful GPS function, which can meet and above the functions required of traditional GPS tracker.
4. Support GLP server.
5. Easy assemble and replace.Achieve Three types of upgrades: GPS+4G function, GPS+4G+2CH video, GPS+4G+4CH video under only replace the cables and upgrade different versions of software with no need to dissemble the MDVR machine.
6. Support different UPS capacities to support delayed shutdown (1-3 hours)
FEATURES AT A GLANCE
Metal body design
4CH 1080/ single SD card mobile DVR
Support 4 CH video and 3 CH audio storage
Support single SD card 256GB for record storage
GPS/3&4G/WIFI function
GPS/BD/GLONASS global positioning
Right elevation
Left elevation

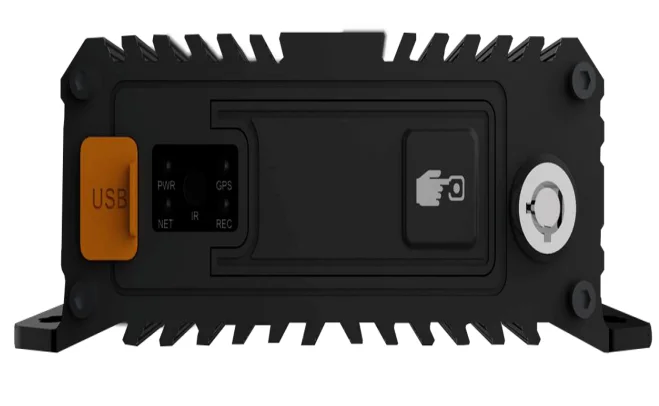

Front elevation
PRODUCT SPECIFICATIONS
Specification | ||||
Recording and storage | SD card | support each max 128GB SD car | ||
Storage time description | video quality; Storage capacity; Bit rate; Video time | |||
1080P(4channel); 256GB ; 4Mbps; 35H | ||||
720P(4channel); 256GB ; 4Mbps; 71H | ||||
D1(4channel); 256GB ; 4Mbps; 142H | ||||
Video and preview | Video input and output | 4-way AHD input | ||
1 channel CVBS output | ||||
OSD | Character stack, such as date, time, channel ID, GPS, license plate number, etc | |||
Video compression format | H.265 compression coding. Hisilicon 3520D high performance processor | |||
Double stream | support | |||
Preview function | 1, 4 screen splicing preview, support event trigger full screen and splicing switch display functions | |||
Frame rate | 1080P:60 frames/second, maximum 15 frames/second; 720P: 120 frames/SEC, single channel maximum 30 frames/SEC; | |||
resolution | Can support 1080P, 720P, D1 encoding format | |||
Image quality | Level 1 to 3 video matching, the best level 1, the lowest level 3 | |||
Bit rate | D1: 512,768,1024 tier 3 optional | |||
720P:1024,2048,4096, grade 3 optional | ||||
1080P: 2048,4096,6144, grade 3 optional | ||||
video | Video mode | Support SD card loop recording and loop deletion (delete the earliest video) | ||
File format/system | H.265/FAT32 | |||
Video mode | The default boot video, can set alarm video, timing video | |||
Video search | Can be searched according to the recording time, recording type, recording storage and other conditions | |||
Video playback | Support PC player playback, support mobile APP download MP4 playback, support local device playback | |||
Support fast forward, fast back, play, pause control, support 2, 4, 8, 16 times fast forward or fast back, support playback control at select time | ||||
Network and positioning parameters： | 3G/4G/5G | EVDO/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE etc | ||
WIFI | Temporary not support | |||
Ethernet | Cable network is not currently supported | |||
Orientation | GPS/BD | Positioning, speed detection, time synchronization | ||
Extension Interface | USB | 1xusb2.0, for data export, upgrade use | ||
SD | SD card slot | |||
SIM | 1 x SIM card slot, flow card slot | |||
serial port | 1 x RS232 | |||
Switch quantity | 4 channel input | |||
Output 1 channel | ||||
WIFI-ANT | Reserve WIFI antenna interface | |||
4G-ANT | 4G antenna interface | |||
GPS-ANT | GPS antenna interface | |||
Physical properties | size（mm） | 128.7 (L)x 104(W) x 40(H) | ||
weight（Kg） | 0.514KG | |||
Environment | Working temperature | -20-70℃ | ||
Working humidity | 8%-90%（No condensation） | |||
power input | 8~36V | Input voltage is +8V ~ +36V. If the voltage is lower than 8V for a long time or higher than 36V for a long time, the device will automatically shut down and enter protection mode. | ||
output voltage | CAME_12V * 4 | 4 channels of camera power output, 1 channel of display power output, each channel 0.5a | ||
Car key (ACC) signal | ≤6V | The car key closes. | ||
≥7.5V | The car key opens. | |||
Built-in UPS | 2*2.7V,7F | Power on and charge for 1 minutes. External power loss, can keep the system working 2S, complete the data saving shutdown | ||
Power consumption | bare | ≤5W | ||
global function | ≤12W | |||
Successful Project
School Bus Project in Oman
Excavator Project in IRan
Oil truck Project in Russia
Company Profile
Packing & Delivery
FAQ
1 ) Do you have MOQ for your Mobile DVR & Vehicle cameras?
We do not have Minimum Order Quantity for every order, we can manufacture and process Mobile DVR & Vehicle camera orders from 1 pC. So it's an easy way for us to start your business.
2 ) Can I visit your Mobile DVR & Vehicle Cameras warehouse in China?
Welcome to visit our Mobile DVR, Vehicle Cameras Manufacturer in Shenzhen, Guandong province, China. Fly to Shenzhen directly, and then we will pick you up. NO worries.
3) Can you send us your certification?
Of course, it's no problem; simply tell us which credential you want to verify, and we'll send you a very simple PDF file.
4) What are the payment methods?
We accept TT 50% deposit, and 50% before shipment. Small order amounts are 100% TT in advance. You will get images and videos for your Mobile DVR manufacturing and packaging.
5) Does QOHO only manufacture Mobile DVR?
Not exactly, QOHO can also manufacture all other Vehicle Camera systems, such as driver fatigue monitor, ADAS camera,body cameras, AI MDVR, and other vehicle surveillance systems. Just send us your requirement and we will assist you.
6) sOHOM esie ofal oterr Moi ovRS advie Cameras?
Yes. ne malorty ofQOH0 poucts are our own cncpep and private model,so we appreciate your ODM & OEM, and wve wil do our best to asst you.
7 ) How do we make technical training on Mobile DVR & vehicle camera?
QOHO will provide online professional support as well as on-site training for large projects. Our priority is to provide the best possible support and solution.
8) Why choose QOHO as your suplier & business partner?
QOHO will have a siled approach when you buy, complete quality control before delivery. the best preparation for our Car Secunity System implementation, and atter sales service regardless if your last order was long ago. As you know, we are always on your side.
