High Pressure 100hp 2 inch 4 inch 6 inch 8 inch Irrigation diesel water pump
- Category: >>>
- Supplier: Shijiazhuang An Pump Machinery Co. Ltd.
Share on (11000003542055):
Product Overview
Description

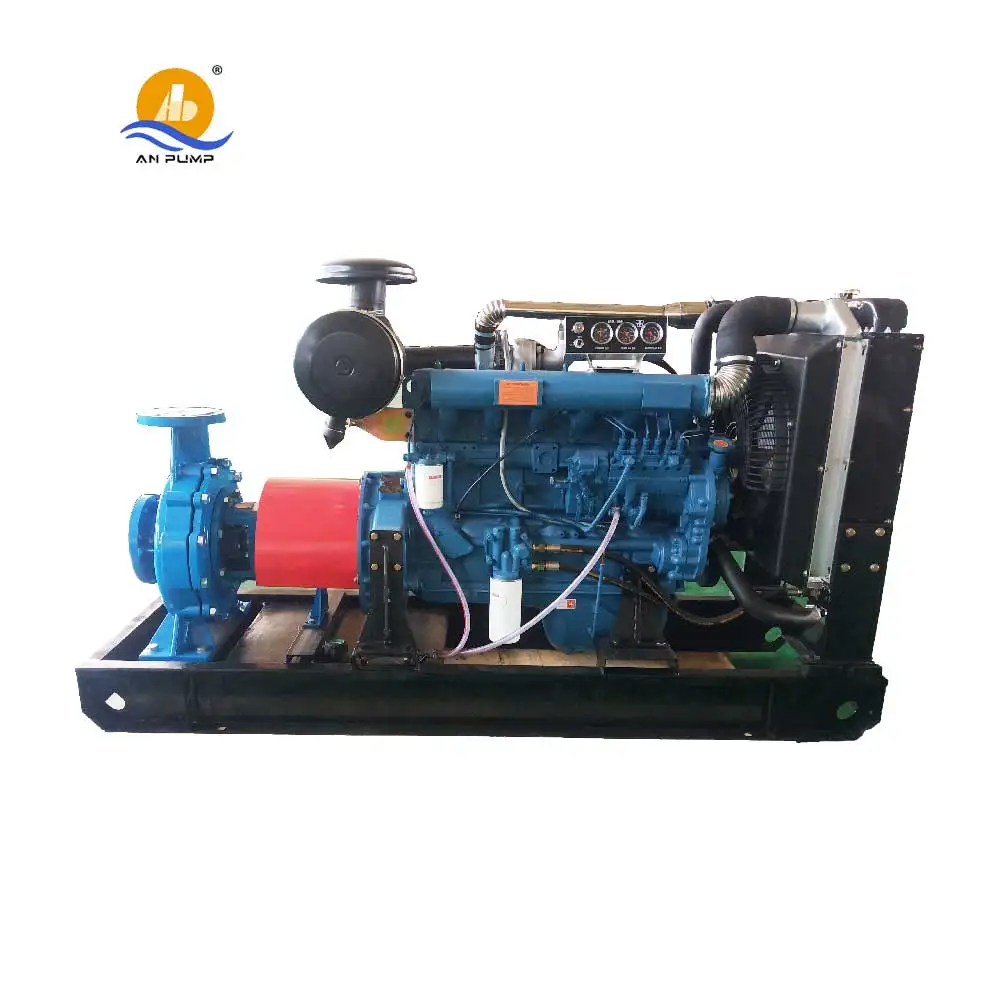

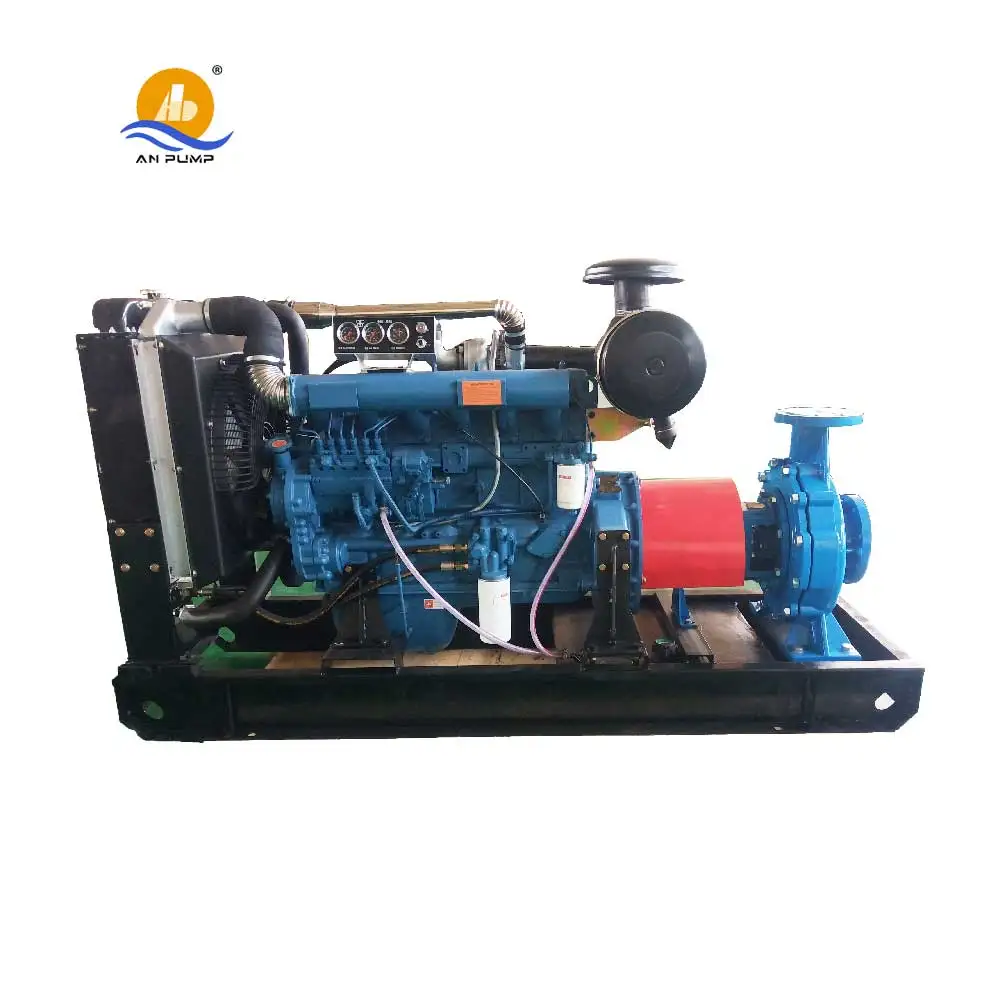

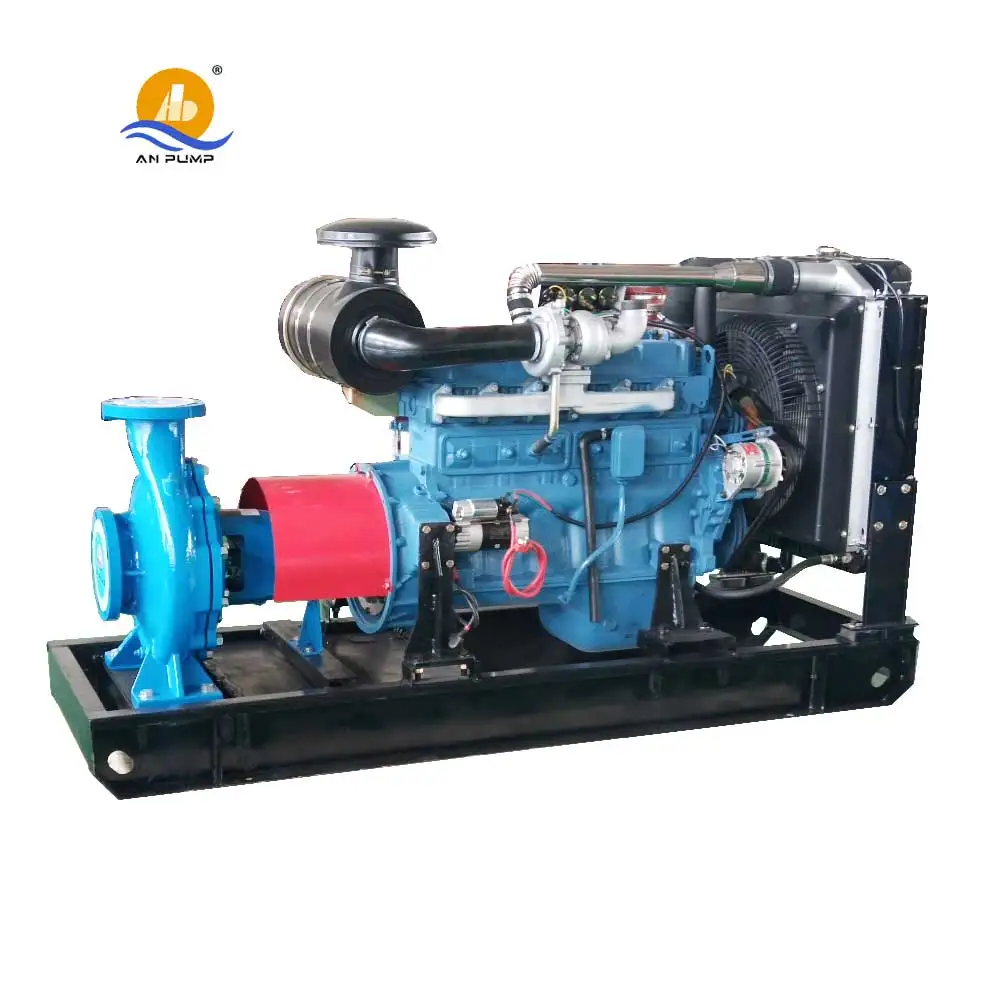

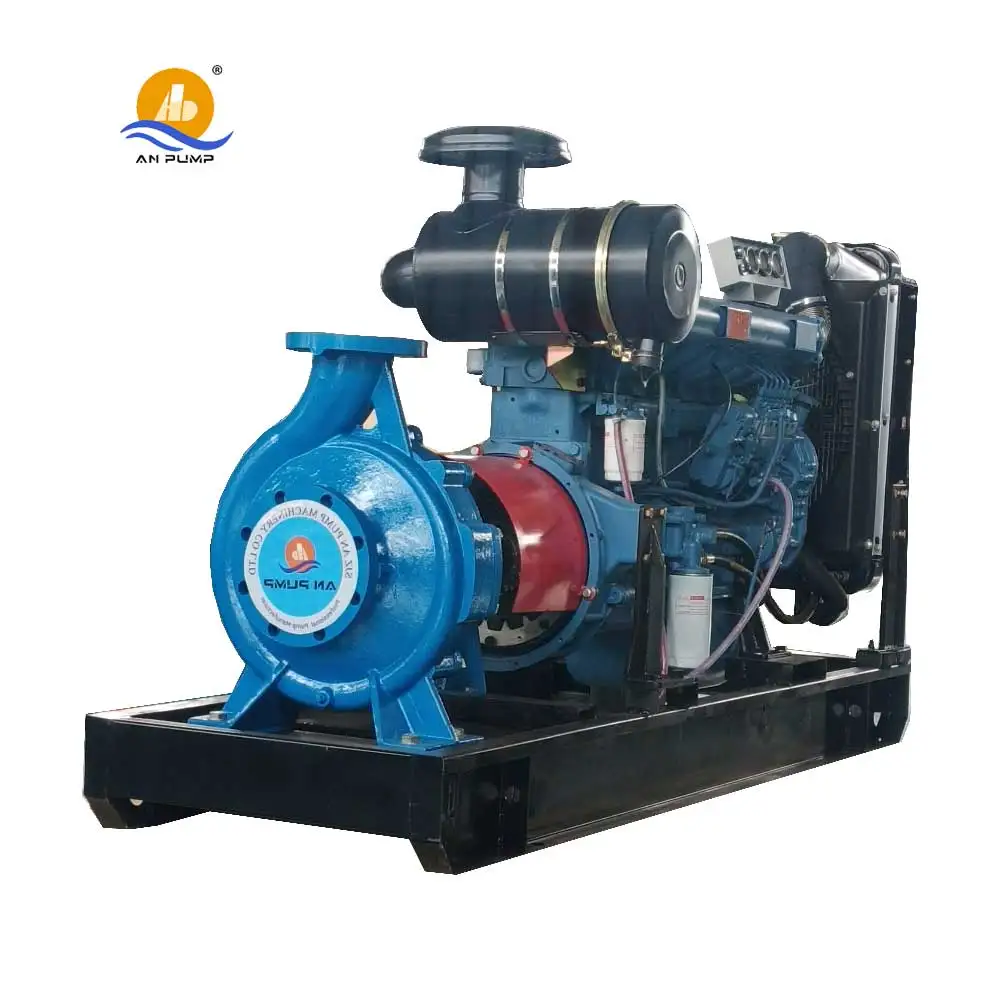

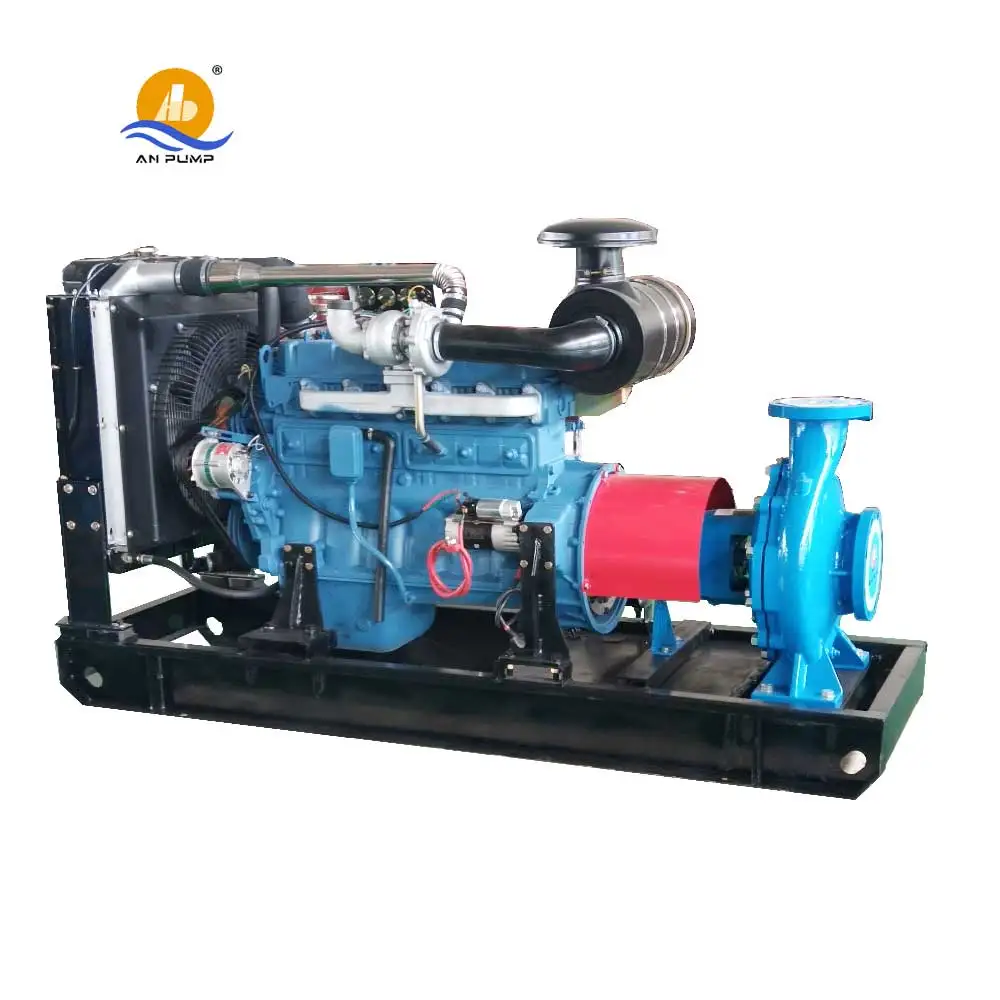

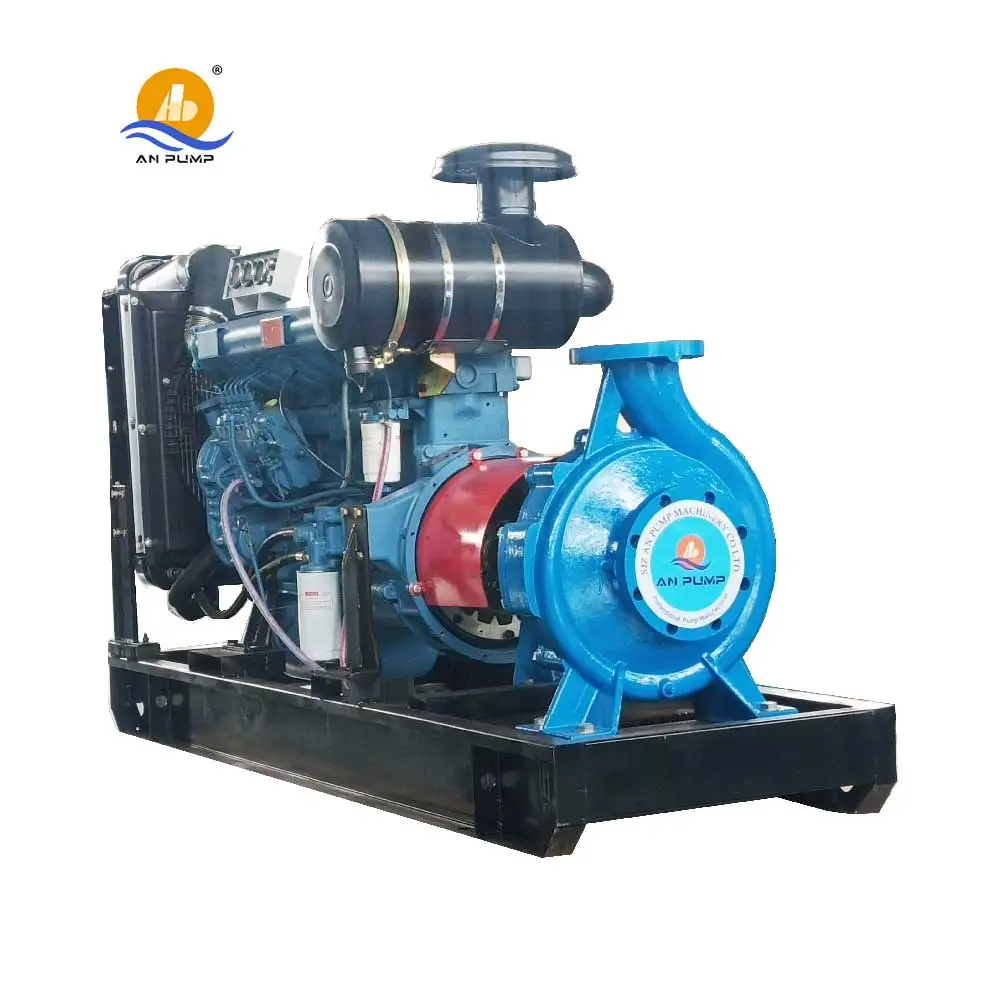

High Pressure 100hp 2 inch 4 inch 6 inch 8 inch Irrigation diesel water pump
QI(H) Centrifugal end suction pump is a single stage, single suction pump for pumping clean water and the other liquids physically and chemically similar to the clean water.
This pump is suitable for public water supply and drainage duties in industries and land irrigation also in agriculture as the diesel engine agriculture irrigation water pump
We use the world first level diesel engine and the latest techincal at fuel feed and environmental protection to make our OI(R) Farm Agricultural irrigation diesel engine water pump for field irrigation pump set to be your best choice at irrigation pumps!
Diesle Engine of the QI farm irrigation diesel water pump
 | We use the world first level diesel engine manufacturer's diesel engine for our irrigation pump set. We could also supply the Spare parts both our pump and the diesel engine pump we supplied and you could also get the afet sales service from all ove the world! |
An Pump Certificate
Product Description
Material of Diesel End suction Centrifugal Water Pumps
Material | Common(G) | Wear resistant(P) | Ultrawear resistant(N) | Stainless steel(F) |
Pump casing | HT200 | QT500-7 | Wear resistant | SS304 |
Pump cover | HT200 | QT500-7 | Wear resistant | SS304 |
Impeller | SS304 | Duplex SS | Duplex SS | Duplex SS |
Liner of front and behind | Wear resistant steel | Wear resistant steel | Wear resistant | Duplex SS |
Bearing body | HT250 | HT250 | HT250 | HT250 |
Shaft | 3Cr13 | 3Cr13 | 3Cr13 | 3Cr13 |
Shaft sleeve | 2Cr13 | 2Cr13 | 2Cr13 | SS304 |
Diesel End suction Centrifugal Water Pumps features
1.Capacity 6.3-400m3/h
2.Head 5-125m
3.Speed 2900 r/min or1450 r/min
4.Discharge 50-200mm
5.Medium temparature: No more than102 degree centigrade
6.Working pressure: No more than0.6 centrifugal pump
7.Diesel engine type: Water cooled or air cooled
8.Diesel engine power: 10HP-2000HP
9.Diesel engine started: Electric
Type | Flow (m3/h) | Head (m) | Power (KW) |
QI50 | 3.4-15 | 3.7-68.8 | 0.55-11 |
QI65 | 6.8-30 | 3.7-126.8 | 0.55-30 |
QI80 | 13.6-60 | 3.6-128 | 0.55-45 |
QI100 | 27.3-120 | 3.4-115.5 | 1.5-75 |
QI125 | 56-240 | 8.5-132.5 | 2.2-110 |
QI150 | 99-240 | 12.4-57.5 | 15-55 |
QI200 | 197.7-460 | 14.8-55.8 | 30-90 |
General description of Diesel End suction Centrifugal Water Pumps
The centrifugal pump is single-stage and single-suction centrifugal pump, which designed according to ISO2858 international standard and the replacement product of BA-type water pump. It is widely used in industrial and municipal water supply and drainage, agricultural irrigation and can also be used for conveying water or physical and chemical properties similar to water or other liquids bellow 80° C.
The pump is also designed according to ISO2858 international standard, which designed for boiler feed water and hot water circulation system. It could also be used for industrial and municipal water supply and irrigation, but the temperature should be not higher than 150° C.

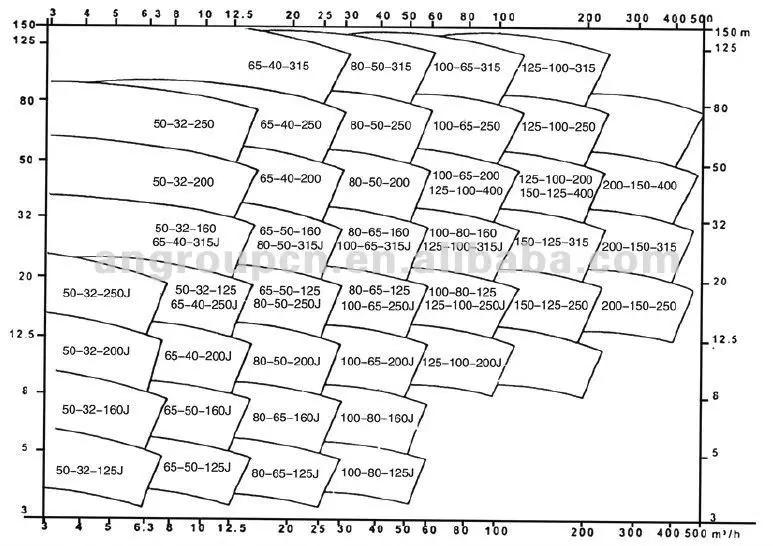

Performance chart of Diesel End suction Centrifugal Water Pumps
Packaging & Shipping
Standard wooden case packing of Diesel End suction Centrifugal Water Pumps
Our Services
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
Company Information
An Pump Machinery is your Best Irrigation Water Pump Manufacturer
An Pump Machinery Co. ,Ltd is the pump manufacturer with 50+ years experienced
Our pumps export to over 90 countries all over the world in mining, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc. click to more...
An Pump Machinery is your ISO certificated Water Pump Manufacturer
An Pump Machinery is also CE cerficated Diesel Water Pump Manufacturer
FAQ
1. Q: Are you a trading company or manufacture?
A: An Pump Machinery Co., Ltd is a real large professional manufacturer more than 32 years, in China, produce with our own factory.
2. Q: what's your factory workshops ?
A: My factory produce include casting, mechanical process, lathe process, heat treatment, assembly, and test etc.
Warmly welcome to visit & test my factory any time.
3. Q: How about your QI series centrifugal end scution pump price?
A: We are sure our price is factory price, and insist hig quality for our long term cooperation.
4. Q: What is your QI series end suction pump material ?
A: For the QI end suction pump, we could produce cast iron, cast steel, stainless steel, bronze, and material high CrMoNi alloy.
And we could also produce as your requirements.
5.Q: What kind of liquid can your QI series centrifugal end suction pump transfer?
A: Liquid range: water, chemical liquid, hot water, sewage etc.
6. Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.
Our factory has 15~30 QC.
7. Q: Is it easy for customers to change the parts by myselves ?
A: yes, the structure is simple ,customers can change it very easliy. We will also supply you maintenance tools for free.
8. Q: How about your gravel pump warranty?
A: 1 year warranty for commplete setpump, 6-8 months for wet parts, it depends on other pump working condition details.
9. Q: How to do if the pump or parts have operatation problem within your warranty?
A: Tell me details timely, and show me pictures, we will send you pump solution at once without any hesistation.
10. Q: Can you install the electric motor or diesel engine with the pump for us ?
A: yes, we can, it's no problem, we are experienced in this .
11: Q: .we don't know which pump model we need ,can you help us ?
A: yes, please tell me your detail requirements, include liquid, flow rate, head etc,
my engineers team wiill calculate & select most suitable pump model for you, offer pump solution for you.
12. Q:How long can you reply us if we send an inquiry ?
A: Generall within 2 hours, we will send you official quotation sheet, with price, technology data, performance curve, dimension etc.
13. Q: What are your advantages,why should I choose you?
A: Higher Quality, our parts have 30% longer life than the originals
Short Delivery Time, for normal parts,we have stock in our warehouse
Competitive Price, we can help you cut down the cost by 30% or more
Best Services, we have technical department, quality control department and a professional sales team, we will offer professional service for you any time.
