China Hot Sale 1 30T/H Easy Operate Acacia Hihg Automatic Complet Wood Pelet Machine Wood Pellets Line
- Category: >>>
- Supplier: Shandong Bolida Machinery Co. Ltd.
Share on (11000003610747):
Product Overview
Description
Products Description

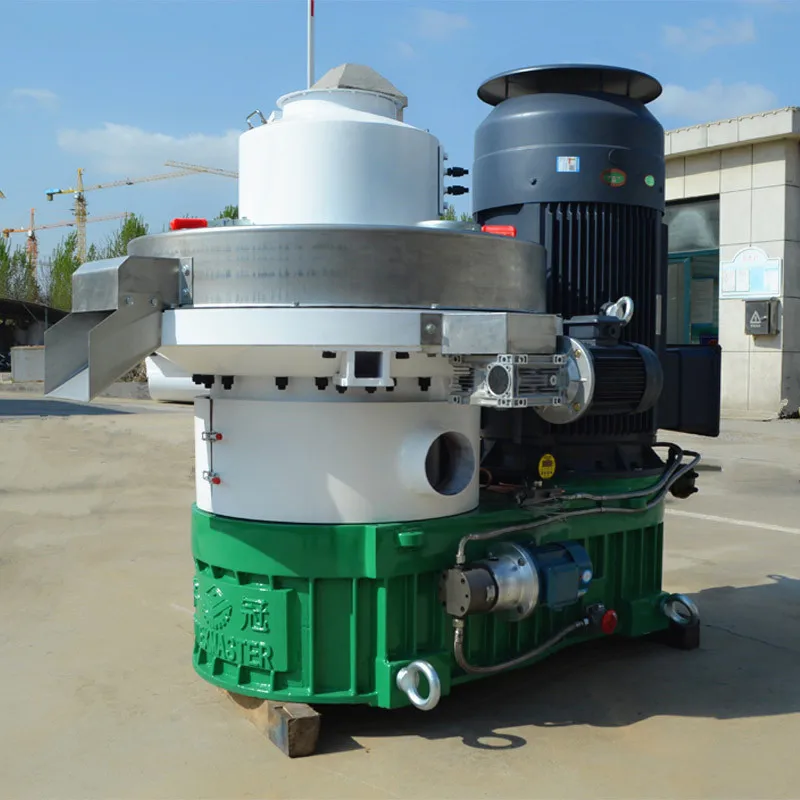

Biomass Wood Pellet Mill Machine
Biomass Wood Pellet Mill Machine,also called wood pellet press, is a equipment to press wood sawdust, rice husk ,small size wood
into 6mm or 8mm biomass pellets.The finised pellets are used as fuel instead of traditional coal .Bolida biomass pellet mill

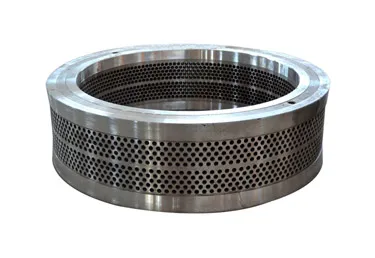

machine/wood pelletizer is vertical ring type, different from horizontal ring die pellet machine. The die is double layer, both
side could be used.
On other hand, vertical ring die pellet machine comes with high pressure due to die is static, roller rotation when working.
into 6mm or 8mm biomass pellets.The finised pellets are used as fuel instead of traditional coal .Bolida biomass pellet mill
machine/wood pelletizer is vertical ring type, different from horizontal ring die pellet machine. The die is double layer, both
side could be used.
On other hand, vertical ring die pellet machine comes with high pressure due to die is static, roller rotation when working.

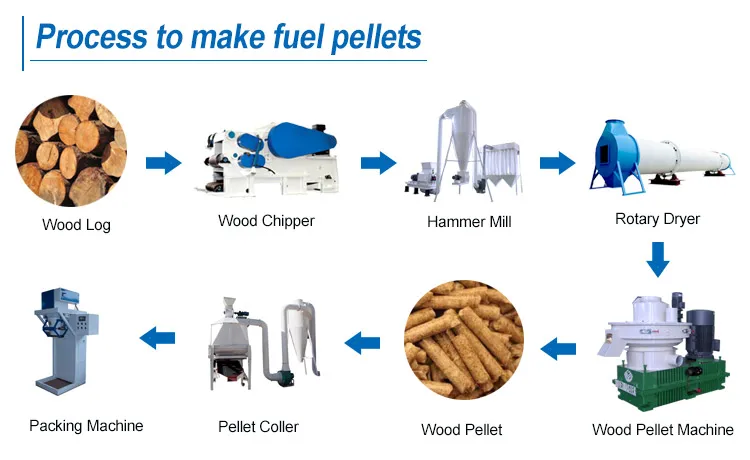

Main Process for Press Biomass Pellets
For set up a biomass wood pellet plant, first you need to confirm which raw material do you plan to use .
Different raw material has different processing steps.
Usually, the main process is:
1.Pre-treatment section：Chipping Section-Grinding Section-Drying Section
2.Key Section:Pelleting Section
3.Post-Treatment Section：Cooling Section and Packing Section
Product Paramenters
Model | Main Power(kw） | Capacity(t/h) | Dimension (L*W*h)mm | Weight(t) |
YGKJ560 | 90 | 1-1.5 | 2200*1300*1600 | 5.5 |
YGKJ 560 | 132 | 1.5-2 | 2200*1300*1600 | 5.8 |
YGKJ700 | 160 | 2-3 | 2400*1400*1800 | 7 |
YGKJ880 | 220 | 3-4 | 3000*1500*2300 | 13 |
Raw Material and Application

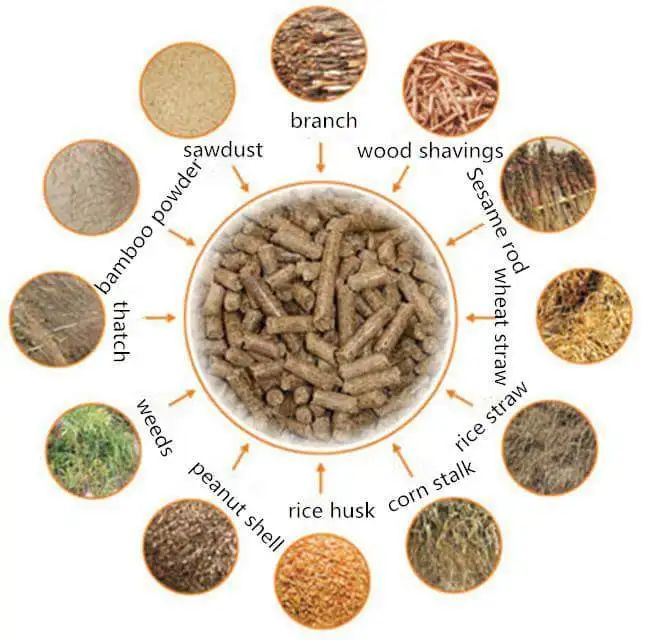

Raw Material for Press into Biomass Fule Pellets
In fact,neary all kinds forestry waste and agriculture waste could be used as raw material.Such as wood log, wood branches ,wood chips, wood sawdust, sawmill processing waste-wood shavings, rice husk, rice strawm corn stalk.
bamboo ,alfalfa .....
Of course, different raw material need different processing steps.
For press into pellets by a wood pellet mill machine, the size of raw material need to less than 10mm.
And moisture content should better 12%-15%.
So if size is bigger or moisture content is higher,
a pre-treatment section is necessary.
Pre-treatment section usually is :Chipping Section-Grinding Section and Drying Section.
Certifications
Company Profile
Bolida
Bolida is a professional manufacture for biomass pellet machine, wood chipper, rotary dryer, biomass wood pellet line.Bolida offer
turnkey solutions for pelleting plans/Wood pellet plant, complete units or single process lines such as; -Raw Material Processing;
Including(Debarking-Chipping-Wet Grinding) Debarker/Splitter/Wood Chipper /Diesel Wood Chipper/Chaff Cutter /Wet Hammer
Mill/Crushers -Thermal Drying Including Completely Drying line(Drum Rotary dryers/Triple Dryers/China Stain/Chamber/Steel
Frame/Chimmey/Pellet Burner -Pellet Production Including Pellet Mills Machine/Hammer Mills/Coolers/Sieves/Packing
Machines/Automatic Control System/Pulse Dust System
turnkey solutions for pelleting plans/Wood pellet plant, complete units or single process lines such as; -Raw Material Processing;
Including(Debarking-Chipping-Wet Grinding) Debarker/Splitter/Wood Chipper /Diesel Wood Chipper/Chaff Cutter /Wet Hammer
Mill/Crushers -Thermal Drying Including Completely Drying line(Drum Rotary dryers/Triple Dryers/China Stain/Chamber/Steel
Frame/Chimmey/Pellet Burner -Pellet Production Including Pellet Mills Machine/Hammer Mills/Coolers/Sieves/Packing
Machines/Automatic Control System/Pulse Dust System

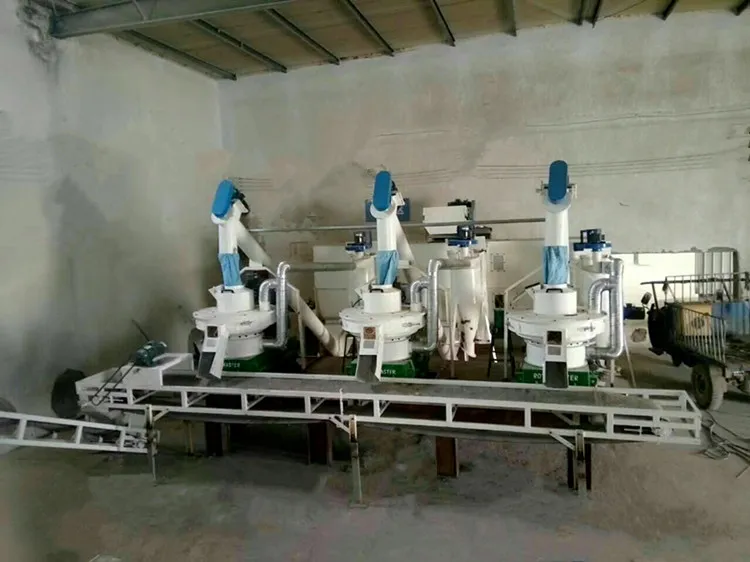

Customer Photos

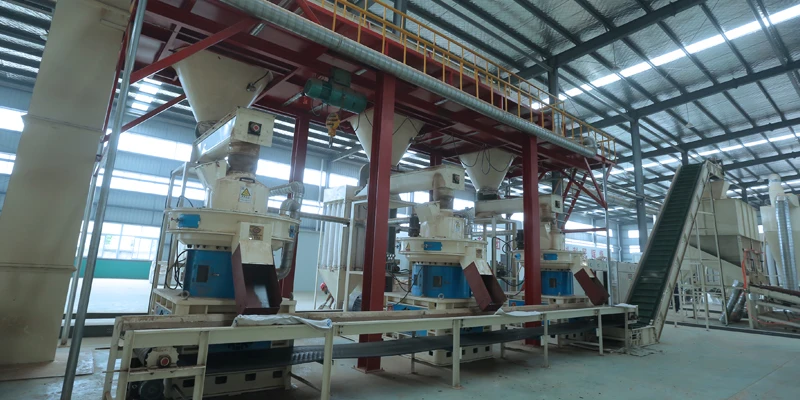

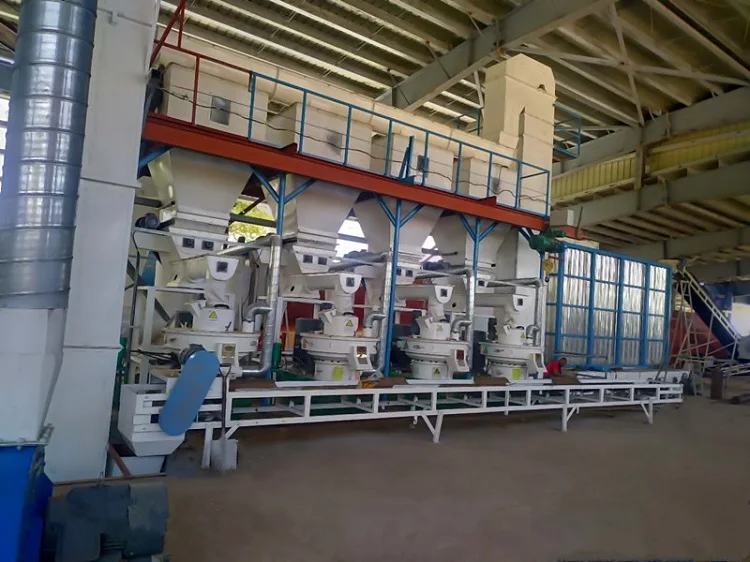

Philippines 4-6tph Biomass Wood Pellet Production Line
This wood pellet line is set up in Philippines with capacity 4-6tph.This wood pellet production line was set up in 2020,it comes
with drying section-hydraulic buffer silo-pellets section(4 sets pellet mill machine)-cooling and packing section.
with drying section-hydraulic buffer silo-pellets section(4 sets pellet mill machine)-cooling and packing section.
China biggest 20tph High Automatic Wood Pellet Production Line
Biggest wood pellet production line with capacity 20tph, which was set up in 2018.It include: Chipping Section-the first drying
section-grinding section-the second drying section-big buffer silo-pelletling -cooling and packing section.
section-grinding section-the second drying section-big buffer silo-pelletling -cooling and packing section.
Biomass Wood Pellet Line 6tph
This wood pellet line is use tobacco rod as raw material.It include chipping-grinding-drying-pelleting-cooling and packing section.
Thailand 6tph Biomass Wood Pellet Production Line
6tph wood pellet line was set up in 2016, with old type vertical ring die wood pellet machine.
Tunisian olive pomace Pellet Line
olive pomace is a good raw material for press into pellets with high heat value.The whole wood pellet processing plant include
:drying-pelleting-cooling and pakcing section.
:drying-pelleting-cooling and pakcing section.
Taiwan Biomass Pellet production line
use 4 sets wood pellet mill machine, The color of the pellet machine is made by the customer
Other Hot Products
Drum Wood Chipper
Drum wood chipper also called wood chipper shredder machine, is used to chip big size wood log, wood branches ,waste wood pallets into 3-5cm wood chips
Title goes here.
Diesel engine mobile drum wood chipper shredder machine is widely used in some place where lack of electricity. It comes with
wheels ,so it is eays to movable .
wheels ,so it is eays to movable .
Hihg Efficiency Wood Hammer Mill/Wood Crusher
Hammer mill , also called wood crusher machine, wood sawdust making machine. It comes with air lock, fan blower, bag dust
collectors when working.
collectors when working.
Hihg Heat Efficiency Rotary Dryer
olida rotary dryer is mainly used to dry wet wood chips ,wood sawdust into suitable moisture content. Usually use hand stove,chain
stove or pellet burner to offer heat for drying equipment.
stove or pellet burner to offer heat for drying equipment.
Rotary Cutter
Rotary cutter is mainly for cut wheat straw, cotton stalk into 10-30mm .Usually, the diameter of wheat straw is very large, it about 2m, and use a forklift to send wheat straw into rotary cutter.
Biomass Wood Pellet Burner with Automatic Ash Removel System
Biomass pellet burner is used wood pellets, rice husk pellets as fuel. For big model biomass pellet burner, it comes with
automatic ash removing system.
automatic ash removing system.
