Product Overview

Description

HD IP encoder modulator CVBS H.265 H.264 encoding board pcba Ethernet LAN HTTP RSTP UDP ON-VIF TCP IP Vcan1746

Advantage:

• Ultra-low latency H.265/H.264 audio and video encoding maximum support 1080P@60 real-time video capture and encoding


• H-D-M-I or AV audio and video input, after encoding, the Ethernet port output or Output to wireless module, video encoding bit rate can be dynamically configured


• Support audio input and audio decoding output


• Support two videos (H-D-M-I+AV) simultaneous input encoding (option)


• Web UI or serial port for configuration management

Feature

The board implements H.265/H.264 audio and video compression encoding, supports up to 1080P@60fps encoding, and is backward compatible with other resolutions and frame rate encodings.

Audio and video input
1. H-D-M-I interface(audio+video):1080 60P,1080 50P,1080 30P,1080 25P,1080 60I,1080 50I, 720 60P,720 50P,720 30P, …, various modes adaptive;
2. AV in the interface(audio+video):720×480 60I(NTSC),720×576 50I(PAL), mode adaptive. through the AV interface, it can be Line in or Mic in.

video input sources. The default audio input is the same as the video input interface. The audio input interface can also be configured through the Web UI the serial port detects and audio. or The audio and video source signals are encoded, and the audio and video source acquisition interface can also be configured through the configuration serial port, and the audio and video source acquisition interface can be dynamically switched through serial port commands during system operation.
Video encoding: H.265 or H.264 format, the encoding bit rate can be configured.
Audio encoding:AAC encoding.
By programming special firmware H-D-M-I+AV the simultaneous capture and encoding of board Audio output(Audio out)
The board has a built-in audio decoding output function(Line out), which can be connected to an external headphone or audio power amplifier. Audio is decoded and played.

Ethernet port (Ethernet interface)
supports docking with Sihaida two-way wireless transmission module, or other third-party two-way links.

Wireless transmission interface(FPC_Main interface)
can be connected to our COFDM wireless transmission module, and can also be connected to our two-way wireless transmission link module.

Data-uart
TTL 3.3V level, parameters such as transmission baud rate can be configured. When the board through a wireless link, the data serial port is used for transparent data transmission.

Control-uart
TTL 3.3V level, which can be connected to our parameter configuration panel or another upper computer to configure the encoding board system.

USB Host interface
software upgrade and maintenance.

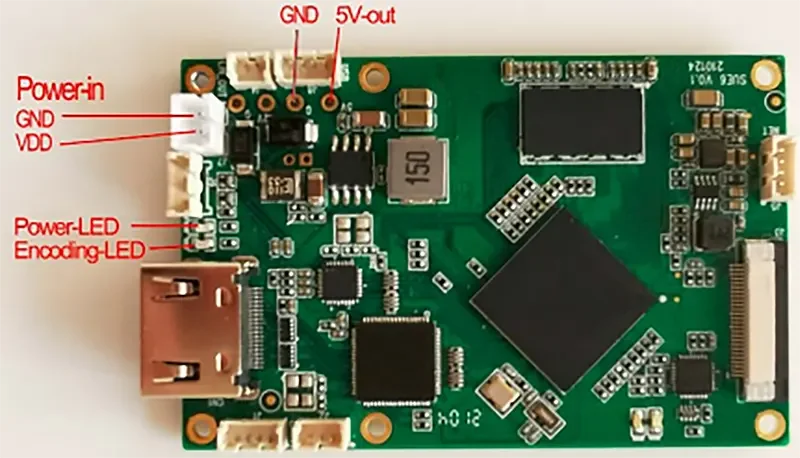

Power supply voltage
supports the reverse connection protection of the power input, and supports the power input range of 7~30V. Provides a 5V power output interface. The maximum working power consumption is 2.4W (1080P60 H.265 encoding), and at 12V the maximum current is 200mA.

Indicator
power indicator, video encoding work indicator.

The board size is 70x45mm
Board thickness 1.2mm
The height of the back component is less than 2.5mm, and the height of the front component is less than 6.8mm.

Board weight
20.6 grams.

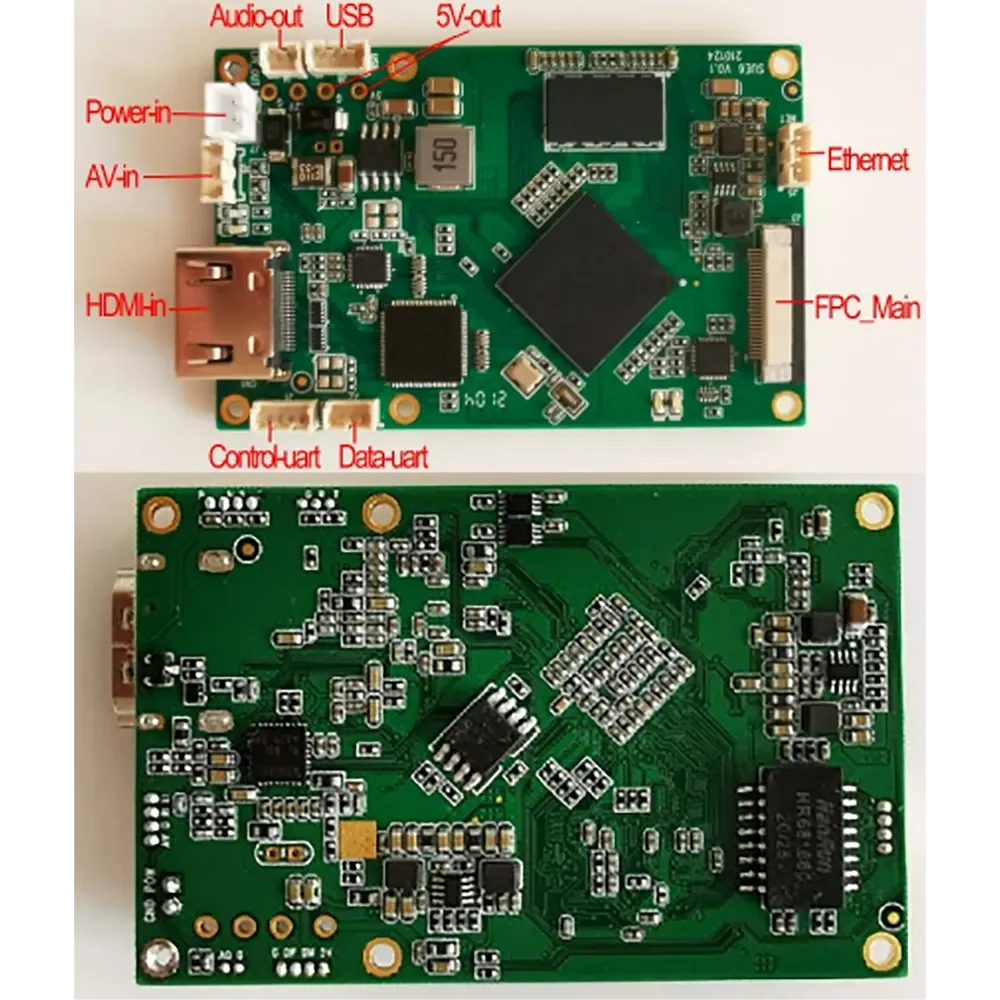

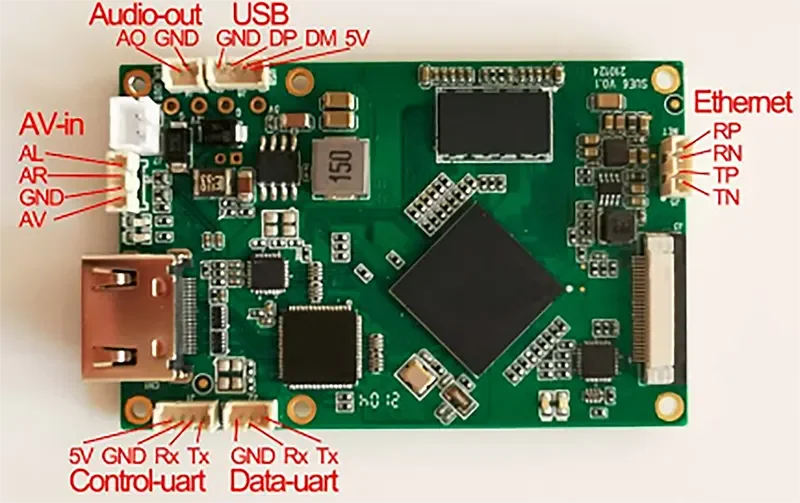

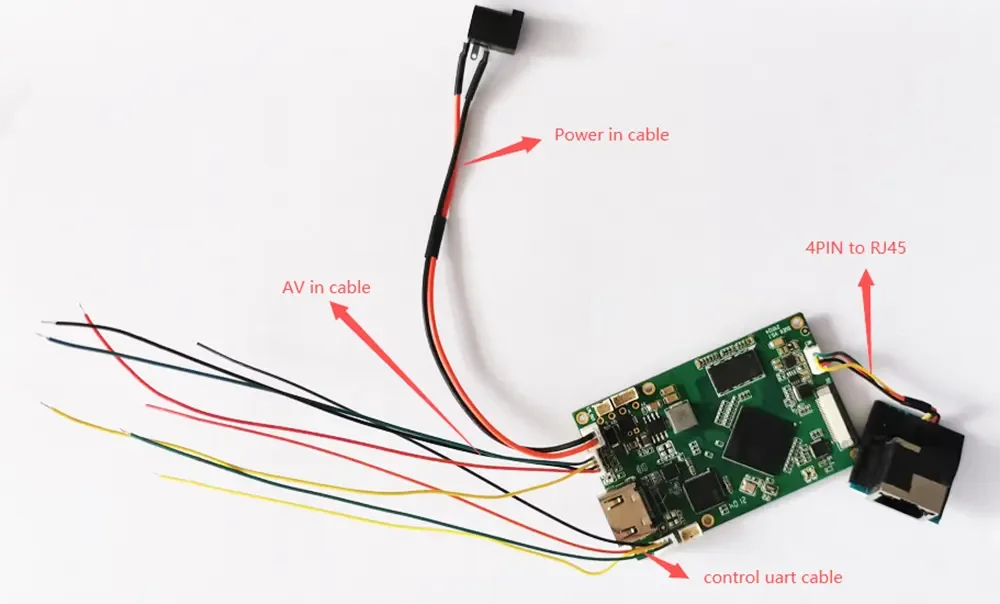

Interface Signal

• AL (Audio in light), audio input left channel;


•

  AR(Audio in right), audio input right channel;




•

  GND, signal ground;



USB interface:4PIN 1.25mm pitch socket, used for SUE6 board software upgrade and maintenance.

Audio-out interface:2PIN 1.25mm pitch socket, the board has a built-in audio decoding output function(Line out), which can be connected to an external headphone or audio power amplifier. Decode and play the audio input from the network port.

Ethernet: Ethernet interface,4PIN 1.25mm pitch socket

Application

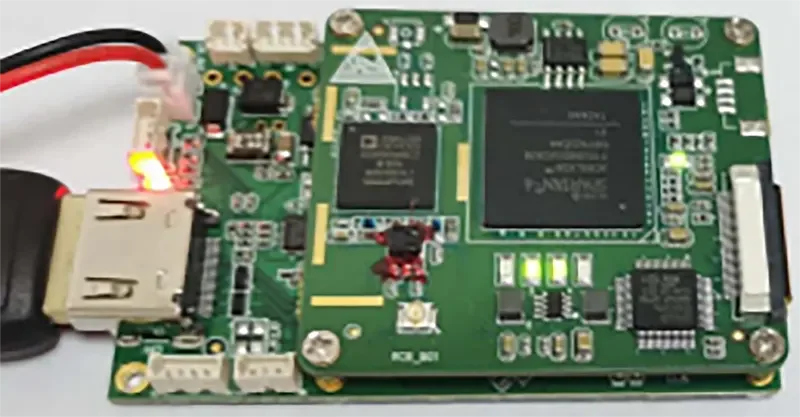

1) The board can be COFDM modulation module RCB stacked and assembled with COFDM one-way transmission module. The connection interface is FPC_Main (26PIN flat cable flexible cable interface).

H-D-M-I IP encoder modulator CVBS H.265 H.264 encoding board pcba Ethernet LAN HTTP RTSP UDP on-vif TCP IP encoding board is RCB COFDM modulation module

2) The board is connected to a two-way wireless link through the network port. At this time, the operating parameters can be configured through the network port Web UI. For example, set the video encoding bit rate, H264/H265 encoding method, audio input method, serial port baud rate, etc.

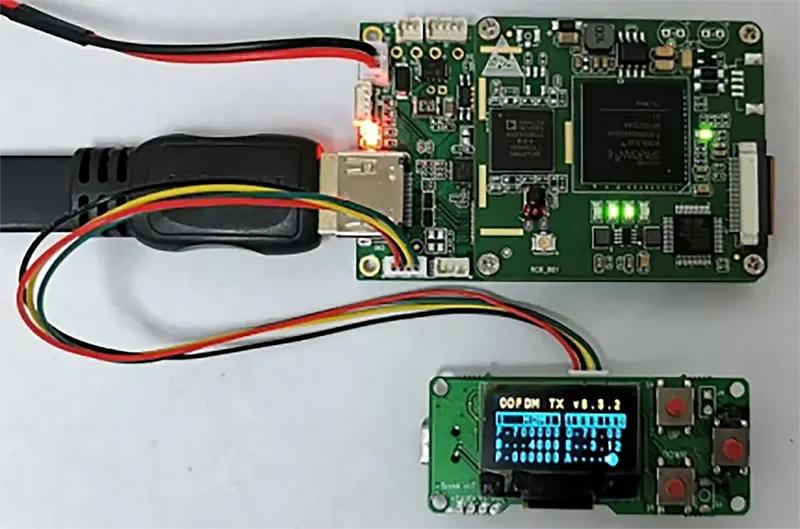

3) The board can be connected to Control-uart parameter configuration panel(SconA,SconB,SconC etc.)set operating parameters.

H-D-M-I IP encoder modulator CVBS H.265 H.264 encoding board pcba Ethernet LAN HTTP RTSP UDP on-vif TCP IP Control-uart parameter configuration panel

FAQ

1. H-D-M-I interface version: H-D-M-I V1.4

2. Ethernet Output Data rate: 100MBps

3. Operating Temperature range: -40~85 degree

4. Compatible Operating System: Embedded Linux
