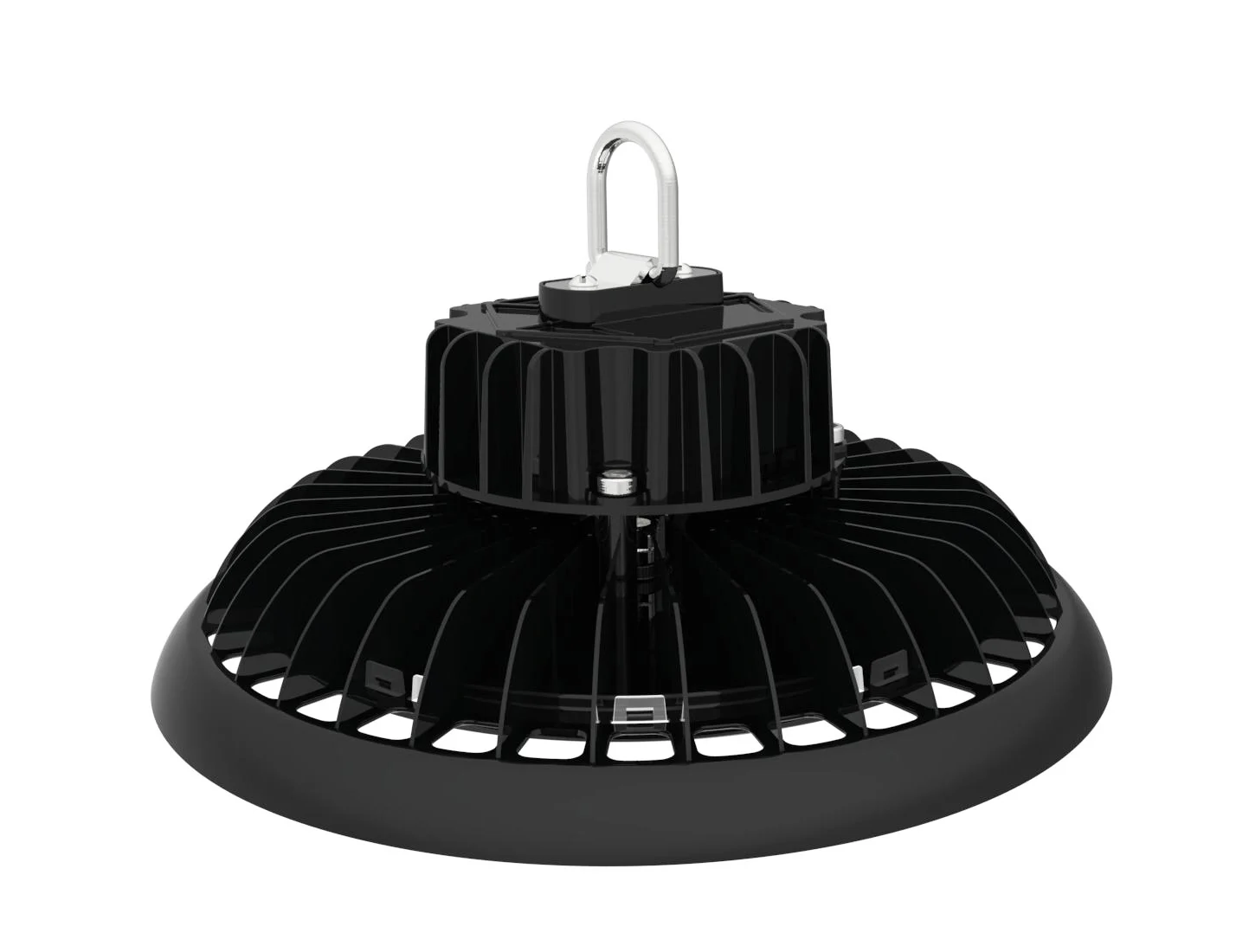

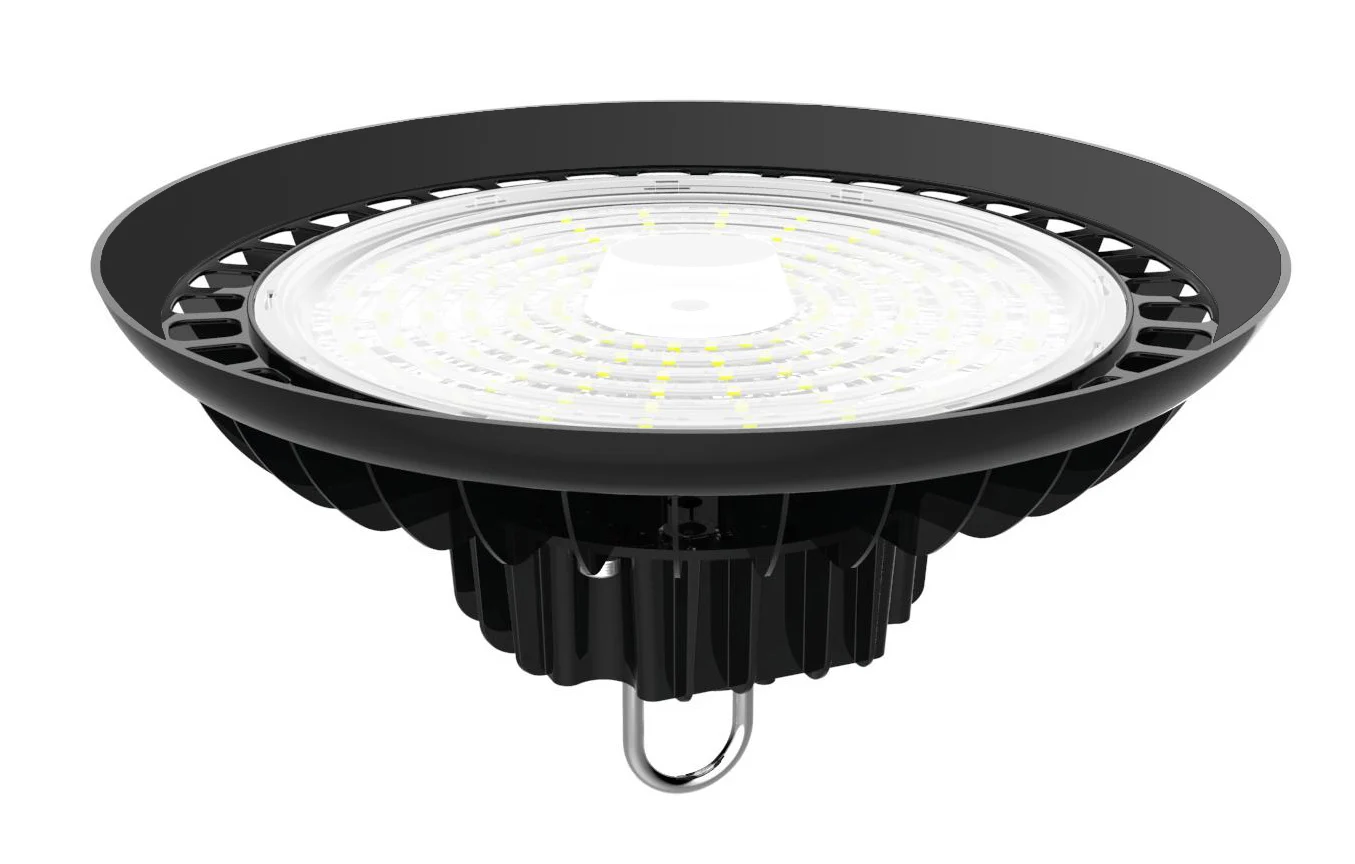

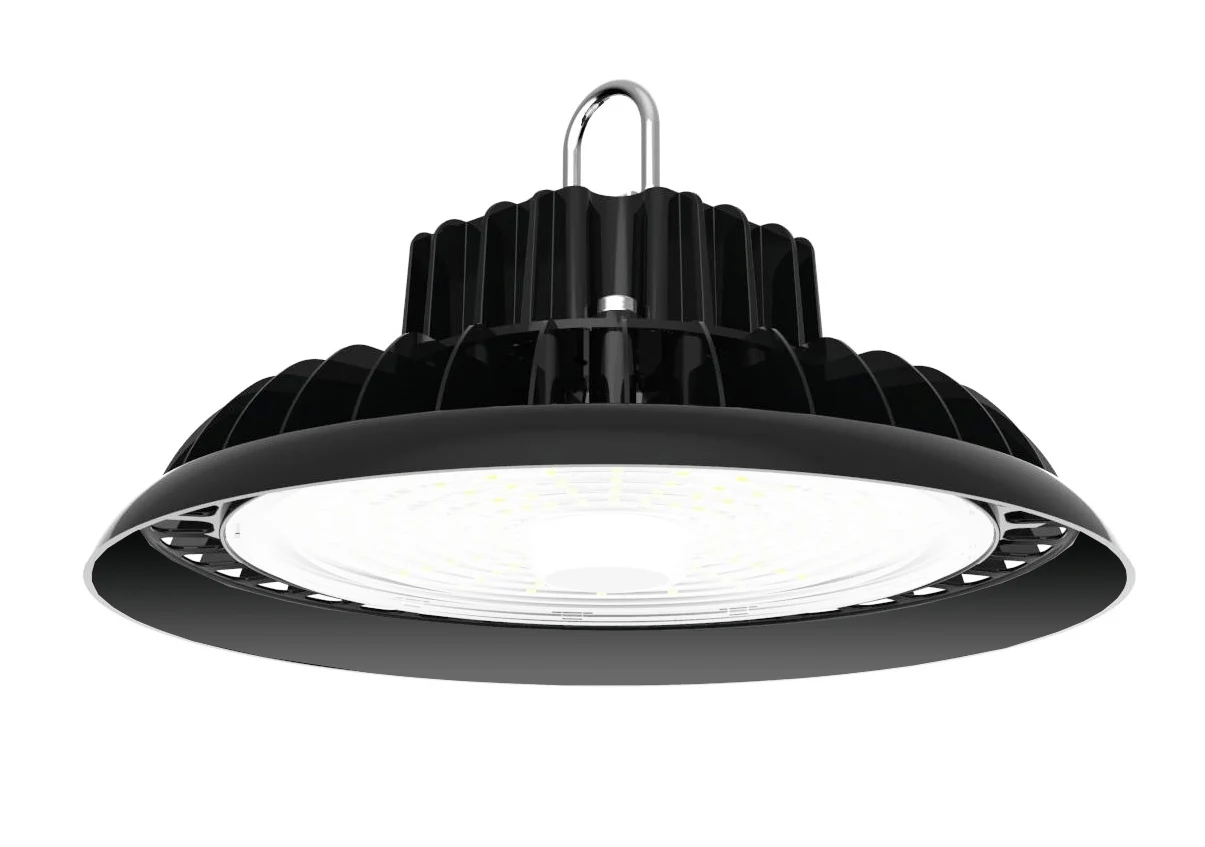

Ip65 Industrial Pendant Lamp 100w 150w 200w led ufo high bay light
- Category: >>>
- Supplier: Shenzhen JHC Lighting Co. Ltd.
Share on (11000003719255):
Product Overview
Description
Shenzhen JHC Technology CO., Ltd
Contact person：Jason Whatsapp/Wechat:+8613600180092 E-mail: jason@jhc-led.com
Add:202, building D,Guangshengde Industrial Zone ,Fenghuang ,Fuyong Street, Bao'an District, Shenzhen
Ip65 Industrial Pendant Lamp 100w 150w 200w led ufo high bay light
Details Images
Product information
TECHNICAL DATA SHEET
NAME: LED UFO Highbay Light
P/N: JHC-UFO HBL-100W-200W
Advantage
● CE RoHS certificate
● Warm / Natural / Cool / Cold white
● Internal driver, input voltage AC100-277V
● No UV or IR in the beam
● Easy to install and operate
● Energy saving, long service life
● Light is soft and uniform, safe to eyes
● Instant start, NO flickering, NO humming
● Green and eco-friendly without mercury
● Warm / Natural / Cool / Cold white
● Internal driver, input voltage AC100-277V
● No UV or IR in the beam
● Easy to install and operate
● Energy saving, long service life
● Light is soft and uniform, safe to eyes
● Instant start, NO flickering, NO humming
● Green and eco-friendly without mercury

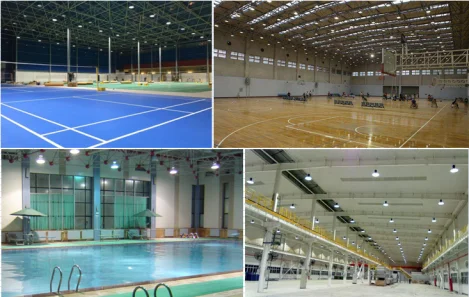

Application
1. Factory floor, libraries, square, park;
2. Supermarkets, railway stations;
3. Convention and exhibition center, exhibition hall, warehouse;
4. Advertising lighting, etc.
2. Supermarkets, railway stations;
3. Convention and exhibition center, exhibition hall, warehouse;
4. Advertising lighting, etc.
PRODUCT SPECIFICATIONS | ||||||
Product name | LED UFO Highbay Light | |||||
Part No | JHC-UFO HBL-100W | JHC-UFO HBL-150W | JHC-UFO HBL-200W | |||
Dimension | Ø240*H112mm | Ø285*H117mm | Ø310*H119mm | |||
Color temperature | 2700-6500K | |||||
CRI | >80 | |||||
Lumen Efficacy | 150LM/W | |||||
Input Power | 100W | 150W | 200W | |||
Viewing Angle | 60°/90°/120° | |||||
Input Voltage | AC100-277V 50/60Hz | |||||
PFC | >0.9 | |||||
Equivalent | 300W incandescent / 100W CFL | |||||
Waterproof Rating | IP65 | |||||
LED Brand | Phillps/Osram LED 3030 | |||||
LED Type | SMD | |||||
LED QTY | 140PCS | 210PCS | 280PCS | |||
Housing | Aluminum+PC | |||||
Housing color | black（Silver、 white） | |||||
Cover | Aluminum+PC | |||||
Enviroment Protection | RoHS | |||||
Safety Certification | CE | |||||
Warranty Time | 3 Years/5 Years | |||||

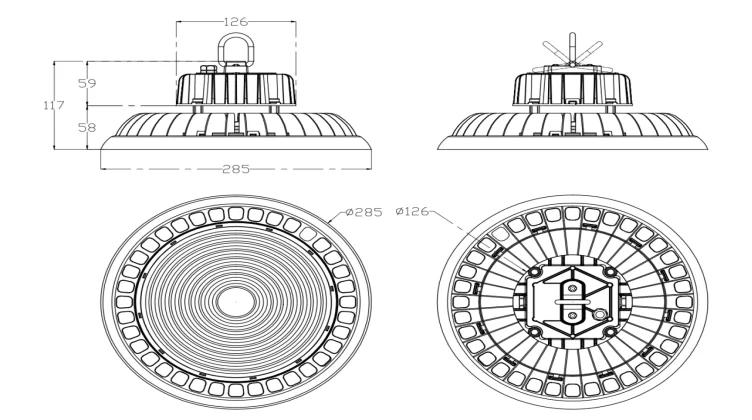

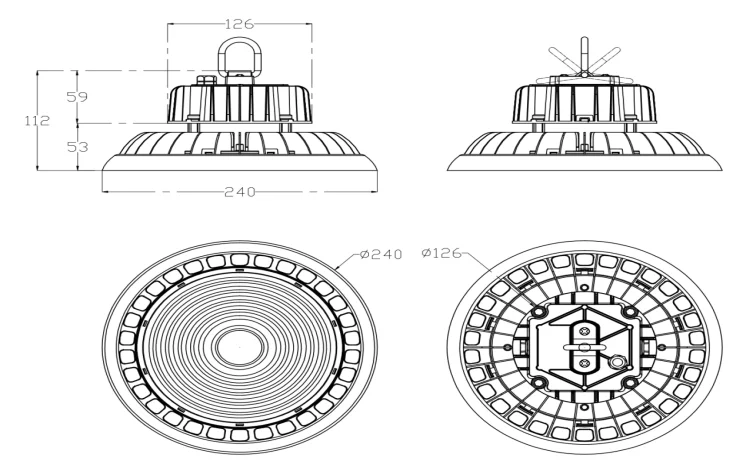

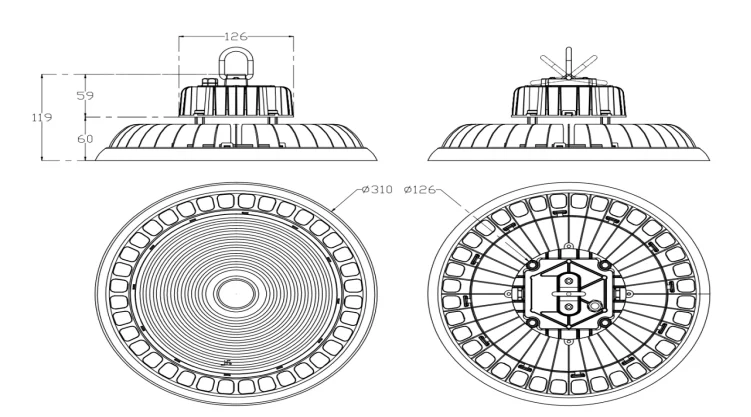

Dimension

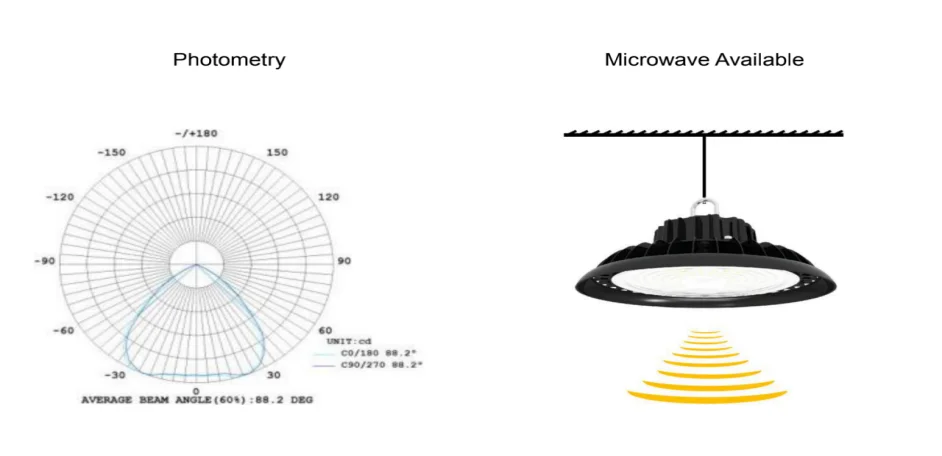

Light distribution curve
Product Packing Specification | ||||||||||||
Part NO | Watt | Net Weifht/light | Cross Weight/light | QTY Per box | CTN Size | |||||||
JHC-UFO HBL-100W | 100W | 2.3kg | 13.6kg | 5pcs | 580*260*260mm | |||||||
JHC-UFO HBL-150W | 150W | 2.9kg | 17.4kg | 5pcs | 605*305*305mm | |||||||
JHC-UFO HBL-200W | 200W | 3.4kg | 19.2kg | 5pcs | 615*330*330mm | |||||||
Notice For User
● Please turn off power before install or change assembly parts.
● The input voltage and lamps should be matched, after connecting the power line, please make sure the wiring section is insulated
● No-professionals, must not install and disassemble the lamps.
Trouble Shootings | ||
Troubles | Check points | |
Flickering of the light | Turn off the power and turn on again in 3 minutes. If same phenomena occur, then call agencies | |
Out of working | Please check the connection | |
