Automatic High Speed Wire Bonder yamaha Wire Bonder UTC 5100 for LED and discrete production

Share on (11000003728637):


Price:$30,000.00

Quantity:


Product Overview

Description



Product Information


product information.png

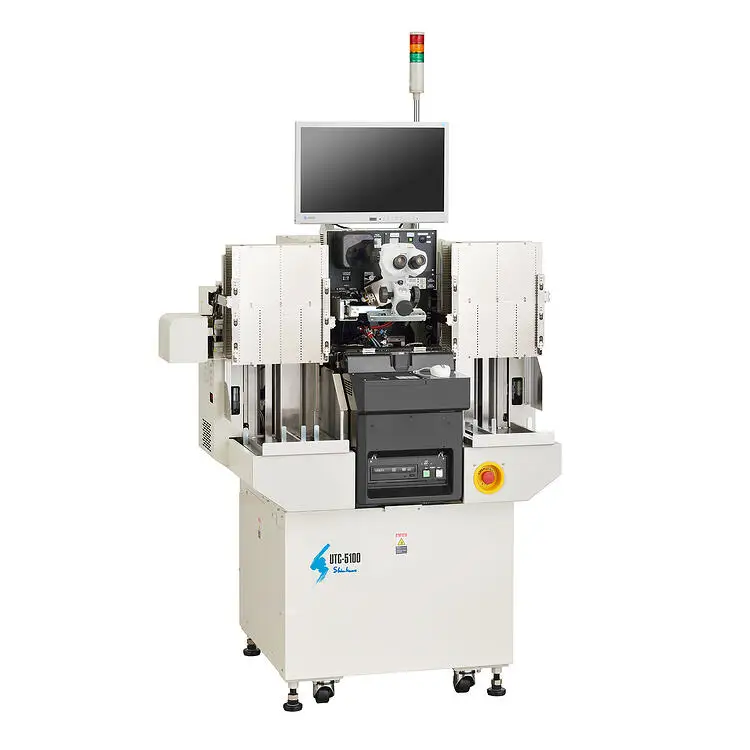

High Speed Wire Bonder adaptable to wide frames and suitable for LED and discrete production.












Features


















  • Platform featuring high speed bonding of 42ms/0.7mm (45ms/2 mm) with completely updated X, Y and Z motors

  • Bonding accuracy of±3.0μm(3σ)achieved

  • Capable of indexing 102mm x 300mm lead frames by allowing Y bonding area of 95mm

  • Simultaneous detection and bonding capability in X and Y directions

  • Applicable to Cu wire due to addition of Cu kit












Product Specifications






























































































ITEMDETAILS
Product NameWire Bonder
ModelUTC-5100
Bonding Accuracy±3.0 μm (3 σ), (The bonding accuracy changes depending on the conditions of device and temperature)
Bonding Speed42 ms/0.7 mm wire (45 ms/2 mm wire)
(with loop control and force detection mode) Using Shinkawa standard device
Bonding Wire Length4 mm maximum (Varies depending on device conditions)
ResolutionXY table: 0.1 μm, Z-axis: 0.1 μm
Vibration ControlShinkawa NRS - Non Reaction Servo System
Bonding AreaX: 66mm - Camera offset, Y: 95mm - Camera offset
Wire SizeAu φ18–50 μm
Bonding Force3~1,000gf
No. of Bonding Wires12,000 wires maximum
Loader / UnloaderFully automatic magazine stacker system (Option: stocker system)
Workpiece SizeWidth
20~102mm
Length
95~300mm
Thickness
0.1 - 0.5 mm (Varies depending on type of device)
(Conversion parts are required when thickness changes)
Production ManagementManagement of equipment availability through production management monitoring screen
Option AvailableCommunication interface SECS-I/SECS-II, HSMS, GEM
UtilitiesInput Power Supply
Single Phase 100VAC (±5% input variation) 50/60Hz  (other voltages require transformer)
Power Consumption
Approx.1.2kVA (1.1kW)
CDA
500kPa (5 kgf/cm2) 102L/min
Vacuum
-74kPa (-550 mmHg) or below (gauge)

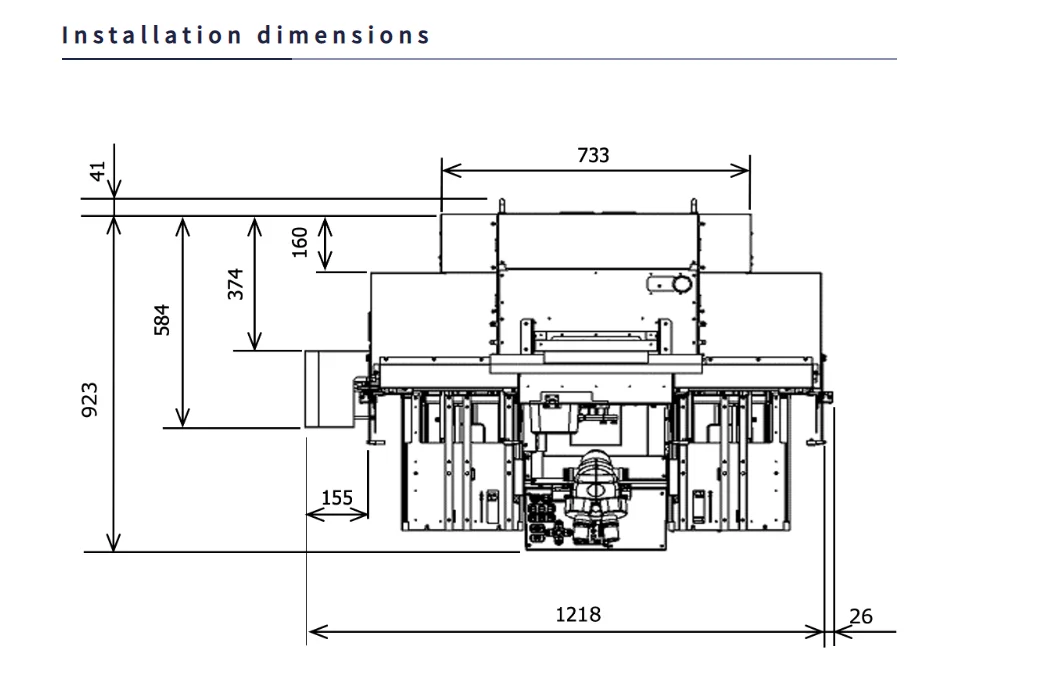

Physical Dimensions and Mass1,244W × 964D × 2,092H mm  Approx.520 kg
