2448*2048 5M Pixels 1080 High Speed Camera Global Shutter Quality Industry Inspection 3D C Mount Camera
- Category: >>>
- Supplier: SmartMore Corporation Limited
Share on (11000003739666):
Product Overview
Description
Product Description

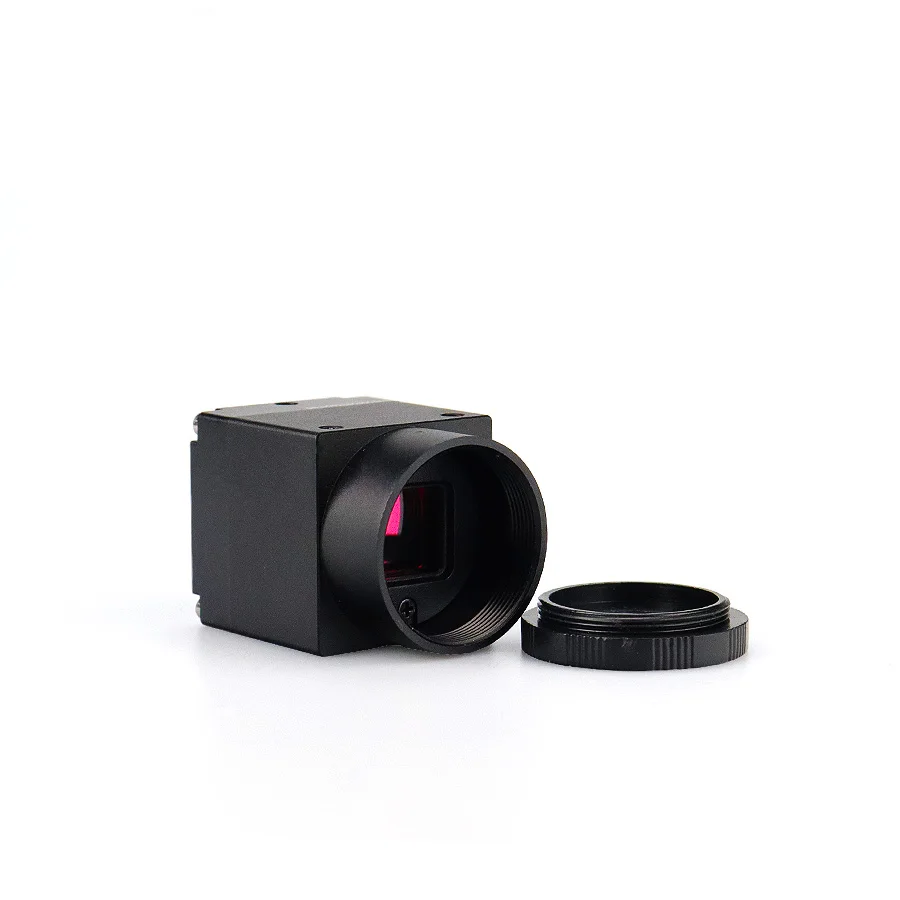

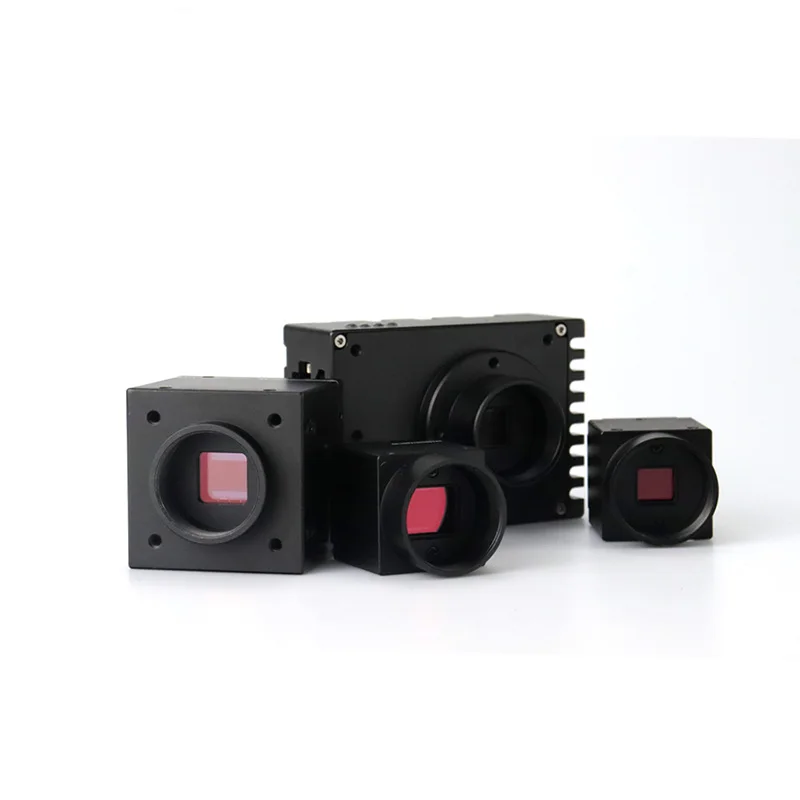

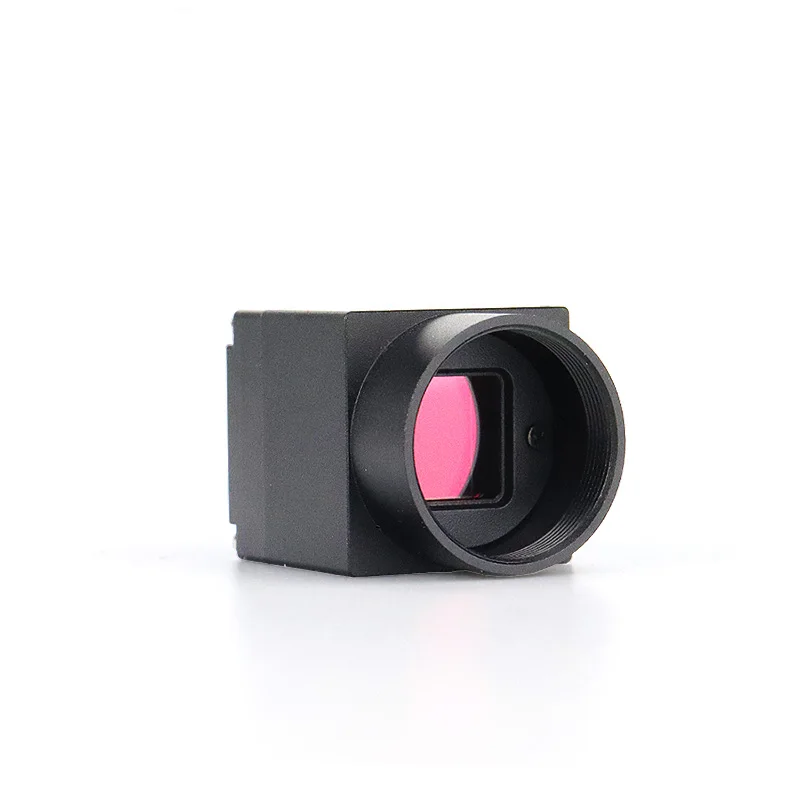

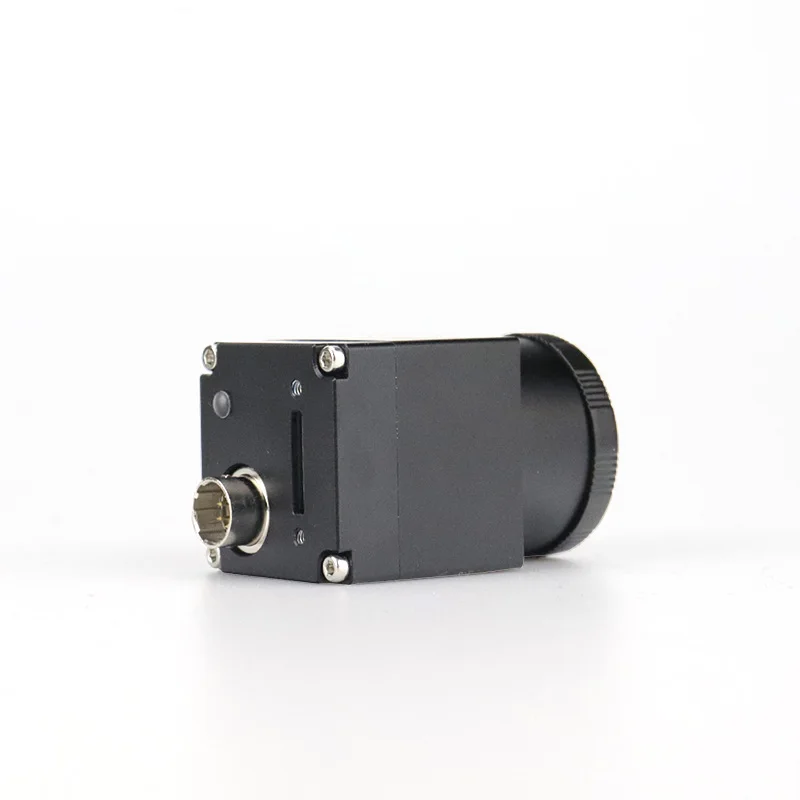

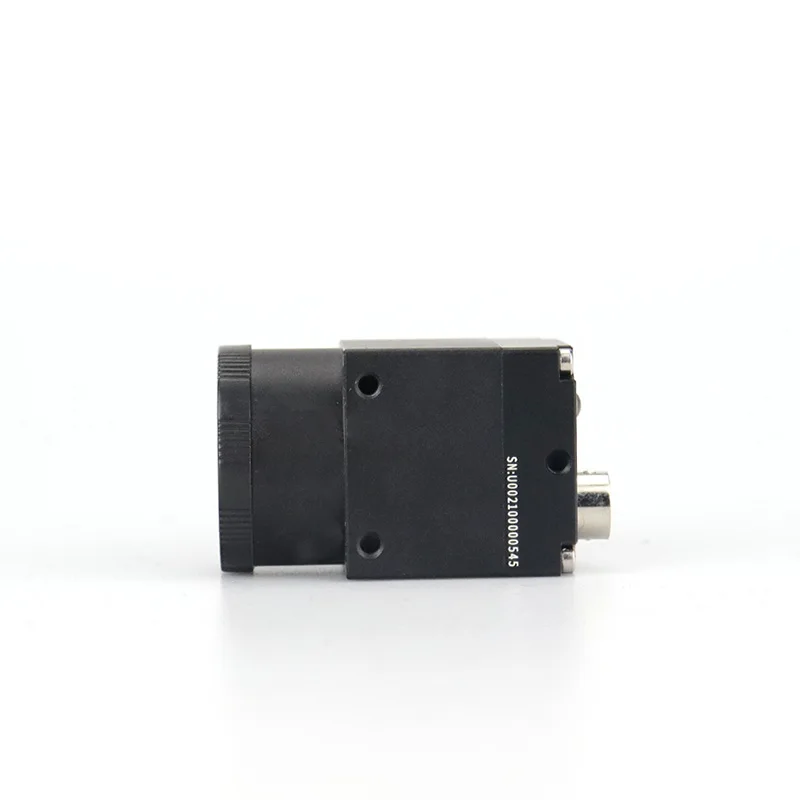

This series of cameras is a miniature USB3.0 camera with cache (29mm x 29mm x 29mm), adhering to the product concept: easy to use,stable and reliable, with good versatility, compatibility, and cost-effective. The camera is developed based on the USB Vision standard protocol and is compatible with third-party machine vision development software to help you easily integrate the camera into your system. It is especially suitable for applications that have strict requirements on stability, compatibility, volume and cost performance. The outstanding comprehensive performance of this series of miniature cameras will become your best choice.
Product Features
◆29x29x29mm ultra-small size, 40g extremely light weight, industry-wide fixed hole.
◆Compliant with USB30 ultra-high-speed communication protocol, the maximum speed is 440MByte/s.
◆Built-in large-capacity frame buffer, stable transmission, real-time and reliable.
◆Ultra-low power consumption, strong stability ,The typical power consumption is less than 2W.
◆Development based on USB3Vision and GenICam, compatible with third-party vision development software such as HALCON and LabView.
◆ Support WindowsXPSP3 and above, Linux32/64Bit operating system.
◆Development based on USB3Vision and GenICam, compatible with third-party vision development software such as HALCON and LabView.
◆ Support WindowsXPSP3 and above, Linux32/64Bit operating system.
Specification
Type | SMI-CU3-2448P-01 |
Image size | 2448 * 2048 5M Pixels |
Exposure type | Global Shutter |
Optical size | Diagonal: 11.071mm; 2/3inch |
ADC accuracy | 12bit |
Pixel size | 3.45 microns * 3.45 microns |
Photosensitive area | 8.446 mm *7.066 mm |
Resolution | 2448 * 2048 (NORMAL) 79 frames per second |
1224* 1024 (BIN2) 155 frames/sec | |
32*32 (minimum ROI resolution) minimum step: 8 | |
Signal-to-noise ratio | 36.49db |
Sensitivity | 3V/Lux.s |
Dynamic range | 73db |
Spectral response | 390nm~1050nm |
Trigger mode | Software trigger/hardware trigger |
Exposure time | 1 microsecond (trigger mode) ~ 393 milliseconds 204 microseconds |
Gain range | Gain: 1 to16 times; step size: 0.125 times |
Raw8, Raw12 PEAK(Original image) | |
Mono8,Mono12,Mono12Packed | |
Photo support format | RAW, BMP, JPG, PNG |
Camera size | 29 mm * 29 mm * 29 mm (not including lens mount) Weight: ＜47g |
Implementation standards | CE, GenICam, USB3Vision, IP30, RoHS |
Power consumption | Work ≈ 1.59W; Standby ≈ 1. 1W |
Lens mount | C mount |
