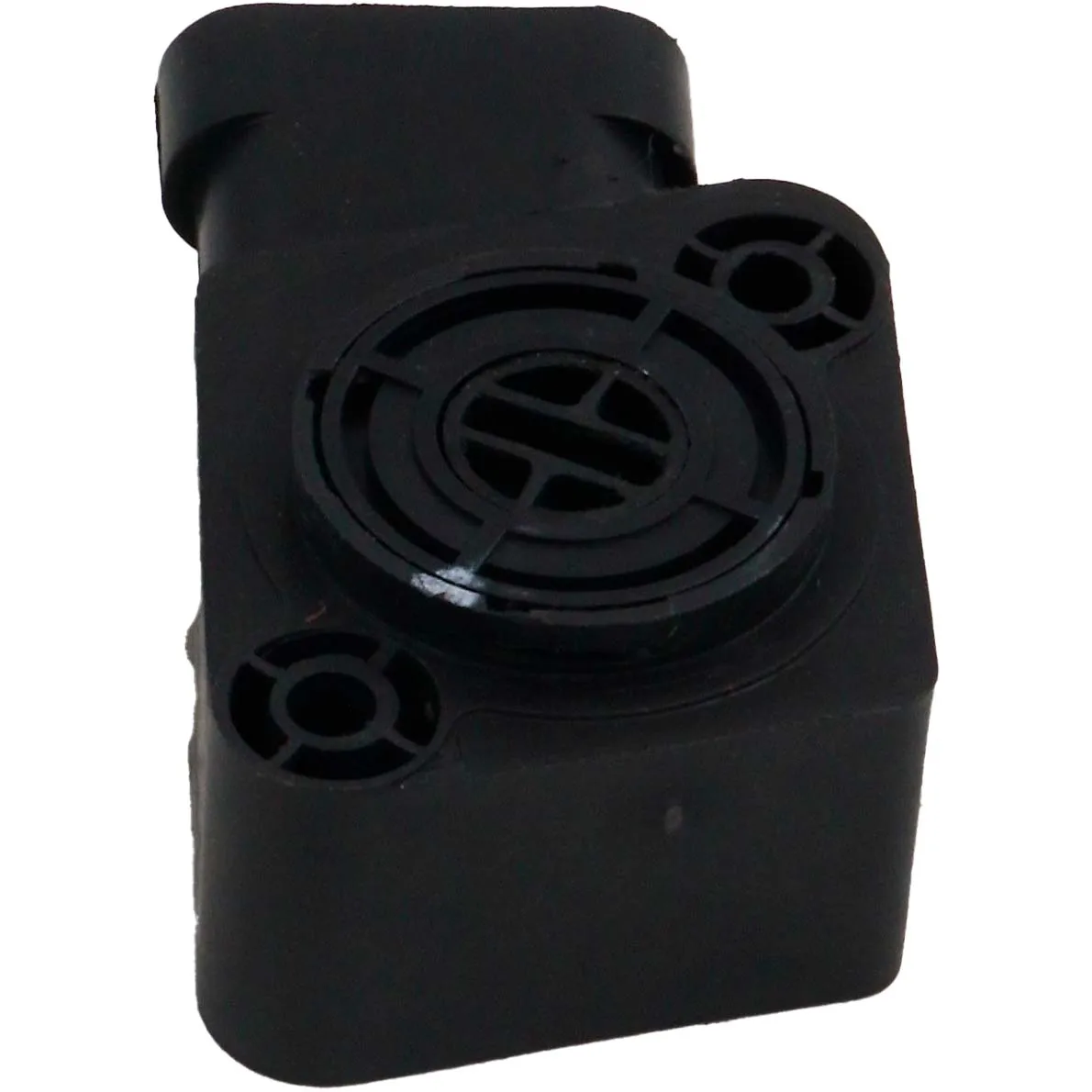

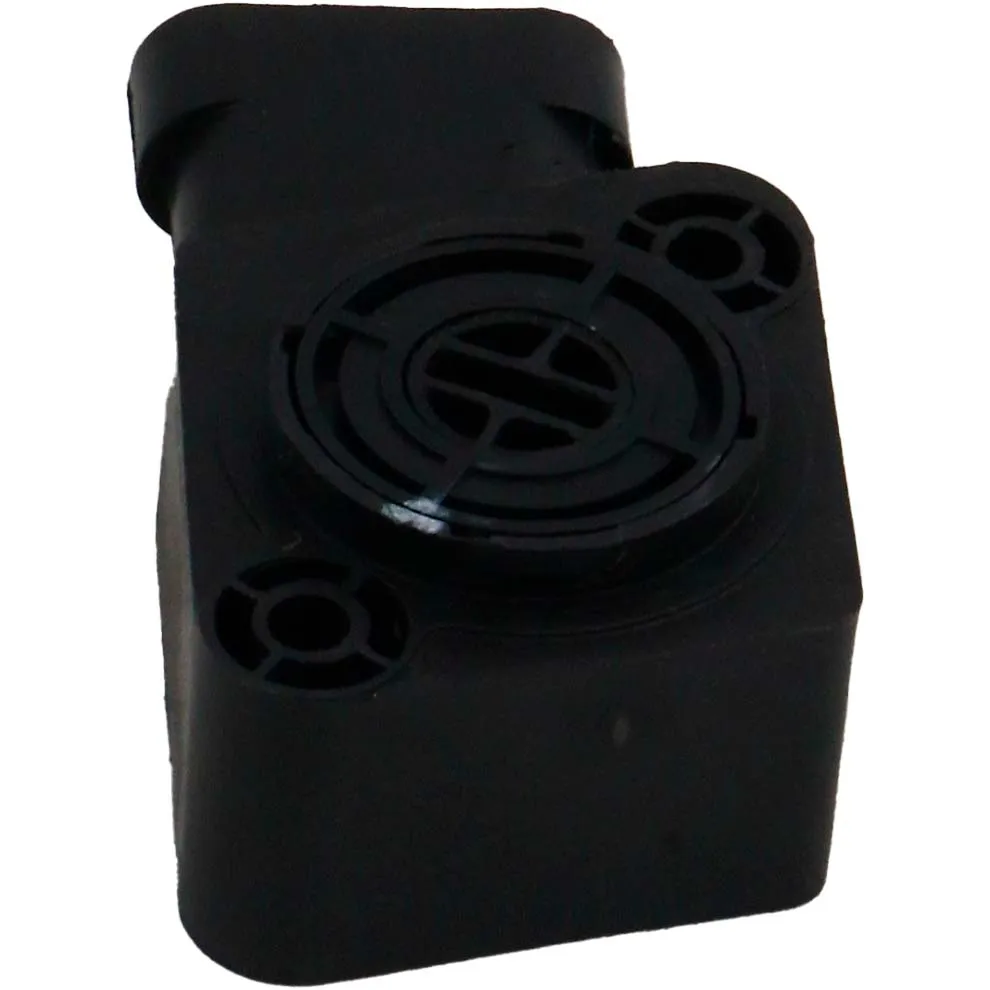

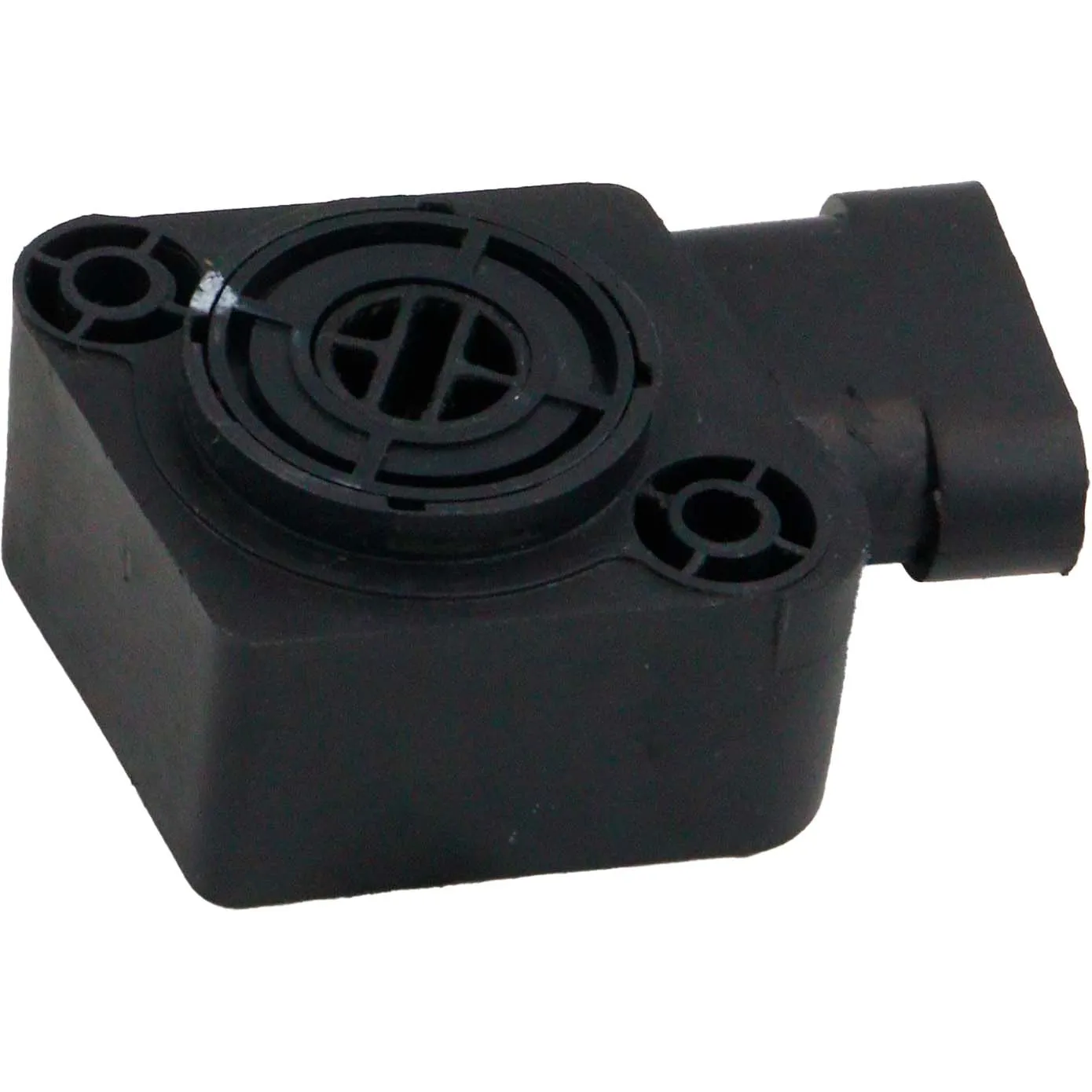

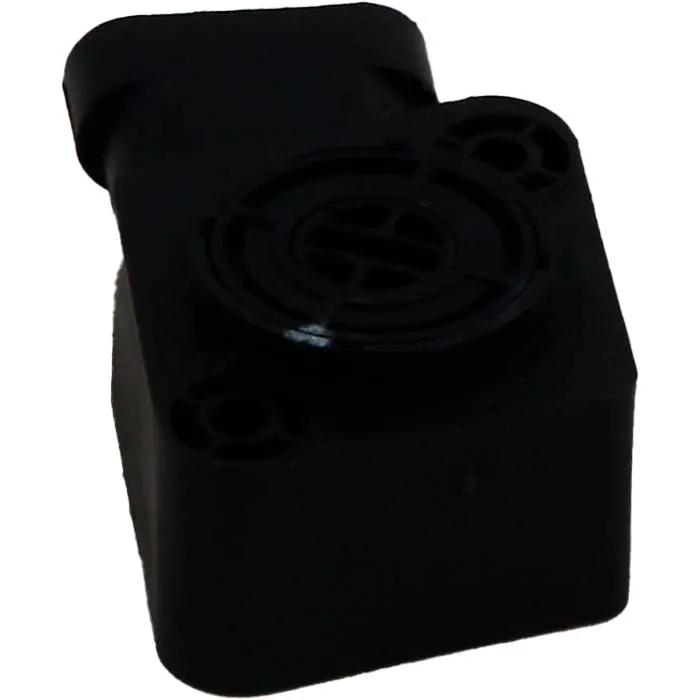

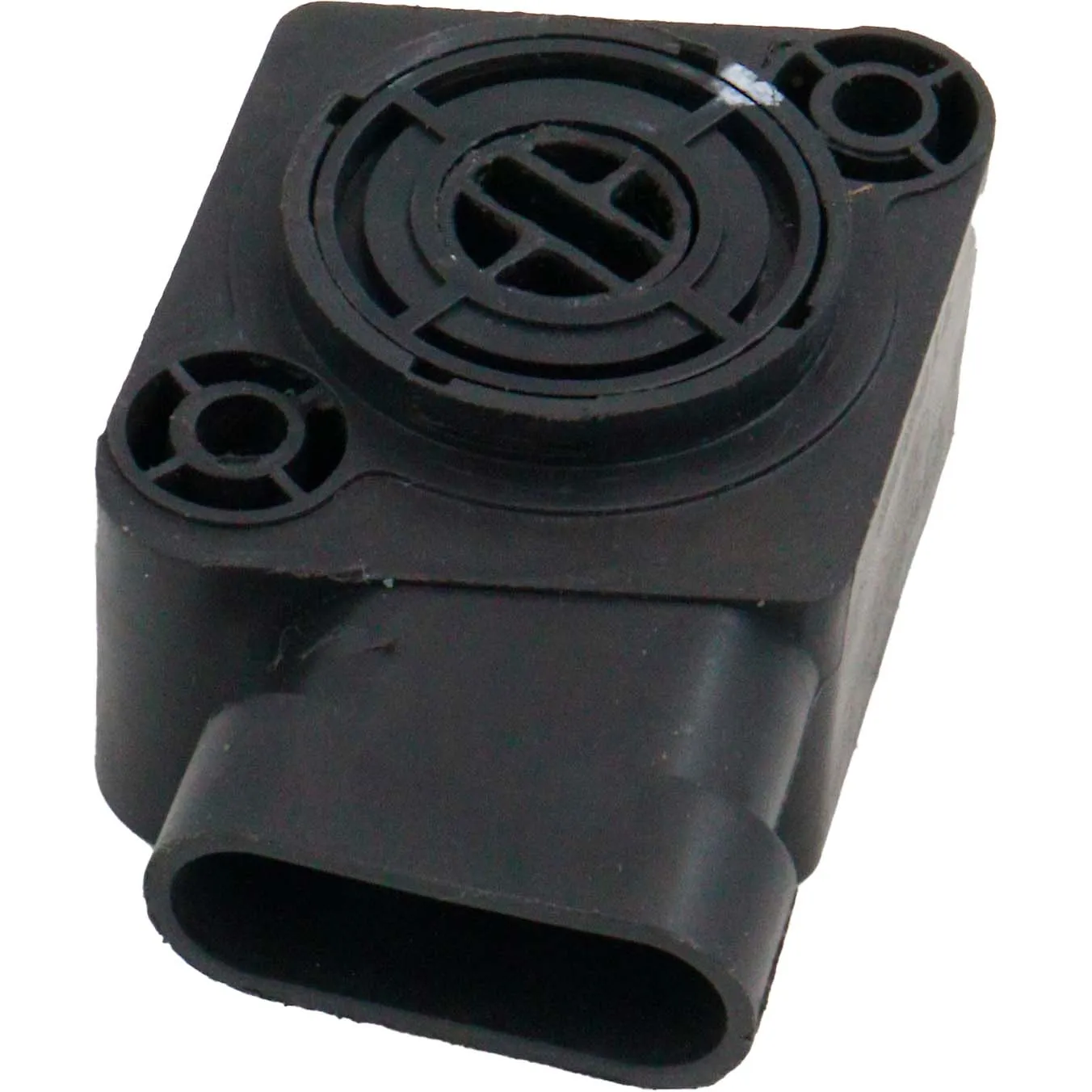

YP, Yuxin Battery Lawn Mower Angle Sensor 1KW 2KW 3KW 4KW 5KW 48V 72V for Zero Turn Lawn Mower & Riding Lawn Mower
- Category: >>>
- Supplier: Chongqing Yurui Agricultural Machinery Sales Co. Ltd.Chongqing Ltd.
Share on (11000003747980):
Product Overview
Description
Product name
YP, Yuxin Battery Lawn Mower Angle Sensor 1KW 2KW 3KW 4KW 5KW 48V 72V for Zero Turn Lawn Mower & Riding Lawn Mower

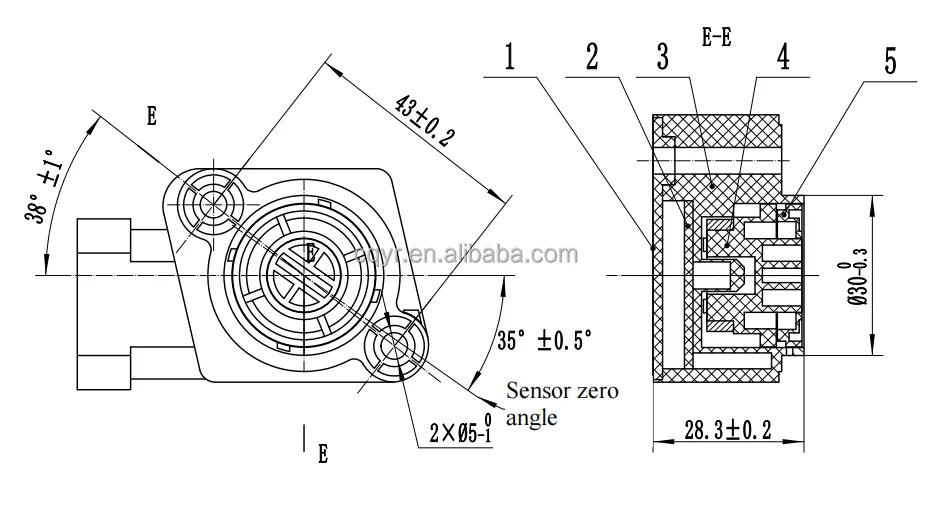

Drawings
Specifications
General specifications of Angle Sensor | ||||||||||
Specifications | 1.2kW 48V | 1.2kW 60V | 2KW 72V | 3KW 72V | 5KW 72V | |||||
Output power： | 1.2 | 1.2 | 2 | 3 | 5 | |||||
Voltage： | 48~60 | 48~60 | 72~80 | 72~80 | 72~80 | |||||
Rated speed： | 3800 | 3600 | 4200 | 4200 | 4200 | |||||
Working method | S9 | S1 | S9 | S9 | S9 | |||||
IP level： | IP65 | IP65 | IP65 | IP65 | IP65 | |||||
Weight： | 0.3kg | 0.3KG | 0.5KG | 0.5KG | 0.6KG | |||||
Basic functions： | Lawn mower walking | Lawn mower walking | Lawn mower walking | Lawn mower walking | Lawn mower walking | |||||
Product description
Technical requirements
1. Supplier: Chongqing Yuxinpingrui Electronics Co., Ltd.;
2. Model: zero rotary Angle sensor TJ563A-1;
3. After product assembly, rotating rotation without jamming;
4. Product technical requirements are as follows:
1. Supplier: Chongqing Yuxinpingrui Electronics Co., Ltd.;
2. Model: zero rotary Angle sensor TJ563A-1;
3. After product assembly, rotating rotation without jamming;
4. Product technical requirements are as follows:
Technical datas:
1) Working voltage: DC5V± 2%;
2)Working current: ≤10 mA;
3)Linearity: ≤1.5%;
4)Working temperature: -40℃ ~ + 85℃;
5)Storage temperature: -50℃ ~ + 105℃.;
6)Test temperature: 23℃ Si 5℃;
7)Working environment humidity: ≤95%;
8)Protection level: IP67 (electronic side);
9) Starting voltage: 0.3±0.05V, intermediate voltage: 2.4±0.05V, termination voltage: 4.5
±0.1V;
10) The product shall meet-40℃ ~ + 105℃, high and low temperature 30min is a circle, a
total of 3 cycles high & low temperature impact test;

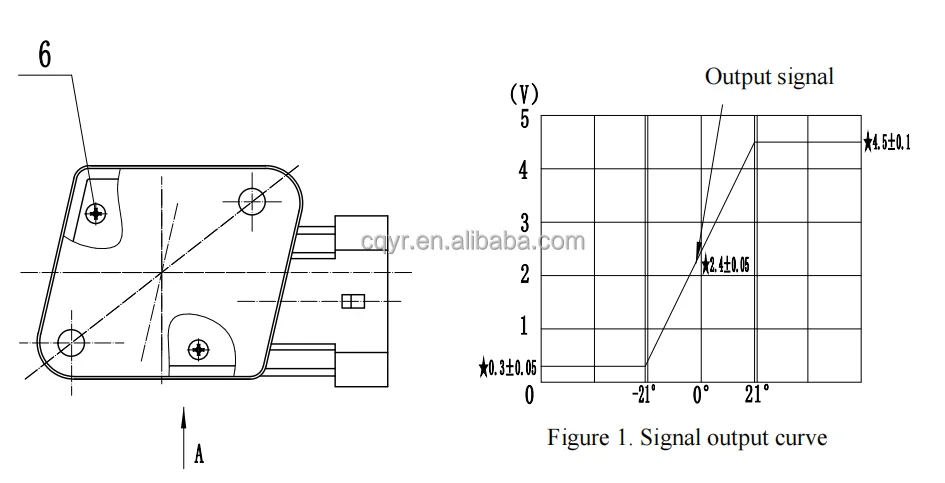

11) The product shall meet the rotation angle of Figure 1, frequency 15~20 times / min, a
total of 5000 durability tests.

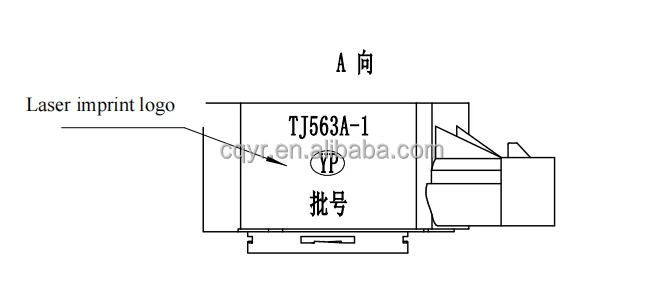

5. Product identification content and location: TJ563A-1
1) Working voltage: DC5V± 2%;
2)Working current: ≤10 mA;
3)Linearity: ≤1.5%;
4)Working temperature: -40℃ ~ + 85℃;
5)Storage temperature: -50℃ ~ + 105℃.;
6)Test temperature: 23℃ Si 5℃;
7)Working environment humidity: ≤95%;
8)Protection level: IP67 (electronic side);
9) Starting voltage: 0.3±0.05V, intermediate voltage: 2.4±0.05V, termination voltage: 4.5
±0.1V;
10) The product shall meet-40℃ ~ + 105℃, high and low temperature 30min is a circle, a
total of 3 cycles high & low temperature impact test;
11) The product shall meet the rotation angle of Figure 1, frequency 15~20 times / min, a
total of 5000 durability tests.
5. Product identification content and location: TJ563A-1
Applications:
This Angle Sensor is used for: Electric Lawn Mower,Electric Lawn Tractor,Riding on Lawn Mover, Zero Turn Lawn mover......
