Product Overview

Description

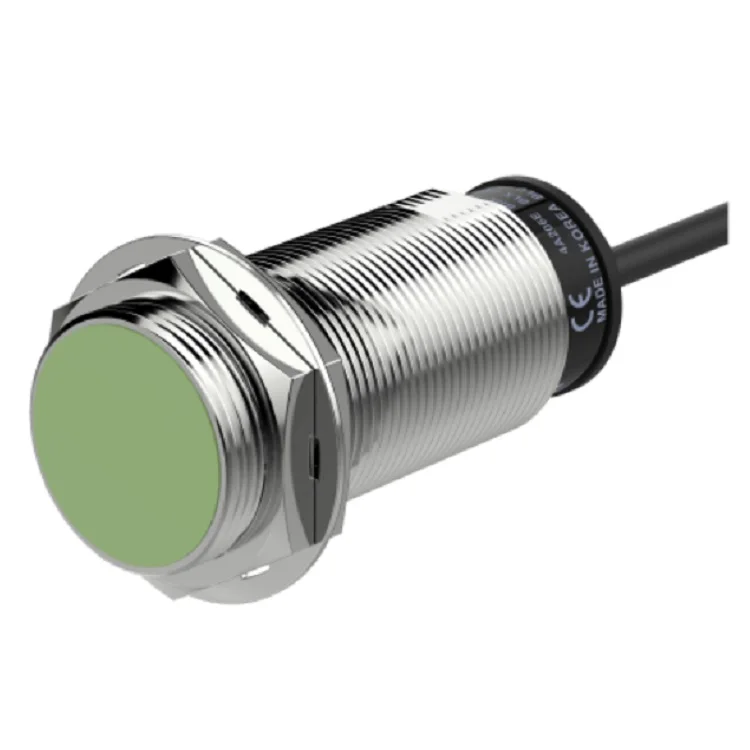

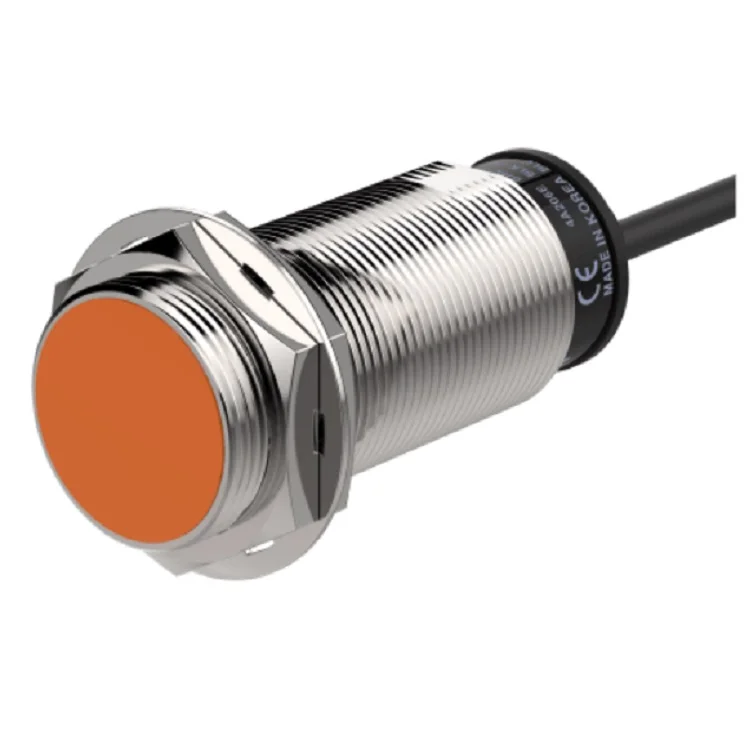

3 wire PRL30-10DP AUTONICS M30 inductive proximity sensor PNP output switch in stock
pro-longed body sensor
PRL30-15DP: PNP output proximity sensor
world-best class superior noise resistance characteristics with dedicated IC;
proximity sensors having various line-ups in terms of size and sensing distance.
Improve the noise resistance by adopting dedicated IC
Built-in protection circuit of reverse power polarity (DC 3-wire type)
Built-in surge protection circuit
Built-in over current protection circuit (DC type)
Long life cycle, high reliability with simple operation
Available to check the status of operation by Red LED indicator
Protection structure IP67 (IEC standard)
Wide range of applications for replacement of micro switches, limit switches
Wire type and power : DC 3-wire type 12-24VDC
Sensing side diameter : M30
Sensing distance : 10mm
Installation : Flush
Standard sensing target : 30×30×1mm(iron)
Response frequency : 400Hz
Current specification : Current consumption: Max. 10mA
Control output : PNP Normally Open ≤ 200 mA
Material :
Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303),
washer: Nikel plated Iron, sensing side: polybutylene terephthalate,
standard cable (black): polyvinyl chloride (PVC),
oil resistant cable (gray): oil resistant polyvinyl chloride (PVC)
Cable Standard/material : Standard cable
Protection structure : IP67(IEC standard)
Approval : CE ; EAC
Body length : pro-longed type
Environment_Ambient temperature : -25 to +70℃, storage: -30 to 80℃
Environment_Ambient humidity : 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance) : Max. 10% of sensing distance
Residual voltage : Max. 1.5V
Protection circuit : Surge protection circuit, output short over current protection circuit,
reverse polarity protection
Insulation resistance : ≥ 50 MΩ (500 VDC megger)
Dielectric strength : 1,500 VAC 50 / 60Hz for 1 min (between all terminals and case)
Vibration 1 mm double amplitude at frequency 10 to 55 Hz (for 1 min) in each X, Y, Z
direction for 2 hours
Shock 500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times
Weight : Approx. 210g( 247g)
PRL30-10DN NPN Output
PRL30-15DP 15 mm sensing distance
