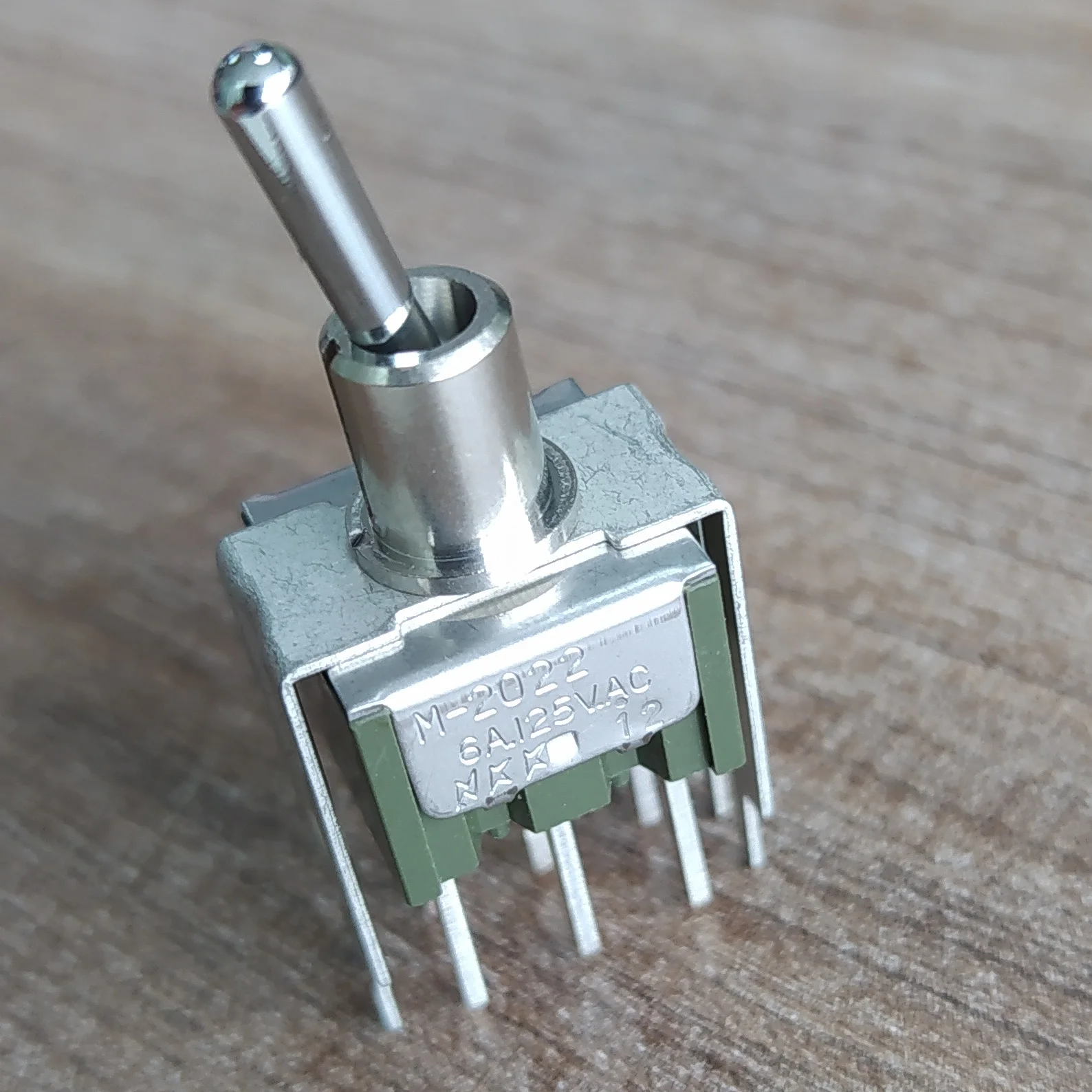

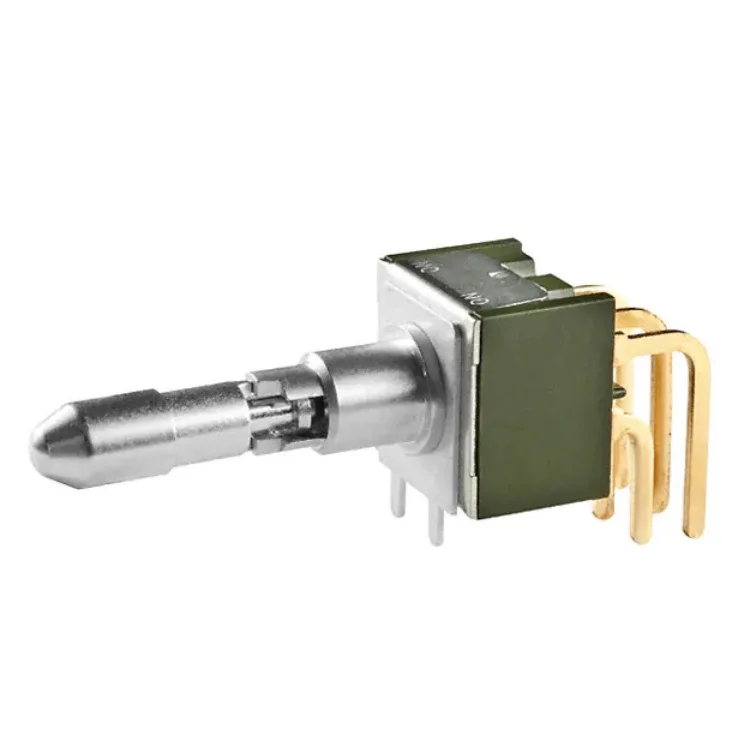

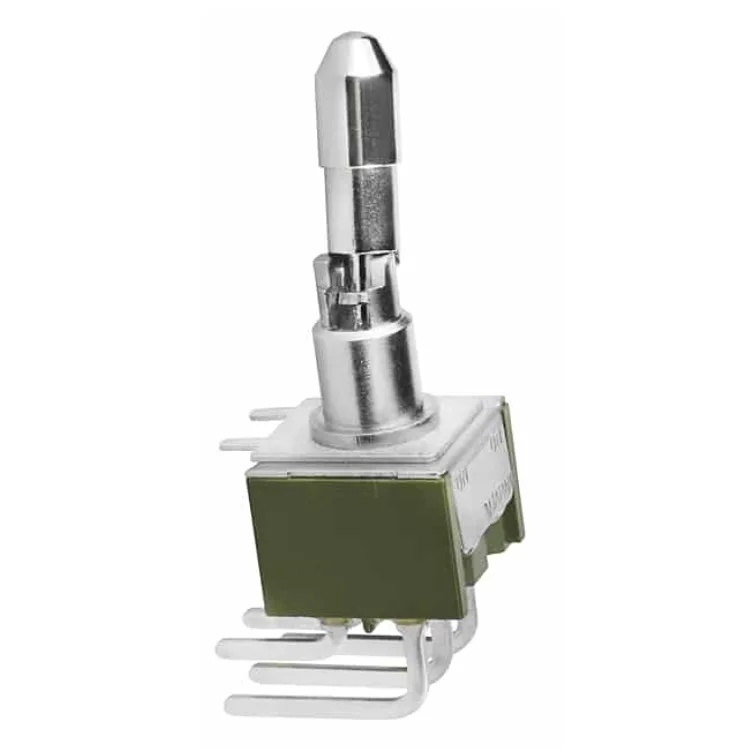

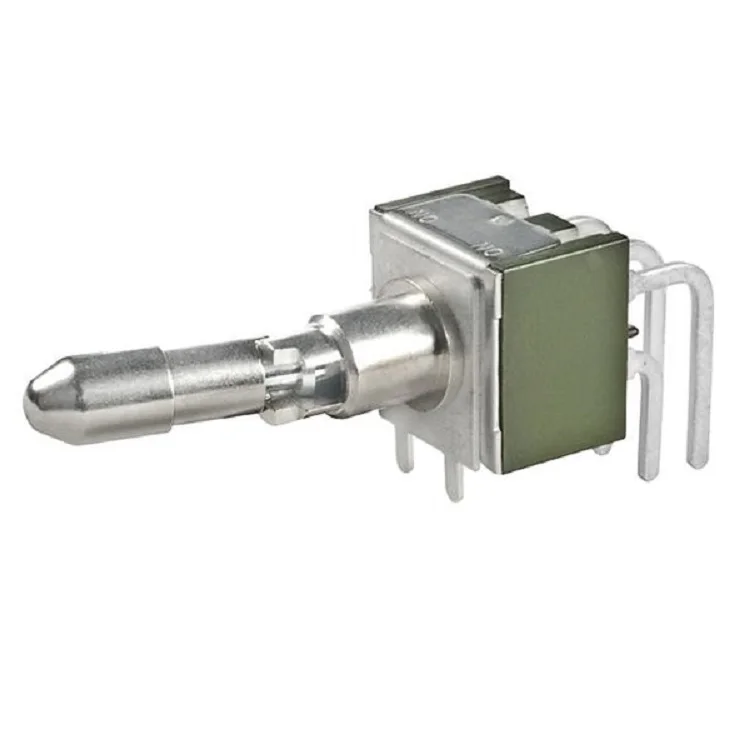

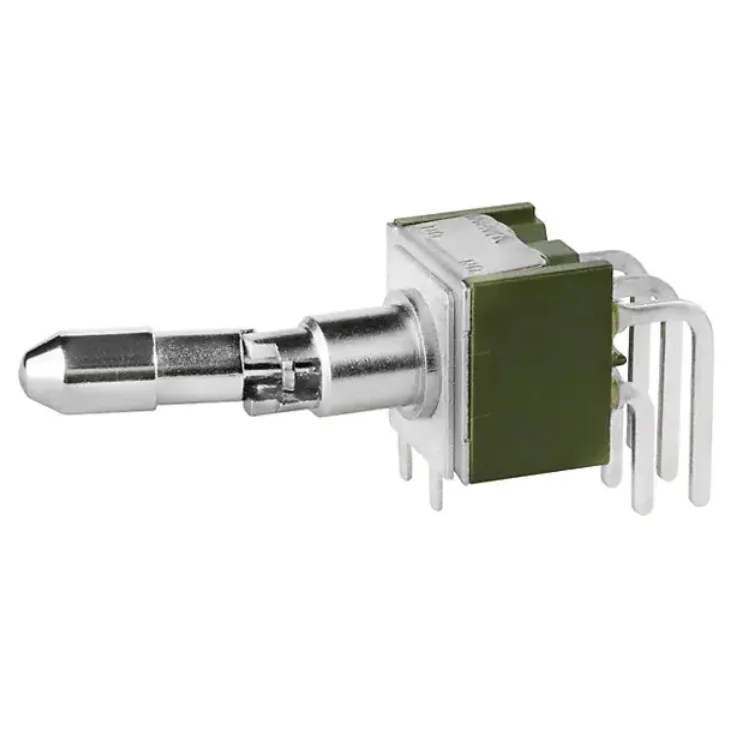

Locking lever toggle switch M2022LL2W30 6 PIN 2 positions NKK Angle PC Mount M 2022 in stock

Product Overview

Description

Locking lever toggle switch M2022LL2W30 6 PIN 2 positions NKK Angle PC Mount M-2022 in stock
Antirotation design, standard on noncylindrical levers,
mates toggle and bushing;
bottom of toggle has two flatted sides which fit into a complementary opening inside bushing.
Antijamming design protects contacts from damage due to excessive downward force on actuator.
High torque bushing construction prevents rotation
or separation from frame during installation.
High insulating barriers increase isolation of circuits in multipole devices
and provide added protection to contact points.
Molded diallyl phthalate case has a UL flammability rating of 94V-0.
Epoxy sealed terminals prevent entry of solder flux and other contaminants.
Prominent external insulating barriers increase insulation resistance and dielectric strength.
Interlocked actuator block, lever, and interior guide prevent switch failure due to biased lever movement.
Clinching of frame to case well above base and terminals provides 1,500V dielectric strength.
Electrical Capacity (Resistive Load)
M2022LL2A30
Circuit Poles : DPDT
Switch function : On-On
Current Rating : 6A (AC), 3A (DC)
Rating (AC) : 125V
Rating (DC) : 30V
Actuator Type : Locking lever toggle
Actuator lever Length : 16.50mm
Mounting Type : Through Hole, Right Angle PCB
Bushing Thread : Unthreaded
Termination Style : PC Pin
Features : Epoxy Sealed Terminals
Rating : 6
Contact Resistance: ≤10 mΩ for silver; 20 milliohms maximum for gold
Insulation Resistance: ≥1,000 MΩ minimum @ 500V DC
Dielectric Strength: 1,000V AC minimum between contacts for 1 minute minimum;
1,500V AC minimum between contacts and case for 1 minute minimum
Mechanical Life: 100,000 operations minimum;
Electrical Life: 25,000 operations minimum for silver; 50,000 operations minimum for gold;
50,000 operations minimum for silver at 3A @ 125V AC
Angle of Throw: 25°
Materials & Finishes
Toggle: Brass with chrome plating Frame: Stainless steel
Bushing: Brass with nickel plating Support Bracket: Brass with tin plating
Case: Diallyl phthalate resin (UL94V–0)
Movable Contactor: Phosphor bronze with silver or gold plating
Movable Contacts: Silver alloy (code W); copper with gold plating (code G); or silver alloy with gold plating (code A)
Stationary Contacts: Silver with silver plating (code W); copper or brass with gold plating (code G);
or silver with gold plating (code A)
Terminals: Copper or brass with silver plating; or copper or brass with gold plating
Operating Temp Range : -30°C through +85°C (-22°F through +185°F)
Humidity : 90 ~ 95% humidity for 96 hours @ 40°C (104°F)
