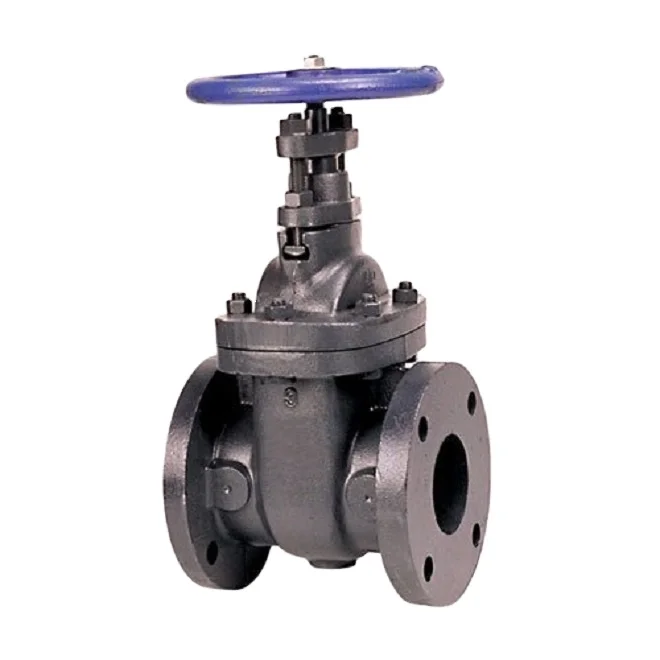

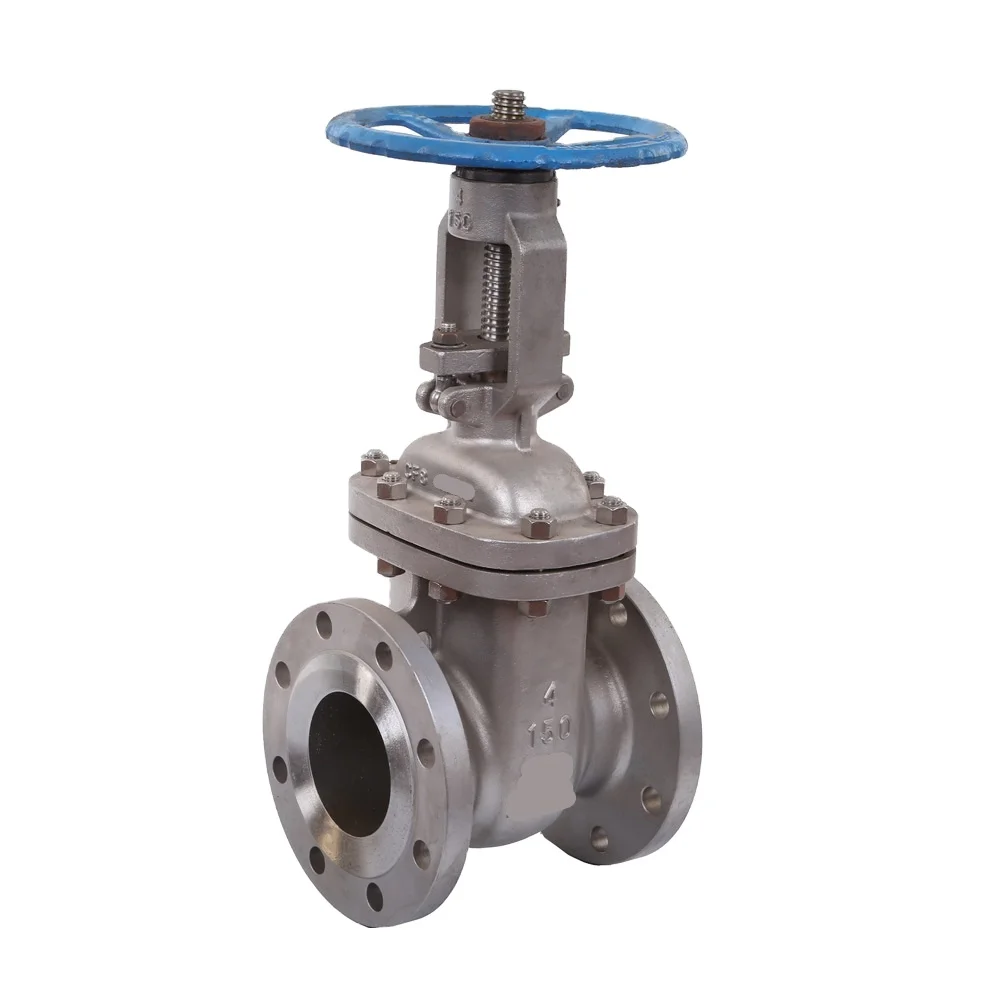

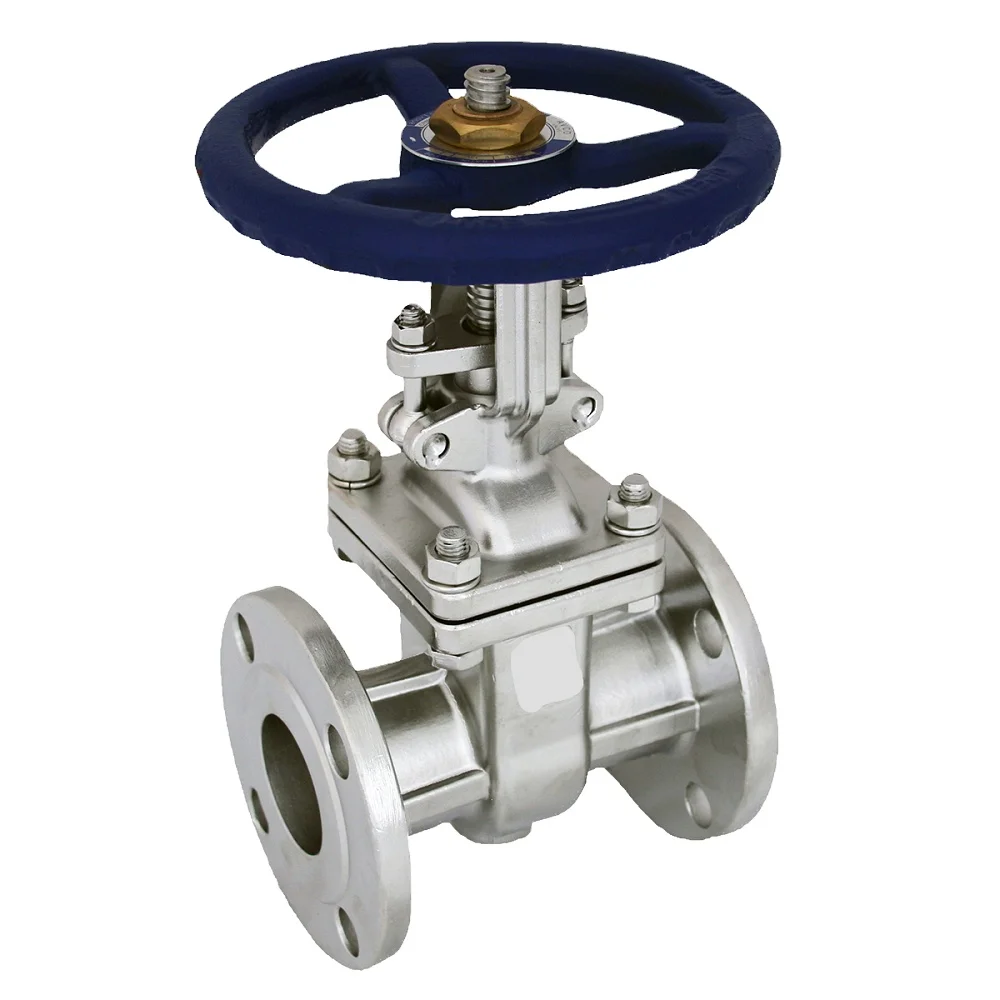

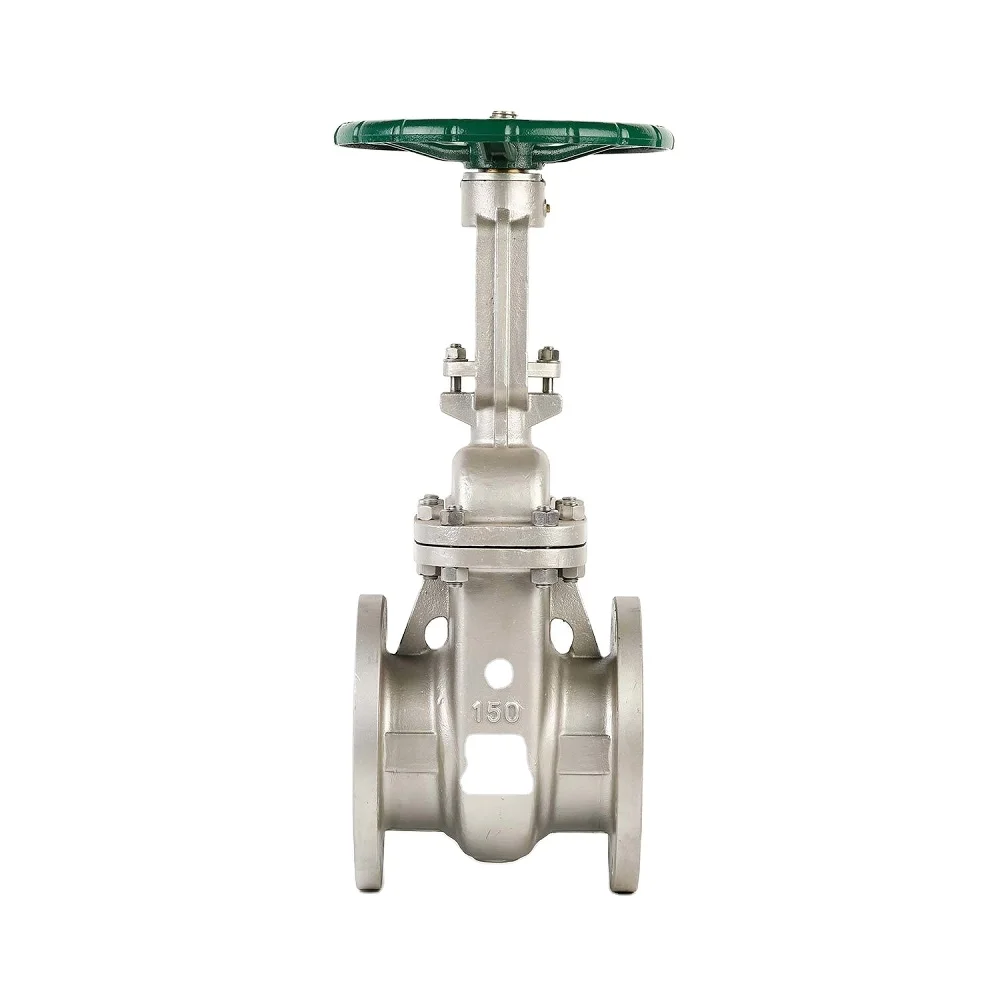

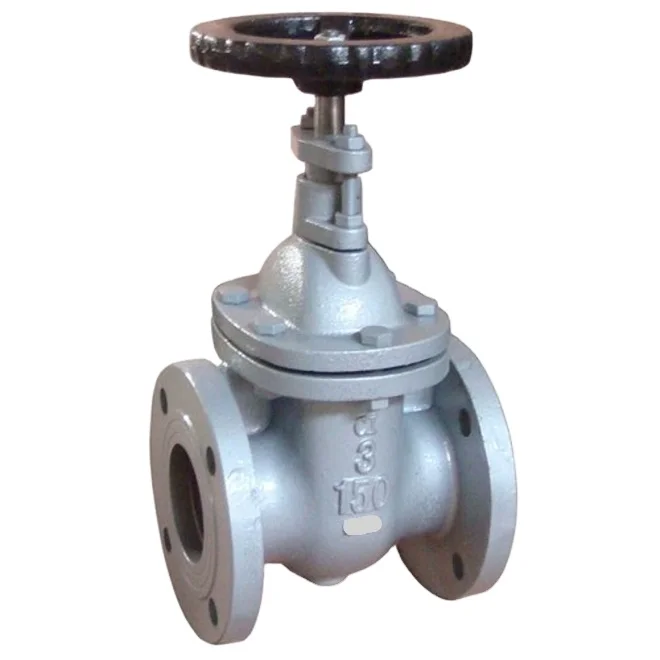

High quality 2 inch cast steel corrosion resistant class 150 2 way industrial gate valve flange connection
- Category: >>>
- Supplier: C-WAY EXPORTS
Share on (11000003783146):
Product Overview
Description
Item | Value |
Warranty | 1 year |
Type | Gate Valves, Gas Appliance Isolation Shut-Off Valves, Truck Shut-Off Valves, Metal Check Valves, Pressure Vacuum Breaker, Adjustable Relief Valves, Vacuum Relief Valves, Pressure Reducing Control Valves, Water Pressure Reducing Valves, Pressure Regulators, Air & Vacuum Release Valves, Constant Flow Rate Valves |
Customized support | OEM |
Place of Origin | India |
Province | Telangana |
Brand Name | C-WAY |
Model Number | N/A |
Application | Industrial |
Temperature of Media | High Temperature, Low Temperature, Medium Temperature |
Power | Manual |
Media | Gas,Water,Oil |
Port Size | 2 inch |
Structure | Gate |
Product name | Industrial Gate Valve |
Material | Cast Steel |
Size | 2 Inch |
Medium | Water Oil Gas |
Valve type | 2-way / 3-way |
Connection | Flange Connection |
Usage | Industrial use |
Operation | Handwheel |
Feature | Long Life |
OEM | Avaliable |
INDUSTRIAL GATE VALVE
* We are the largest exporter of Industrial Gate valve of 2 way valves flanged end connections
* Our corrosion-resistant Gate valves have been designed by a team of expert engineers which can easily tolerate heavy loads of industrial fluids.
* A gate valve is generally used to completely shut off fluid flow or, in the fully open position, provide full flow in a pipeline. Thus it is used either in the fully closed or fully open positions. A gate valve consists of a valve body, seat and disc, a spindle, gland, and a wheel for operating the valve.
* Gate valves are constructed from cast iron, cast carbon steel, ductile iron, gunmetal, stainless steel, alloy steels, and forged steels. All-metal gate valves are used in ultra-high vacuum chambers to isolate regions of the chamber.
Features of Butterfly Valve
* Heavy duty Gate Valve have outside screw & yoke type, bolted bonnet, rising stem with non-rising hand wheel.
* Bore design assures streamlined, minimum turbulence, less erosion, lower pressure drop, & resistance to flow.
* Anti- friction bearings are provided in higher sizes and classes.
* Bi-directional shut-off.
* Deep stuffing box.
* Gate Valves are available in 150#, 300# & 600#.
* Flexible wedge with low center stem wedge contact, in solid CA15 (13 % Cr) or hard faced with 13% Cr, SS 316, & Monel. Wedge is ground and lapped to a mirror finish and tightly guided to prevent dragging and seat damage, Non-rotating stem with precision Acme threads and burnished finish.
* The two inclined seats allow for tight shut off even against high pressures. Renewable Seat Rings Welded or Threaded.
* Gate Valves are of flexible wedge, outside screw and-yoke and bolted-bonnet construction. The valves confirm to API 600.

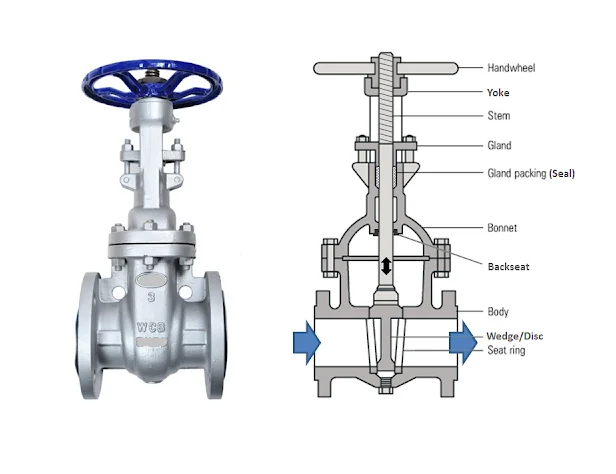

INDUSTRIAL GATE VALVE COMPONENTS
Industrial Gate Valve
Technical Specifications
Product | Cast steel Gate valve |
Body/Bonnet | ASTM A 216 Gr. WCB |
Trims | 13% Cr. STEEL (SS 410) |
Mfg. Std. | API 600 |
Insp. & Test. | API 598 |
Ends | FLANGED TO ANSI B 16.5 RF 150# |
Hyd. Test Pressure | BODY : 425 Psig (30 Kg/Cm²) SEAT : 300 Psig (21 Kg/Cm²) |
Size Range | 25 MM TO 350 MM |
APPLICATIONS
* oil and gas industry
* pharmaceutical
* manufacturing
* automotive
* Marines
