electric heater tube for fingerless paper board single facer 3/5 ply corrugation micro flute box making machine line unit

Product Overview

Description

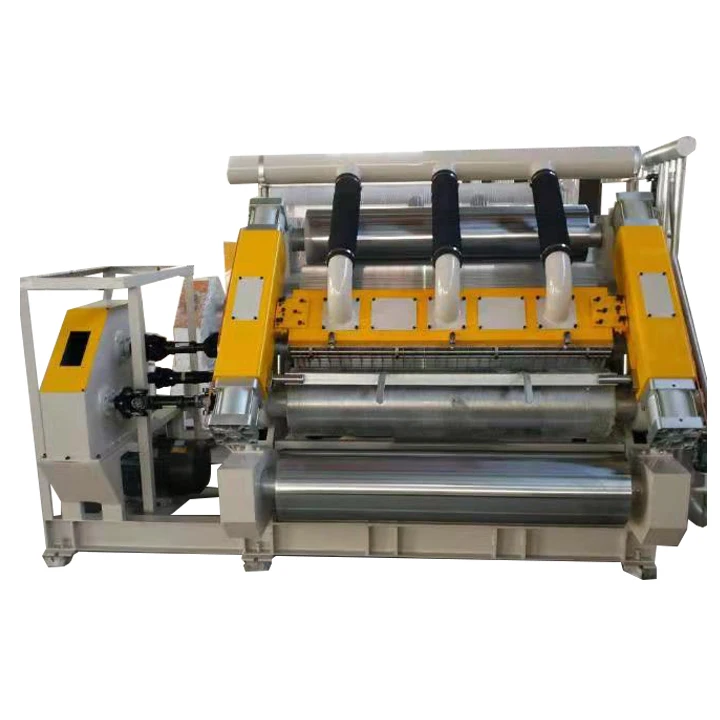

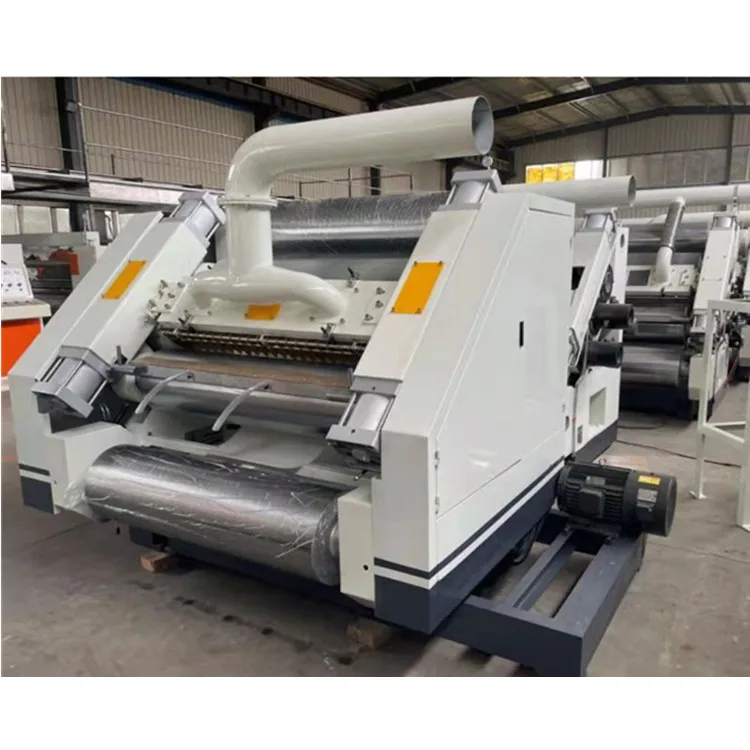

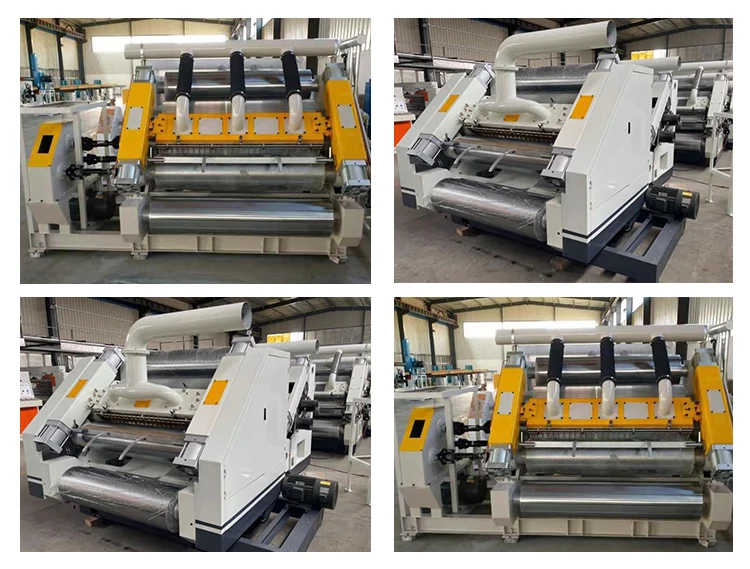

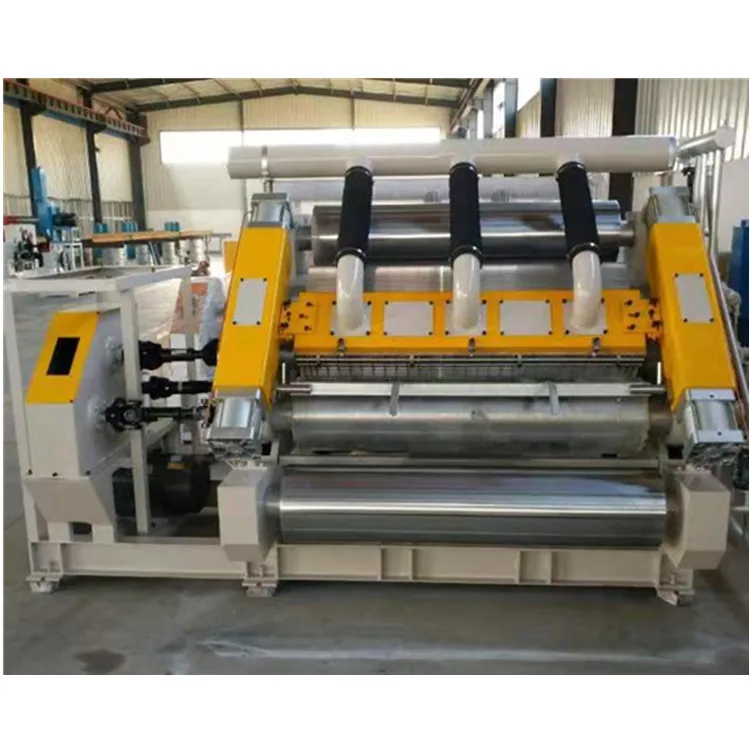

Good quality Single Facer Machine Carton Box Packing Machine

1). The suction type structure, deserve to cover high pressure powerful fan. After the wind, the air source device with censored and electrical control on the same operation counters, the distance from the host machine will not less than 1.5 meters, operating side closed all the hood.

2). Corrugated roller adopt 52 CrMo alloy steel, the conditioning, laser quenching, surface polishing, corrugated roller diameter 280 mm Lord ¢, surface hardness HRC60 degrees. Key parts tile roller, pressure roller bearing used in wafangdian bearing resistance to high temperature.

3). Glue wallboard board structure, pneumatic control back to glue, glue rubber roller surface 25 pits processing line network hard chromium plating processing, scraping the plastic roller surface is hard chromium plating processing grinding.

Width	1400mm
desigen speed	60-100m/min
Power	5.5 kw
Weight	3 tons
