Automatic Triangle Pyramids Silk Tea Bag Packing Machine for Making Inner and Outer Tea Bag
- Category: >>>
- Supplier: Sinoped Technology (shenyang) Co. Ltd.
Share on (11000003908323):
Product Overview
Description
Product Description

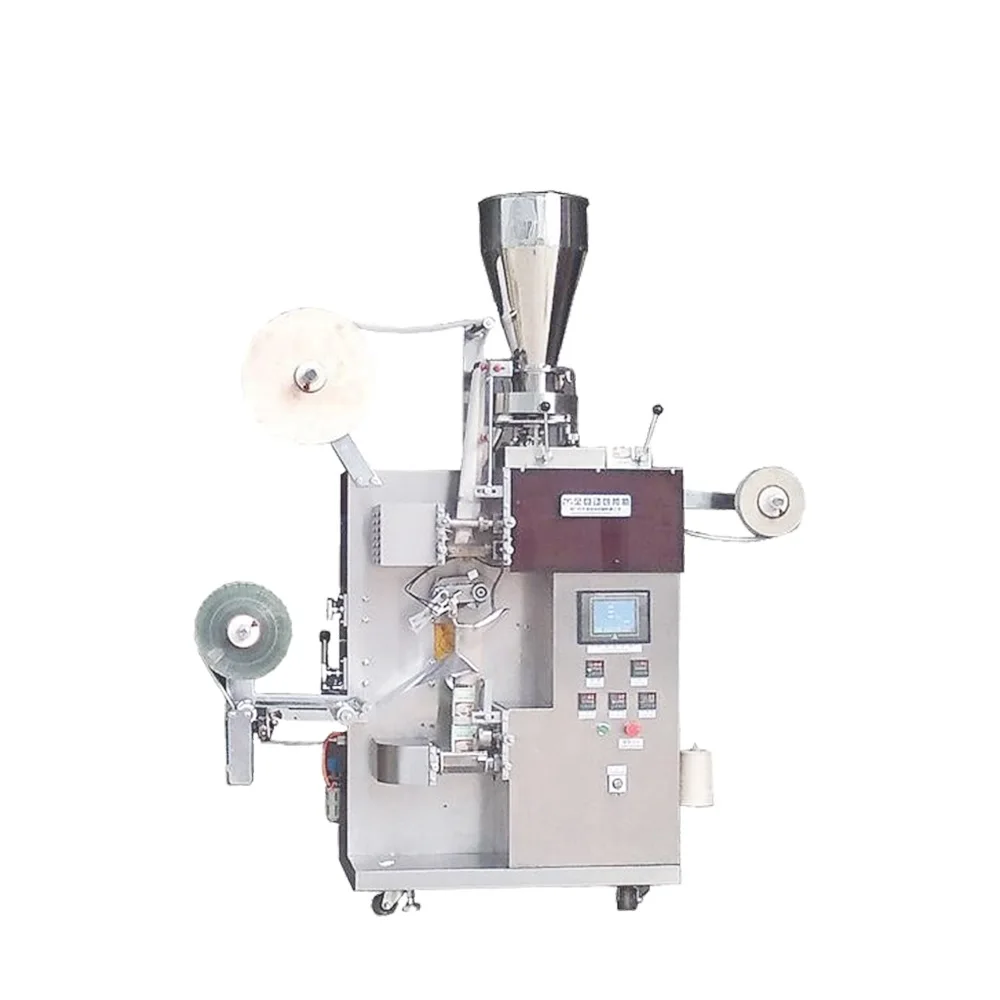

FW-B10 Tea-Bag Packing Machine is a kind of new multi-function machine with totally automatic filling for both inner and outer bags at one time, it is suitable for automatically packaging of steeping products, such as fragmental tear medical tee coffee. Etc. Outer envelope is made from heatable lamination packing material that the function for fresh protection, damp proof, and also
avoiding volatile smelling ,thus make the material an ideal choice for packaging of Chinese medical pills, healthcare tea and
packed tea as well.
avoiding volatile smelling ,thus make the material an ideal choice for packaging of Chinese medical pills, healthcare tea and
packed tea as well.
Feature
1. All stainless steel 304 cover meets to GMP standard.
2.It adopts the suck back function,it will make the sealing effect more beautiful without the clip the material phenomenon.It more suitable packing like honey,shampoo,etc.
3. Equipped with antipollution and dustproof device.
4. Automatic adjustment of pouch size and filling range by computer.
5. Photocell controller is easy to manipulate.
6. Automatic self support lubricating system, the machine can work 24 hours and the maximal capacity is 110 bags/min.
7.Minimum sealing temperature variation employs PID temperature, the tolerance is controlled by ± 2%.
8.The operation facility is controlled by American intel computer, all function is displayed with digital screen.
9. By MC certification, the machine has the capacity to product the measuring instruments which are in line width legal requirement such as accuracy and reliability, etc.
10. By EU certification, comply with the directive requirements of European and confirmed that the products has passed the appropriate conformity assessment procedures and qualified statement of manufactures,meet the requirement of safety.
2.It adopts the suck back function,it will make the sealing effect more beautiful without the clip the material phenomenon.It more suitable packing like honey,shampoo,etc.
3. Equipped with antipollution and dustproof device.
4. Automatic adjustment of pouch size and filling range by computer.
5. Photocell controller is easy to manipulate.
6. Automatic self support lubricating system, the machine can work 24 hours and the maximal capacity is 110 bags/min.
7.Minimum sealing temperature variation employs PID temperature, the tolerance is controlled by ± 2%.
8.The operation facility is controlled by American intel computer, all function is displayed with digital screen.
9. By MC certification, the machine has the capacity to product the measuring instruments which are in line width legal requirement such as accuracy and reliability, etc.
10. By EU certification, comply with the directive requirements of European and confirmed that the products has passed the appropriate conformity assessment procedures and qualified statement of manufactures,meet the requirement of safety.
specification
Machine Model | FW-B10A | FW-B10B | FW-B10C | ||
Voltage (V/HZ) | 110/220V 50HZ | ||||
Power (W) | 1500 | 2050 | 3350 | ||
Capacity (bags/min) | 28-60 | 20-40 | 25-50 | ||
Packing Capacity (ml) | 2-12 | 2-12 | 2-12 | ||
Size of Innner Bag | Nil | 50-60mm(L )/ 30-80mm(W) | 50-100mm(L )/ 30-80mm(W) | ||
Length of Bag (mm) | 50-80 | 60-120 | 60-150 | ||
Width of Bag (mm) | 45-80 | 40-90 | 40-105 | ||
External Dimensions (L*W*H)mm | 1050*910*2010 | 700*800*1900 | 1150*500*1850 | ||
Net Weight (kg) | 400 | 450 | 550 | ||
Optional Package Style
The packaging machine has date coding, fills the package with nitrogen, makes the linking bag, makes the easy tearing and punches the package.
