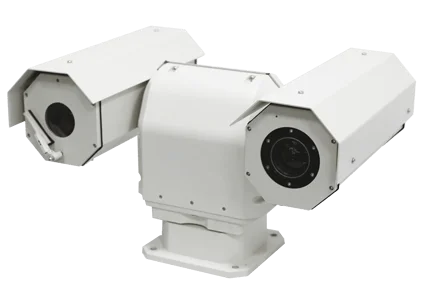

China long range day and night dual vision infrared thermal night vision outdoor camera
- Category: >>>
- Supplier: Shandong Gloryvision Intelligence Equipment Co. Ltd.
Share on (11000003983351):
Product Overview
Description
Product Description
Features
- 1. Uncooled Focal Plane Array detector, Vox, 640x512，Fine image, not limited by light source, suitable for all-weather applications
- 2. 2.1 Mp, 1/2.8” progressive scan CMOS with a maximum resolution of 1920x1080, 30x optical zoom, support 3D Digital noise reduction, fine image;
- 3. Penetrating fog supported, clearer image;
- 4. The PTZ is made of a fully high-strength aluminum alloy with a sun shield and a wiper.
- 5. Independent defogging and defrosting module, which truly solves the fogging of camera lens caused by temperature difference in outdoor environment.
Applications
Mainly used in all weather (no light / backlight / glare, rain / snow / fog) environment, good application in airports, ports, railways, scenic spots, high-end real estate, large-scale enterprises, factories, oil and petrochemical, prisons, border defense forces, etc.
Product Paramenters
Thermal Module | Sensor type | Uncooled Focal Plane Array detector, Vox | |||
Resolution | 640x512 | ||||
Pixel | 17μm | ||||
Spectrum wavelength | 8~14μm | ||||
NETD | < 40mk(@25°C,f1.0) | ||||
Lens | 25~100mm | ||||
IFOV | 0.17~0.68mrad | ||||
FOV | 6.2°x4.7°~24.6°×18.5° | ||||
Digital zoom | 8x digital magnification | ||||
Pseudo-color | Standard 9 pseudo colors | ||||
Image processing | Adaptive dynamic range compression, intelligent image enhancement | ||||
Visible Light Camera | Sensor type | 1/2.8" Progressive Scan CMOS | |||
Pixel | 2.1Mp | ||||
Resolution | 50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080) 50HZ:25fps(1280x720) 60HZ:30fps(1280x720) | ||||
Lens | 4.3-129mm，30x optical zoom | ||||
F | F1.6-F5.0 | ||||
Horizontal FOV | 65.5°-2.11°(Near-Far) | ||||
Color：0.02Lux @ (F1.6，AGC ON) Black/white：0.002Lux @ (F1.6，AGC ON) | |||||
Visible Light Camera | WDR | Support | |||
Day/night switch | Auto/Color/Black&white | ||||
DNR | 3D | ||||
Focus | Auto/Manual/Semi-auto | ||||
Electronic shutter | 1/1s ~ 1/30,000s | ||||
Exposure | Auto/ Aperture-priority / Shutter priority /Manual | ||||
WB | Auto1/Auto2/Indoor/Outdoor/Manual/Sodium lamp / Fluorescent | ||||
Image adjustment | Brightness, contrast, sharpness, saturation | ||||
Backlight compensation | Support | ||||
Anti-Shake DSP | Support | ||||
Fog penetrating | Support | ||||
PTZ | Horizontal preset speed | 9°/s | |||
Vertical presets speed | 4°/s | ||||
Pan | 360° continuously | ||||
Tilt | -90°~90° | ||||
Preset precision | ±0.1° | ||||
Preset | 256 presets, 8 cruise lines | ||||
RS485 | Support RS485 | ||||
Wiper | Support | ||||
Network | Protocol | TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、SMTP、NTP、UPnP、SNMP、FTP、802.1x、QoS、HTTPS | |||
Security | Password protection, multi-user access control | ||||
Video encode | H.264/H.265 | ||||
Audio encode | G.722.1, G.711-a law, G.711-u law, MP2L2, G.726 | ||||
Image | Image size | 1920×1080(Visible light), 400×300(Thermal) | |||
Video format | PAL/NTSC | ||||
Main-stream | 50Hz:25fps(1920×1080), 25fps(1280×960), 25fps(1280×720)(Visible light) 60Hz:30fps(1920×1080), 30fps(1280×960), 30fps(1280×720) (Visible light) 50Hz:25fps(400×300)(Thermal) 60Hz:30fps(400×300)（Thermal） | ||||
Sub-stream | 50Hz:25fps(704×576)、25fps(352×288)、25fps(176×144) 60Hz:30fps(704×480)、30fps(352×240)、30fps(176×120) 50Hz:25fps(400×300)（Thermal） 60Hz:30fps(400×300)（Thermal） | ||||
General | Communication interface | 1×10Base-T/100Base-TX ,1x RS-485 | |||
Video output | 1.0V[p-p] / 75Ω，PAL or NTSC，BNC | ||||
Power supply | DC12V（DC 10.8~18V wide range power supply） | ||||
Relative humidity | ＜90% | ||||
Protection grade | IP66 | ||||
Working Temperature | -35℃ - 55℃ | ||||
Power consumption | <150W | ||||
Anti-impact | ≥4G | ||||
Weight | 20kg | ||||
Dimension | 500x350x300mm | ||||
Working Distance | Day camera vision | 1000m see human gestures clearly | |||
Target | Human | Car | |||
Detection | 2800m | 8000m | |||
Recognition | 700m | 2000m | |||
Identification | 350m | 100m | |||
Note: Human size: 1.8m×0.5m; Car size 2.3m×2.3m | |||||
Product packaging
FAQ
How to get the latest price?
You can contact sales online to get latest price; Or you can leave message to us. Our sales will contact you as soon as possible. And the price we provide is normally FOB price.
What is MOQ?
Our minimum order quantity is 1 pc.
What is the lead time?
Please contact sales to confirm if we still have goods in stock. If yes, we will ship goods to you in one week time after we receive your payment. If not, please confirm with sales.
How to ship goods to customer?
Usually we ship goods to customer via express, such as DHL, FedEx, UPS, TNT or airway transportation. You can also ask us to send goods to your forwarder in China. And we will pay domestic freight.
Do you provide customization service?
Yes, we provide OEM/ODM service. Lead time of customized products need to be confirmed with sales. Usually we will ship products after 2 months time after we receive customer's payment.
After-sale service
Our service
1. We offer 1 years warranty to the devices.
2. Engineers remotely diagnose problems online.
3. Spare modular hardware can be dispatched just in time.
4. Update remotely to solve most firmware problems
5. Modulized design of each part, client can replace modules under instruction.
Our Advantages
Various configurations are optional and customizable
1. Cameras can be configured according to the specific requirements of the project;
2. Different modules can be selected according to the project budget;
3. OEM and ODM are available;
4. New products can also be jointly developed
Modular design, easy maintenance
1. Device firmware can be upgraded remotely, and engineers can remotely solve device program failures
2. Hardware modular assembly, people with basic electrical knowledge can realize the replacement of faulty modules. Greatly saves the time and cost of maintenance.
3.In normal use, cleaning and maintenance are simple, and there is almost no additional cost
3.In normal use, cleaning and maintenance are simple, and there is almost no additional cost
Multiple Shipping Methods
Express, air, sea, land and other methods are optional. You can choose the best way you prefer.
Third Party Guarantee
Alibaba online credit insurance orders to protect your rights to the greatest extent
Recommend Products
Company Profile
Introduction
Shandong Gloryvision Intelligence Equipment Co., Ltd was established in 2019. The company's products have been continuously developed and expanded from the initial laser night vision surveillance cameras. At present, the company's products include: uncooled infrared thermal imaging PTZ cameras, cooled infrared thermal imaging PTZ cameras, multi-functional day and night monitoring PTZ cameras, Vehicle mounted long range day/night vision PTZ cameras, Ultra-long-distance gating night vision cameras, handheld infrared thermal imaging devices, laser listening equipment, laser dazzling equipment, security inspection robots, mrine used gyro-stabilization cameras, UAV used gyro-stabilization cameras, LRF moudule etc.
