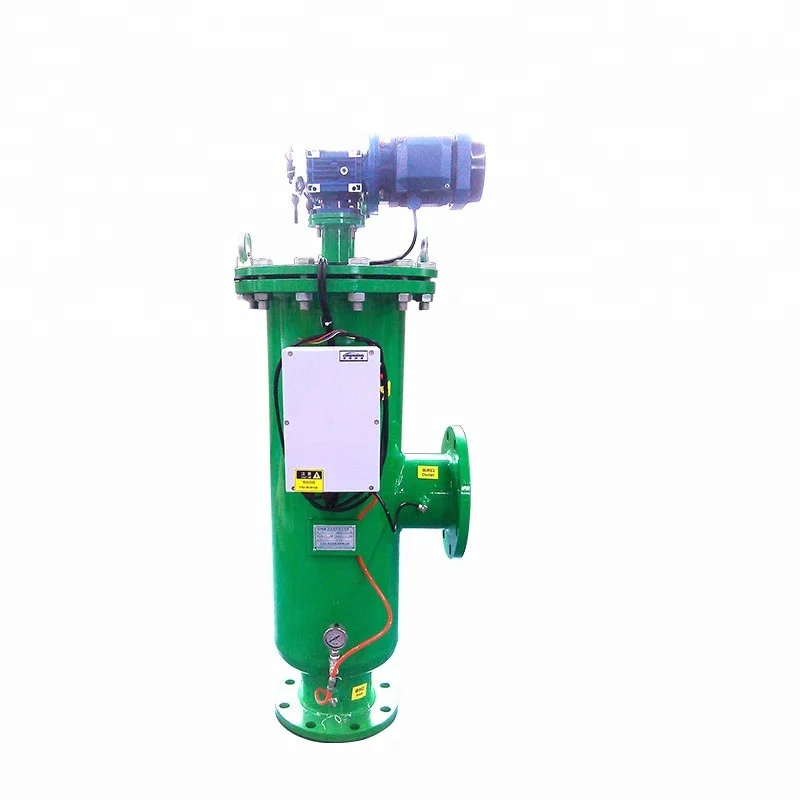

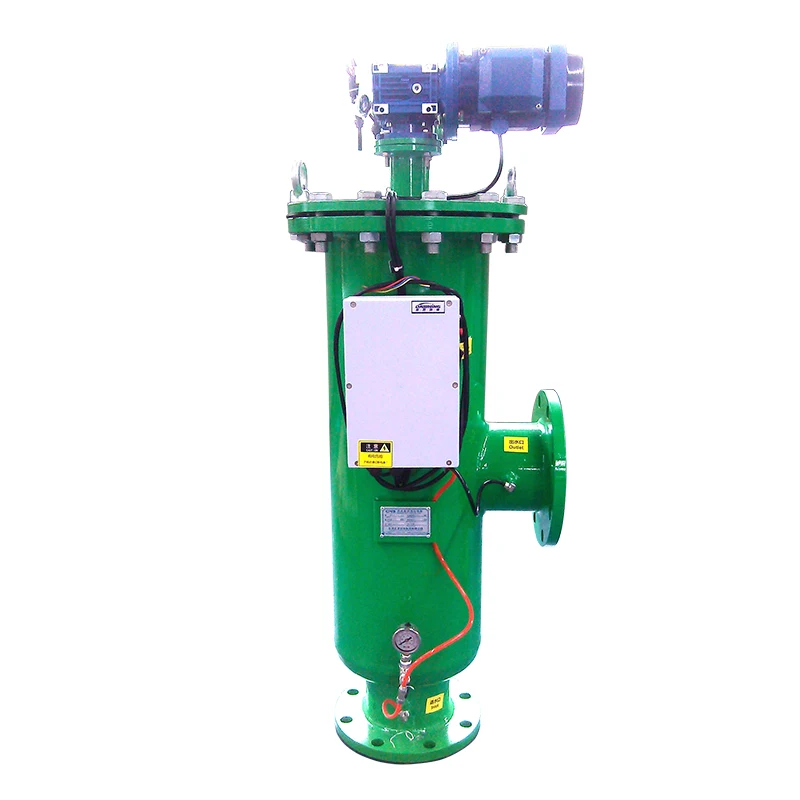

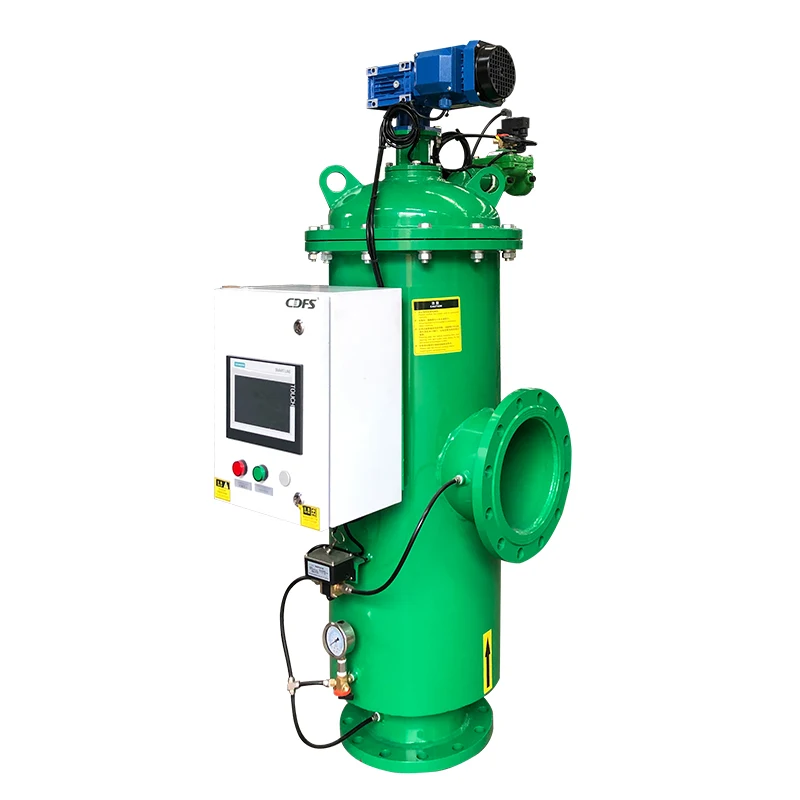

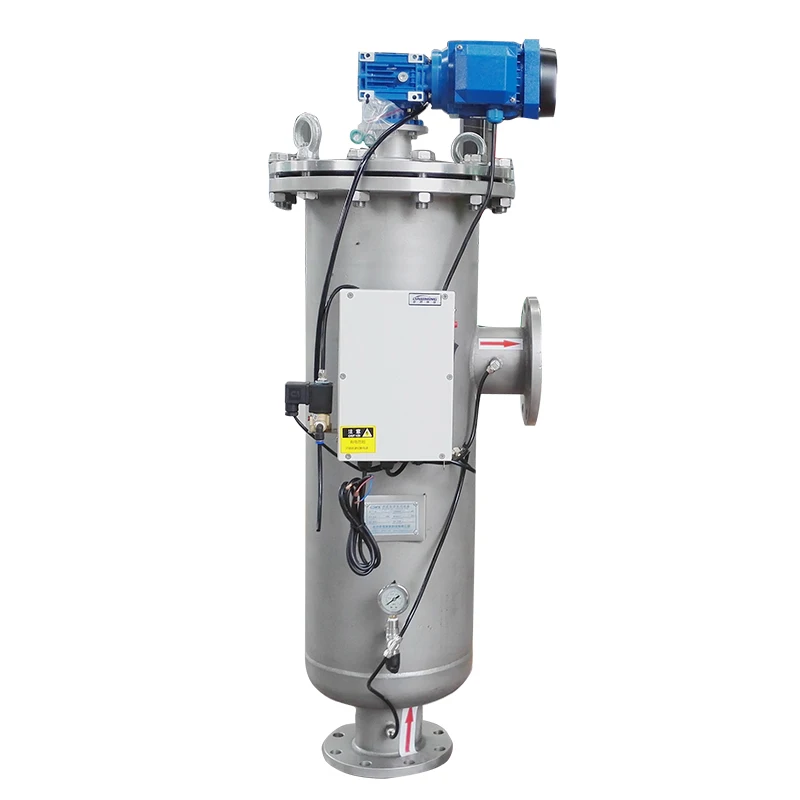

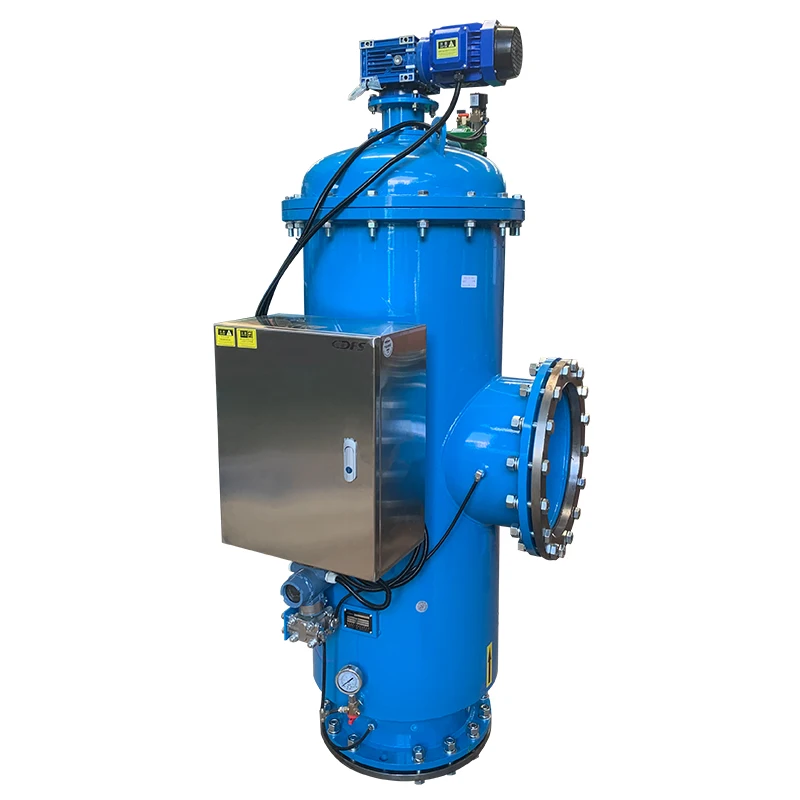

Automatic self cleaning screen water filter high pressure filter systems for irrigation/sea water/wastewater

Application

• Commercial - Golf course and sporting field irrigation systems.


• Industrial  - Pre-preteatment of UF/RO and waste water recycling.


• Irrigation - Primary filtration for the prevention of blockages in irrigation system


• HVAC- cooling tower side filtration and full system


• Metal Processing Plants - Filtration for water cooling and spray nozzles.


• Mining - Cleaning of process and waste water.

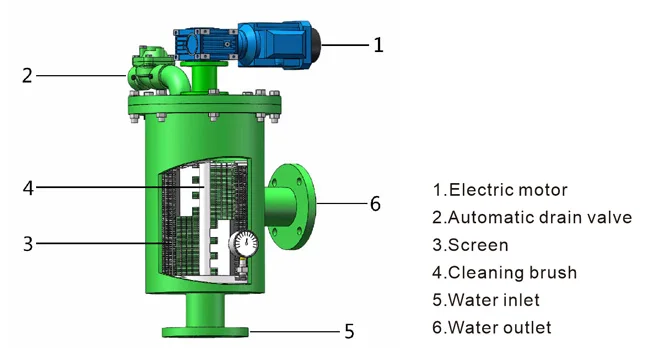

Product structure

Parameters

How does the self-cleaning filter work?

The water flows through the screen and the particles are retained on the inside of the screen of the filter element. The filtered water then flows out through the outlet.

 When the particles accumulated to a certain number and the pressure differential increases to the pre-determined level, the flushing cycle starts.

It include two steps: First, the automatic drain valve opens on the drainage outlet. Then, electronic motor drives the cleaning brushes which are inside the screen, the solids are expelled through the drain valve.

Filters continue to supply filtered water even during the flushing cycle.The whole working system is controlled by a smart box which has several control modes: pressure differential, time, manual and PLC.

Product selecting

When you are choosing automatic screen filters, please consider the following parameters:

·            Flow capacity( Pipe diameter)

·            Filtration range

·            Shell material

·             Pipeline pressure

·            Chemical properties of the filter medium

·            Suspended solids(SS) concentration of filter medium

FL series Models for choose

1.   Our company provides maintenance for 1 year after delivery.

2.   Alfter the goods are delivered, our company will track the products.

3.   In addition to the after-sales service during the warranty period, the company is also

responsible for equipment maintenance after the warranty period.

Hunan Dawning Filter System Technology Co., Ltd. have been specialized in manufacturing and marketing water filter systems since 2002.

The filters are automatic back washing filter, self cleaning filter,sand media filter, disc filter and so on. We could provide efficient,stable solutions for irrigation and industrial water treatment.

Our products are widely used in construction, steel, electricity, petrochemical, metallurgical, pharmaceutical, paper, automotive, hotels, municipal and other major industries.

Our products have been exported to hundreds of countries and regions such as America, Canada, Chile, Australia, Italy, India, Singapore,Korea,etc. We owned 9 patents and adopted the ISO9001 and CE.

Our team are professional and always here to support you!

Q: Where is your factory?

A:Changsha city, Hunan province, China

Q:Can you accept OEM?

A:Yes.We could do OEM for you.

Q: Do you have a certification?

A: Yes. we have ISO / CE certificate and certificate of patent

Q: How about the delivery time?

A: Usually 15-25 days after prepayment is confirmed.
