new design fast soldering low price supply flux coated copper welding wire
- Category: >>>
- Supplier: Tongling Hengyuan Welding Materials Co. Ltd.
Share on (11000004155461):
Product Overview
Description
PRODUCTS DESCRIPTION
INTRODUCTION
Product name:

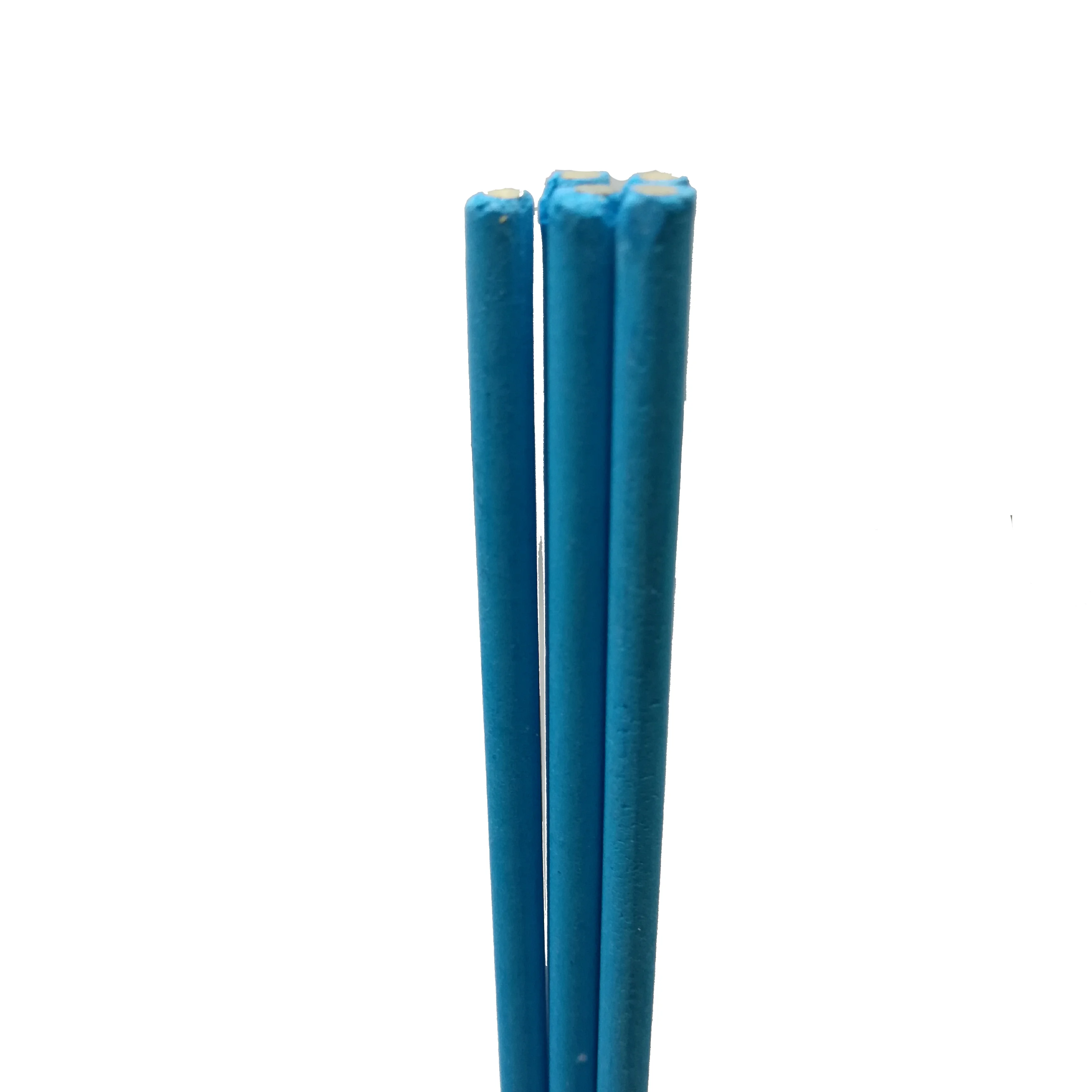

LOW FUMING BROZNE(FLUX COATED)
Comply with GB S222F
Equivalent to AWS A5.8
RBCuZn-C
A low fuming bronze alloy for torch brazing.

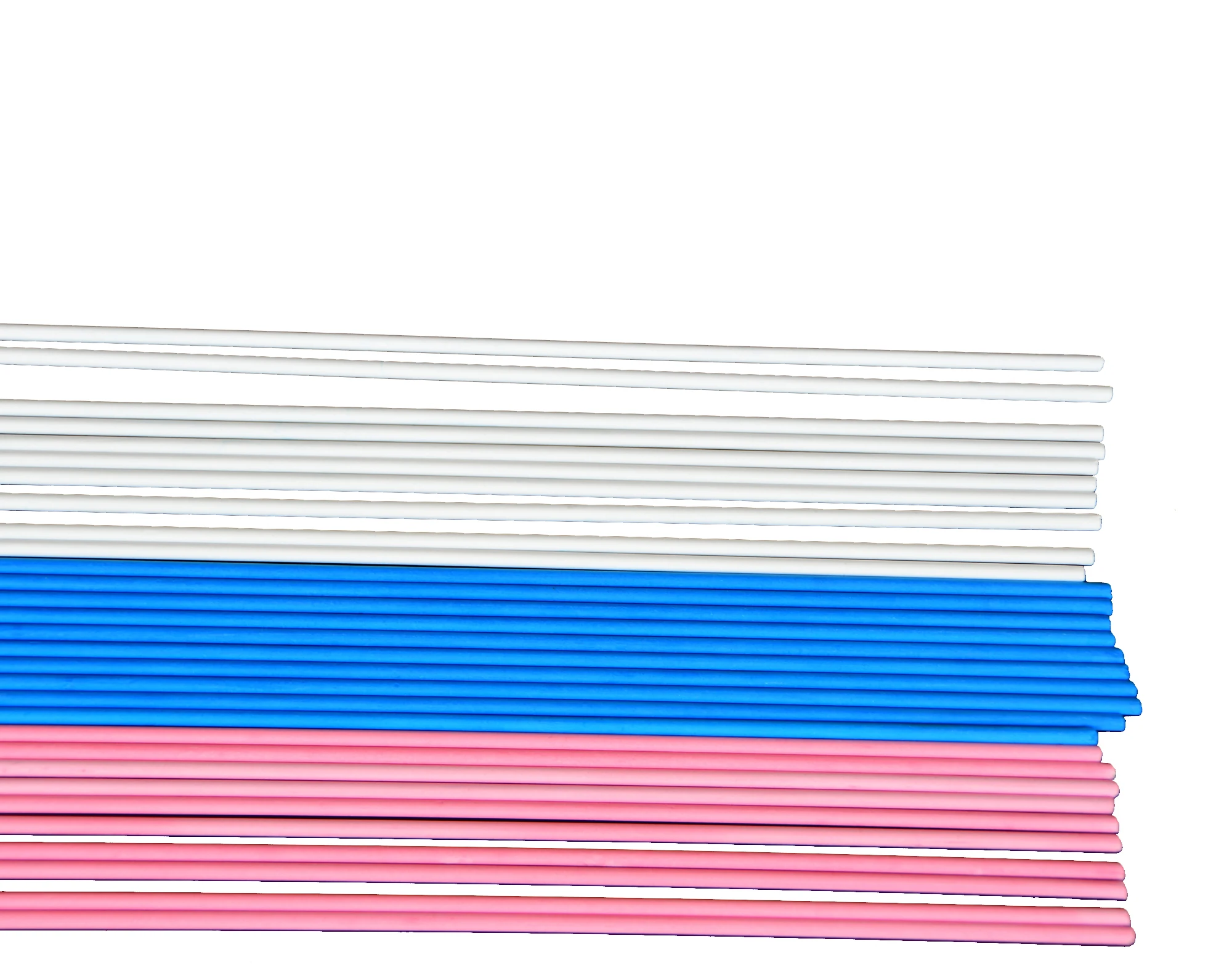

Color: Pink White Blue Red Purple
PIECES:3.0MM×500MM in 2.5KGS，72pcs.
PROCEDURE
1.Clean braze area
2.Remove all rust oil and grease
3.Heavy sections should be beveled
4.The alloy should be applied by brazing technique with netural flame
5.When applying the bare rod,
use a neutal flame with CJ301 flux
6.Flux residue should be removed by wire brushing with hot water
FEATURES
1. Tensile strength-Up to 65000psi
2.Brazing temperature range-1670℉ to 1750℉
3.Flux Coating provides excellent wetting action with no objective fuming
4.Porosity-free deposits
5.Good machinability
6.Color matches yellow brass
LOW FUMING BRONZE BARE CHEMICAL COMPOSITION
Standard | Class | Alloy | Chemical Composition(%) |
ISO24373 | Cu6810 | CuZn40Fe1Sn1 | Cu:56.0~60.0 Al:0.01 Fe:0.25~1.20 Mn:0.01~0.50 Pb:0.05 Si:0.04~0.15 Sn:0.80~1.1 Zn: bal. Other:0.5 |
GB/T9460 | SCu6810 | CuZn40Fe1Sn1 | Cu:56.0~60.0 Al:max 0.01 Fe:0.25~1.20 Mn:0.01~0.50 Pb:max 0.05 Si:0.04~0.25 Sn:0.80~1.1 Zn: bal. Other:max 0.5 |
AWS A5.8 | C68100 | RBCuZn-C | Cu:56.0~60.0 Al:0.01 Fe:0.25~1.20 Mn:0.01~0.50 Pb:0.05 Si:0.04~0.15 Sn:0.80~1.1 Zn: bal. Other:0.5 |
Physical Properties and Mechanical Properties: | ||||||||
Solids-Temperature | 866 ℃ | Liquids-Temperature | 888℃ | |||||
Density | 8.38kg/dm3 | |||||||
Introduction: | ||||||||
Most popular for padding materials of gas-welding in brass.Can also used in brazing of copper ,steel,copper-nickel,cast iron and carbide cutting tools incrustation. | ||||||||
ABOUT US
Tongling Hengyuan Welding Materials Co., Ltd.which was founded in 2007 , is a professional manufacturer of copper and copper alloy welding materials.Company adopted GB/T9460, BS EN14640, AWS, DIN standards, the production of copper, Silicon Bronze, Aluminum Bronze, Tin Bronze, White Copper, Brass, Copper Base Alloy welding materials, and is widely used in automobiles, ships, engineering machinery, metallurgy, electric power, aviation, aerospace, oil and other fields.Our company has been to Arabia, Dubai, Germany, the United States, France, the Middle East, and Vietnam for many times to conduct academic exchanges.Through years of communication with the majority of users and accumulated experience, the company provides each customer with high-quality, reliable copper alloy series welding materials and thoughtful and detailed pre-sale and after-sales service, "integrity-based, win-win cooperation" is the company's corporate culture and purpose, we will cast a common dream with the spirit of craftsmen.
RELATED PRODUCTS
PRODUCTS APPLICATION
Our products are suitable for automobile casting, high pressure valve iron, hydraulic rod, marine casting, aerospace casting, ocean exploration, precision machinery, deep sea scale, marine water scale, high pressure valve, etc. Our company is a world leader in the field of copper alloys, and has made outstanding contributions to the field of copper alloy welding in the world. Our company has been to Arabia, Dubai, Germany, the United States, France, the Middle East, and Vietnam for many times to conduct academic exchanges and promote the world. Development in the field of copper alloy welding.

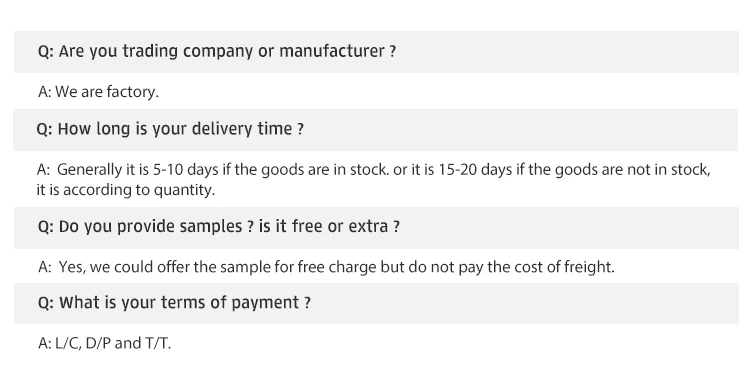

FAQ
