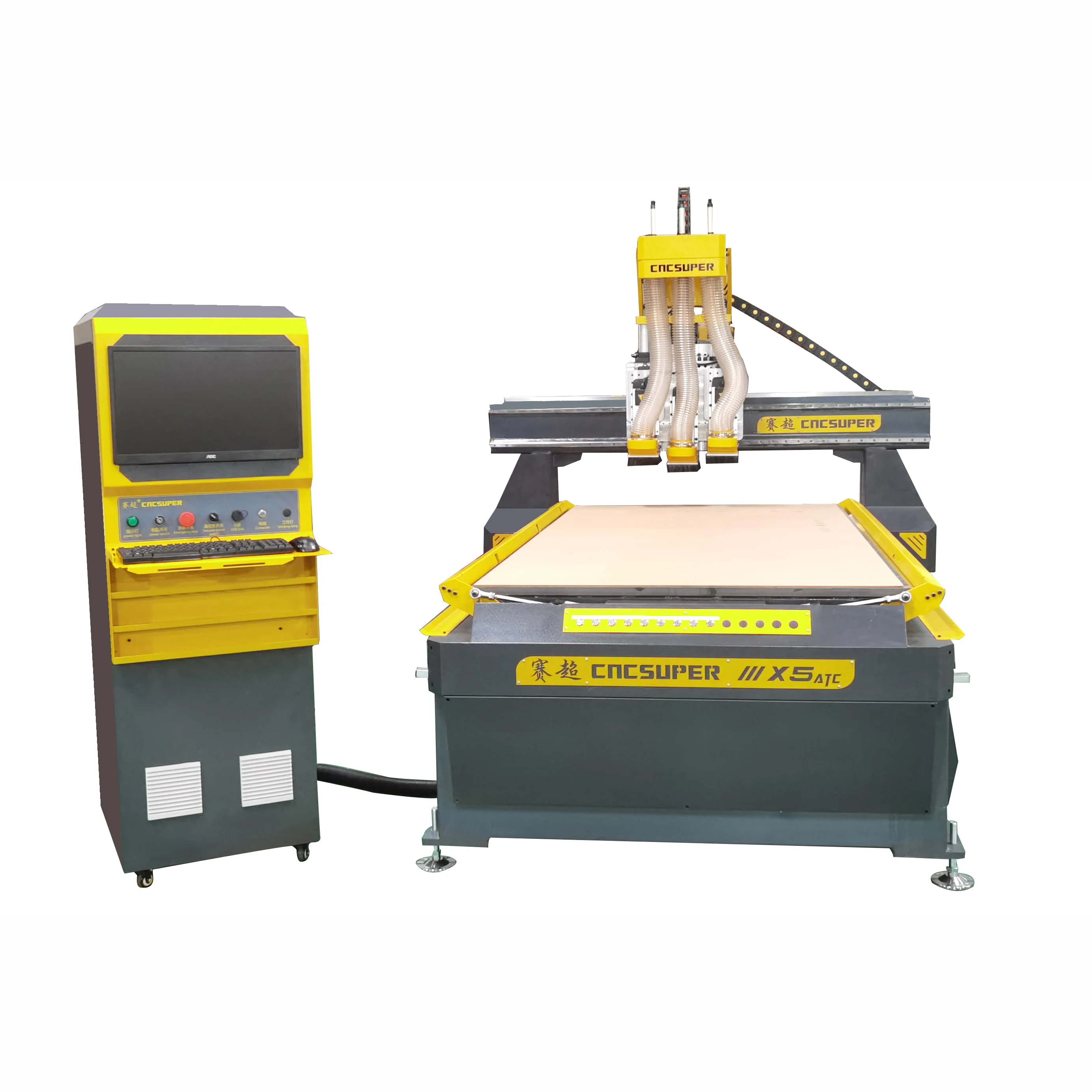

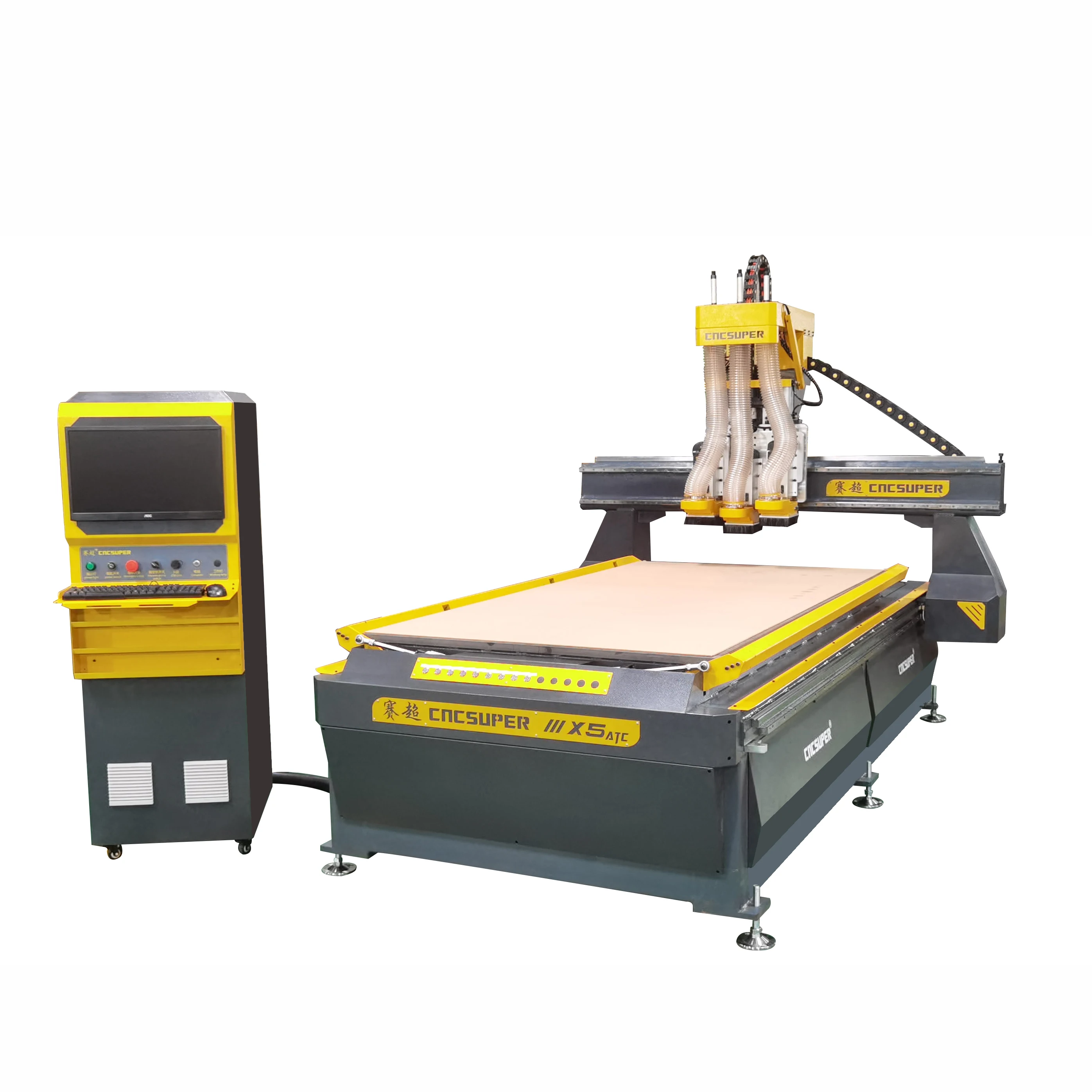

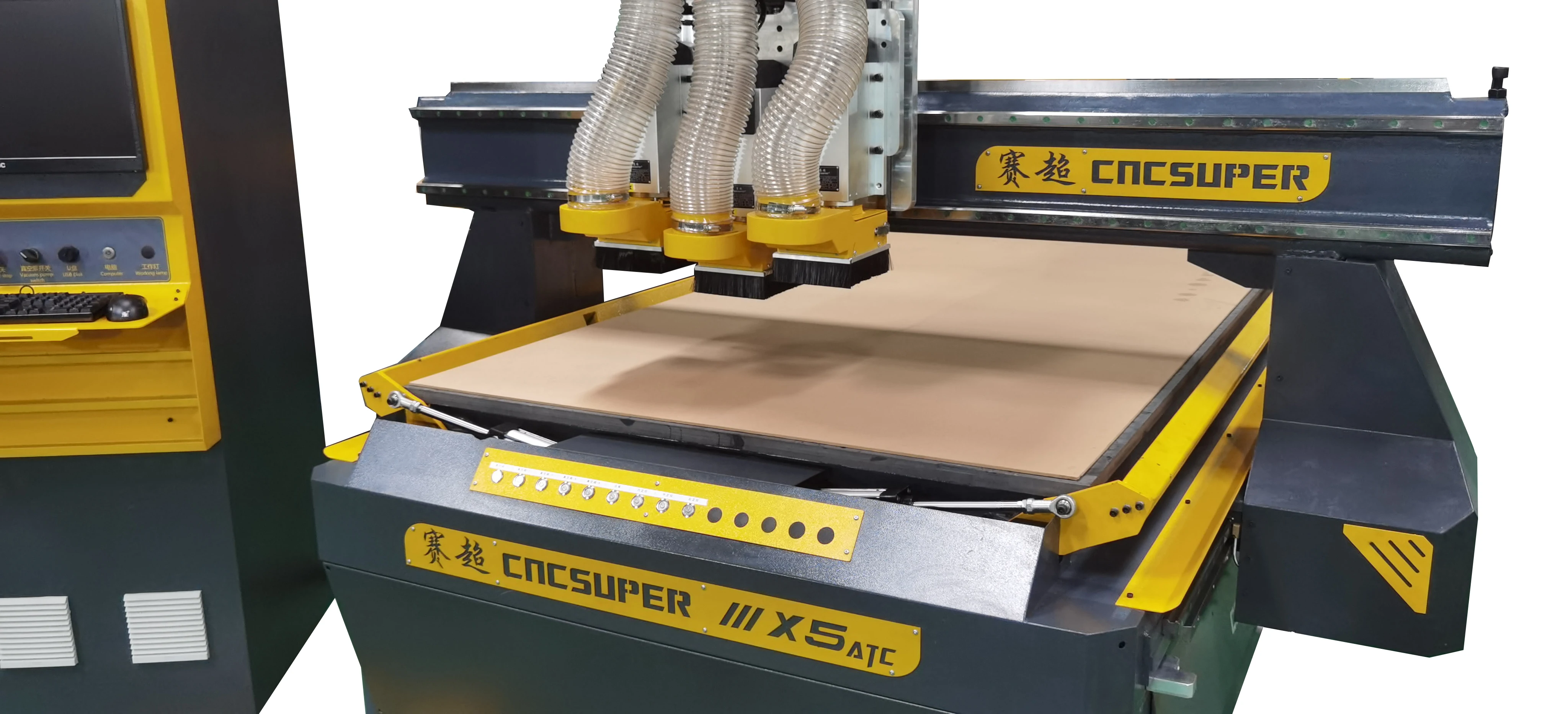

1325 Multi Spindles Processing Automatic Change Tool Wood Working Carving Panel Kitchen Cabinet Making Machines Atc Cnc Router
- Category: >>>
- Supplier: Guangdong Super Intelligent Equipment Co. Ltd.
Share on (11000004186996):
Product Overview
Description
Products Description
1325 Multi Spindles Processing Automatic Change Tool Wood Working Carving Panel Kitchen Cabinet Making Machines Atc Cnc Router
Feature
1.Welded structure by thick profiled steel, stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.
2. High power spindle can make machine working with high precision and long service time and stable movement. Three spindles automatic tool change with 6KW air cooling spindle, can achieve any switching operation between the three spindles, to reduce tool setting time and improve processing efficiency.
3.Pneumatic mechanism on X and Yaxis, for limiting the correct working area. Once the right measurement is determined, no need for the reposition of work pieces later.
4. Optional scanning device, when all designs made in the software and printed out by barcode, inexperienced people can handle the machine and complete works.
6. Taiwan linear square guide, double screw with high precision and precision cutting.
7. Pneumatic 2-3 spindles, cost effective than ATC spindle, but can achieve the same function, most suitable for wooden door and cabinet production.
2. High power spindle can make machine working with high precision and long service time and stable movement. Three spindles automatic tool change with 6KW air cooling spindle, can achieve any switching operation between the three spindles, to reduce tool setting time and improve processing efficiency.
3.Pneumatic mechanism on X and Yaxis, for limiting the correct working area. Once the right measurement is determined, no need for the reposition of work pieces later.
4. Optional scanning device, when all designs made in the software and printed out by barcode, inexperienced people can handle the machine and complete works.
6. Taiwan linear square guide, double screw with high precision and precision cutting.
7. Pneumatic 2-3 spindles, cost effective than ATC spindle, but can achieve the same function, most suitable for wooden door and cabinet production.
Product Paramenters
Size | Working area | 1300(X)x2500(Y)x200(Z)mm |
Table size | 1500x3000mm | |
Z-axis clearance | 200mm | |
Structure | XYZ guiding rails | Original Taiwan HIWIN linear square rails |
Body | Heavy duty seamless steel structure | |
Weight | 2000kg | |
Accuracy | Positional accuracy | ±0.03/300mm |
Repeatability | ±0.03 | |
Spindle motor | Power | 4PCS 6KW air cooling spindle |
NO. of revolution | 18000rpm | |
Motor | Original Taiwan DELTA servo motor and drives | |
Traverse system | MAX. Speed | 30000mm/min |
MAX. Cutting Speed | 20000mm/min | |
Control parts | Controller | Original NC Studio 95A |
Software | Type3/Artcam | |
Format | G code HPGL | |
Dust collector function | Yes | |
Lubrication system | ATC lubrication | |
Table | 5 zones vacuum table plus T-slot | |
Vacuum pump | 5.5 KW air vacuum pump | |
Tool diameter | 3.175-12.7mm | |
Power supply | 380V/50HZ, 3 phases |

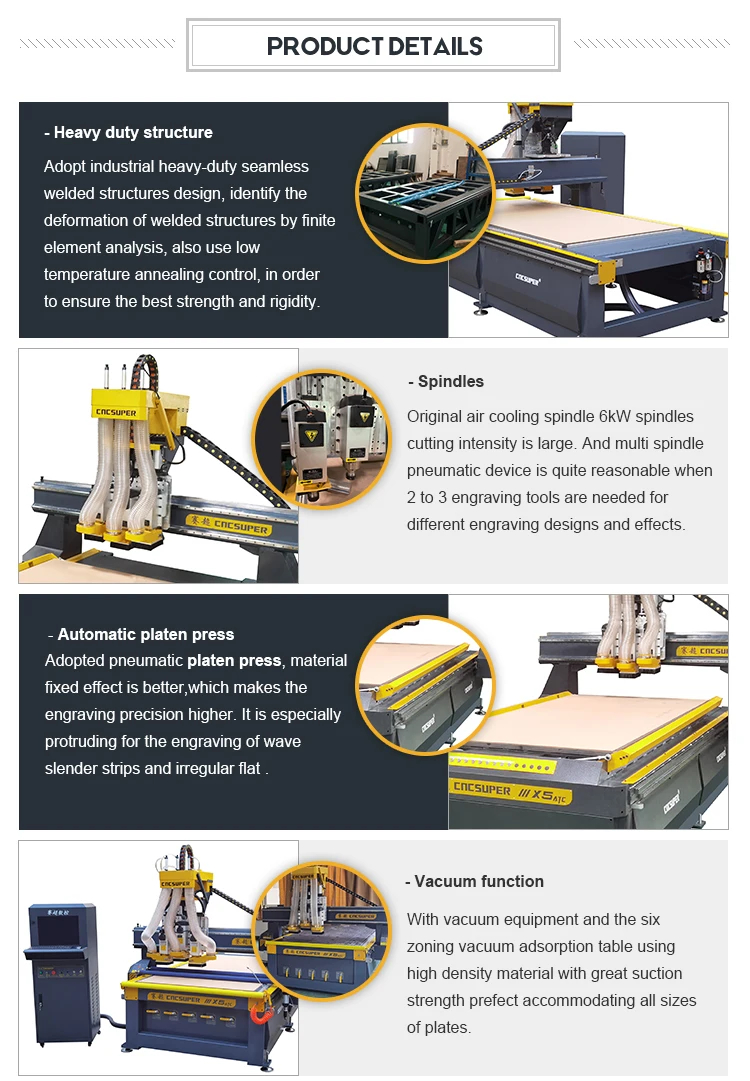

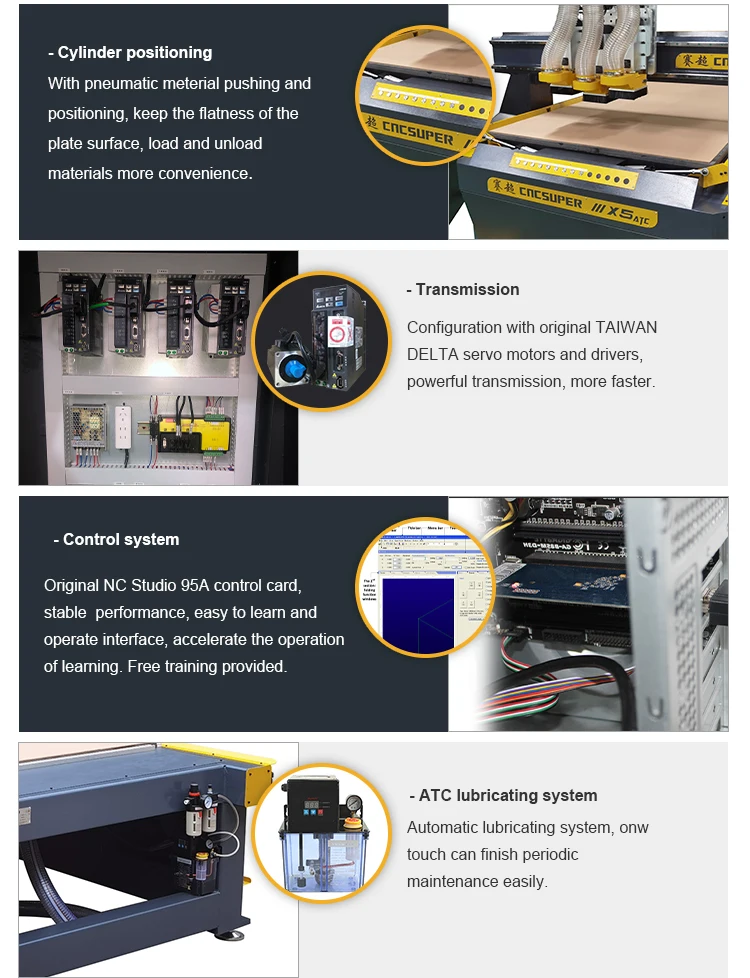

Product Details
Product application
HOT Sale product
Rotary device 4 axis multi spindles cnc router machine
*Add rotary axis can 3d carving processing of cylindrical workpieces etc.
*Adopt original taiwan delta servo system, more faster.
*5 zones vacuum table with large suction air vacuum pump.
*Heavy-duty seamless welded structures design, with 2pcs air cooling spindles.
*Adopt original taiwan delta servo system, more faster.
*5 zones vacuum table with large suction air vacuum pump.
*Heavy-duty seamless welded structures design, with 2pcs air cooling spindles.
