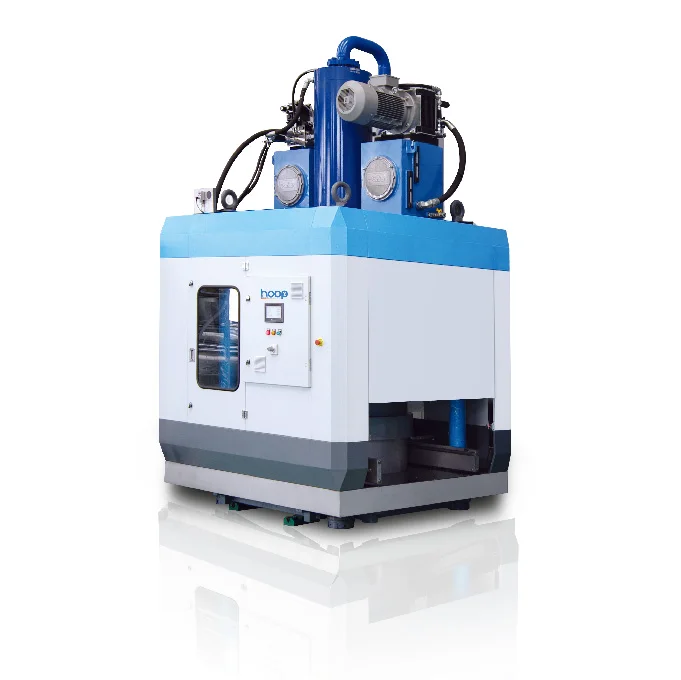

Tunnel washer washing machine continued washer extractor energy saving tunnel washer
- Category: >>>
- Supplier: Jiangsu Hoop Washing Machinery Manufacturing Co. Ltd.Jiangsu Ltd.
Share on (11000004190475):
Product Overview
Description
Company Introduction
HUIBU(SHANGHAI) INDUSTRIAL CO.,LTD
No.8565 Chuannanfeng Road,Fengxian District,Shanghai
JIANGSU HOOP WASHING MACHINERY MANUFACTURING CO.,LTD
No.10~8,Anfeng Electronic Information Industrial Park,Dongtai city,Jiangsu province.
Products Description
Product Paramenters
Model | Unit | FW50-6 | FW50-10 | FW50-13 | ||
Module | piece | 6 | 10 | 13 | ||
Washing Capacity | kg/h | 650 | 1300 | 1850 | ||
Washing Speed | rmp | 9-13 | 9-13 | 9-13 | ||
Drum Size | mm | 1900*800 | 1900*800 | 1900*800 | ||
Power | kw | 24 | 40 | 52 | ||
Steam Pressure | bar | 6 | 6 | 6 | ||
Steam Consumption | kg/kg | 0.4 | 0.4 | 0.4 | ||
Water Consumption | l/kg | 4 | 4 | 4 | ||
Compressed Air Consumption | nm³/h | 0.05 | 0.09 | 0.12 | ||
Compressed Air Pressure | bar | 6 | 6 | 6 | ||
Dimension | mm | 7590*2000*2345 | 11590*2000*2345 | 14590*2000*2345 | ||
Weight | Kg | 6050 | 10050 | 13050 | ||
Note:The above specifications are subject to change without notice. | ||||||
product process
Company Profile
HOOP WASHING MACHINERY
Since its foundation in 1993,Hoop has always adhered to the principle of innovation and cooperation,which has diversified the
company’s products and services.Nowadays,we have become a professional of integration solutions for the washing industry.
company’s products and services.Nowadays,we have become a professional of integration solutions for the washing industry.
AUTOMATIC WASHING AND DRYING

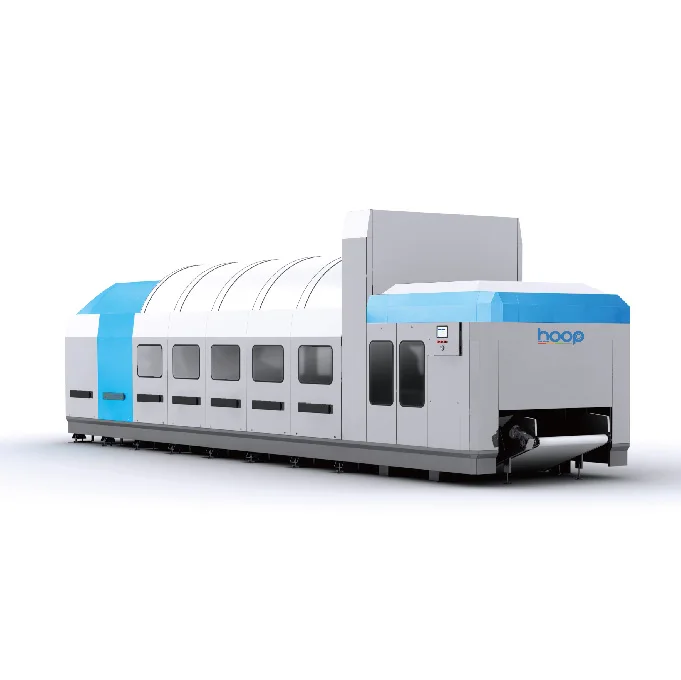

Tunnel type washing machine.

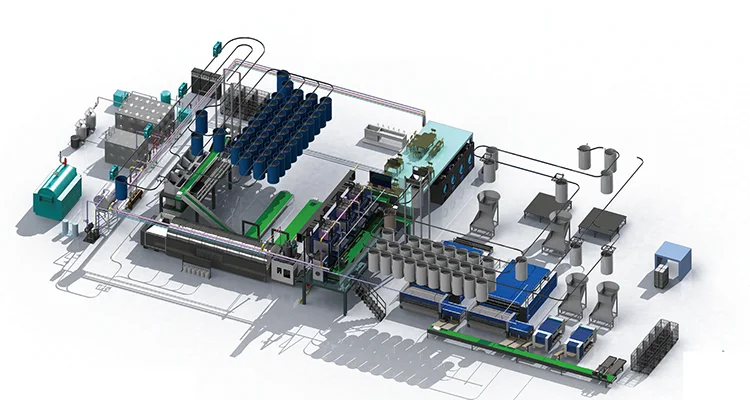

Automatic integrated washing system.
AUTOMATIC POST-FINISHING
Linen ironing line.
Work clothes finishing line.
AUTOMATIC LOGISTICS DELIVERY
Sorting system.
Transport and storage systems.
Tunnel type washing machine.
Automatic integrated washing system.
AUTOMATIC POST-FINISHING
Linen ironing line.
Work clothes finishing line.
AUTOMATIC LOGISTICS DELIVERY
Sorting system.
Transport and storage systems.
AUTOMATION AND INTELLIGENCE
Automatic control system.
Inteligent management system.
MEDIA RESOURCE OPTIMIZATION
Clean energy systems.
Resource reuse system.
Automatic control system.
Inteligent management system.
MEDIA RESOURCE OPTIMIZATION
Clean energy systems.
Resource reuse system.
