LYC 32C UTERS Hydraulic Lubrication System Oil Tank Type Moving Oil Filter
- Category: >>>
- Supplier: Henan Uters Industrial Technology Co. Ltd.
Share on (11000004190708):
Product Overview
Description

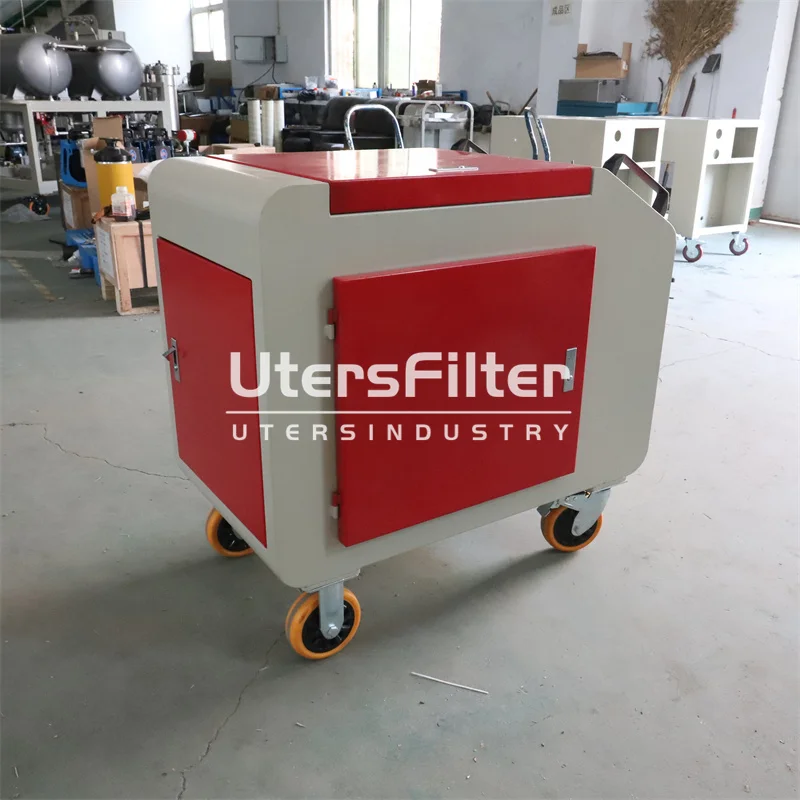

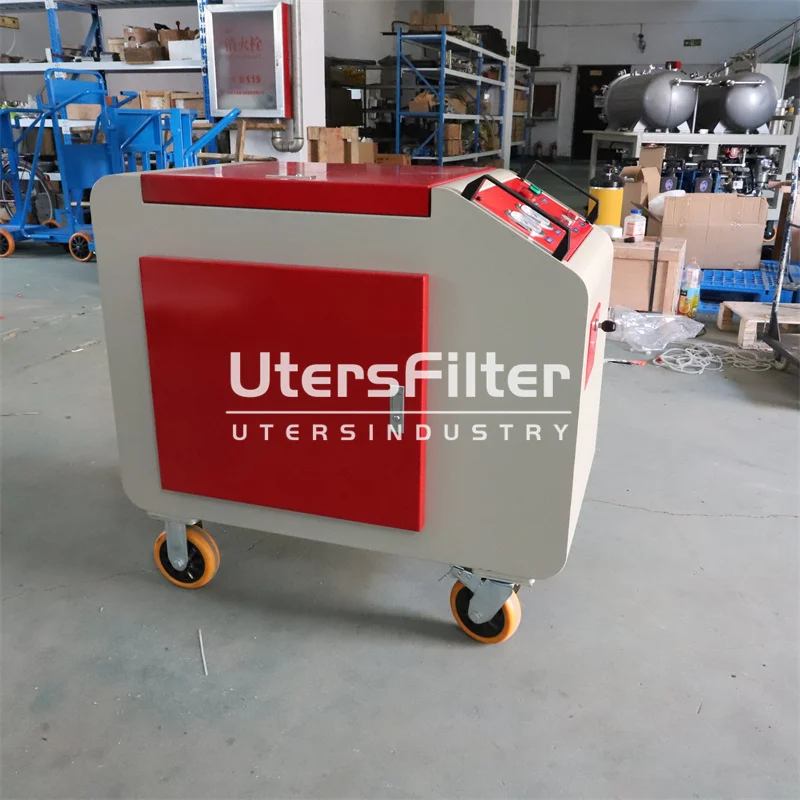

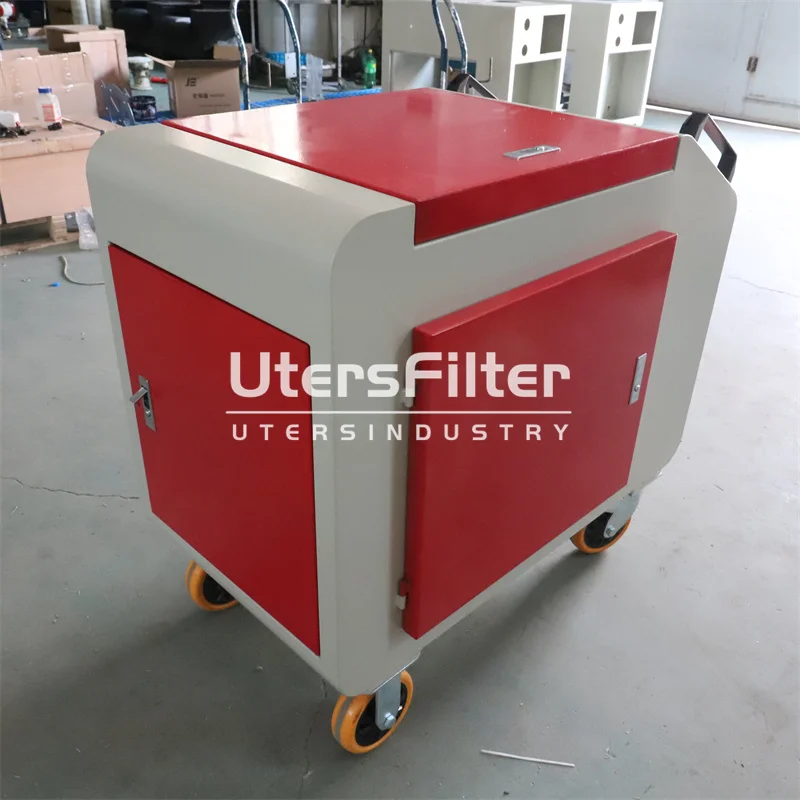

LYC-32C UTERS Hydraulic Lubrication System Oil Tank Type Moving Oil Filter
Product Description
Technical Parameters | ||
Model | LYC-32C | |
Rated flow | 32L/min | |
Rated Pressure | 0.6Mpa | |
Original filtration accuracy | ≤0.02Mpa | |
Coarse filtration accuracy | 100μm | |
Voltage | AC 380V Three-phase | |
Applications:
1.Filtering when the hydraulic lubrication system is refueling
2.Bypass filtration when the hydraulic lubrication system is working
3.Circuit filtration before the hydraulic lubrication system is put into operation
4.The oil of the hydraulic lubrication system is pumped out without the
pump of the equipment itself.
Features:
The oil filter includes a special gear pump driven by a motor,
which has the characteristics of low noise, strong self-priming ability and stable operation.
The high pressure pipeline is provided with an overflow protection device to effectively protect the safety of the hydraulic system.
Thermal relay protection is used to prevent motor damage caused by motor overload.
The suction port coarse filter protects the oil pump and extends the life of the main filter.
The fine filter can select different precision according to different needs of users to achieve the desired result.

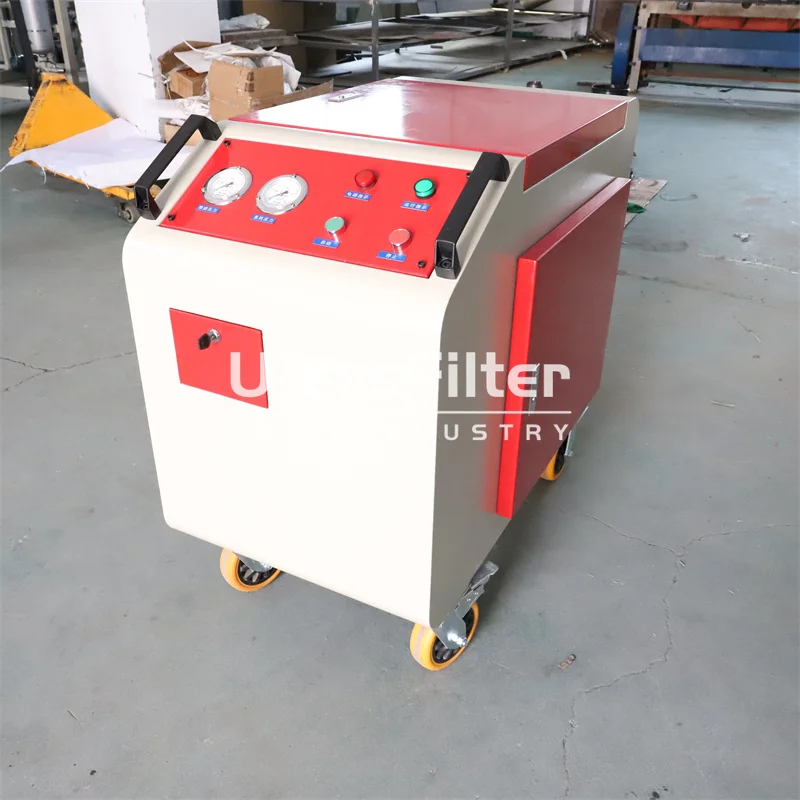

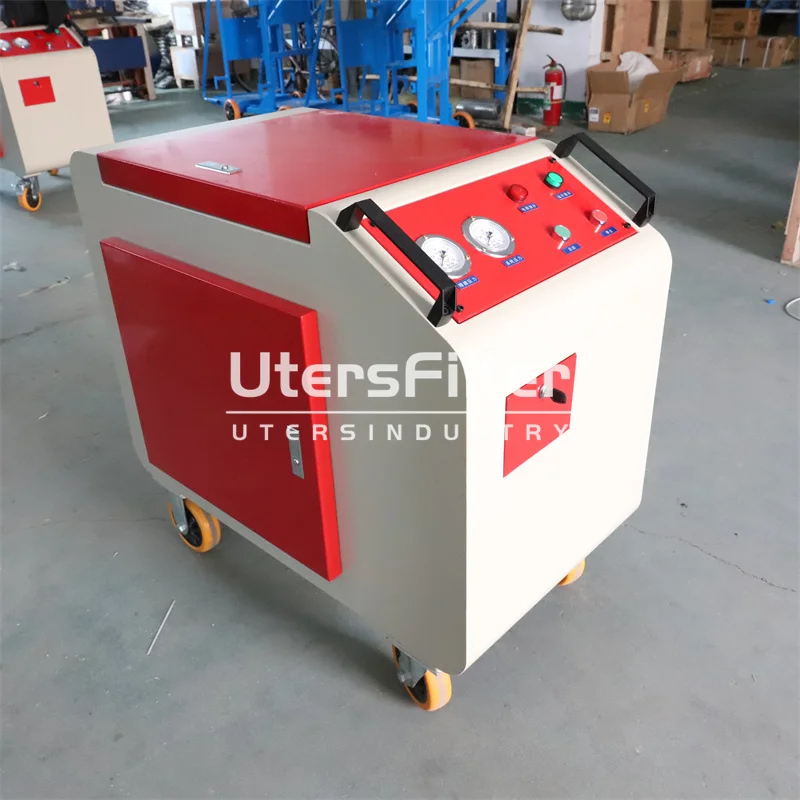

The oil filter housing has a quick-opening structure that can be quickly and quickly opened without any tools, and the filter element can be replaced. A pressure gauge is mounted on the panel to continuously indicate the operating condition of the system and the degree of contamination of the filter element during operation.
Company Introduction
Henan UTERS Industrial Technology Co., Ltd has advanced production technology and equipment, complete ISO 9001-2015 quality management system, and a fast and convenient after-sales service network. It has introduced advanced foreign technology and equipment, and developed, produced, and sold various models of filtration equipment and accessories.
Certificate
Packing&Shipping
Package:
Plastic bag inside,Paper box outside.Usually we pack filter element by paper boxes.and use export standard wooden boxes or pallets for heavy goods.
Shipment:
Express For Small Package,and also could offer Express lines service for Southeast Asian countries, Central Asian countries,Middle East countries; Air Shipment could ship goods above 45 kgs with faster time; Sea Shipment could ship goods with big volume or heavy total weight,with longer time; China-Europe freight train could ship goods to the countries and regions along the route, the destination is in Europe.and could offer door to door service!
FAQ
What 's the UTERS Industry Serive?
Awesome & timely pre-sale service; Stable & reliable product quality; No delay production period and delivery time; Efficient & Economic transport plan; Guaranteed after-sale quality assurance system; 12 months quality warranty after shipment; OEM and Customized design and production.
What's the OEM including?
Part no. OEM; Brands OEM; Package & labels OEM; Size & Structure OEM.
What's your replacements performance?
UTERS insisting on using good quality material and mature production process, 100% ensure installation and using, could replace to originals 99.99%.
What's the MOQ?
Usually MOQ is 1pc only; Some special model or OEM model MOQ is 5pcs or 20pcs.
What's the payment method?
T/T, Western Union, Money Gram, Cash. Also you could pay on our Alibaba shop.
What's the production time?
7-10 days after getting the payment; If quantity of order is big,will need more time.
Could I get some samples?
We are honored to offer you samples.we support OEM sample and test samples.
Invoice Certification & Certificate Of Origin requirements:
We could assist you to prepare Invoice certification or CO; General certificate of origin (CERTIFICATE OF ORIGIN) issued by the commodity inspection agency; CCPIT CEERTIFICATE OF ORIGIN issued by the Chamber of Commerce; Certificate of Origin issued by us manufacturer or exporter.
Quality Control
