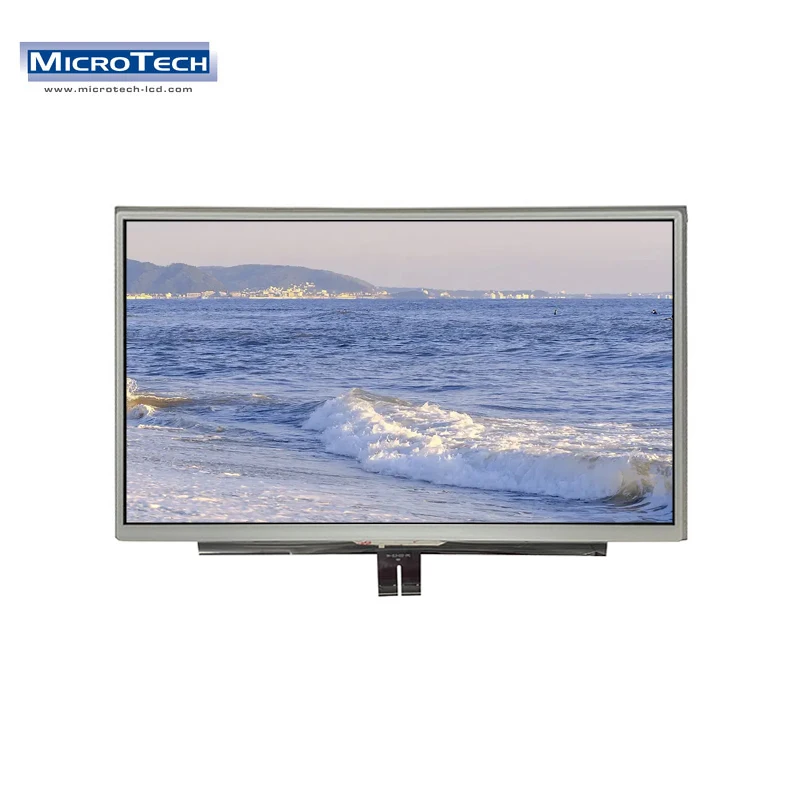

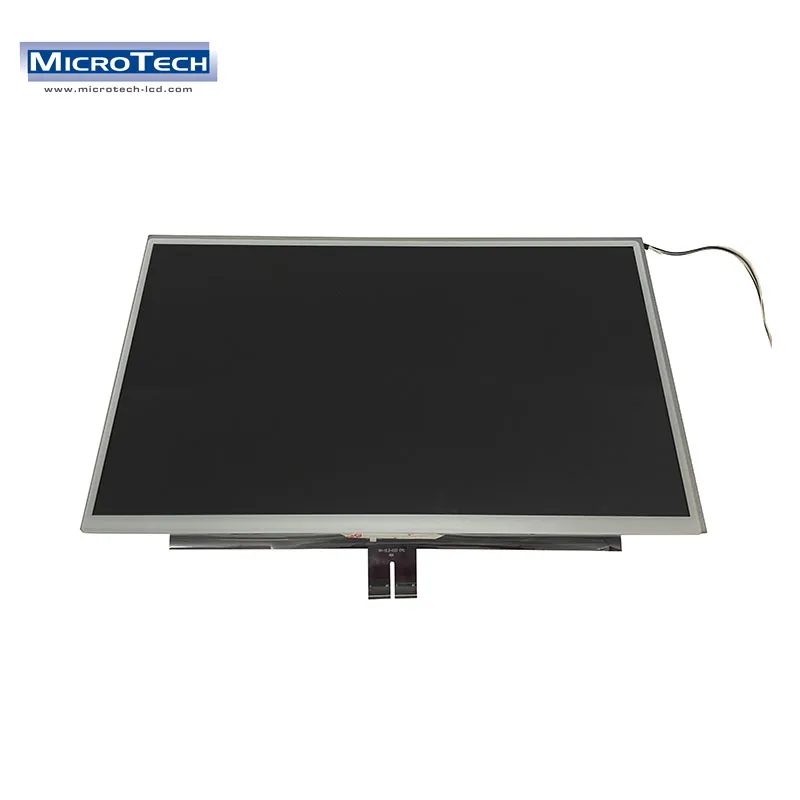

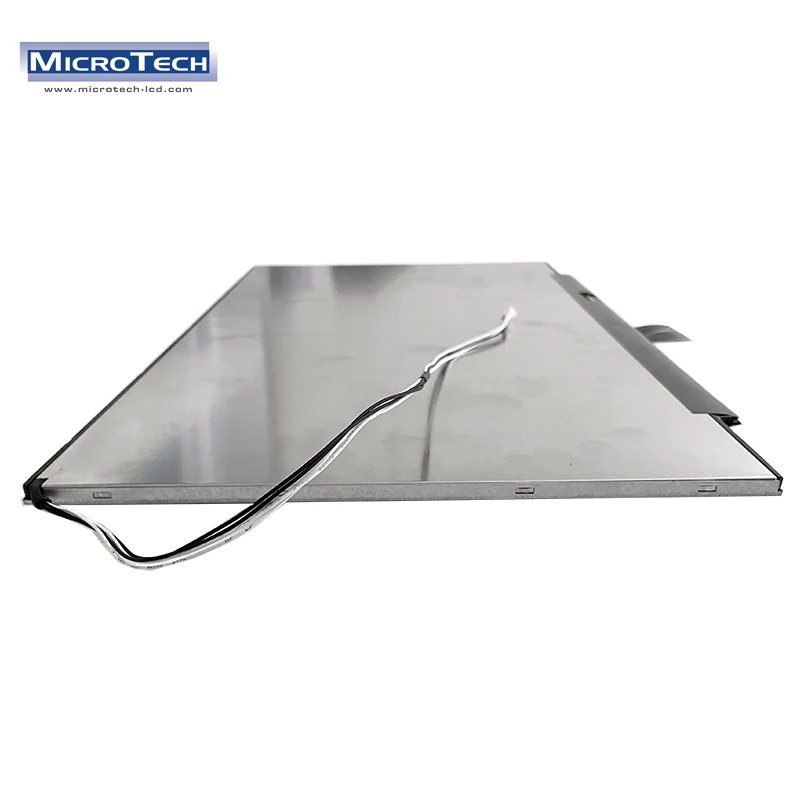

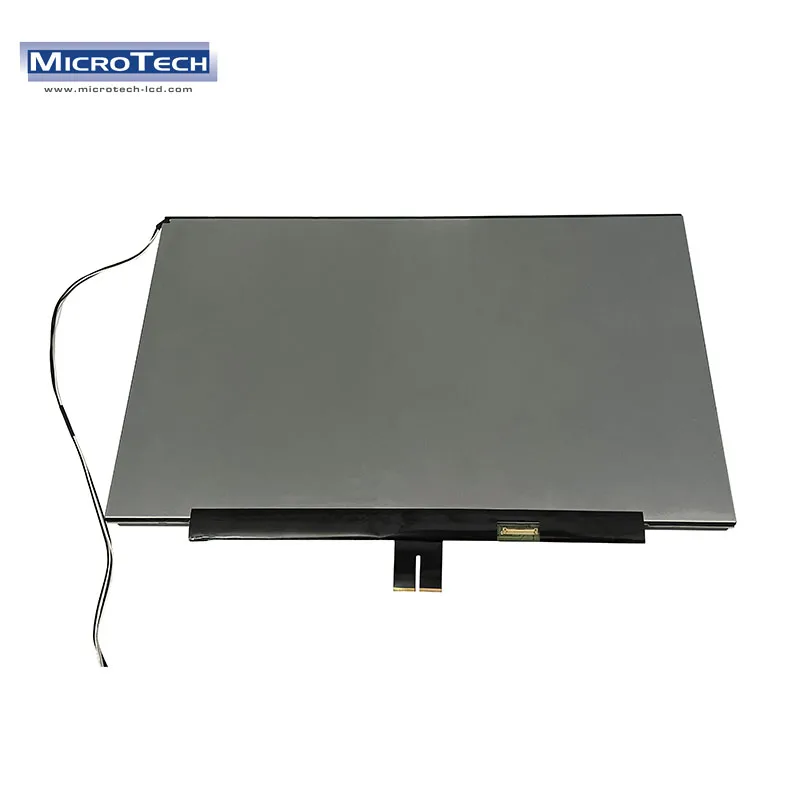

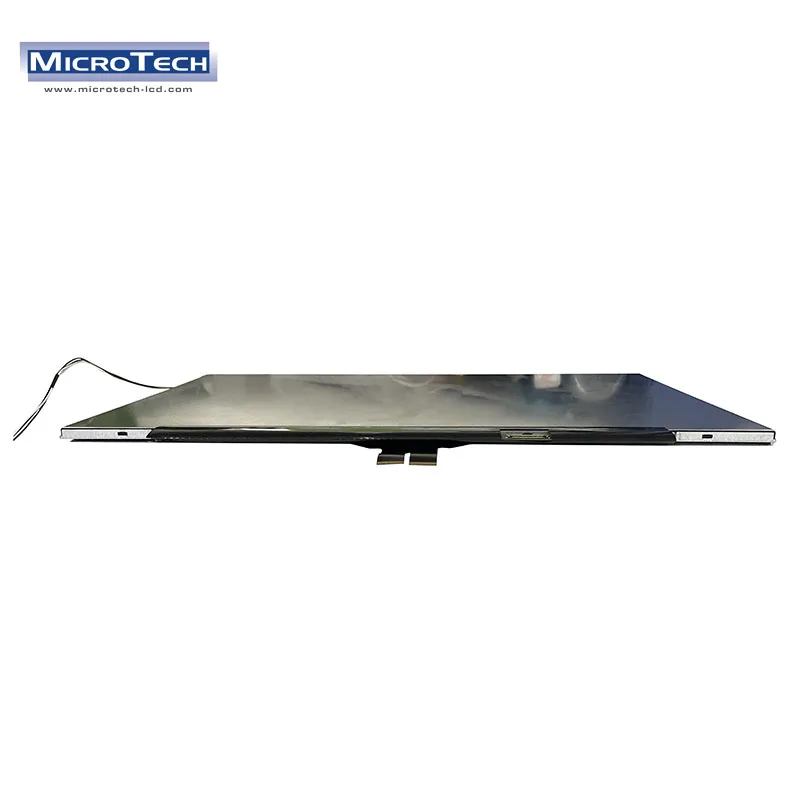

15.6 inch touch sreen 1920*1080 1000 brightness 4 driver IC LED*100 backlight LCD lcd display

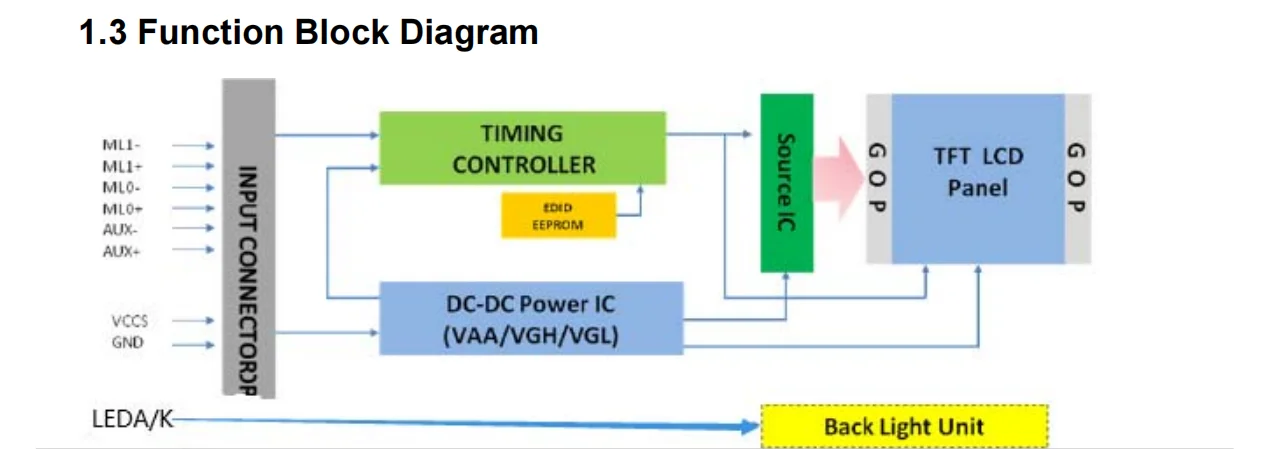

MTF156FD10A-V1 is a transmissive type color active matrix liquid crystal display(LCD) which uses amorphous thin film transistor(TFT) as switching devices. This product is composed of a TFT LCD panel, 4 drives IC, a PCBA and a LED-backlight unit. The active display area is 15.6 inches diagonally measured and the native resolution is 1920*RGB*1080.Features of this product are listed in the following table.


Specification


Parameter
Value
Unit
LCD Mode
TFT/Transmissive
—
Color Depth
16.7M
—
Display Resolution
1920RGB*1080
pixels

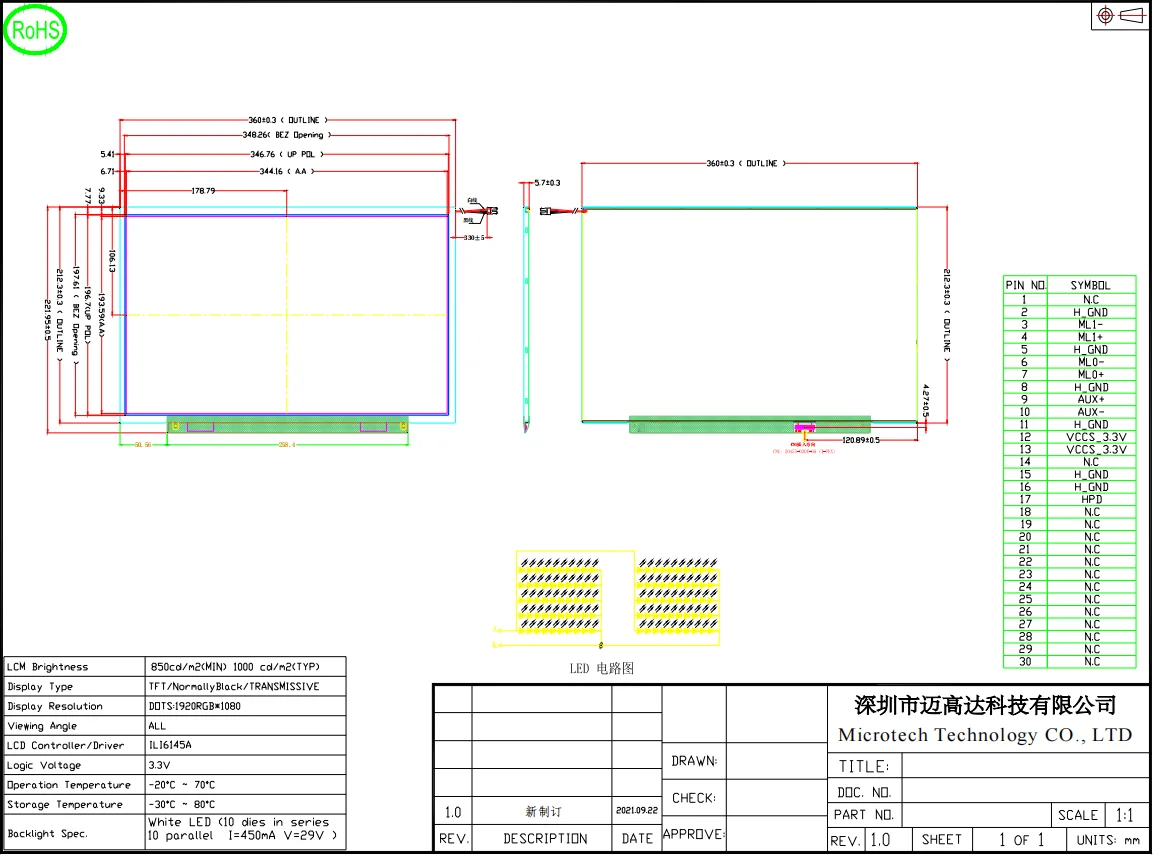

Module Size
212.3(H)*360.0(W)*5.70(T)(Exclude PC BA)
mm
Active Area (A.A)
193.59(H)*344.16(W)
mm
Pixel Arrangement
RGB-stripe
—
Viewing Direction
ALL
Display Mode
Normally Black
LCD Controller/Driver
ILI6145A
—
IC Package Type
COG
—
Interface
eDP
—
Power Supply Voltage
3.0-3.6 (Cell 0.9Wmax)
V
LCM Brightness
1000 (Type.)
cd/m2
Back-light
White LED*100
PCS








Products Description




Our Service








Related Types and Customized Services
TFT LCM Module
Standard and custom make from 0.95" TFT to 27.0" TFT

Resistive Touch Panel and Capacitive Touch Panels
Standard and custom design Resistive and Capacitive Touch Panels from 1.44" to 65.0"

TFT Module with Capacitive Touch Assembly
Standard and custom design Capacitive Touch CTP+TFT module from 1.44" to 19.0"

TFT Controller Board
Standard and custom make TFT Driving Board from 2.4" to 13.3"

Raspberry Pi 4B and TFT Display Kits
Development PCBA Board with Embeded System, Support OS Android, Linux, Windows

TFT Display for iPhone, iPad, Samsung 3G Android Smart Phone, Tablet PC

Customise Resistive and Capacitive Touch Panels as you requirements
Customise AG, AR, AF, AS, Cover lens
Add NTSC, PAL, VGA, HDMI Conversion Board and T-Con Board
Custmise the luminance of LED backlight for particular models,FPC Length, Sunlight Readable
Please contact us to send your engineering request
