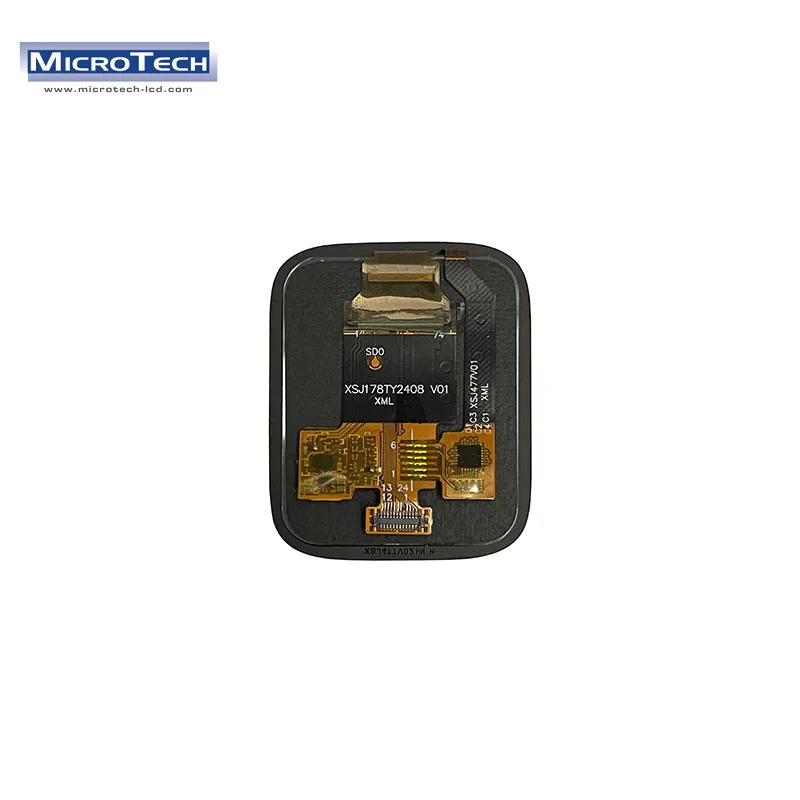

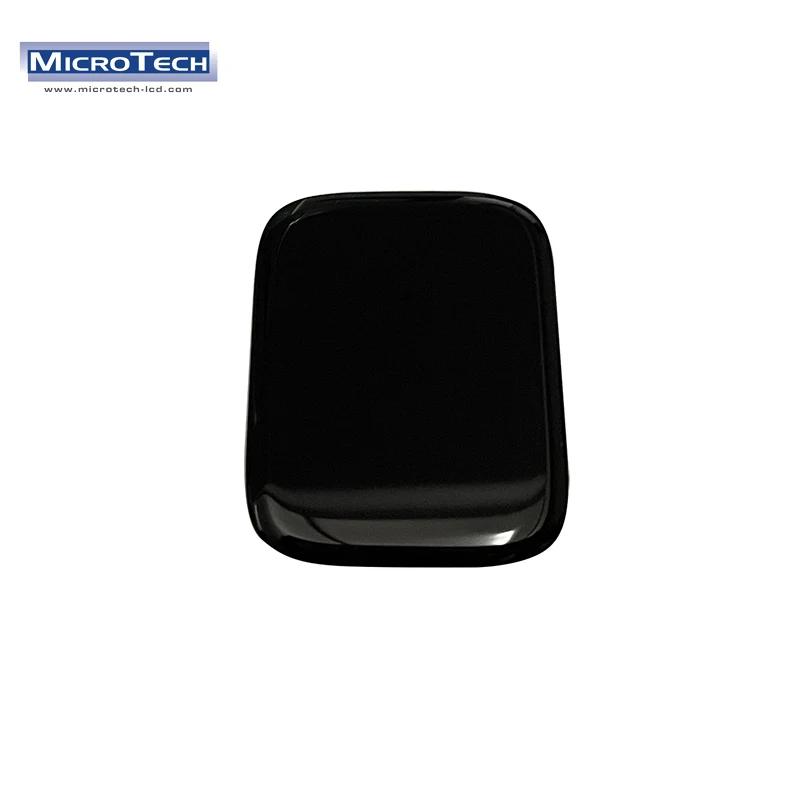

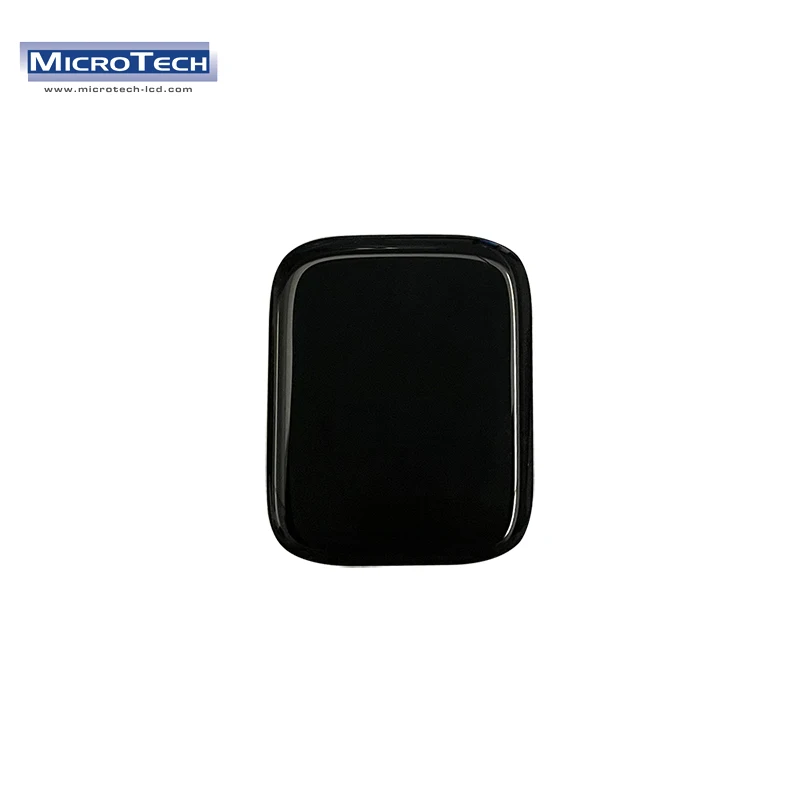

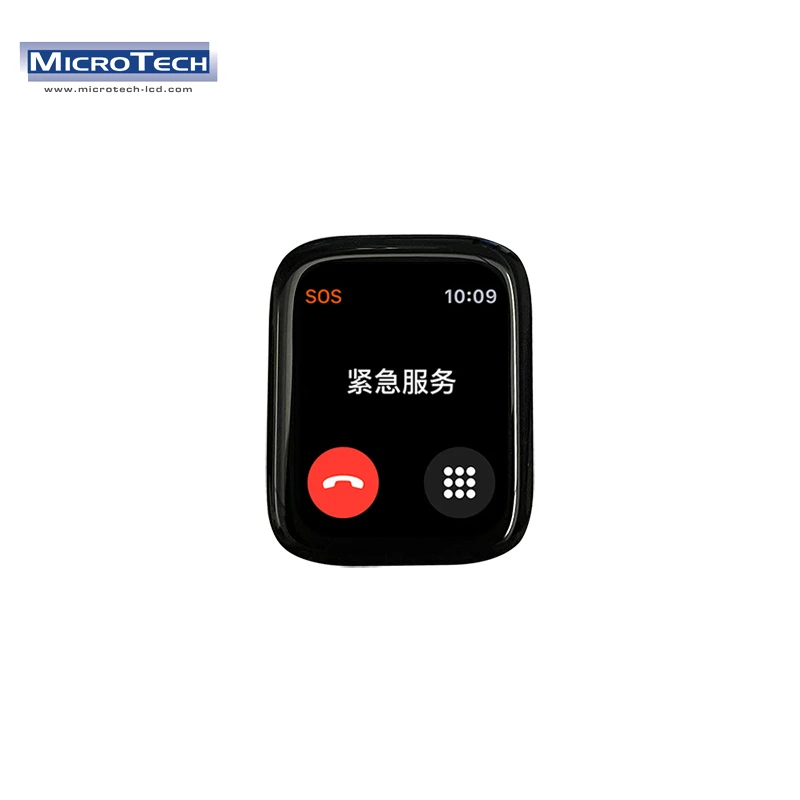

1.78 inch AMOLED display 368*448 SPI interface OLED touch screen display for watch smart wear
- Category: >>>
- Supplier: MICROTECH TECHNOLOGY COMPANY LIMITED
Share on (11000004333761):
Product Overview
Description
1.78 inch AMOLED display 368*448 SPI interface OLED touch screen display for watch smart wear
Specification

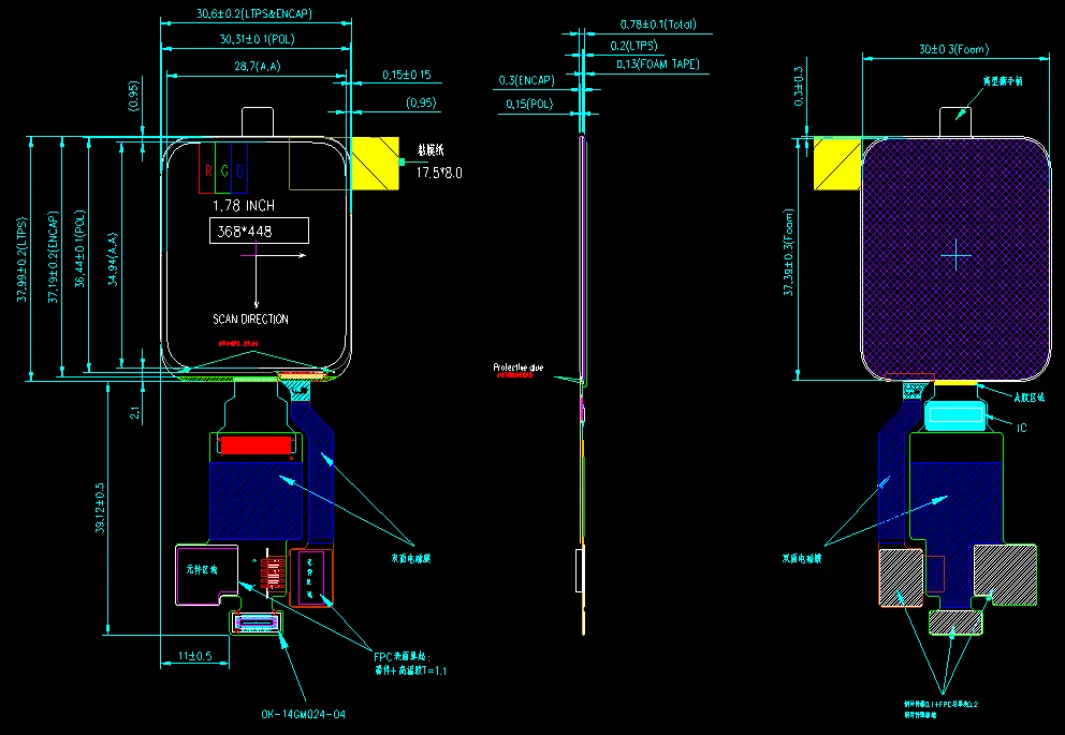

Item | Contents | Unit |
Display Mode | AMOLED | / |
LTPS Glass Outline (WDH) | 45.2 x 34.4 | mm |
Encapsulation Glass Outline (WDH) | 37.99 x 30.6 | mm |
Active area | 34.9 x 28.7 | mm |
Number of Dots | 368x3(RGB)x448 | / |
Diagonal Inch | 1.78 | inch |
Pixel pitch (WDH) | 78 x 78 | um |
Glass Thickness | 0.2 (LTPS) 0.205 (Encap) 0.678(Total) | mm |
Polarizer Mode | Transflective/positive |
Item | Contents | Tolerance |
CG shape size | 45.2*34.4*1.5 | ±0.05 |
Visual area size | 35.35*29.1 | ±0.15 |
Sensor shape size | / | ±0.15 |
structure | Material Science | Remarks |
Layer 1 | CG | 1.5mm Glass, |
Layer 2 | OCA | Thickness 0.175 |
Layer 3 | Film | / |
Touch control performance | G+F single point + gesture |
Channel Number | TX7*RX8 |
Touch IC | FT3168 |
Products Description
TFT LCD Display
After more than 20 years of mature technology developed by the factory, a color screen with an all-glass structure is made
Support Custom
Customized LCD Size & Resolution
Customized Interface and Pins definition
Customized FPC Shape and Material
Customized Interface and Pins definition
Customized FPC Shape and Material

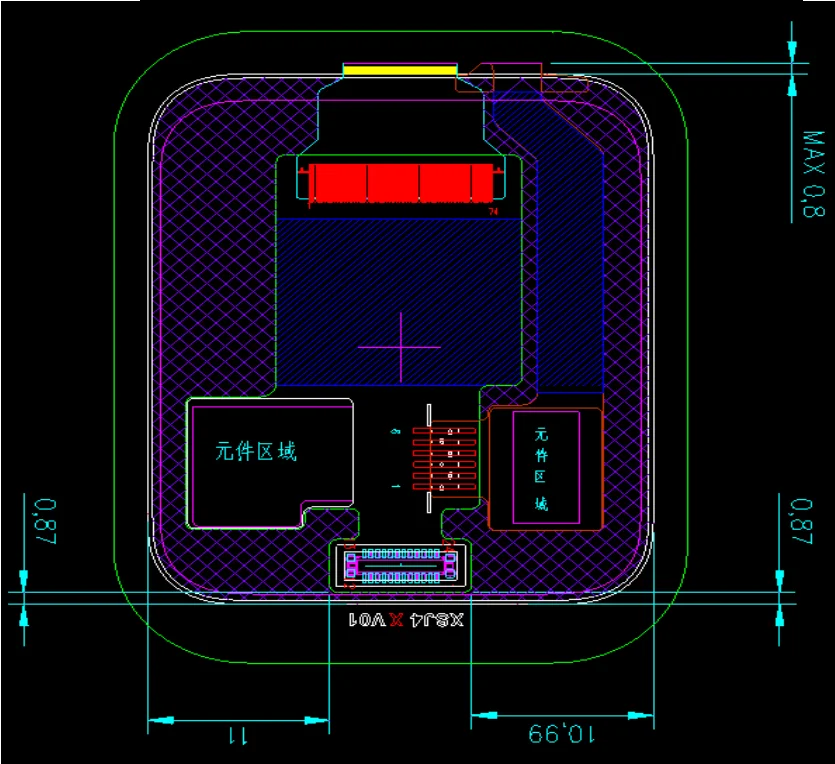

FPC design
Achieve micron level ultra-fine circuit, stable function.
Viewing Angle
Using professional tempered glass, the surface strength is as high as 7H or more, the structure can be made of ultra-thin
thickness, and Borderless all-round viewing angle.
thickness, and Borderless all-round viewing angle.
Our Service
Related Types and Customized Services
TFT LCM Module
Standard and custom make from 0.95" TFT to 27.0" TFT
Resistive Touch Panel and Capacitive Touch Panels
Standard and custom design Resistive and Capacitive Touch Panels from 1.44" to 65.0"
TFT Module with Capacitive Touch Assembly
Standard and custom design Capacitive Touch CTP+TFT module from 1.44" to 19.0"
TFT Controller Board
Standard and custom make TFT Driving Board from 2.4" to 13.3"
Raspberry Pi 4B and TFT Display Kits
Development PCBA Board with Embeded System, Support OS Android, Linux, Windows
TFT Display for iPhone, iPad, Samsung 3G Android Smart Phone, Tablet PC
Customise Resistive and Capacitive Touch Panels as you requirements
Customise AG, AR, AF, AS, Cover lens
Add NTSC, PAL, VGA, HDMI Conversion Board and T-Con Board
Custmise the luminance of LED backlight for particular models,FPC Length, Sunlight Readable
Please contact us to send your engineering request
Standard and custom make from 0.95" TFT to 27.0" TFT
Resistive Touch Panel and Capacitive Touch Panels
Standard and custom design Resistive and Capacitive Touch Panels from 1.44" to 65.0"
TFT Module with Capacitive Touch Assembly
Standard and custom design Capacitive Touch CTP+TFT module from 1.44" to 19.0"
TFT Controller Board
Standard and custom make TFT Driving Board from 2.4" to 13.3"
Raspberry Pi 4B and TFT Display Kits
Development PCBA Board with Embeded System, Support OS Android, Linux, Windows
TFT Display for iPhone, iPad, Samsung 3G Android Smart Phone, Tablet PC
Customise Resistive and Capacitive Touch Panels as you requirements
Customise AG, AR, AF, AS, Cover lens
Add NTSC, PAL, VGA, HDMI Conversion Board and T-Con Board
Custmise the luminance of LED backlight for particular models,FPC Length, Sunlight Readable
Please contact us to send your engineering request
