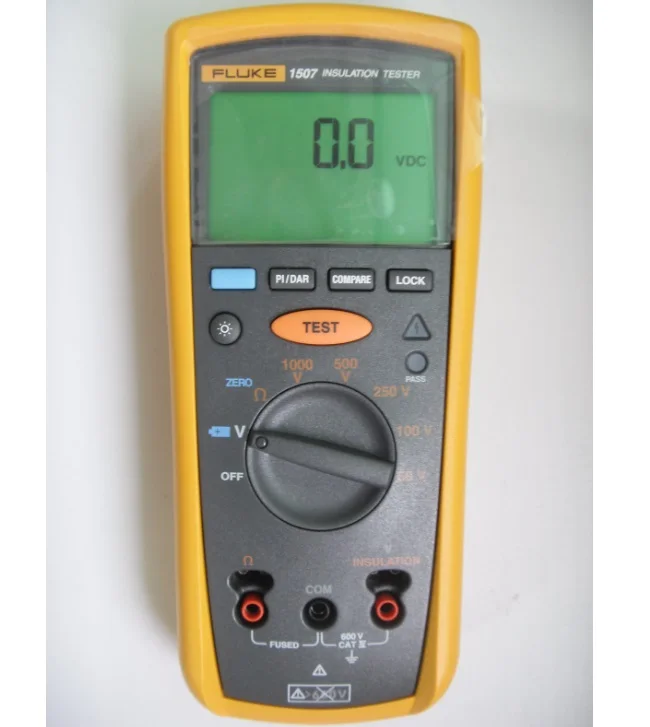

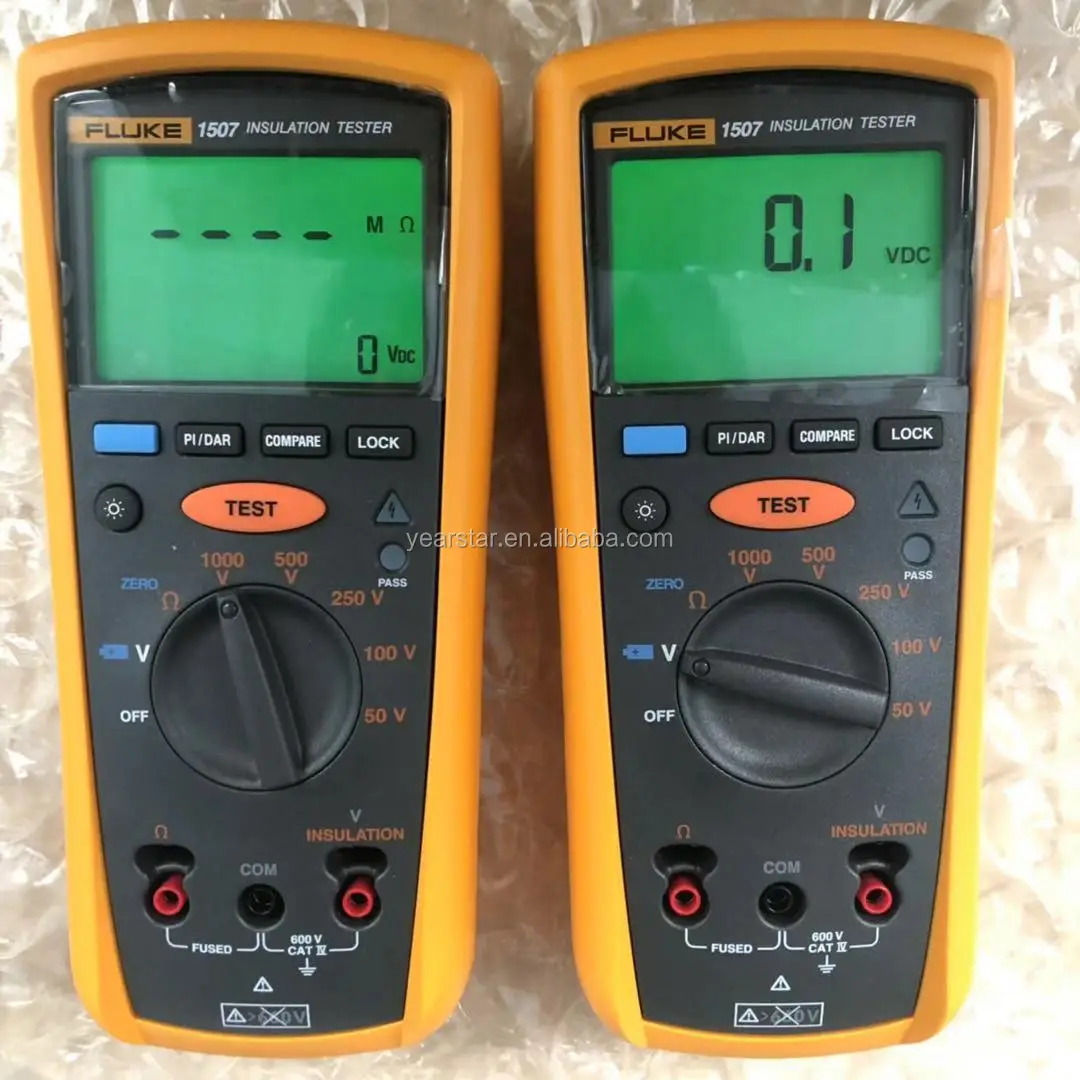

Fluke 1507 Insulation Resistance Tester:



The Fluke 1507 Insulation Tester is a compact, rugged, reliable, and easy to use. With its multiple test voltages, it is ideal for many troubleshooting, commissioning, and preventative maintenance applications.



• Insulation test range



  • 0.01 MΩ to 10 GΩ






• Insulation test voltagesSave both time and money with Automatic calculation of Polarization Index and Dielectric Absorption Ratio



  • 50 V, 100 V, 250 V, 500 V, 1000 V








• Make repetitive tests simple and easy with the 1507’s Compare (Pass/Fail) function


• Repetitive or hard-to-reach testing is easy with the remote test probe


• Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection


• Auto-discharge of capacitive voltage for added user protection


• AC/DC voltage: 0.1 V to 600 V


• 200 mA Continuity


• Resistance: 0.01 Ω to 20.00 kΩ


• Save battery power with auto power off


• Read measurements easily with large, backlit display


• CAT IV 600 V overvoltage category rating for added user protection


• Remote probe, test leads, probes and alligator clips included with each tester


• Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work


• Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests


• One year warranty



  -----------------------------------------------------



Electrical Specifications:



AC/DC Voltage Measurement:
Accuracy	Range	600.0 V
	Resolution	0.1 V
	50 Hz to 400 Hz ± (% of Rdg + Digits)	± (2 % + 3)
Input impedance	3 MΩ (nominal), < 100 pF
Common mode rejection ratio (1 kΩ unbalanced):	> 60 dB at dc, 50 or 60 Hz
Overload protection	600 V rms or dc
Earth Bond Resistance Measurement
Range/Resolution	20.00 Ω	0.01 Ω
	200.0 Ω	0.1 Ω
	2000 Ω	1.0 Ω
	20.00 kΩ	0.01 kΩ
Accuracy	± (1.5 % + 3)
Overload protection	2 V rms or dc
Open circuit test voltage	> 4.0 V, < 8 V
Short circuit current	> 200.0 mA
Insulation Specifications:
Measurement range	0.01 MΩ to 10 GΩ
Test voltage	50 V, 100 V, 250 V, 500 V, 1000 V
Test voltage accuracy	+ 20 %, - 0 %
Short circuit current	1 mA nominal
Auto discharge	Discharge time < 0.5 second for C = 1 µF or less
Live circuit indicator	Inhibit test if terminal voltage > 30 V prior to initialization of test
Maximum capacitive load	Operable with up to 1 µF load
Measure accuracy	50 V	±(3 % + 5)
	100 V	±(3 % + 5)
	250 V	±(1.5 % + 5)
	500 V	±(1.5 % + 5)
	1000 V	±(1.5 % + 5) to 2000 MΩ, ±(10 % + 3) above 2000 MΩ
General Specifications:
Maximum voltage applied to any terminal:	600 V ac rms or dc
Storage temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Operating temperature	-20 °C to 55 °C (-4 °F to 131 °F)
Temperature coefficient	0.05 x (specified accuracy) per °C for temperatures < 18 °C or > 28 °C (< 64 °F or > 82 °F)
Relative humidity	0 % to 95 % @ 10 °C to 30 °C (50 °F to 86 °F)
	0 % to 75 % @ 30 °C to 40 °C (86 °F to 104 °F)
	0 % to 40 % @ 40 °C to 55 °C (104 °F to 131 °F)
Vibration	Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument
Shock	1 meter drop per IEC 61010-1 2nd Edition (1 meter drop test, six sides, oak floor)
Electromagnetic compatibility	In an RF field of 3 V/M, accuracy = specified accuracy (EN 61326-1:1997)
Safety	Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600 V (CAT IV)
Certifications	CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition
Batteries	Four AA batteries (NEDA 15A or IEC LR6)
Battery life	Insulation test use:	Tester can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
	Resistance measurements:	Tester can perform at least 2500 earth bond resistance measurements with fresh alkaline batteries at room temperature. These are standard tests of 1 Ω with a duty cycle of 5 seconds on and 25 seconds off.
Size	5.0 cm H x 10.0 cm W x 20.3 cm L (1.97 in H x 3.94 in W x 8.00 in L)
Weight	550 g (1.2 lb)
IP rating	IP40
Altitude	Operating	2000 m CAT IV 600 V, 3000 m CAT III 600 V
	Non-operating (storage)	12,000 m
Over-range capability	110 % of range
Included accessories	TL224 Test Leads, TP74 Test Probes, clips PN 1958654 (red) and PN 1958646 (black), holster and remote probe

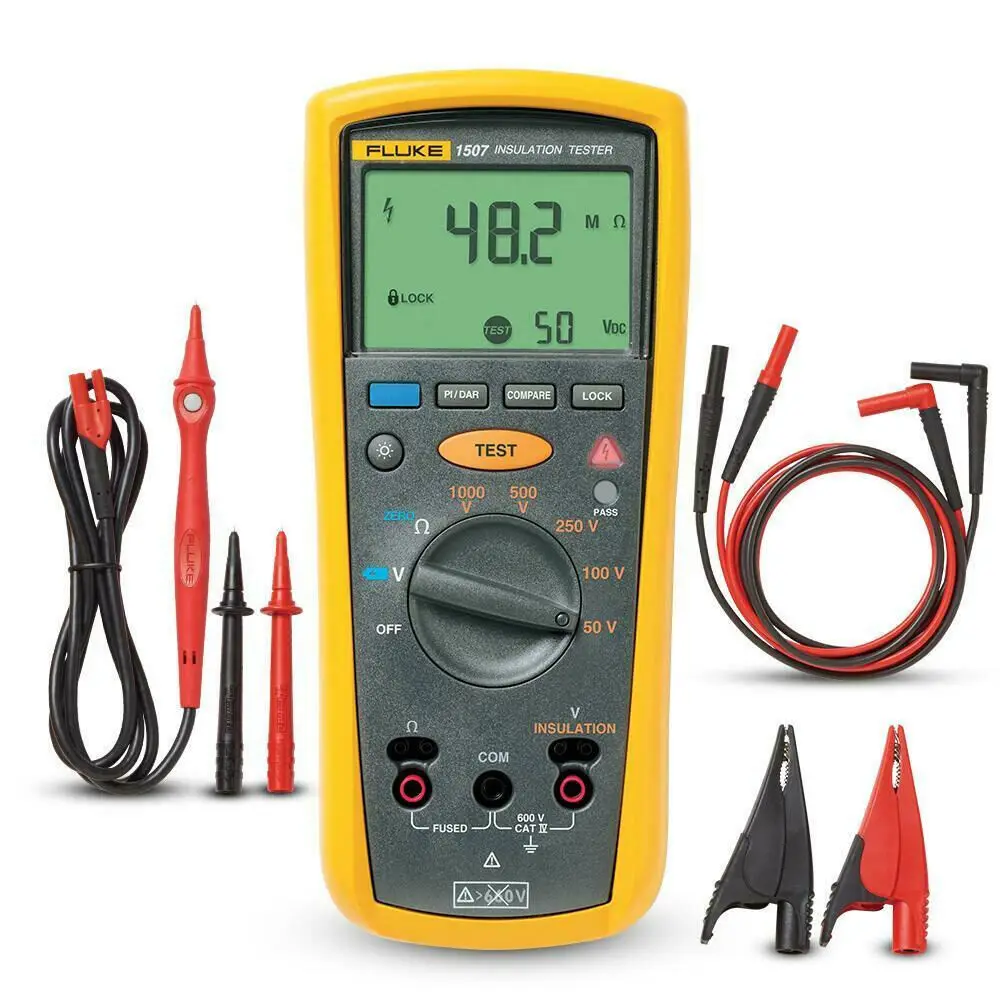

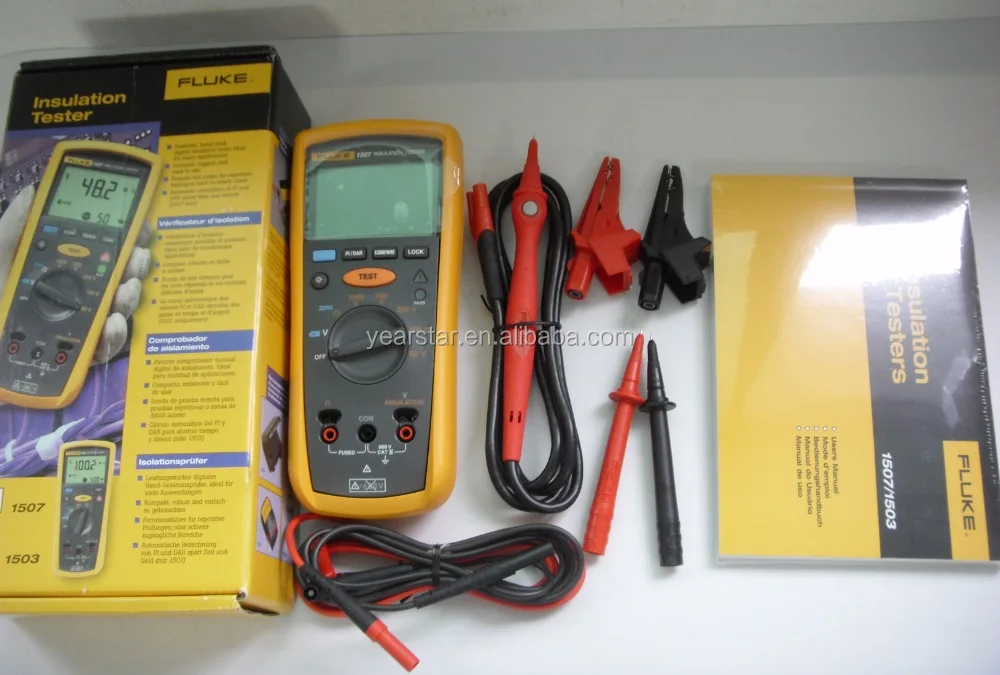

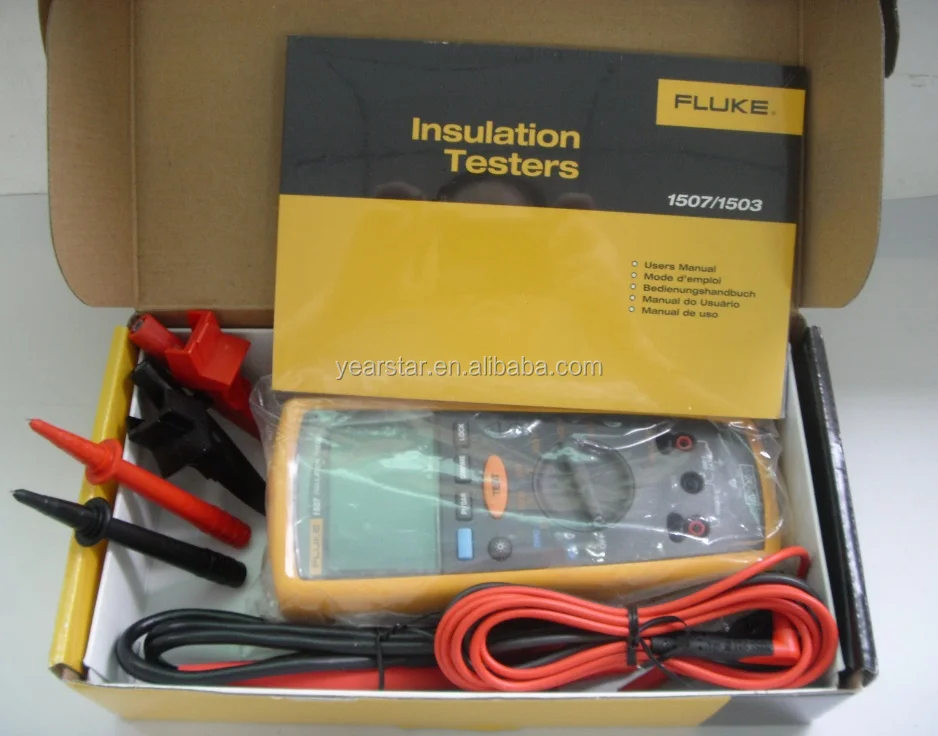

 it includes:

•



  • Remote probe


  • Test leads


  • Test probes


  • Alligator clips


  • User documentation







-----------------------------------------------------
