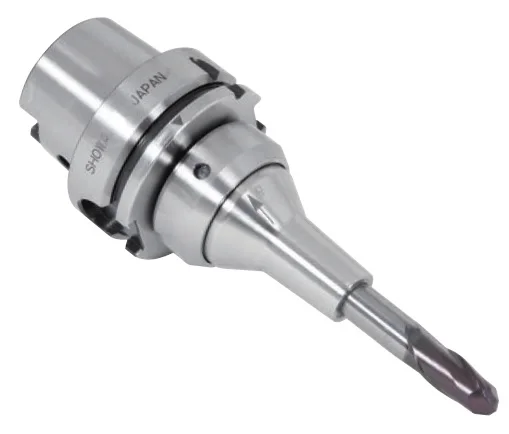

MICRON CHUCK N series
HIGH PRECISION and SLIM MECHANICAL CHUCK
<Point1>Only Micron Chuck can guarantee such runouts as 0.001mm at chuck nose and 0.002mm at 3xD.
Micron Chuck was developed utilizing Showa original direct clamping mechanism and assembling technology acquired in manufacturing high quality machine spindles for a long experience.
MICRON CHUCK N series
HIGH PRECISION and SLIM MECHANICAL CHUCK
<Point1>Only Micron Chuck can guarantee such runouts as 0.001mm at chuck nose and 0.002mm at 3xD.
Micron Chuck was developed utilizing Showa original direct clamping mechanism and assembling technology acquired in manufacturing high quality machine spindles for a long experience.
<Point2>Clamping power as high as other milling chucks.

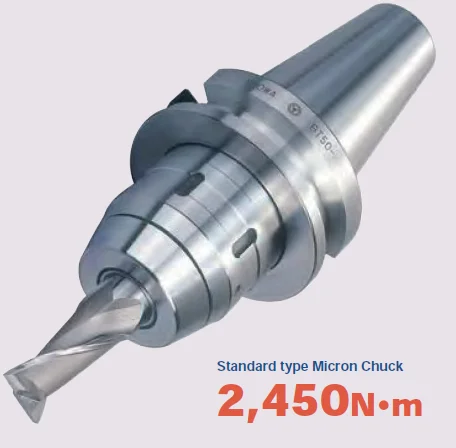

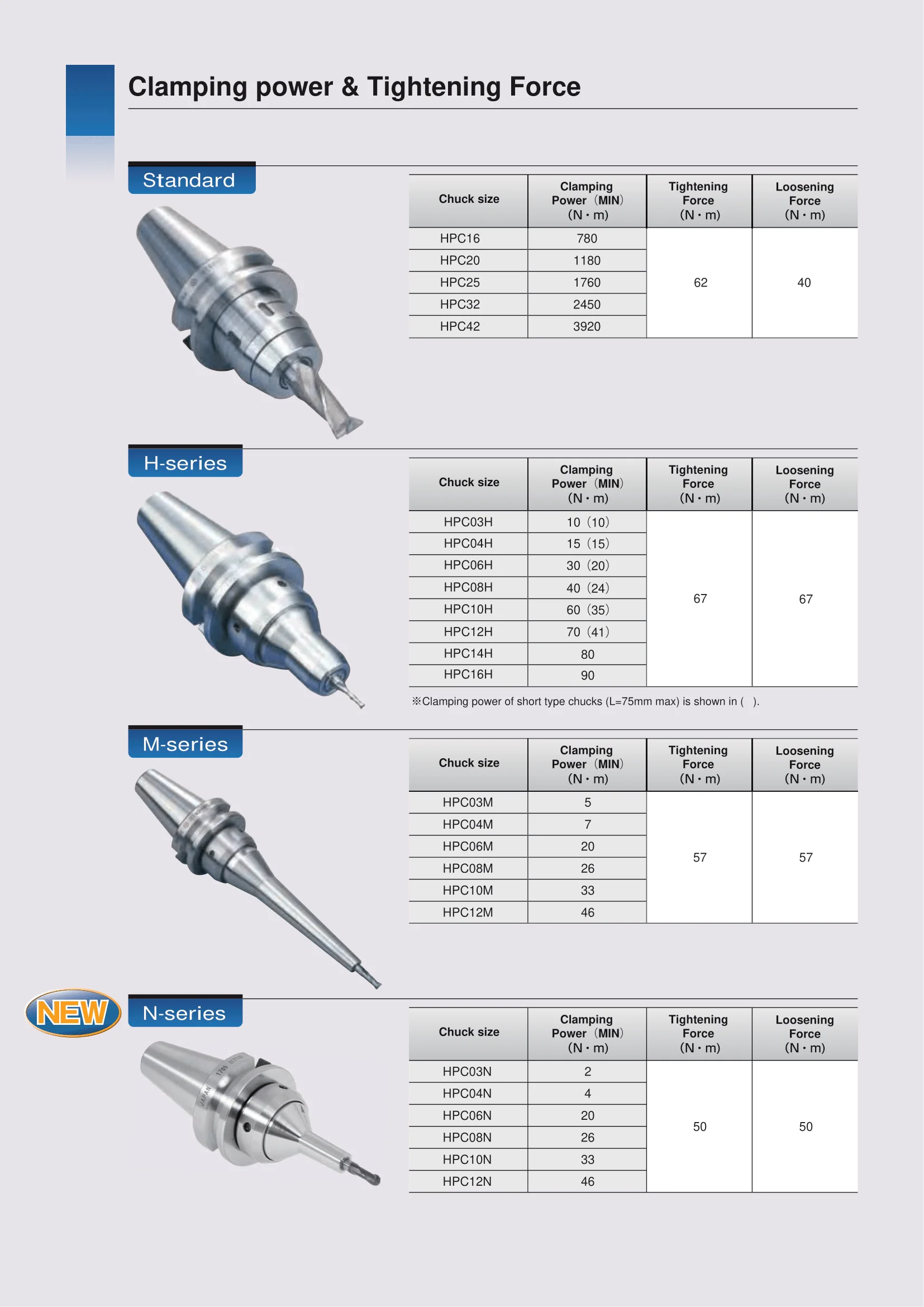

High accuracy Micron Chuck has a high clamping power,too. The clamping power of ø32 ID Micron chuck is 2,450Nm, and ø6 ID 49Nm -
about 2 times bigger than hydraulic chucks.
High accuracy Micron Chuck has a high clamping power,too. The clamping power of ø32 ID Micron chuck is 2,450Nm, and ø6 ID 49Nm -
about 2 times bigger than hydraulic chucks.
<Point3>The cutter is not axially moved by clamping.
The cutter is not withdrawn by clamping like collet chucks, due to its unique mechanism. It is required in mass manufacturing line to preset cutter length to close tolerance. In case of collet chuck, the axial cutter projection is shortened by clamping. The back end of the cutter is pressed to the back-up screw at that time, which may cause bending and breakage of small dimeter cutters.
The cutter is not withdrawn by clamping like collet chucks, due to its unique mechanism. It is required in mass manufacturing line to preset cutter length to close tolerance. In case of collet chuck, the axial cutter projection is shortened by clamping. The back end of the cutter is pressed to the back-up screw at that time, which may cause bending and breakage of small dimeter cutters.
<Point4>Highly balanced and sealed chuck.
Maximum speed :
20,000min-1 (Standard HPC-H chuck)
30,000min-1 ("G" type HPC-H chuck)
Maximum speed :
20,000min-1 (Standard HPC-H chuck)
30,000min-1 ("G" type HPC-H chuck)
<Point5>Thru-the-tool coolant type.
Thru-the-tool coolant type Micron Chucks available. Please specify it at the time of ordering.
Thru-the-tool coolant type Micron Chucks available. Please specify it at the time of ordering.
<Point6>Mechanical chuck, Heater is not required.
Shrink-fit holders have restrictions of cutter material. But, Micron Chucks are applicable to any material of cutters, keeping
high accuracy for a long period of time.
Shrink-fit holders have restrictions of cutter material. But, Micron Chucks are applicable to any material of cutters, keeping
high accuracy for a long period of time.
<Point7>Wide range of IDs are available.

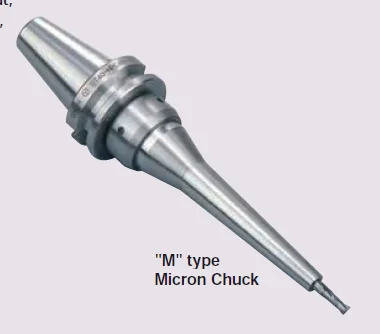

Standard type, "H" type and "M" type Micron Chucks covers from ø3mm to ø42mm ID.

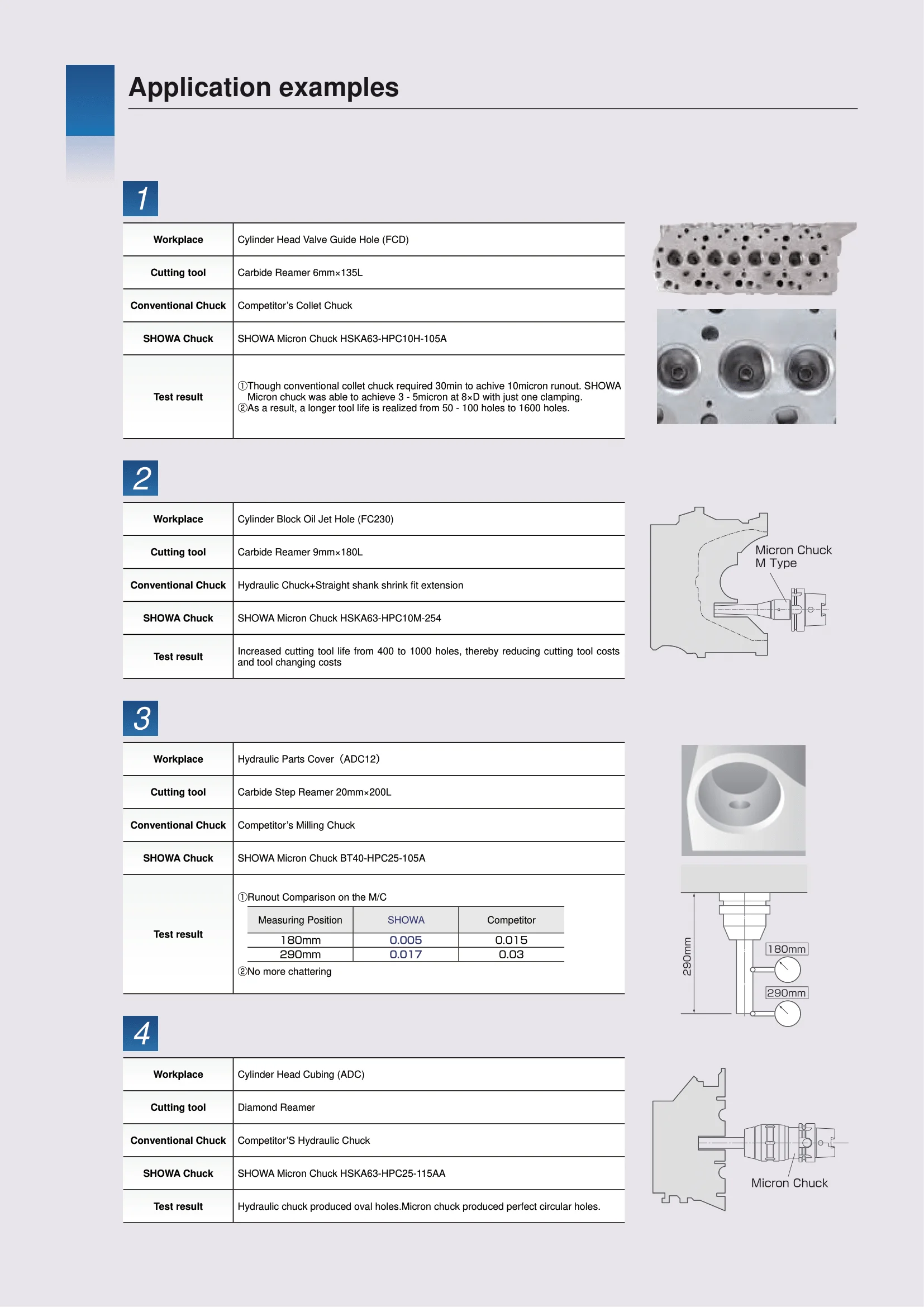

<Point8>Wide application range.
You can extend application range of Micron Chucks by using straight collets. But, direct chucking is recommended S0to obtain the highest performance.
Standard type, "H" type and "M" type Micron Chucks covers from ø3mm to ø42mm ID.
<Point8>Wide application range.
You can extend application range of Micron Chucks by using straight collets. But, direct chucking is recommended S0to obtain the highest performance.
Chuck Size Chart for Spindle Size | ||||||||
Spindle Size | Chuck Size ΦD | |||||||
BBT30 | 3, 4, 6, 8, 10, 12 | |||||||
BBT40 | 3, 4, 6, 8, 10, 12 | |||||||
HSKA50 | 3, 4, 6, 8, 10, 12 | |||||||
HSKA63 | 3, 4, 6, 8, 10, 12 | |||||||
Only Micron Chuck can guarantee such runouts as 0.001mm at chuck nose and 0.002mm at 3xD.
Micron Chuck was developed utilizing Showa original direct clamping mechanism and assembling technology acquired in manufacturing
high quality machine spindles for a long experience.
Slim Mechanical Chuck
Most suitable for machining small parts and mold.
The cutter is not axially moved by clamping.
The cutter is not withdrawn by clamping like collet chucks, due to its unique mechanism. It is required in mass manufacturing line to preset cutter length to close tolerance. In case of collet chuck, the axial cutter projection is shortened by clamping. The back end of the cutter is pressed to the back-up screw at that time, which may cause bending and breakage of small dimeter cutters.
Micron Chuck was developed utilizing Showa original direct clamping mechanism and assembling technology acquired in manufacturing
high quality machine spindles for a long experience.
Slim Mechanical Chuck
Most suitable for machining small parts and mold.
The cutter is not axially moved by clamping.
The cutter is not withdrawn by clamping like collet chucks, due to its unique mechanism. It is required in mass manufacturing line to preset cutter length to close tolerance. In case of collet chuck, the axial cutter projection is shortened by clamping. The back end of the cutter is pressed to the back-up screw at that time, which may cause bending and breakage of small dimeter cutters.
