Audio transformer with a extremely low loss, strong coupling and low noise
- Category: >>>
- Supplier: AL Transfo Technology Limited
Share on (11000004389329):
Product Overview
Description
Product Description
General purpose 1:1 line bridging audio transformer
Transforms balanced to unbalanced line signals or unbalanced to balanced line signals
Toroidal ring core design for a extremely low loss, strong coupling and a very low noiseFrequency response of 3 Hz to 250 kHz - 3 dB
CMRR of 108 dB at 50 Hz
Input levels of up to 3.9 V RMS at 20 Hz and 9.8 V RMS at 50 Hz
Low distortion of 0.002 % at 1 kHz / 0 dBu
Perfect for low to mid impedance signal sources
Electrical isolation of 2 kV between secondary and primary winding or windings and shield

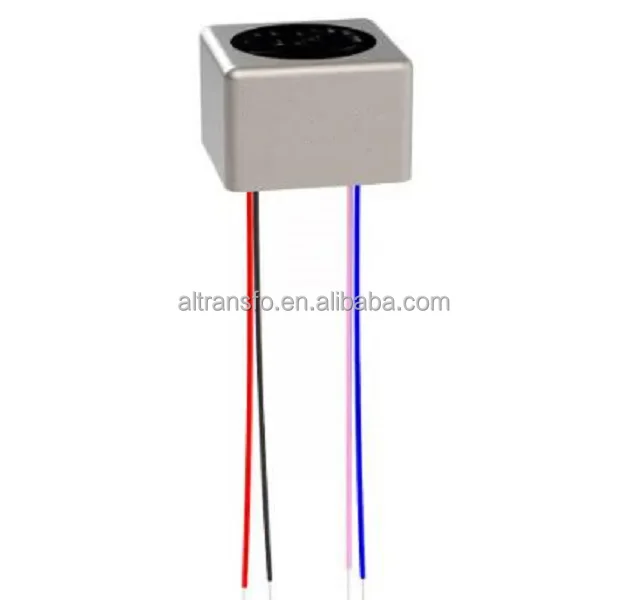

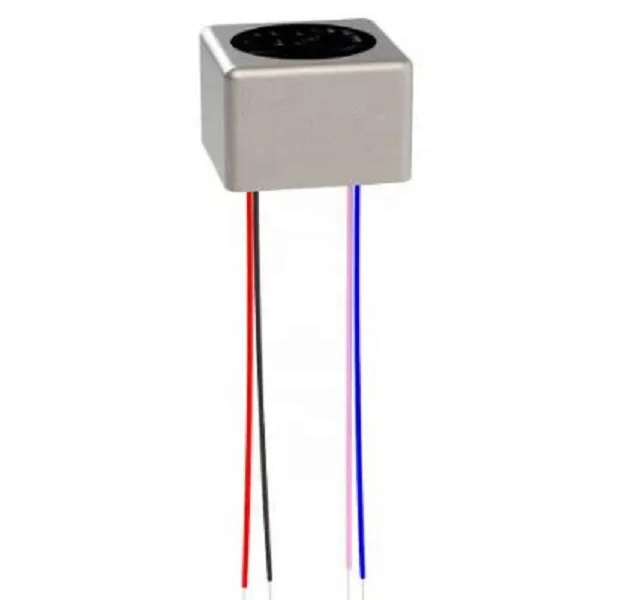

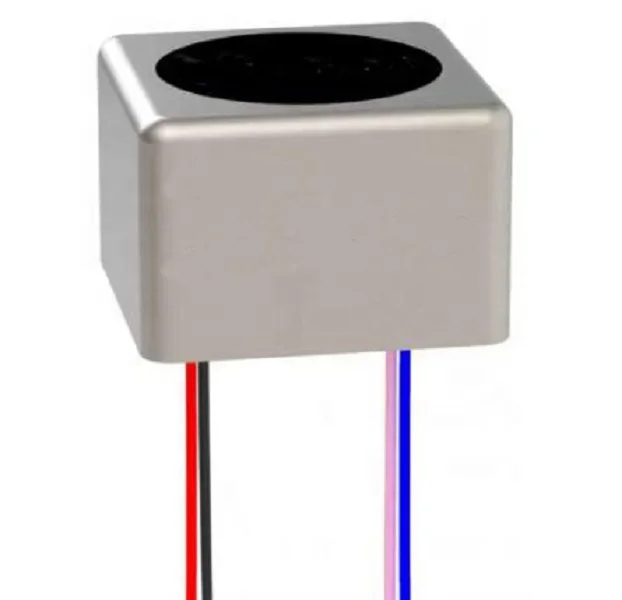

Comes in a magnetic shield can
Completely potted to avoid microphonic issues
Comes with leads
Specification
Transormer is the ideal component to avoid hum loops without degrading the sound. It achieves this through galvanic
isolation of low to mid impedance audio signal sources. It can be used as an input or output transformer, for balanced or
unbalanced signals.
With the maximum level of 3.9 V RMS at 20 Hz and very low distortion it is perfectly suited to pro audio environments which run typically with 1.2 V RMS (+4 dBu) level. It will also work perfectly with high end audio devices for home use. In both situations the high headroom, low distortion, excellent bandwidth and strong magnetic coupling guarantee that no detail of your sound gets lost.
The toroidal core of the transformer is completely potted into the magnetically shielded enclosure, so there will be no

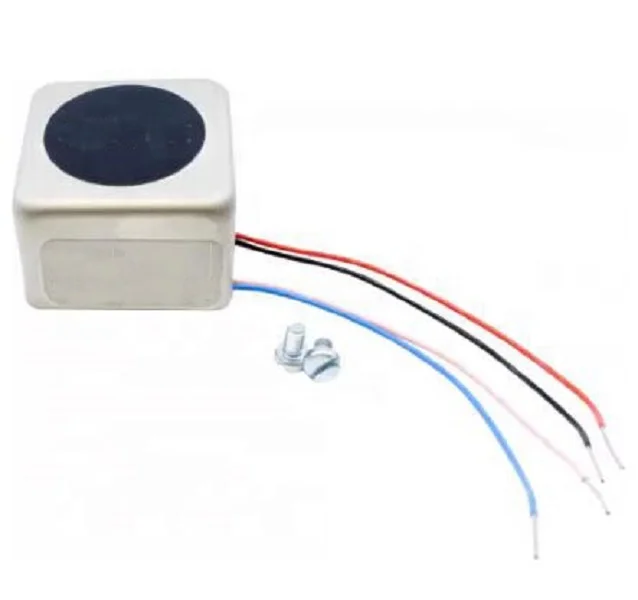

microphonic issues. The L version with the coloured leads comes with two M3 screws, which make it very easy to mount.
isolation of low to mid impedance audio signal sources. It can be used as an input or output transformer, for balanced or
unbalanced signals.
With the maximum level of 3.9 V RMS at 20 Hz and very low distortion it is perfectly suited to pro audio environments which run typically with 1.2 V RMS (+4 dBu) level. It will also work perfectly with high end audio devices for home use. In both situations the high headroom, low distortion, excellent bandwidth and strong magnetic coupling guarantee that no detail of your sound gets lost.
The toroidal core of the transformer is completely potted into the magnetically shielded enclosure, so there will be no
microphonic issues. The L version with the coloured leads comes with two M3 screws, which make it very easy to mount.
