GPS Tracker Real Time Hidden Spy Car Truck Vehicles Tracking Device
- Category: >>>
- Supplier: Shenzhen Jingwei Xingyun Technology Co. Ltd.
Share on (11000004444833):
Product Overview
Description
Real Time Auto Car GPS Tracker TK003 4G (only) GPS Tracker
Products Specifications
GSM Specifications | ||
GSM CPU | 32Byte Cortex-M3 ARM | |
GSM Channel | LTE-FDD/LTE-TDD | |
GPRS Class | 12 | |
Communication Protocol | TCP IP | |
Body Memory | 32+32mb | |
GPS Specifications | ||
GPS Chipset | AT6558R | |
Positioning Mode | GPS/BDS/LBS | |
Number of Channels | 64 | |
Positioning Accuracy | 10m | |
Tracking Sensitivity | -160dbm | |
Positioning Time | 1s (Warm Start), 30s (Cold Start) | |
Working Parameters | |
Device Agreement | GT06/JT080/HY |
Working Voltage | 9-90V DC |
Working Current | ≈35mA(12vDC) |
Quiescent Current | 2.3mA(12vDC) |
Battery | 120mA |
Storage Capacity of Blink Spot Track Points | 2000+ |

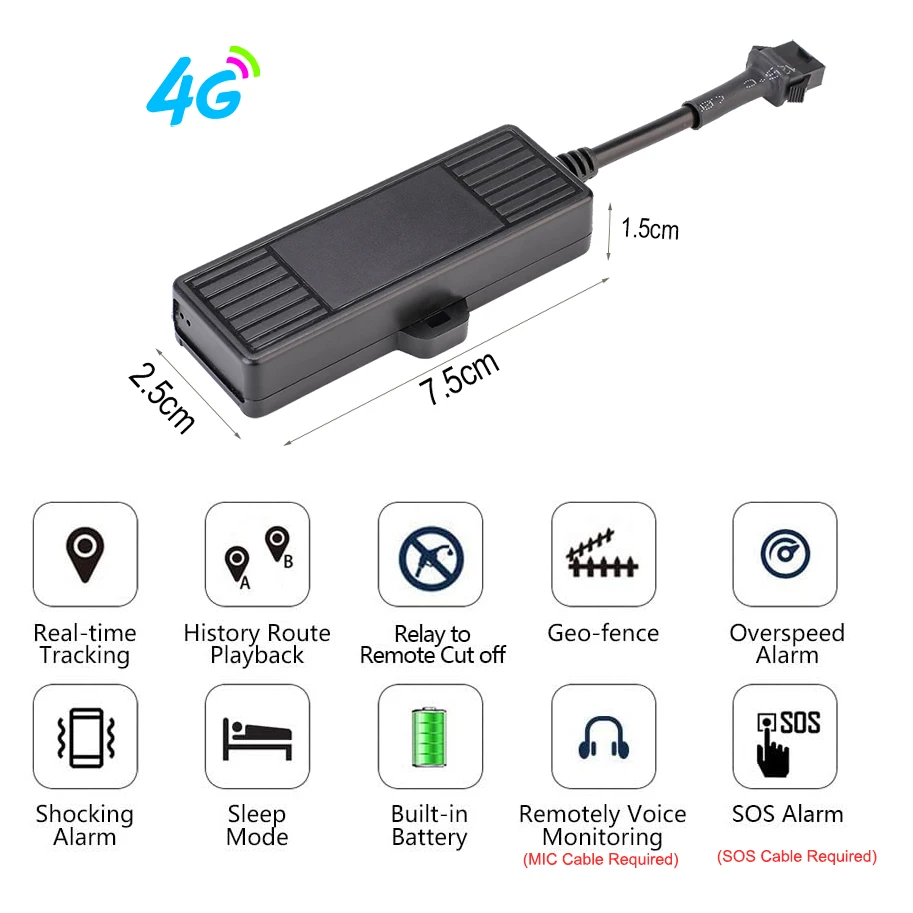

Dimensions | L78.0mm*W26.0mm*H15.0mm |
Net Weight | 45g |
Working Temperature | -30℃～+70℃ |
Working Humidity | 10%～85%RH |
Product Features
*Small and Light
*4G Worldwide Coverage
*GPS/BDS/LBS Positioning Technology
*Industrial-Grade High-Integration Antenna
*Axis G-Sensor for Shocking Alarm
*Smart Power-Saving & Wake-up
*DC External Voltage Detection
*ACC Detection
*Power Cut Off Alarm
*OverSpeed Alarm
*Software Mileage Statistics
*Real-time Vehicle Position Data
Optional Features | Customized/ODM (MOQ 500 Pieces) |
Vehicle Remote Control | Support Cut Off power of Vehicle Oil Pump Relay Required |
Built In RS485 Port | Support External Oil Sensor,BMS Data, RFID and Camera |
Global Management Platform | Support ODM/OEM APP, Software (Extra Charge) |
Equipment Data (Fuel Management or BMS etc.,) | Support Data In-Depth Processing and Manage |
Note: For any other product development solutions, pls message us.
Optional Accessories
*SOS Panic/Emergency Button
(Addtional Cost Required )
Smartly Call/SMS/App Alert user after driver press this button
*MIC/Voice Monitor
(Addtional Cost required)
Voice Monitor
Product Functions

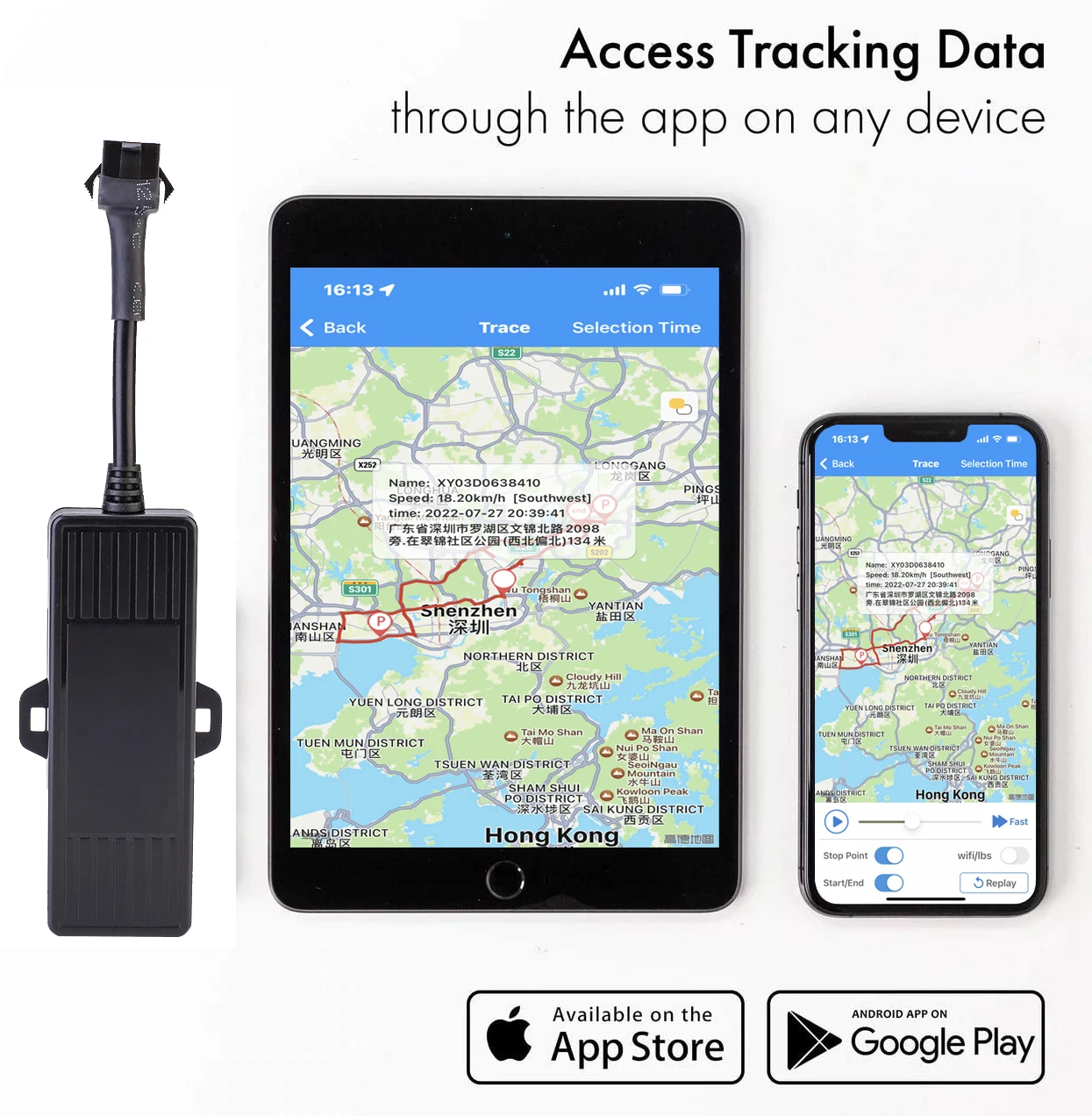

Real-time Tracking Anywhere and Anytime
Enjoy your real-time tracking and check the 180 Days historical traces via Phone or PC.
For fleet management purposes, the historical data is a key to help reduce fuel cost and CO2 emissions. Check the historical routes together with the reports, get your fleet in control.
Remotely Cut Off Fuel and Electricity
For fleet management purposes, the historical data is a key to help reduce fuel cost and CO2 emissions. Check the historical routes together with the reports, get your fleet in control.
Remotely Cut Off Fuel and Electricity
When user need to cut off vehicle Fuel/ Electricity/ Engine remotely, user could easily send vehicle a command via SMS/APP in phone or software platform in PC. After receiving this command, the vehicle engine will stop within 10s-20s. Once stop, vehicle will not move until receiving a Recover Command from user.
Note: Only when vehicle's running below 20KM/h, then the vehicle could stop after receiving this command. If the vehicle's running above 20KM/h, then vehicle engine can't be shut down.
Receive instant alerts when the SOS button is pressed and driver needs help. Give driver a tracker via SOS button and it could easily send an instant alert to phone via SMS or APP or to PC on Tracking Platform.
Anti-theft Alerts & Geofencing — Detect Suspicious Activity & Attempted Theft
With built in G-Sensor and ACC detection, tracker could detect motion of vehicle and send to cloud server via 2G network in time. At the same time, user could receive instant alerts via APP, PC or SMS. Excellent for instantly alerting you to vandalism, attempted theft, or accidental damage these alerts can save you a trip to the mechanic or help you notify the police before it’s too late.
With built in G-Sensor and ACC detection, tracker could detect motion of vehicle and send to cloud server via 2G network in time. At the same time, user could receive instant alerts via APP, PC or SMS. Excellent for instantly alerting you to vandalism, attempted theft, or accidental damage these alerts can save you a trip to the mechanic or help you notify the police before it’s too late.

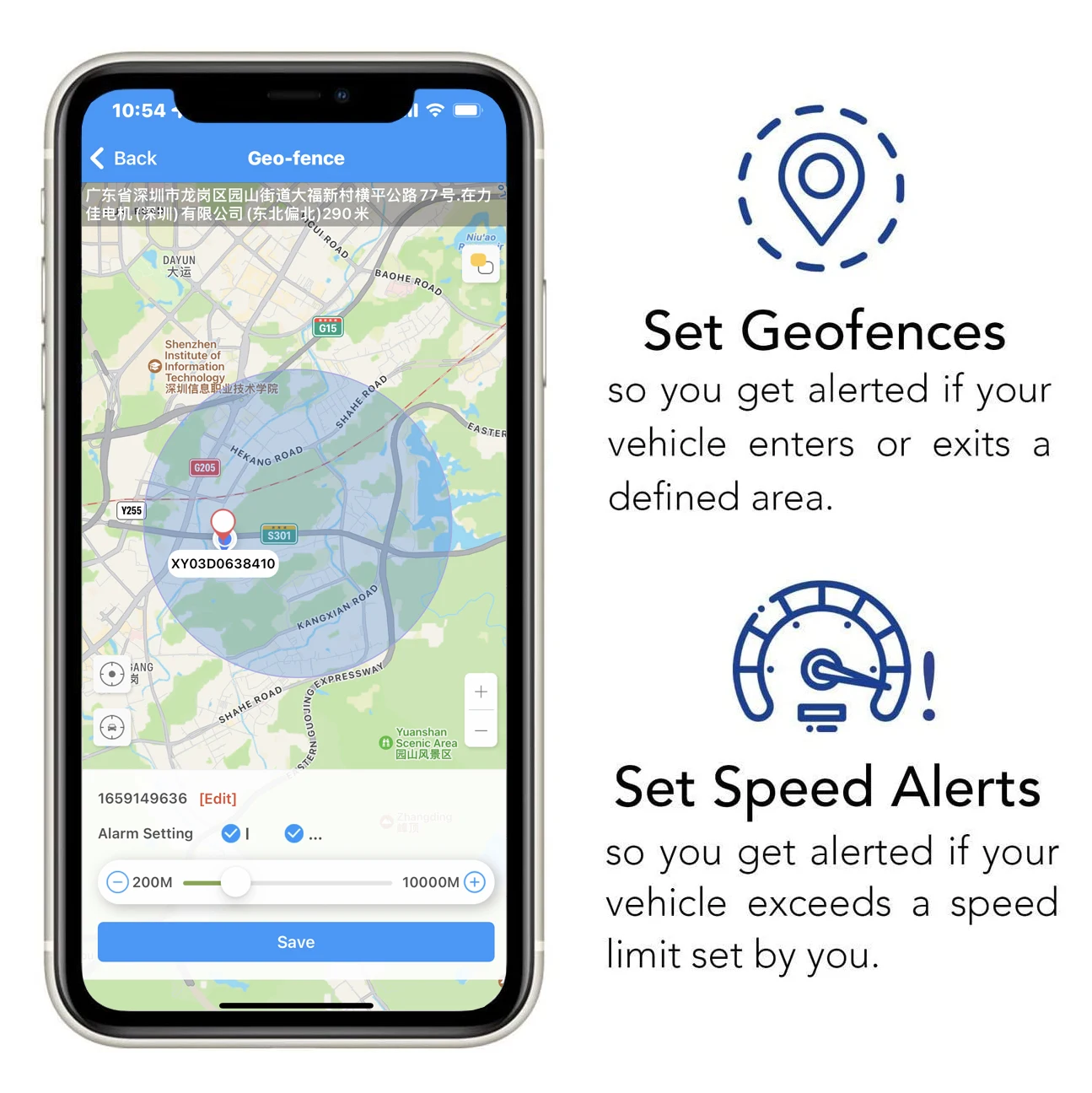

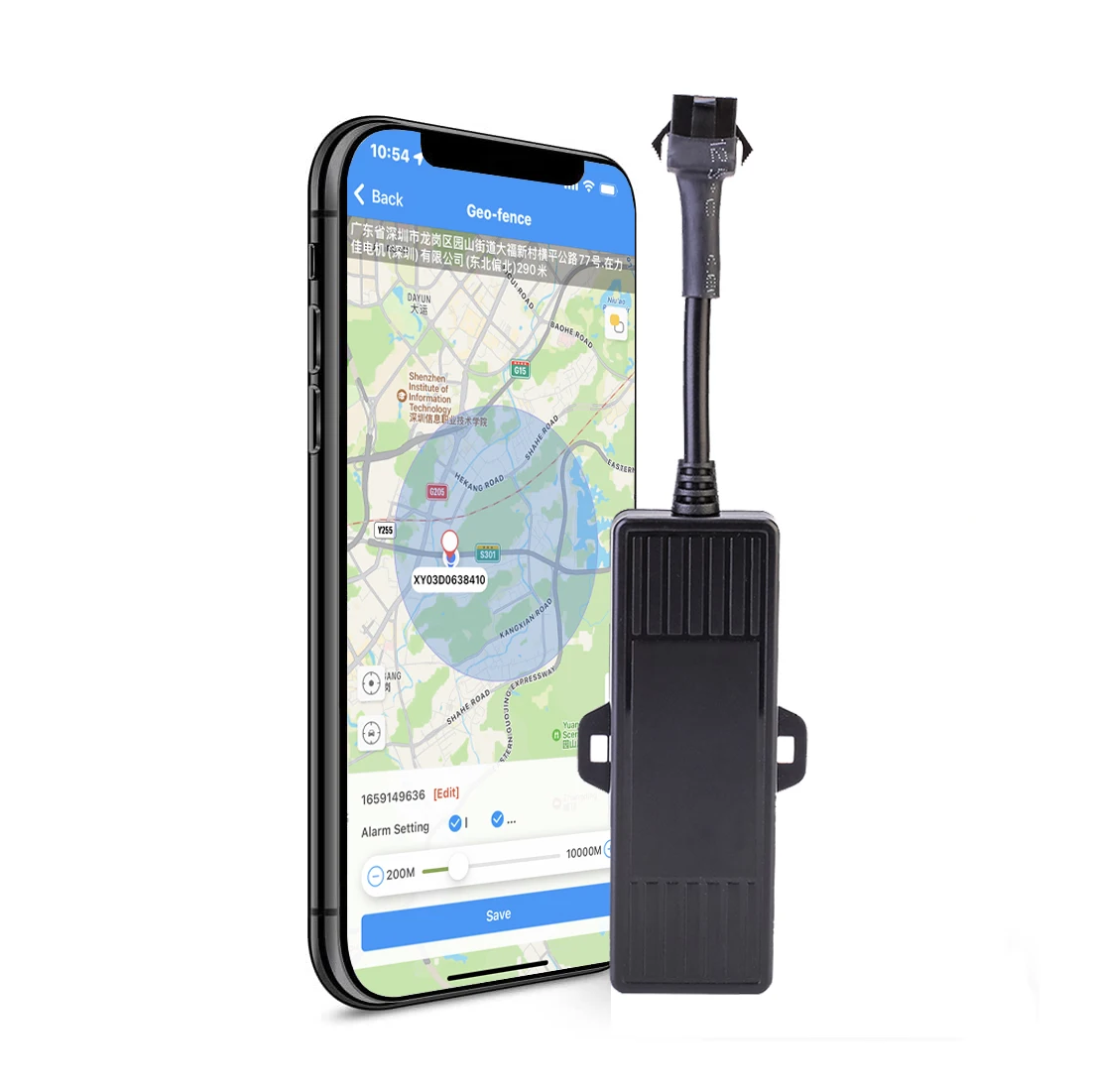

With advanced Geofencing, create custom safe areas via the app or PC.
Instant Platform Optional Alerts via SMS, APP or Software
Overspeed Alert, Power Off Alert, Anti-Thieft Alert, GEO Fence Alert and many other optional alerts are available on tracking platform.
Packaging
TK003S (SOS & MIC)
TK003W(WATERPROOF)
TK003 (BASIC)
Tracking Platform
Compatible Protocols | GT06/JT808/HY |
Compatible Public Tracking Platforms | GPS Server, Trackway, Ruhavi |
GPSSKY Platform: //www.18gps.net App:YUNZHIXING | Platform Demo: //www.18gps.net/dealer/?mds=d630165c65834293bb27ac1460d75e68 |
FREE, Accurate, Powerful | 18GPS.net is the first choice platform of car positioning which performs functions: Vehicle Networking Monitoring Center Platform WAP Query Platform Service Provider Value Added Service System Mobile Vehicle Networking Social Account |
Why Choose Us
14 YEARS R&D experience in GPS Tracking Industry
ORIGINAL DEVELOPER and Patent Owner of TK003 Series
TOP R&D TEAM and Ability in GPS Tracking Industry in Shenzhen, China
A PROFESSIONAL GPS SOLUTION PROVIDER
Company Profile
FAQ
1,Q: Are you the manufacturer?
A:Yes, we are manufacturer of GPS Tracker with more than 14 years GPS product development experience. We have a professional hardware and software engineer team to achieve customers' requirements.
2,Q:How long is the product warranty?
A:We stand behind our products. All products are covered by 12- Months replacement warranty.
3,Q:Do you support OEM order with my own Logo?
A: Yes, we could put your logo on item when order quantity above 100 pieces.
4,Q: Do you support ODM order to customize item hardware or software?
A: Yes, we do! Please kindly message your requirements and we'll bring up a solution for you.
5,Q: What is your Payment Term?
A: 1.We accept T/T Bank Transfer, Western Union, Paypal and Alibaba online transaction.
2.For general order, we accept 100% full payment before shipping. For OEM/ODM order, 30% advance payment and 70% left payment before shipment.
2.For general order, we accept 100% full payment before shipping. For OEM/ODM order, 30% advance payment and 70% left payment before shipment.
