8500w 2ohm 4200watts 8ohm 2 channel PRO Audio DJ Sound System High performance digital power Amplifier PFC242
- Category: Trade Show Equipment >>>
- Supplier: Guangzhou,Suiyu,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Specification

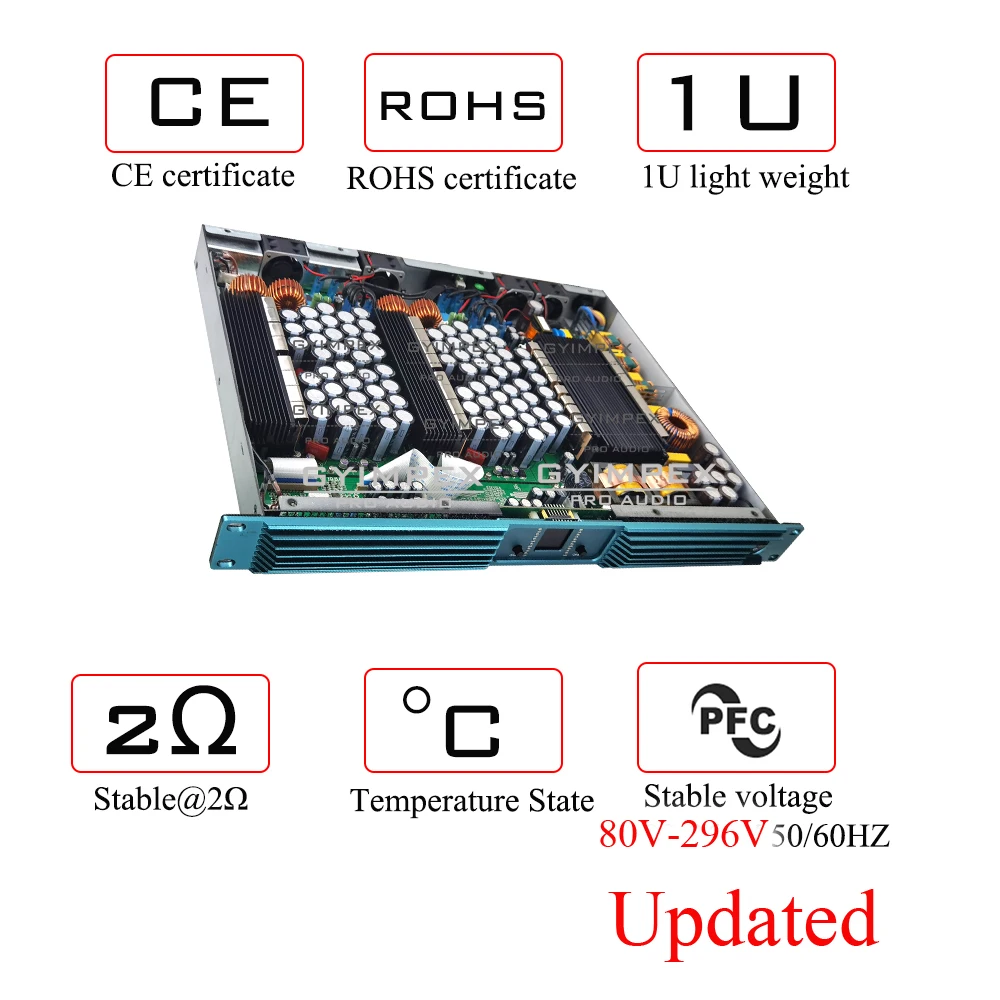

1U digital 2 channel power amplifier with PFC
Stable @2ohm high quality Version
MODEL: PFC242
8Ω Stereo power: 2*4200W RMS
4Ω stereo power: 2*7800W RMS
2Ω stereo power: 2*8500W RMS
8Ω Bridge power: 15600W RMS
4Ω Bridge power: 17000W RMS
Dimensions W * D * H (mm): 482*460*44mm
net weight: 12.5kg
---------------------------------------------------------------------
MODEL: PFC235
8Ω Stereo power: 2*3500W RMS
4Ω stereo power: 2*6500W RMS
2Ω stereo power: 2*7500W RMS
8Ω Bridge power: 13000W RMS
4Ω Bridge power: 15000W RMS
4Ω stereo power: 2*6500W RMS
2Ω stereo power: 2*7500W RMS
8Ω Bridge power: 13000W RMS
4Ω Bridge power: 15000W RMS
Dimensions W * D * H (mm): 482*460*44mm
net weight: 12.4kg
-------------------------------------------------------------------------------
MODEL: PFC230
8Ω Stereo power: 2*3000W RMS
4Ω stereo power: 2*5000W RMS
2Ω stereo power: 2*7100W RMS
8Ω Bridge power: 10000W RMS
4Ω Bridge power: 11000W RMS
4Ω stereo power: 2*5000W RMS
2Ω stereo power: 2*7100W RMS
8Ω Bridge power: 10000W RMS
4Ω Bridge power: 11000W RMS
Dimensions W * D * H (mm): 482*460*44mm
net weight: 12.3kg
-----------------------------------------------------------------------------
MODEL: PFC220
8Ω Stereo power: 2*2000W RMS
4Ω stereo power: 2*3400W RMS
2Ω stereo power: 2*4800W RMS
8Ω Bridge power: 6800W RMS
4Ω Bridge power: 9600W RMS
Dimensions W * D * H (mm): 482*460*44mm
net weight: 12.2kg
8Ω Stereo power: 2*2000W RMS
4Ω stereo power: 2*3400W RMS
2Ω stereo power: 2*4800W RMS
8Ω Bridge power: 6800W RMS
4Ω Bridge power: 9600W RMS
Dimensions W * D * H (mm): 482*460*44mm
net weight: 12.2kg
-----------------------------------------------------------------------------
Height :1U ,Class D, 2 channel digital power amplifier
(Operating Voltage:90-260V 60HZ/50HZ)
1U digital 2 channel power amplifier with PFC
Max output voltage/current under Stereo Mode: 230V/100A PEAK
Max output voltage/current under Bridge Mode: 460V PEAK
THD (1KHZ and 1db below clipping): ＜0.05%
Frequency response(20Hz-20kHz) : 20HZ-20kHZ +0/-1dB
Gain (optional)8ohm: 32dB /35dB/38dB/41dB
Operation Ambient Tempera: 0°C-45°C/32°F-113°F
output socket: Switzerland speakon connector Neutrik
Input socket: combo XLR type. 3 pin
THD+N Harmonic Distortion:<0.5% from 1 W to full power ( typical value<0.05%)
IMD (Intermodulation Distortion): <0.5% from 1 W to full power ( typical value <0.05%)
Signal Noise Ration : ＞110dB
Sensitivity (rated power 8Ω): 0.775V/1V/32dB
Damping Factor: ＞5000 @ 20-200hz
Slew Rate: ＞50V/us @8ohm
Input impedance ,Balanced ＞20kΩ / Unbalanced＞10kΩ
Resolution: ≥75dB
crosstalk:＞66dB @1khz
SNR(signal to noice Ratio)＞110dBA(20hz-20khz,A weighted)

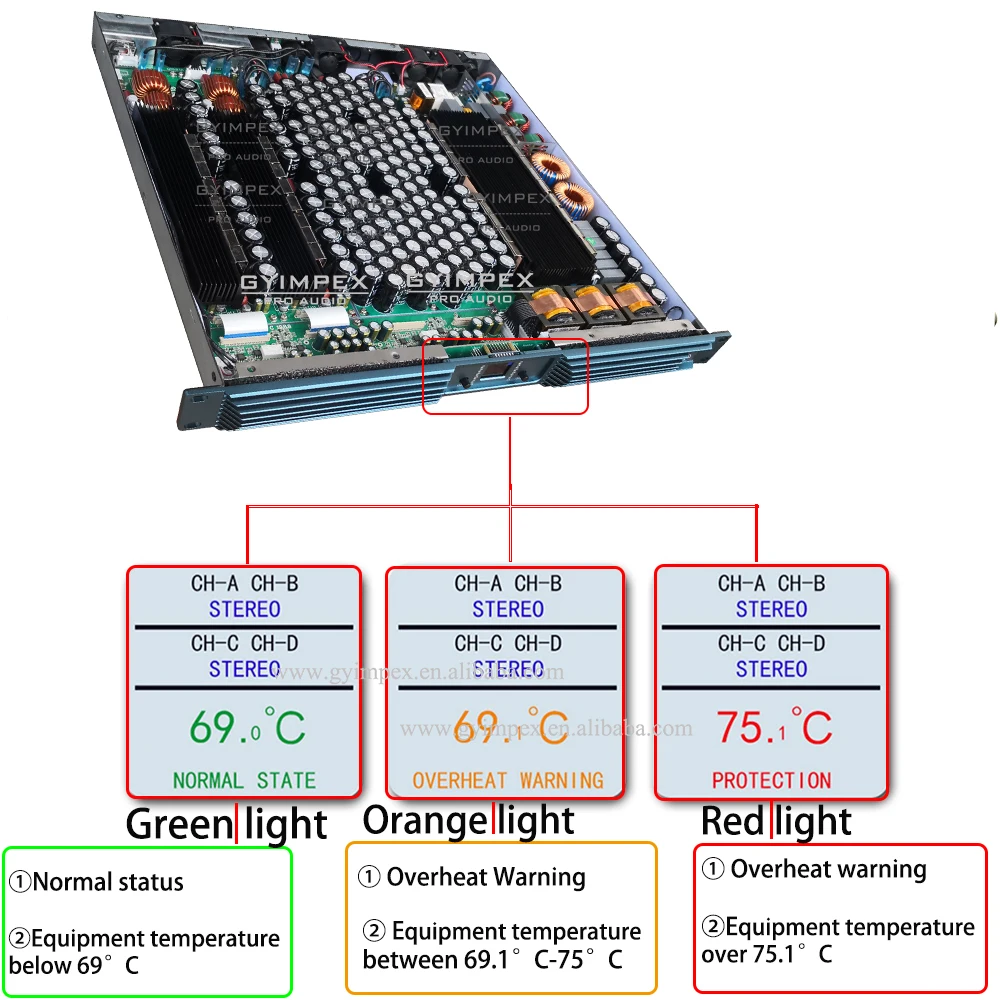

LED Display operative condition:Display temperature:Green means working normally,
Yellow indicates overheating warning
Heat-dissipating Method:Temperature control variable speed air cooling system
cooling air from front to back
Protection: Soft start, VHF, Ac and Dc protection;Clipper limiter;Overhigh frequency;Short circuit;Long term
amplituer;Thermal;Temperature warning;Switch machine mute; Signal line hot plug and Overload protection
Power supply voltage: PFC universal power supply system 90-260V voltage optional,
suitable for any country voltage;50hz-60hz
------------------------------------------------------------------------------------------------------------
GYIMPEX AUDIO PFC SERIES is a powerful amplifier with stable 2ohm working system, only one rack installation space, making it one of the most powerful and technologically advanced power amplifier products on the market.The efficiency is over 92%, low calorific value means stable and reliable performance, more durable.
Extremely wide power supply adaptability, built-in high quality power regulator. can adapt to the worst power supply environment, completely solve the problem of voltage instability in remote areas.
Select all kinds of top components carefully, each power amplifier components high power, a large number of imported raw materials, such as the United States fairchild, ansenmei, Germany infineon, Japan TDK, stmicroelectronics, the selection of HIFI level chip, timbre reached an unprecedented height of digital power amplifier.
The protection circuit of each sound channel is independent, even if a certain sound channel cannot work, it will not affect other sound channels, providing higher security for each performance.
Each power amplifier has passed more than 100 comprehensive tests of AP audio instrument, ensuring that each power amplifier achieves the optimal parameters and performance and maintains a high degree of product consistency.
It is the perfect choice for a place that requires relatively high continuous power and high requirements. The emphasis on timbre and high efficiency, while achieving good stability, portability and adaptability, make it a perfect choice.these amplifiers are the first choice of first-class system designers, sound engineers, and system technicians to provide the most reliable and highest level of power and dynamic margin in the smallest size possible.
Application
Medium-large scale venues including Touring performance ,stadium theater, concert hall, auditorium, theatre, music halls, night clubs, large discotheques, touring show, rental market application
Product Description
RELATED PRODUCTS
Certifications
Our Advantages
Company Information
FAQ
Q1. Can I have a sample order for it?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-15 days, mass production time needs 10-20 days for order quantity more than
Q3. Do you have any MOQ limit for your products order?
A: Low MOQ, 1pc for sample checking is available for some models
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years/1 year warranty to our products. depends on which series
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we can offer you spare part with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
