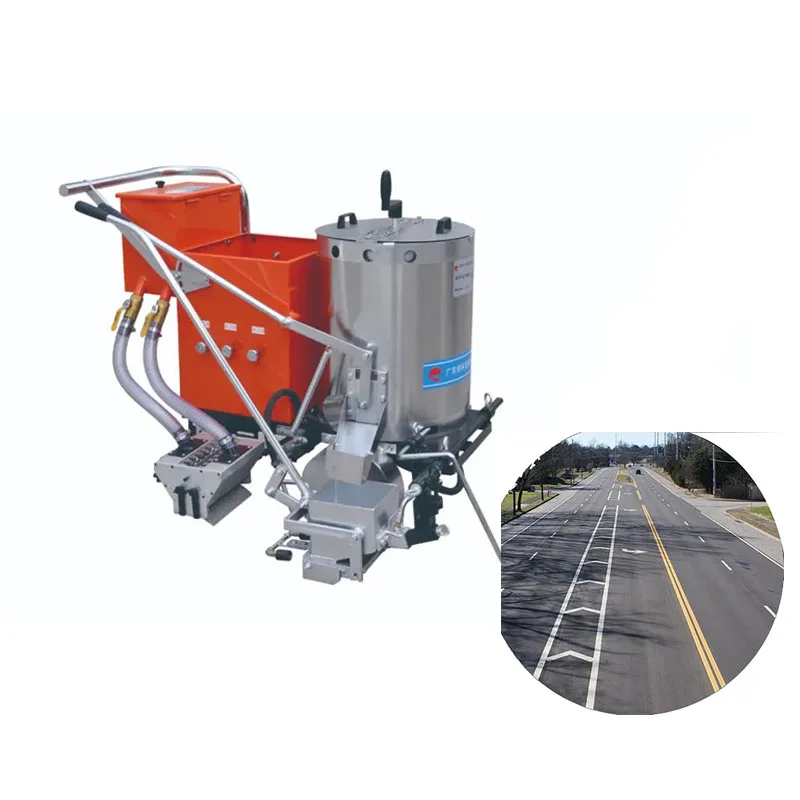

Factory price hand push Self Propelled 15 cm marking shoe 20 cm 30 cm modern road line marking machine
- Category: >>>
- Supplier: Guangdong Bole Road Sign Technology Co. Ltd
Share on (11000004468752):
Product Overview
Description
Factory price hand push Self Propelled 15 cm marking shoe 20 cm 30 cm modern road line marking machine
Specification
Paint barrels: | Double stainless steel heating insulation barrels, capacity 100 kg, plug-in manually mixer devices, removable devices |
Glass Bead storage box: | 10 kg / box |
Glass beads sow browser: | synchronous clutch spread with speed gearshift device |
Crossed Doo: | High-precision ultra-thin material manufacturing, scraper-type structure, the standard configuration of 150 mm |
Landing knife: | Carbide, with eccentric sleeve device can adjust the thickness of the scope marking :1-2.5 mm |
Tire: | Alloy Wheel Unit, a special heat-resistant rubber, after the last round with positioning devices for the body along a straight line direction |
Heating method: | liquefied petroleum gas |
Subscript Line Width: | 150 mm engineering requirements in accordance with the replacement of different specifications crossed Doo |
Size: | 1200x900x950 mm |
Weight | 100kgs |

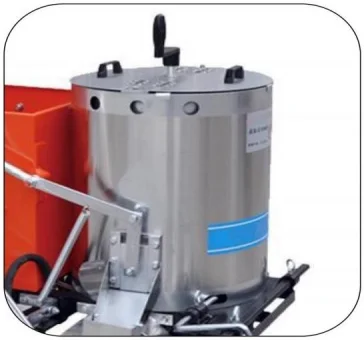

●Insulation barrel: double-layer stainless steel insulation heating barrel, double-layer stainless steel bottom, 100 kg capacity,vertical manual mixing device, and removable barrel design.
●Glass bead storage tank: 10 kg/ box
●Adjustable glass bead seeder:synchronous clutch seeder, with speed regulating and shifting device. Adjustable width 50-200 mm
●Scoring bucket: it is made of high-precision ultra-thin material and has a scraper structure. It adopts a single scoring bucket handle. The knife is closed without material leakage. The marking edges are aligned, the head and tail are aligned, and the thickness is uniform.
●Floor cutter: hard alloy, with eccentric sleeve device, which can adjust the marking thickness range: 1-2.5 mm.
●Rubber wheel: aluminum
alloy wheel stock, special heat-resistant rubber, and the rear wheel is equipped with a positioner to ensure a straight line.
alloy wheel stock, special heat-resistant rubber, and the rear wheel is equipped with a positioner to ensure a straight line.
●Positioner: the rear tail wheel is equipped with a positioner to ensure that the vehicle body can walk in a straight line or turn freely
●Marking width: the standard configuration is 150mm, with different specifications such as
50/100/150/200/250/300/400/450mm. The marking bucket and glass bead spreader of different specifications can be replaced according to the engineering requirements
50/100/150/200/250/300/400/450mm. The marking bucket and glass bead spreader of different specifications can be replaced according to the engineering requirements

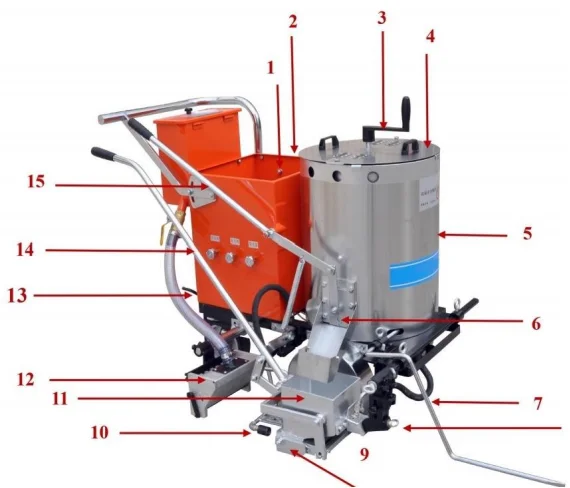

Product Description
1.Torches
2.Trunk
3. Stirring Shaft
3. Stirring Shaft
4. Paint Input Door
5.Stainless Steel Heat Preservation Kettle
5.Stainless Steel Heat Preservation Kettle
6. Paint Output Door
7. Pointing Needle
7. Pointing Needle
8. Hanger & Front Burner
9.Landing Knife
9.Landing Knife
10.Rear Burner
11.Marking Mold Glass Bead Box
12. Rear Burner
11.Marking Mold Glass Bead Box
12. Rear Burner
13. Marking Mold Handle
14.Paint Output Door Handle
14.Paint Output Door Handle

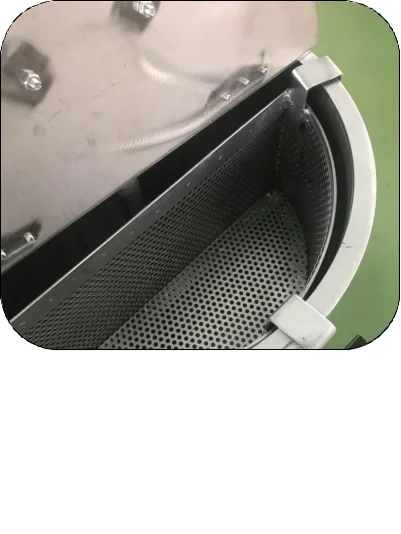

. The kettle is provided with a filter screen, which can filter out impurities in the paint when receiving materials.
Filter Screen

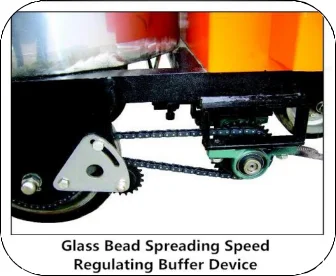

Through the transmission system of gear bite to control the glass beads box to sow automatically.

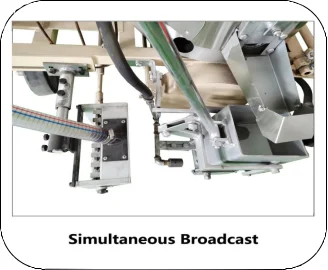

Glass beads dispenser for dispensing glass beads synchronously and quantitatively. It makes the dispensing synchronization with the marking line and ensure the quantity of dispensing is controllable and adjustable.

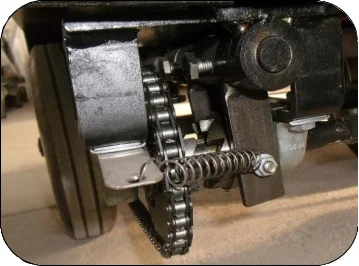

When the marking want to be straight , you can fix rear wheel, make the body point rectilinear direction and move forward to reduce labor.
With his feet to the right can pulled locator poles , the rear wheel can be fixed. Then left to pull back to reset.
With his feet to the right can pulled locator poles , the rear wheel can be fixed. Then left to pull back to reset.

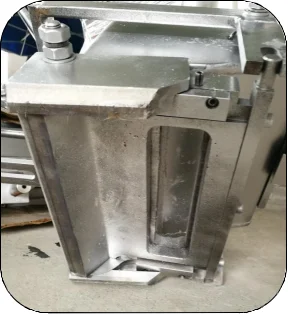

Marking Mold Bottom
2.0mm thickness alloy,strong wear resistance,can use for more than 3 years
Contact us
Kristen Mo
Tel:+8613600097200
Wechat/whatsapp:+8613667836978
Email:sales02@gdbllb.cn
Wechat/whatsapp:+8613667836978
Email:sales02@gdbllb.cn

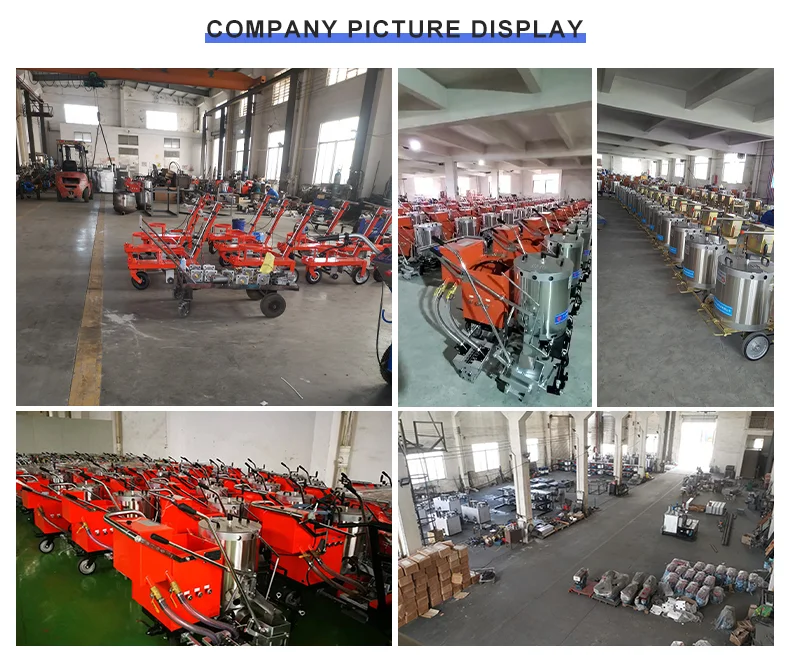

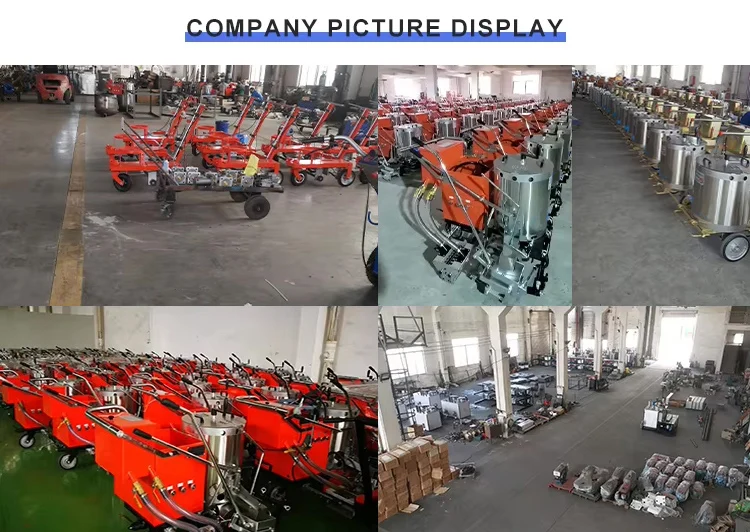

Bole Road Sign is a manufacturing and trading company for thermoplastic road paint and hot melt road marking equipment in Guangzhou China, with more than 10 years of full experience and a professional sales team. The headquarters is in Panyu,
Guangzhou, and the production base is in Kechuang Industrial Park, Nansha, covering an area of 3800 square meters, built three
storage centers in Shenzhen Guangming District, Guangzhou Baiyun District, and Jiangxi Ganzhou Zhanggong District, more extensive,convenient and fast delivery logistics system.
Guangzhou, and the production base is in Kechuang Industrial Park, Nansha, covering an area of 3800 square meters, built three
storage centers in Shenzhen Guangming District, Guangzhou Baiyun District, and Jiangxi Ganzhou Zhanggong District, more extensive,convenient and fast delivery logistics system.

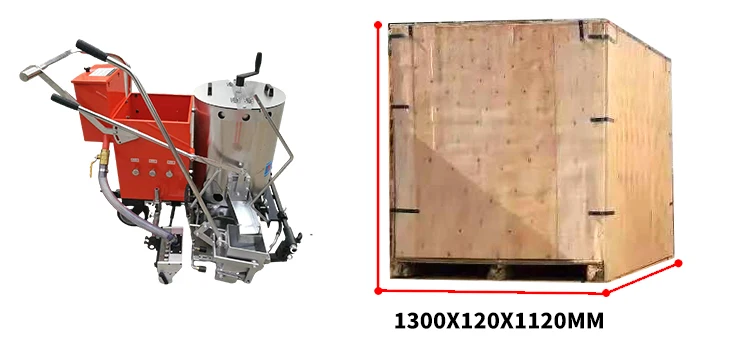

Packing & Delivery
1.Wooden box package
2.180Kg/box3.thermoplastic price glow in the dark for road marking paint
