Price:$10,500.00

Quantity:


Product Overview

Description



P0.93 0.93mm Small Pixel Pitch Die-casting Aluminum Meeting Room Indoor Video Wall Pantallas Led Display Screen Panel Led Sign



1. Product Description

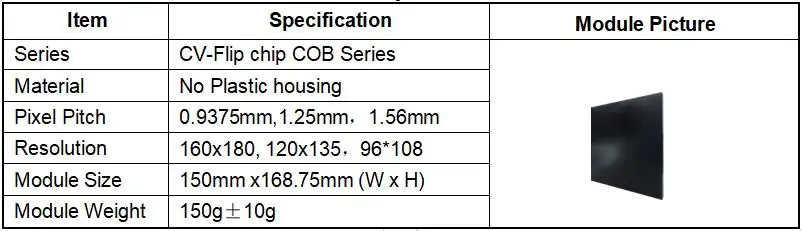

2. 150mmx168.75mm Module Specification

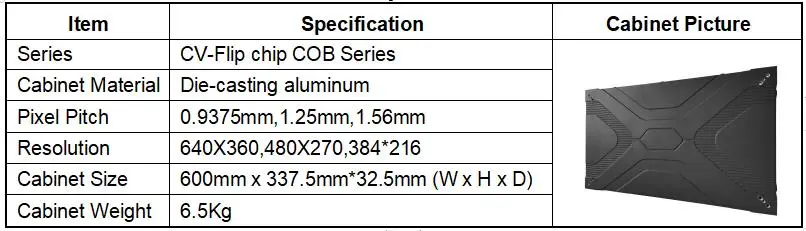

3. 600mmx337.5mm Cabinet Specification

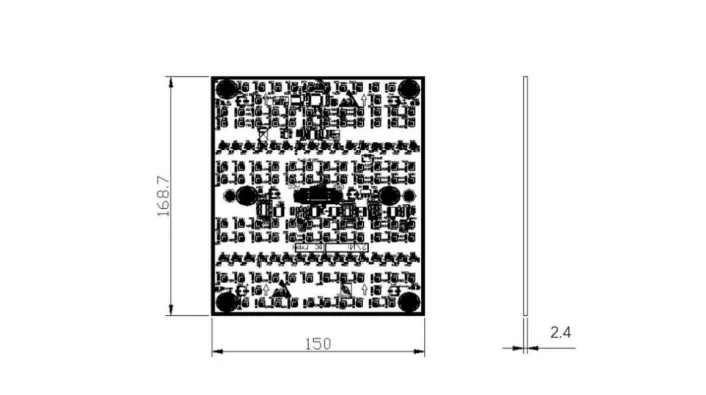

4. Module Dimension Structure

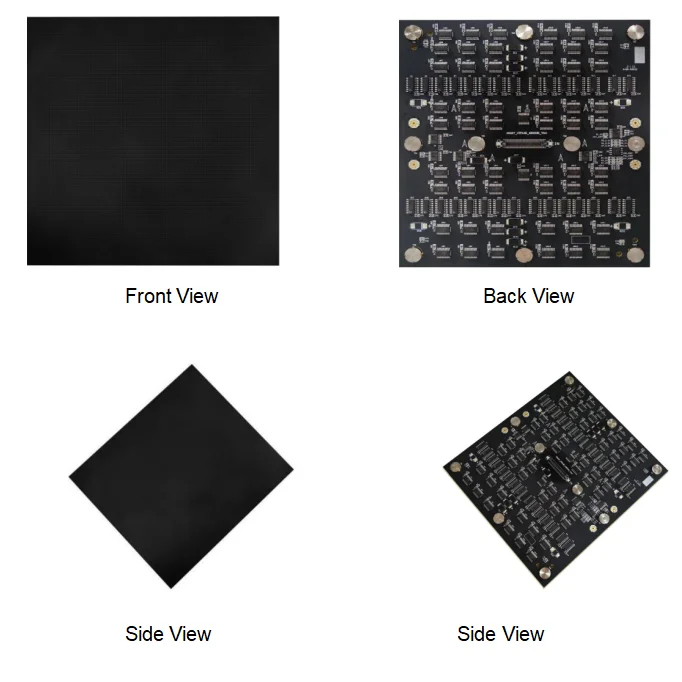

5. Module Picture




6. Cabinet Dimension Structure

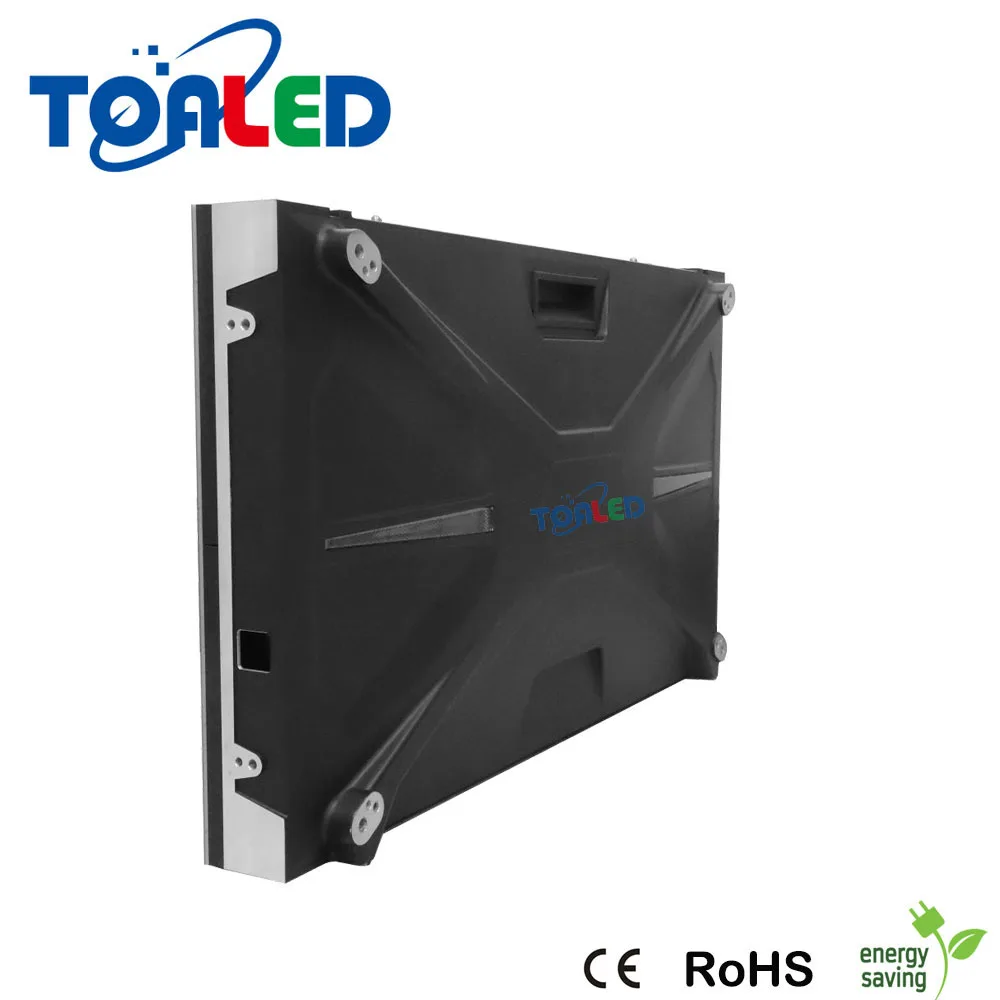

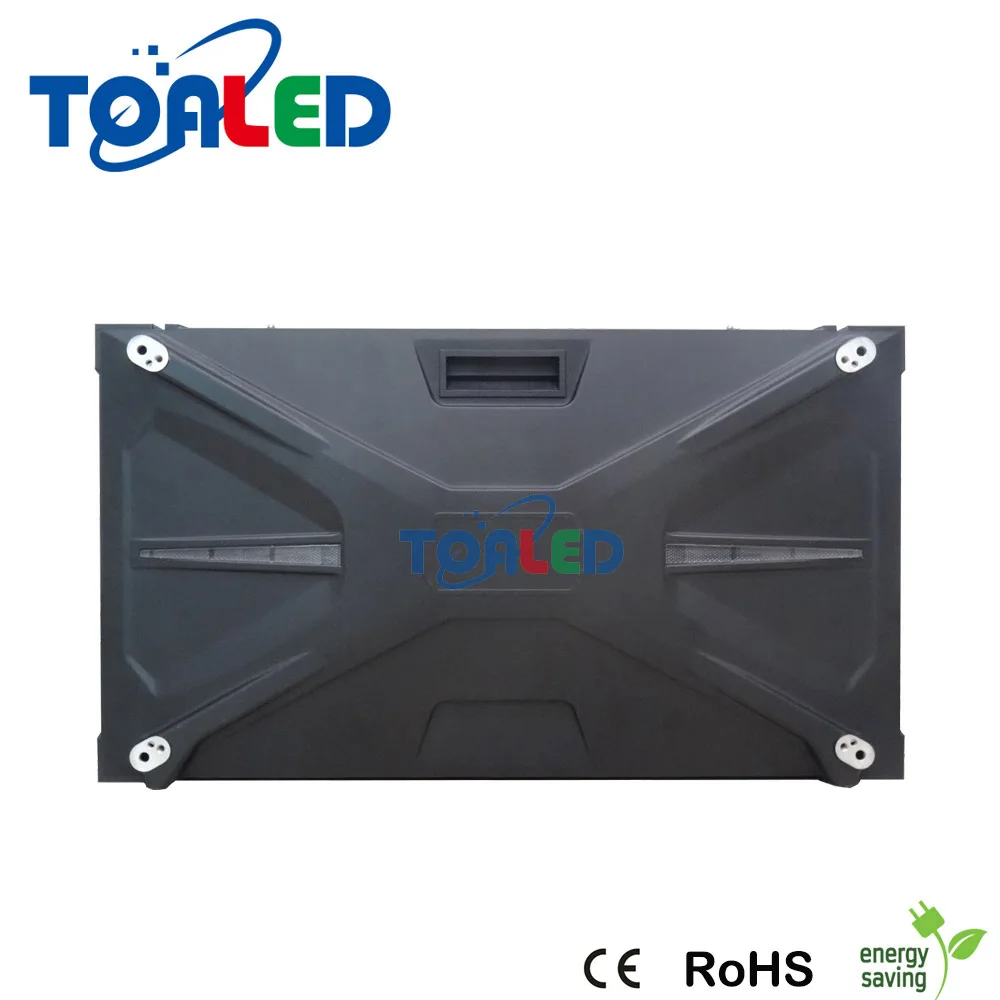

7. Cabinet Picture


Front View
Back View


Side View
Side View


8. Technical Parameter


Item
CV0.93
CV1.25
CV1.56
Technical
Pixel Pitch (mm)
0.9375
1.25
1.5625
LED Configuration
FLIP CHIPCOB 1R1G1B
FLIP CHIPCOB 1R1G1B
FLIP CHIPCOB 1R1G1B
LED Type
2 x 4
2 x 4
2 x 4
Physical Density (dot/m²)
1,137,778
640,000
409,600
Module Size (W ×H ×D) mm
150x168.75
150x168.75
150x168.75
Module Resolution (W ×H)
160x180
120x135
96*108
Module Material
No Plastic housing
No Plastic housing
No Plastic housing
Cabinet Size (W ×H ×D) mm
600x337.5x32.5
600x337.5x32.5
600x337.5x32.5
Cabinet resolution (W×H) dot
640x360
480x270
384x216
Cabinet Material
Die Casting Aluminum
Scanning Mode
1/60
1/45
1/48
Cabinet Flatness (mm)
≤0.10
≤0.10
≤0.10
Grey Scale (Bit)
14Bit+Control Software 2Bit=16Bit
14Bit+Control Software 2Bit=16Bit
14Bit+Control Software 2Bit=16Bit
Protection Level
LED Lamp side IP65, rear IP45
Installation/Service Method
Front or back installation/Front service
Optical
Brightness
50-600cd/㎡ adjustable,Max 600cd/m2
Color Temperature
3200-9300K adjustable
Brightness Uniformity
≥98%
Color Uniformity
Within 0.003Cx, Cy
Horizontal/Vertical View Angle
≥170°
Contrast Ratio
≥10000:1
Color Calibration of Single Dot
Yes
Brightness Calibration of Single Dot
Yes
Operation
Drive Mode
Constant Current Drive
Standard Receiving Card
A8S/A5s plus
Refresh Frame Frequency
50/60 Hz
Max Refresh Rate
≥2880Hz
≥3840Hz
Network Connection Port
RJ45
Input Voltage AC
110-240V
Cabinet Max Power Consumption
DC2.8V+3.8
DC4.2V
DC4.2V
Cabinet Aver. Power Consumption
0.5A+1.5A
4.5A
4.5A
Max. Power consumption
≤300W/m2
≤300W/m2
≤300W/m2
Average power consumption
≤100W/m2
≤100W/m2
≤100W/m2
Working Temperature
-20℃～+80℃
Working Humidity
10%～95%RH

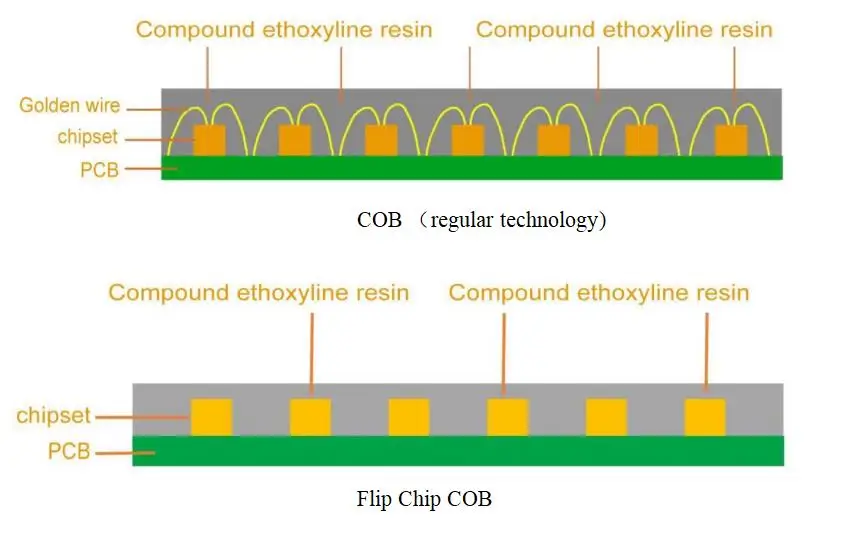

8.1 Package Comparison.




8.1 Optical Feature




9. Connecting Diagram




10. Packing and After-sale Service
