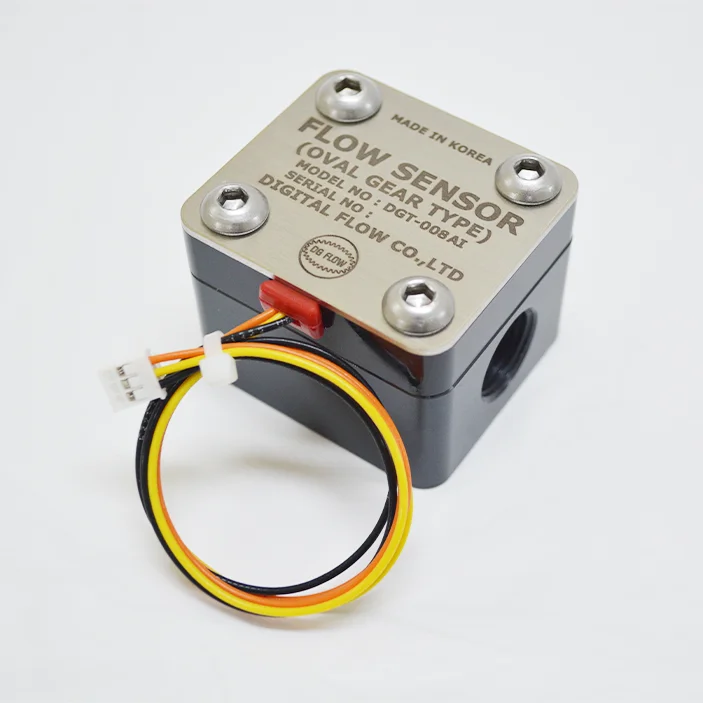

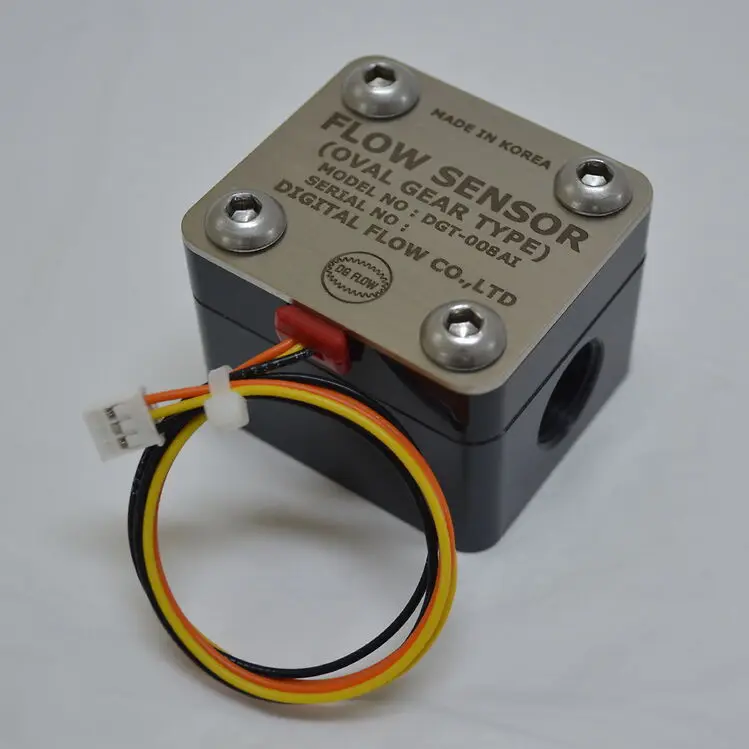

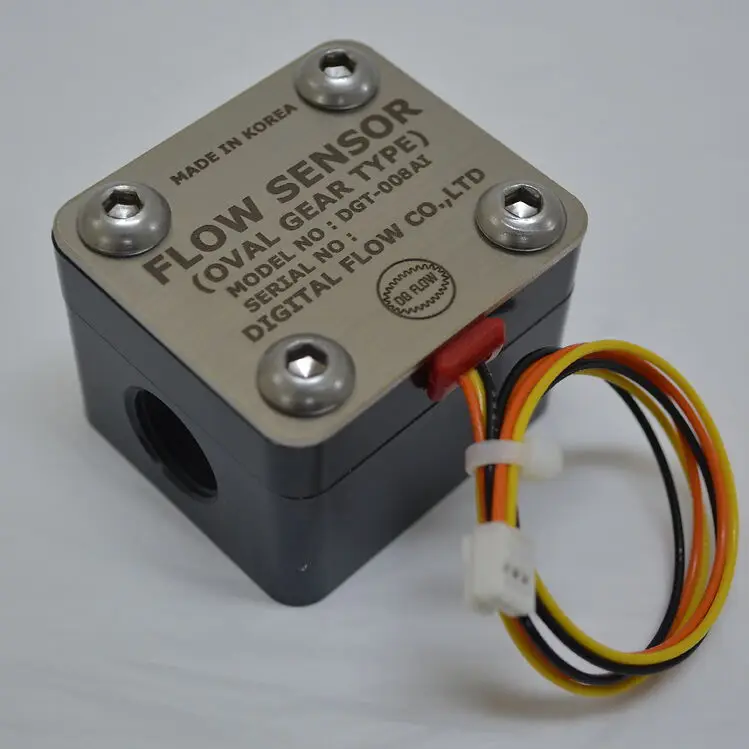

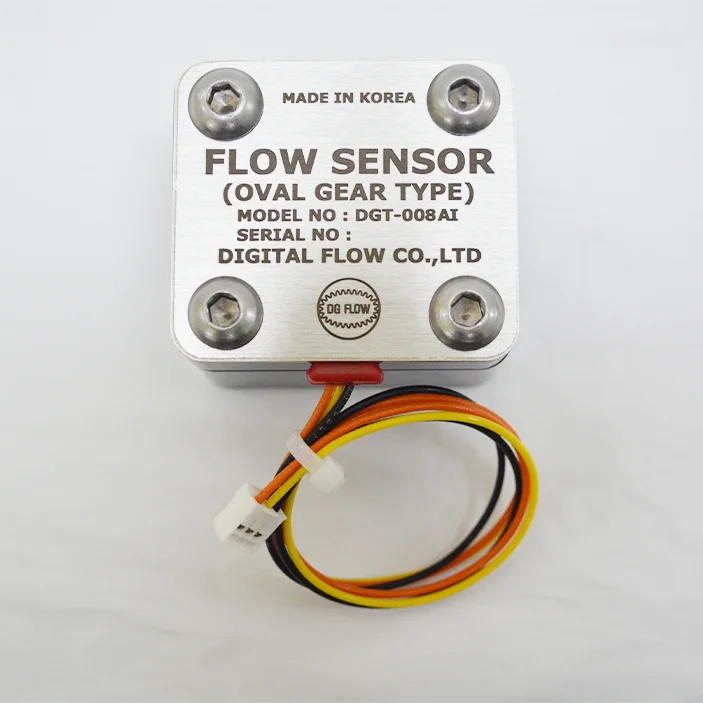

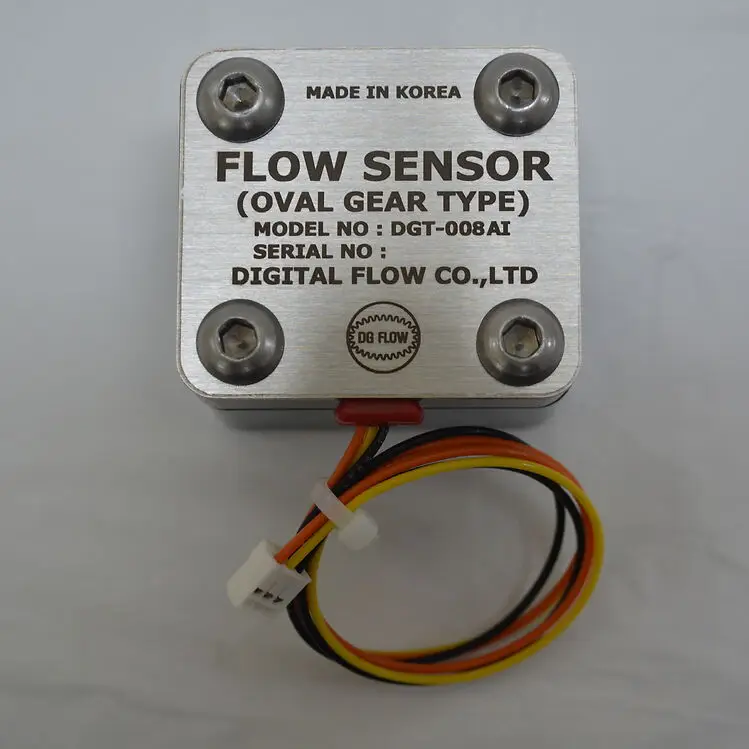

DGT 008AI Flow Meter/Sensor oval gear type Internal thread type flow meter/sensor For measuring or checking the flow or level o
- Category: >>>
- Supplier: DIGITAL FLOW CO. LTD.
Share on (11000004540225):
Product Overview
Description
Product Description
Specification
item | value |
Warranty | 12 months |
Customized support | OEM |
Place of Origin | Republic of Korea |
Brand Name | Digital flow co.,LTD |
Model Number | DGT-008AI |
Type | Positive-displacement flow meter, Oval gear flow meter |
Major Fluids | Kerosene, Gasoline, Diesel, Light Oil, Heavy Oil |
Accuracy (Standard Installation Position) | ±0.5% |
Maximum Working Pressure | 5MPa |
Fluid & Ambient Temperature | -40 to 150°C |
Flow-Rate Range (±1%) | 10 - 300L/h |
Pulse Unit | 744 P/L, 0.001344 L/P |
Power Voltage | 3 - 24V DC, Max 60mA |
Output Signal | NPN Open Collector |
Connection | PF 3/8" (Internal Thread) |
Main Materials | Rotor & Casing : Coated Aluminum O-ring : Viton Shaft : 316L Stainless Steel |
WIRE | BLACK(-) GROUND ORANGE(+) POWER YELLOW(-) SIGNAL |
REMARK | Please install the strainer (above #80) at the inlet of the flow-sensor. |
Packing & Delivery
PACKAGE : Plastic (PE) bag + INBOX + OUT BOX
INBOX size : 8cm * 8cm * 8cm
Net weight : 0.3kg (Per unit)
Gross weight : 0.36kg (Per unit)
Carton dimensions : 42cm * 36cm * 19cm
Qty/G. weight/ Ctn : 40EA / 14.5kg /ctn
INBOX size : 8cm * 8cm * 8cm
Net weight : 0.3kg (Per unit)
Gross weight : 0.36kg (Per unit)
Carton dimensions : 42cm * 36cm * 19cm
Qty/G. weight/ Ctn : 40EA / 14.5kg /ctn
Delivery Method
1. Available courier service : DHL / FedEx / TNT / UPS / EMS
2. It's also possible to send the goods via sea transportation.
2. It's also possible to send the goods via sea transportation.
Remark
1. Our basic transaction is T/T in advance 100% before the production.
2. The unit price of the goods term is based on EXW FACTORY, S. KOREA.
It means excluded all kinds of delivery charge and surcharges.
3. Please note that the inventory status may be changed depending on the point of
order acknowledgement.
2. The unit price of the goods term is based on EXW FACTORY, S. KOREA.
It means excluded all kinds of delivery charge and surcharges.
3. Please note that the inventory status may be changed depending on the point of
order acknowledgement.
