Radar meter 3 IN 1 70 Meters Water Level Water Surface Velocity River Flow Sensor
- Category: >>>
- Supplier: Dongguan Hcbetop Technology Co. Ltd.
Share on (11000004557462):
Product Overview
Description

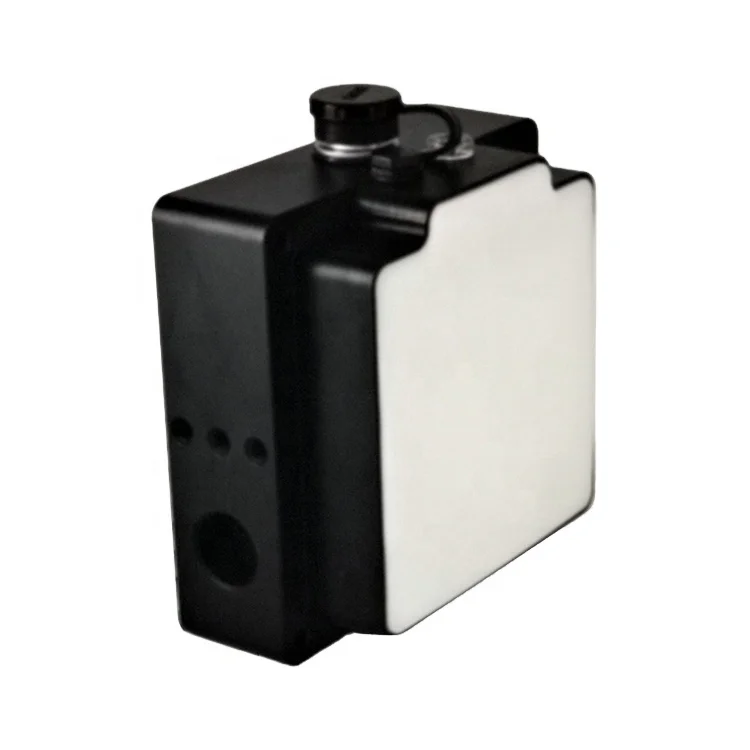

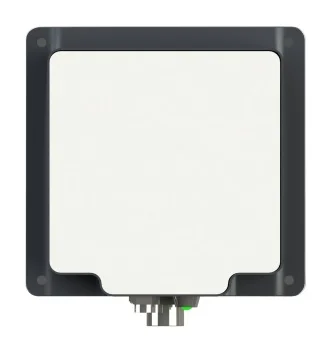

Radar Water Velocity Sensor (HC.FLM-1)
Product introduction
222
HC.LLX-1 is utillizing Microwave to detect the flow speed. It is mainly used in detect the flow speed and flow rate of river, cannel, channel, culvert etc. It can provide a auxiliary monitor to care the water flow change effectively,showing the accurate water flow data for monitoring institutions.
The radar flow meter irradiate to the water surface in a certain angle, which measure the flow of water under Doppler principle. This non-contact measurement makes more precise without effect from water corrosion,and sediment.

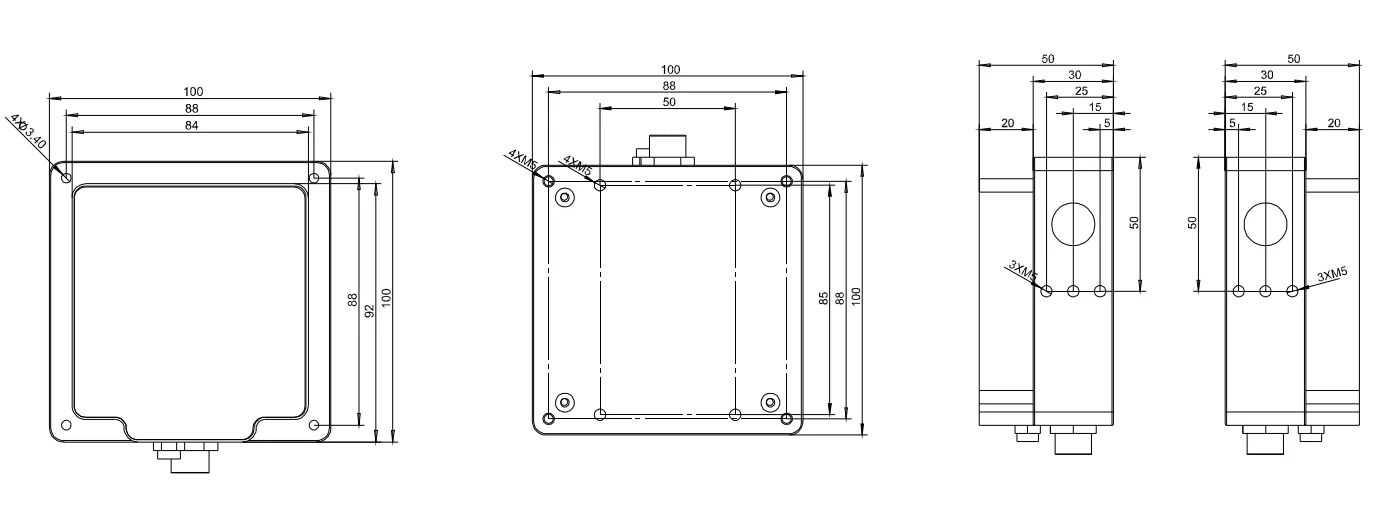

Dimension
Feature
1. Base on mature high-frequency pulse radar measurement, high stability, high precision, high resolution;
2. Non-contact measurement without effect from water corrosion and sediment.Even can be used in complex water environment with contaminants or sediment;3. Radar antenna directional well, the transmission loss is small;
4. Low power consumption, Water proof, thunder proof design, suitable for all kinds extreme weather.24/7 working;
5. Instruction or spacing gathering optional;
6. Standard Modbus or SDI, compatible all RTU, also can customized;
7. Small appearance, Easy to install and maintenance.
Specification
Parameter | Description | ||||||
Measuring range | 0.15~15m/s | ||||||
Accuracy tolerance | ±0.01m/s;±1% | ||||||
Resolution | 1mm/s | ||||||
Working temperature | -35~65℃ | ||||||
Storage temperature | -40~70℃ | ||||||
Emission freguency | 24GHz | ||||||
Antenna Type | Planar Micro Strip Array Antenna (Plate type) | ||||||
Level Radar Antenna structure: | Seal. Proof dew and condensationg / HART | ||||||
Wave angle: | 25℃X12℃ | ||||||
Effective distance | 0.5~35m | ||||||
Working voltage | 6~24VDC | ||||||
Quiescent current | ≤1mA（or ≤0.05mA 12V） | ||||||
Operating current | ≤80mA（or ≤20mA 12V） | ||||||
Dimension | 100x100x50(mm) | ||||||
Protection class | IP67/IP68 optional | ||||||
Seismic resistance | Mechanical shock 10m/S2, (10-150)Hz | ||||||
With display | Optional | ||||||
Application
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
1:Are you factory or only company?
We have factory to produce water monitoring product, such as bubble water level sensor, radar water level sensor, radar velocity sensor, radar flow meter, water-rain one-stop monitoring site, turbidimeter，urban prevent water-logging monitoring site etc.
2:Why we can choose you?
1)Reliable---we are the real company, we dedicate in win-win
2) Professional--We have been developing and manufacturing for more than 10 years.
3) Factory.---we have factory,so have compective price.
3:How about the price?Can you make it cheaper?
The price depends on the item your demand(Shape,size quantity)
Final quotation accoring to receving full description of the item you want.
We have factory to produce water monitoring product, such as bubble water level sensor, radar water level sensor, radar velocity sensor, radar flow meter, water-rain one-stop monitoring site, turbidimeter，urban prevent water-logging monitoring site etc.
2:Why we can choose you?
1)Reliable---we are the real company, we dedicate in win-win
2) Professional--We have been developing and manufacturing for more than 10 years.
3) Factory.---we have factory,so have compective price.
3:How about the price?Can you make it cheaper?
The price depends on the item your demand(Shape,size quantity)
Final quotation accoring to receving full description of the item you want.
