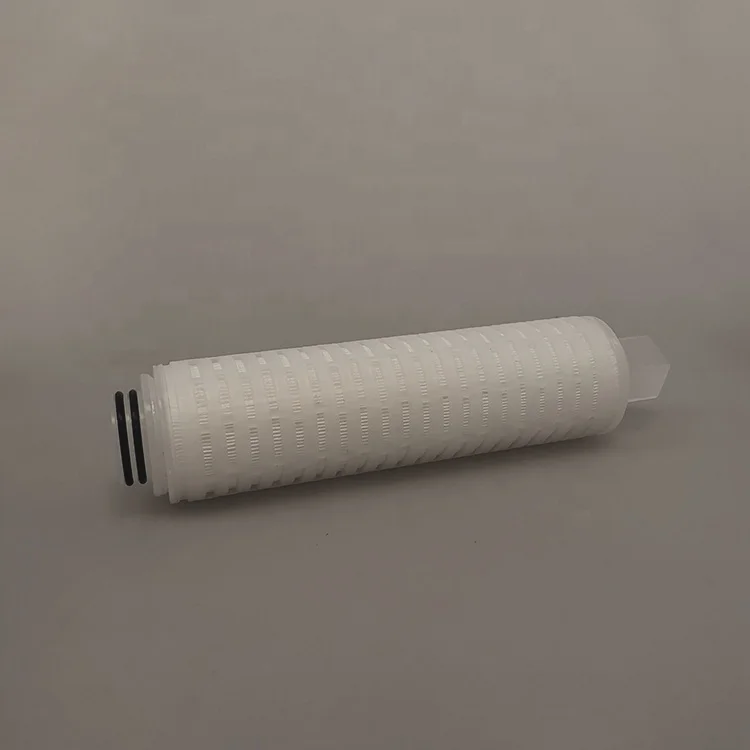

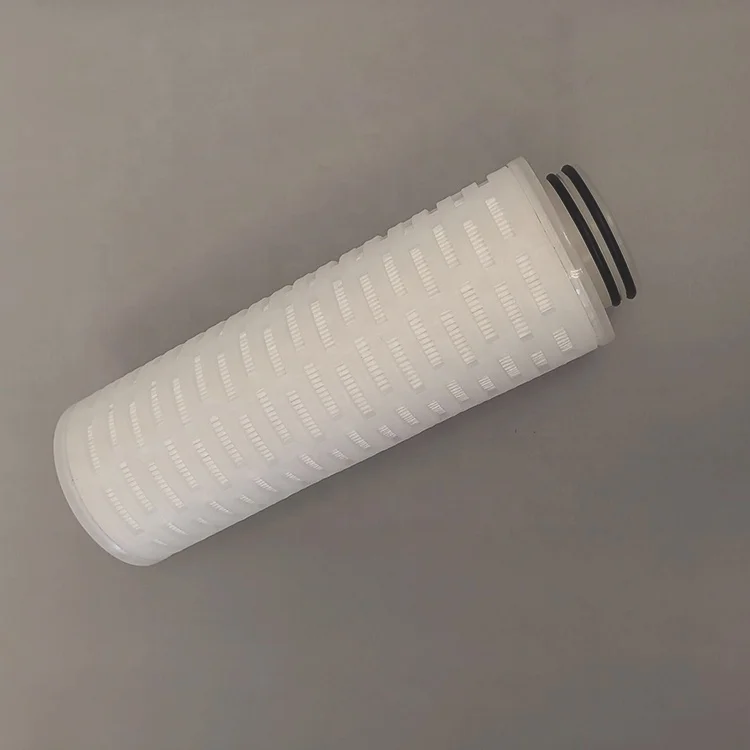

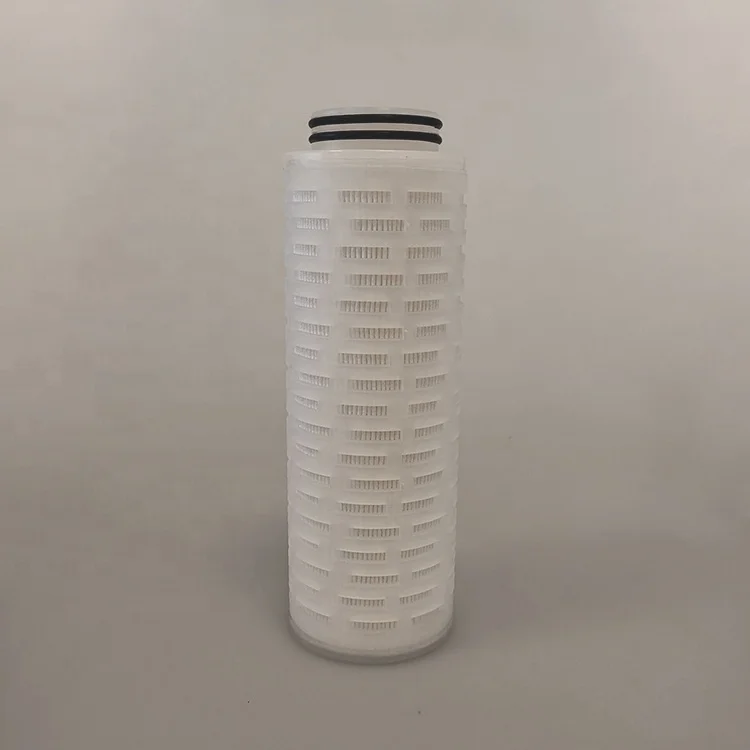

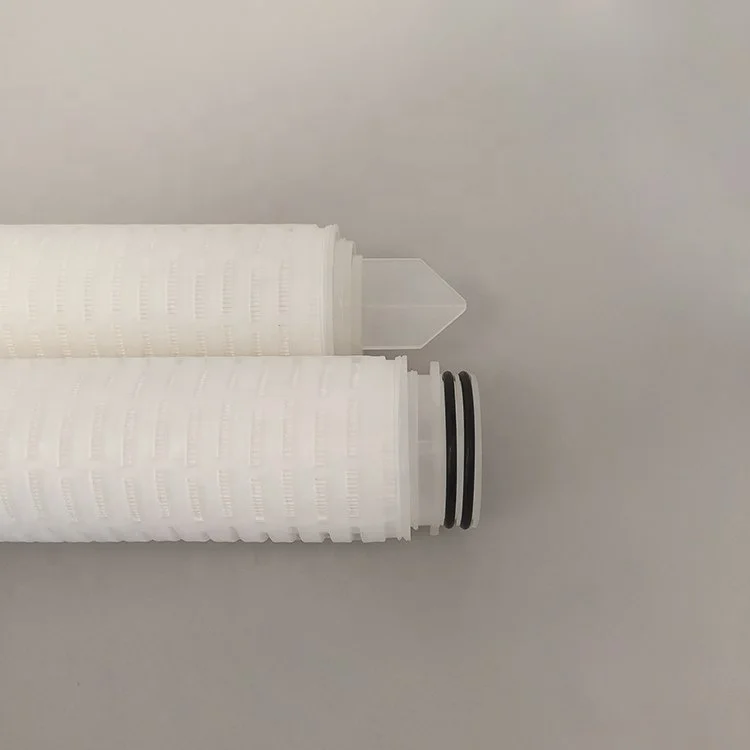

Gas filtration 10inch 0.45um hydrophobic PTFE membrane filter cartridge filter
- Category: >>>
- Supplier: Suzhou Akws Filtration Equipment Co. Ltd.
Share on (11000004581183):
Product Overview
Description
Products Description
Product Features:
* Filtration Membrane with Natural Strong Hydrophobicity, Ensure Absolute Sterilization Under Wet Or Dry Conditions, 100% Filter Gas Bacteriophag e Filtration
* Biologically Inert, Chemically Resistant PTFE Media
* Uniform Pore Size Throughout Membrane For High Contaminant Retention Capacity And Flow Rates
* 100% Flushed With DI Water And Integrity Tested
* Filters Are Manufactured, Flushed, Tested And Packaged In A Class 1,000 Clean Room Environment.
* Biologically Inert, Chemically Resistant PTFE Media
* Uniform Pore Size Throughout Membrane For High Contaminant Retention Capacity And Flow Rates
* 100% Flushed With DI Water And Integrity Tested
* Filters Are Manufactured, Flushed, Tested And Packaged In A Class 1,000 Clean Room Environment.
Applications:
* Sterilized Inlet Filtration, Breath Filtration
* Aseptic Intake and Exhaust Filtration Of Fermentor, Storage Tank, Batching Tank, Etc.
* High Purity Gas Terminal Filtration In Electronic Industry
* Filtration Of Compressed Air Sterilization
* Aseptic Intake and Exhaust Filtration Of Fermentor, Storage Tank, Batching Tank, Etc.
* High Purity Gas Terminal Filtration In Electronic Industry
* Filtration Of Compressed Air Sterilization
Filter media | Expanded Polytetrafluoro-ethylene (ePTFE) Membrane | ||
Supporting Material | polypropylene | ||
End caps | polypropylene | ||
Center core | polypropylene | ||
Hardware | polypropylene | ||

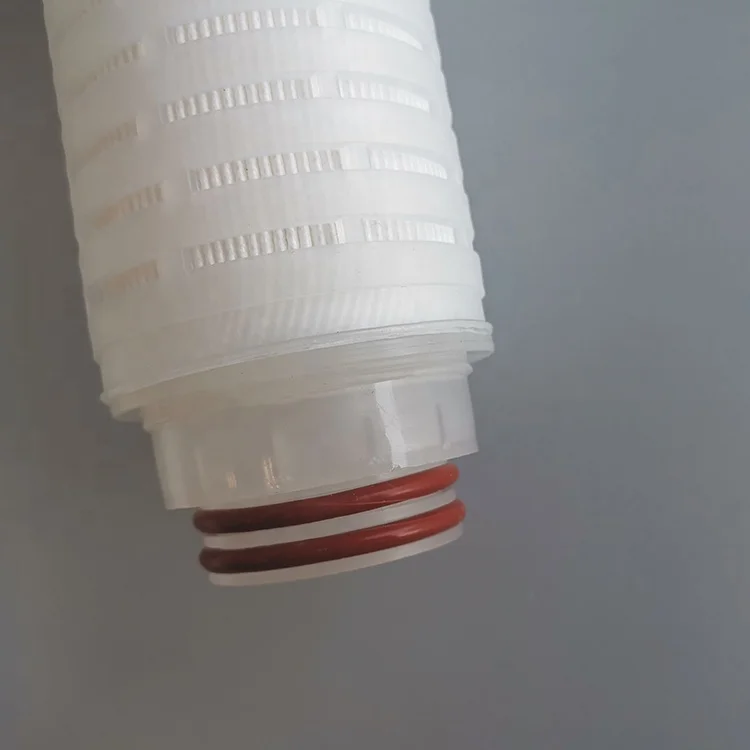

Gasket/O-rings | Slicone | ||
Buna-N | |||
EPDM | |||
Length | 9.75"~40" | ||
Dimentions | Outside Diameter | 2.67" | |
Specification can be customized | |||

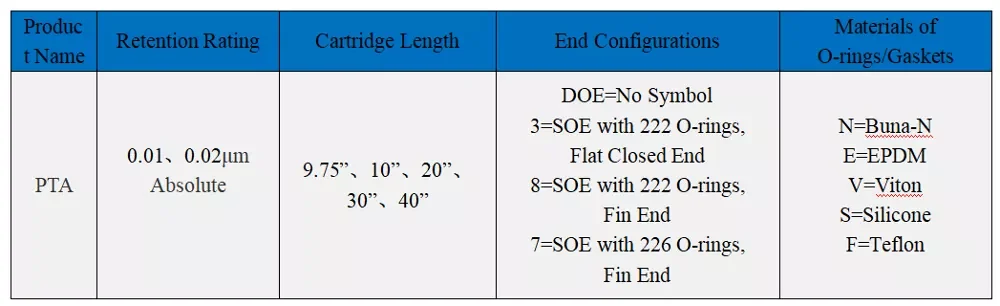

Performance | Retention ratings | 0.01, 0.02um Absolute | |
Max differential pressure | 80 psid(5.5bar)@68℉(20℃) 20 psid(21.4bar)@230℉(95℃) | ||
Recommended change out differential pressure | 35psid(2.4bar) | ||
Company Profile
Main Products
Exhibition
Certifications

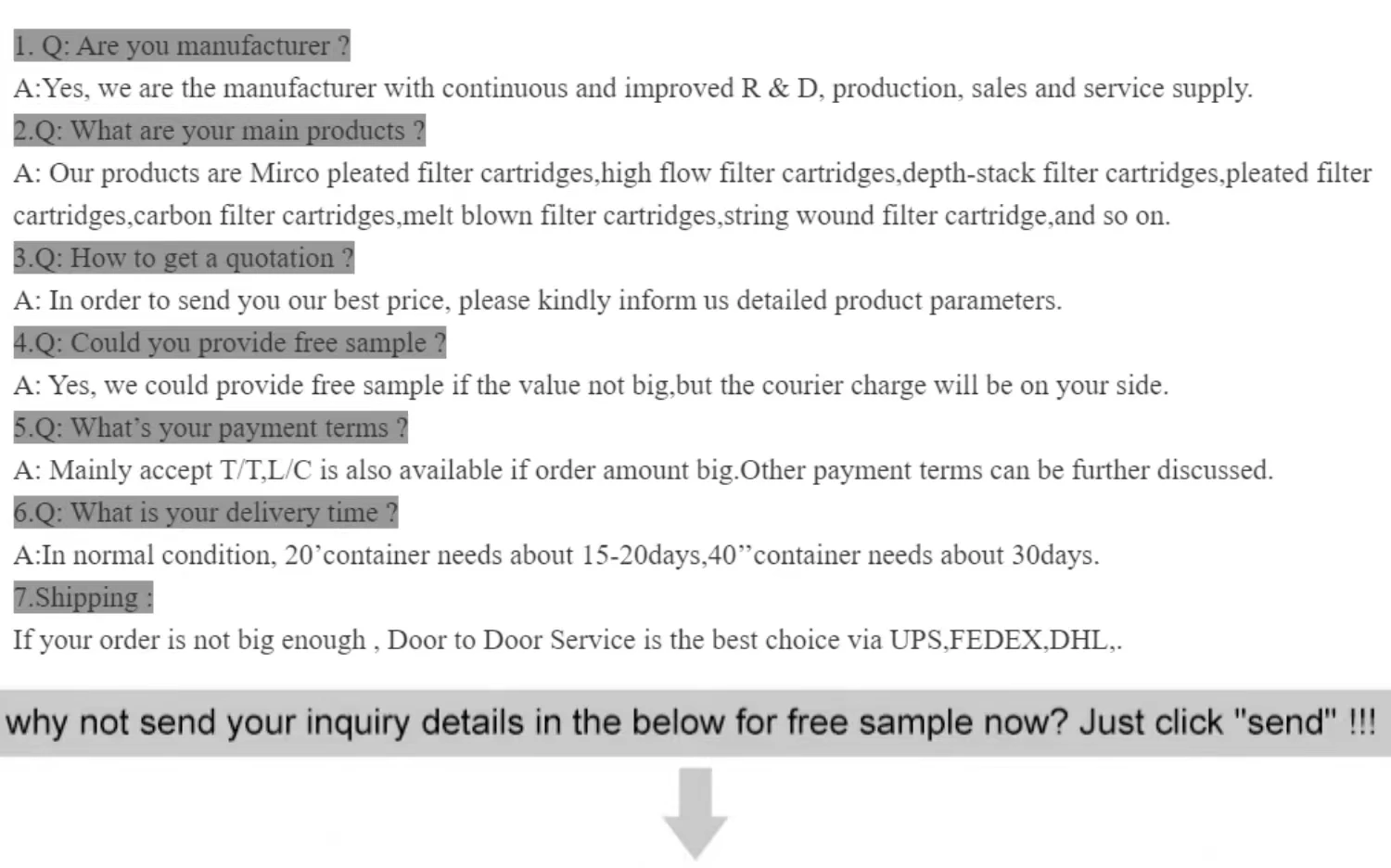

FAQ
