GPSSKY mini gps tracker TK008 GPS Tracker Locator Real Time Location gps mini tracker Device No Monthly Fee Platform for US
- Category: >>>
- Supplier: Shenzhen Jingwei Xingyun Technology Co. Ltd.
Share on (11000004585595):
Product Overview
Description
GPSSKY 4G CAT4 GPS Tracker for Vehicles No Monthly Fee Platform for United States
Track Any Thing that Has A Battery
Products Specifications
GSM Specifications | ||
GSM Channel | LTE-FDD/TDD+GSM+WCDMA | |
GPRS Class | 12 | |
GSM Band | 850/900/1800/1900MHz | |
FDD Band | B1/B3/B7/B8/B20/B28 | |
LTE Band | B34/B38/B39/B40/B41 | |
WCDMA | B1/B5/B8 | |
Communication Protocol | TCP/IP | |
GPS Specifications | ||
GPS Chipset | AT6558 | |
Positioning Mode | GPS/BDS/LBS/WIFI | |
Number of Channels | 64 | |
Positioning Accuracy | 10m | |
Tracking Sensitivity | -160dbm | |
Capture Sensitivity | -148dBm | |
GPS Signal | L1,1575.42MHz C/A | |
Working Parameters | |
Device Agreement | GT06/JT080/HY |
Working Voltage | 7-90V DC |
Working Current | ≈55mA(12vDC) |
Standby Current | <2.5 mA |
Battery | 80mA |

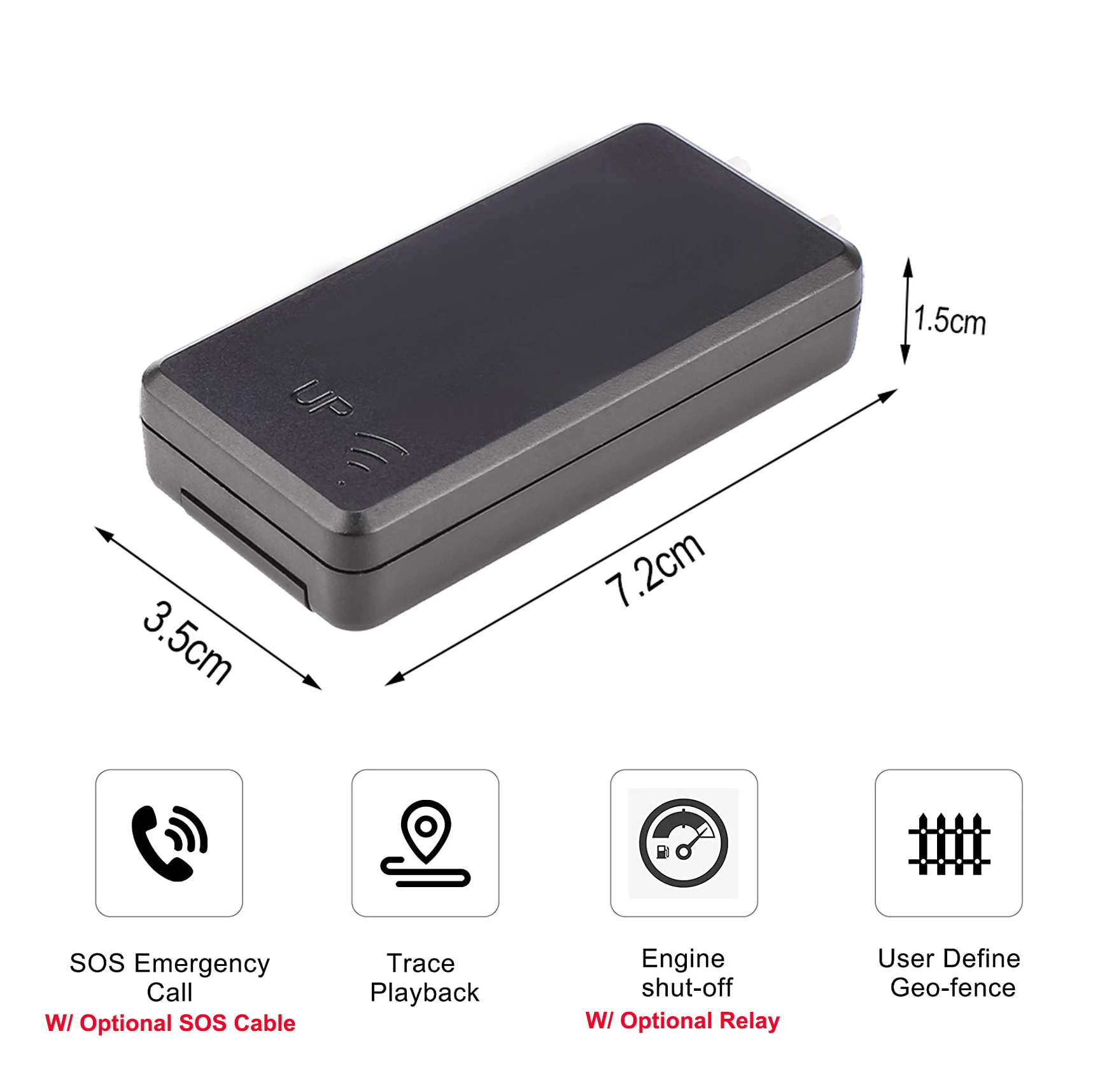

Dimensions | 72mm×36mm×15mm |
Net Weight | 36g |
Working Temperature | -20℃～+70℃ |
Working Humidity | 5%～90%RH |
Product Functions
Real-time Tracking Anywhere and Anytime
Enjoy your real-time tracking and check the 180 Days historical traces at anytime you want.
For fleet management purposes, the historical data is a key to help reduce fuel cost and CO2 emissions. Check the historical routes together with the reports, get your fleet in control.
For fleet management purposes, the historical data is a key to help reduce fuel cost and CO2 emissions. Check the historical routes together with the reports, get your fleet in control.

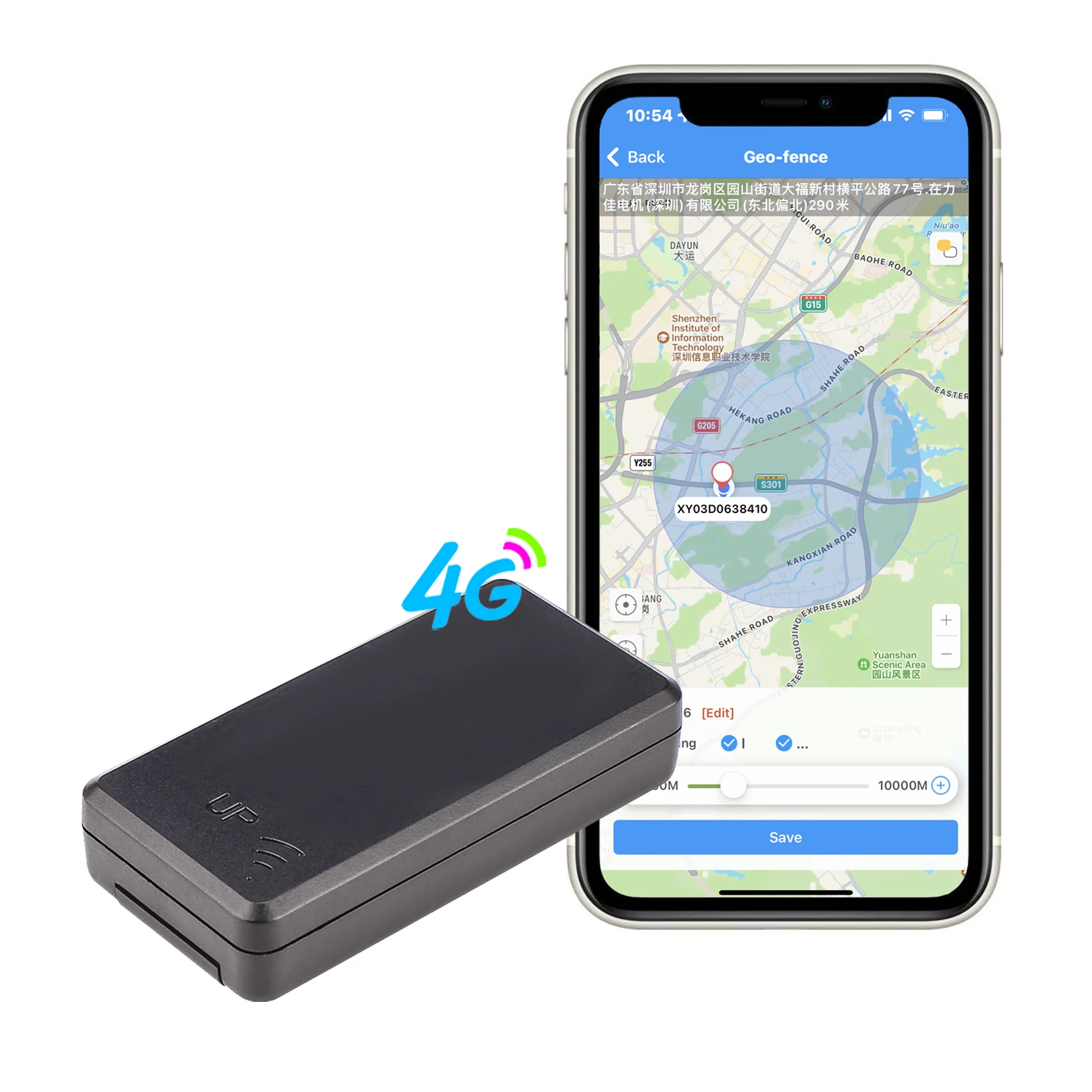

Anti-theft Alerts & Geofencing — Detect Suspicious Activity & Attempted Theft
With built in G-Sensor and ACC detection, tracker could detect motion of vehicle and send to cloud server via 2G network in time. At the same time, user could receive instant alerts via APP, PC or SMS. Excellent for instantly alerting you to vandalism, attempted theft, or accidental damage these alerts can save you a trip to the mechanic or help you notify the police before it’s too late. With advanced Geofencing, create custom safe areas via the app or PC.
With built in G-Sensor and ACC detection, tracker could detect motion of vehicle and send to cloud server via 2G network in time. At the same time, user could receive instant alerts via APP, PC or SMS. Excellent for instantly alerting you to vandalism, attempted theft, or accidental damage these alerts can save you a trip to the mechanic or help you notify the police before it’s too late. With advanced Geofencing, create custom safe areas via the app or PC.
OVERSPEED ALERTS
You can't always be there to make sure your drivers are driving at safe speed. With software in PC or Phone you can monitor in time driving speed or enable instant overspeed alerts on your phone or PC.
You can't always be there to make sure your drivers are driving at safe speed. With software in PC or Phone you can monitor in time driving speed or enable instant overspeed alerts on your phone or PC.
Optional Alerts
Power Off Alert, Anti-Thieft Alert, GEO Fence Alert and many other optional alerts are available on tracking platform.
Remotely Cut Off Fuel and Electricity
When user need to cut off vehicle Fuel/ Electricity/ Engine remotely, user could easily send vehicle a command via SMS/APP in phone or software platform in PC. After receiving this command, the vehicle engine will stop within 10s-20s. Once stop, vehicle will not move until receiving a Recover Command from user.
Note: Only when vehicle's running below 20KM/h, then the vehicle could stop after receiving this command. If the vehicle's running above 20KM/h, then vehicle engine can't be shut down.
When user need to cut off vehicle Fuel/ Electricity/ Engine remotely, user could easily send vehicle a command via SMS/APP in phone or software platform in PC. After receiving this command, the vehicle engine will stop within 10s-20s. Once stop, vehicle will not move until receiving a Recover Command from user.
Note: Only when vehicle's running below 20KM/h, then the vehicle could stop after receiving this command. If the vehicle's running above 20KM/h, then vehicle engine can't be shut down.
Optional Accessories
*SOS Panic/Emergency Button
(Addtional Cost Required )
Smartly Call/SMS/App Alert user after driver press this button
*MIC/Voice Monitor
(Addtional Cost required)
Voice Monitor
Product Features
Small and Light
Super mini in size: L78.0mm*W26.0mm*H15.0mm. NET weight only 42g! Easy for carry and hidden installation.
4G LTE FDD TDD GSM WCDMA (CAT4) Wide Coverage & Unlimited Distance
Supports countries in Asia, and Africa.

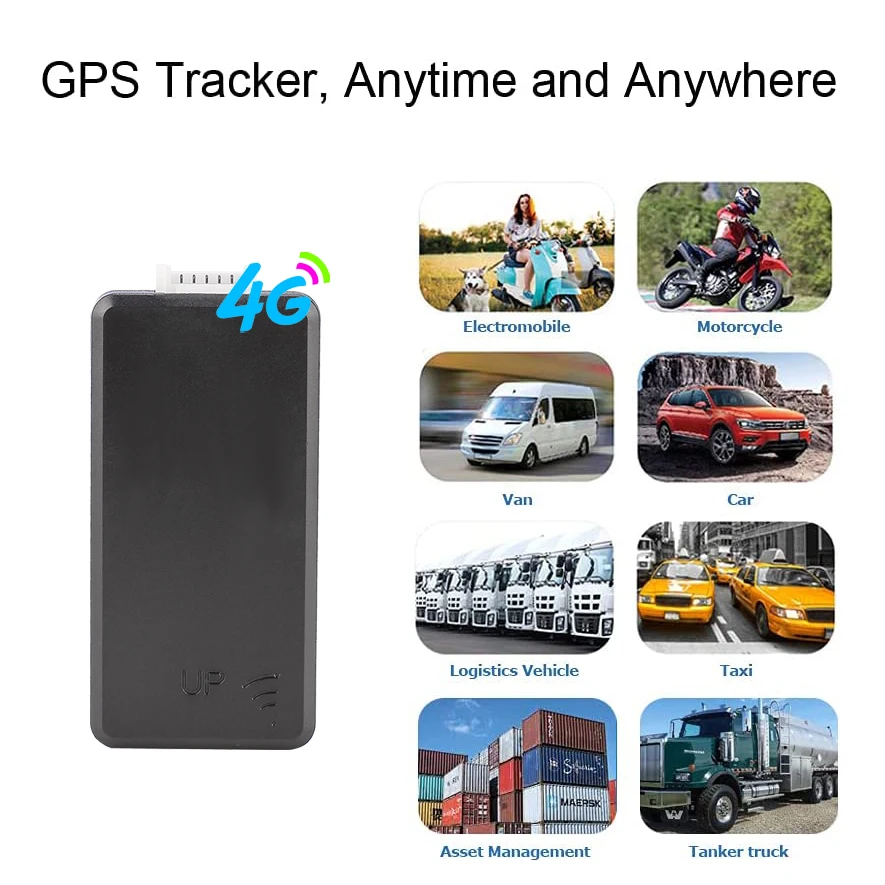

Track cars, Vehicles, trucks,business assets, motorcycles, fleets, eBikes, Mopeds and Scooters

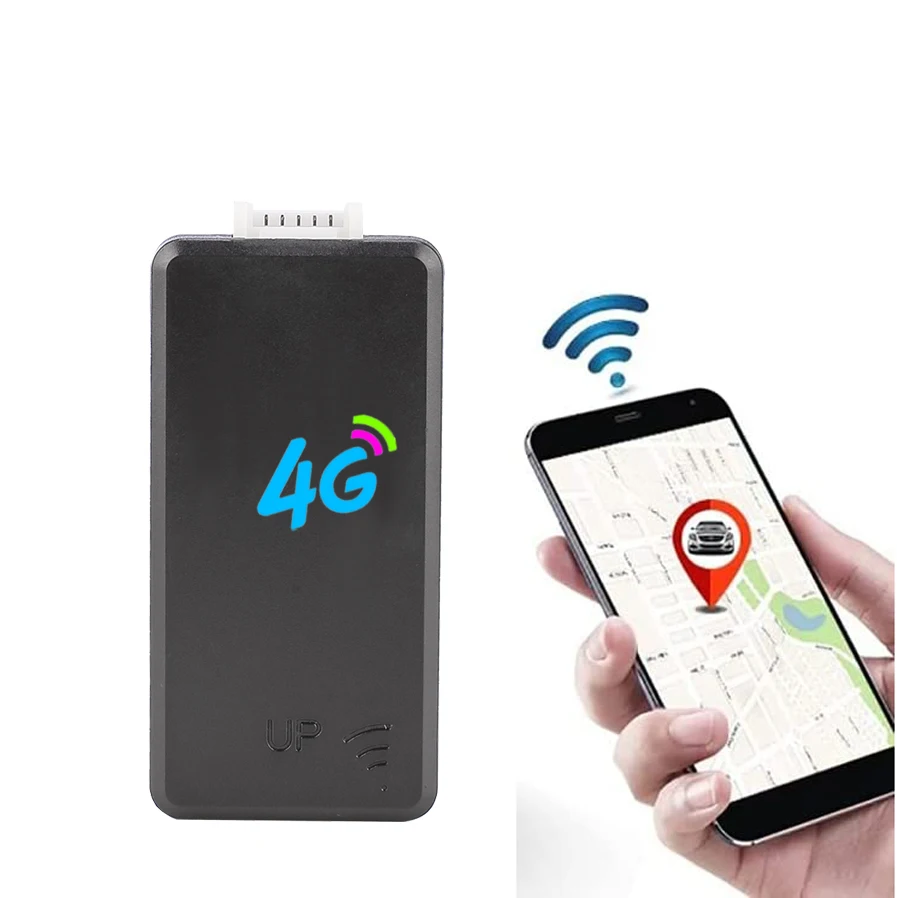

Access Anywhere
This tracker is accessible on your smartphone or any computer. There is no limit on the number of devices you can use!
Tracking Reports & Trip Replay
It will save complete trip history for all your vehicles! We offer various kinds of reports to track the performance of your vehicles and the driver. Utilizing any spreadsheet application, trip details can be retained and analyzed. Manage what matters!
Does NOT Drain the Battery
Support smart battery save mode. This device does NOT drain the vehicle battery. It consumes less than 0.3 percent of the vehicle battery per day. Furthermore, it periodically detects the input voltage to assure that the battery has enough power for vehicle functions. The device will automatically power off before the input voltage goes too low (optional settings via SMS command: range 9~87 Volts) to protect the vehicle battery.
Route Fitting Algorithm
We implemented unique Route Fitting Algorithm (RFA) to make the routes be more accurate and precise.
Connecting location points on the map has been out of date, and sometimes the GPS error brings you incorrect trace on the map. Now with RFA, we can show you real routes, no missing details, and more accurate mileage, which are crucial for the driving performance reports.
We implemented unique Route Fitting Algorithm (RFA) to make the routes be more accurate and precise.
Connecting location points on the map has been out of date, and sometimes the GPS error brings you incorrect trace on the map. Now with RFA, we can show you real routes, no missing details, and more accurate mileage, which are crucial for the driving performance reports.
Monitor Multiple Devices in One Account
If you’re a Fleet manager who needs to manage many vehicles, we will offer you a manage account so that you could monitor all devices you have on one APP/Web platform. You can check vehicles status/location and monitor driver behavior anywhere.
If you’re a Fleet manager who needs to manage many vehicles, we will offer you a manage account so that you could monitor all devices you have on one APP/Web platform. You can check vehicles status/location and monitor driver behavior anywhere.
Tracking platform
Compatible Protocols | GT06/JT808/HY |
Compatible Public Tracking Platforms | GPS Server, Trackway, Ruhavi |
GPSSKY Platform: //www.18gps.net App:YUNZHIXING | Platform Demo: //www.18gps.net/dealer/?mds=d630165c65834293bb27ac1460d75e68 |
FREE, Accurate, Powerful | 18GPS.net is the first choice platform of car positioning which performs functions: Vehicle Networking Monitoring Center Platform WAP Query Platform Service Provider Value Added Service System Mobile Vehicle Networking Social Account |

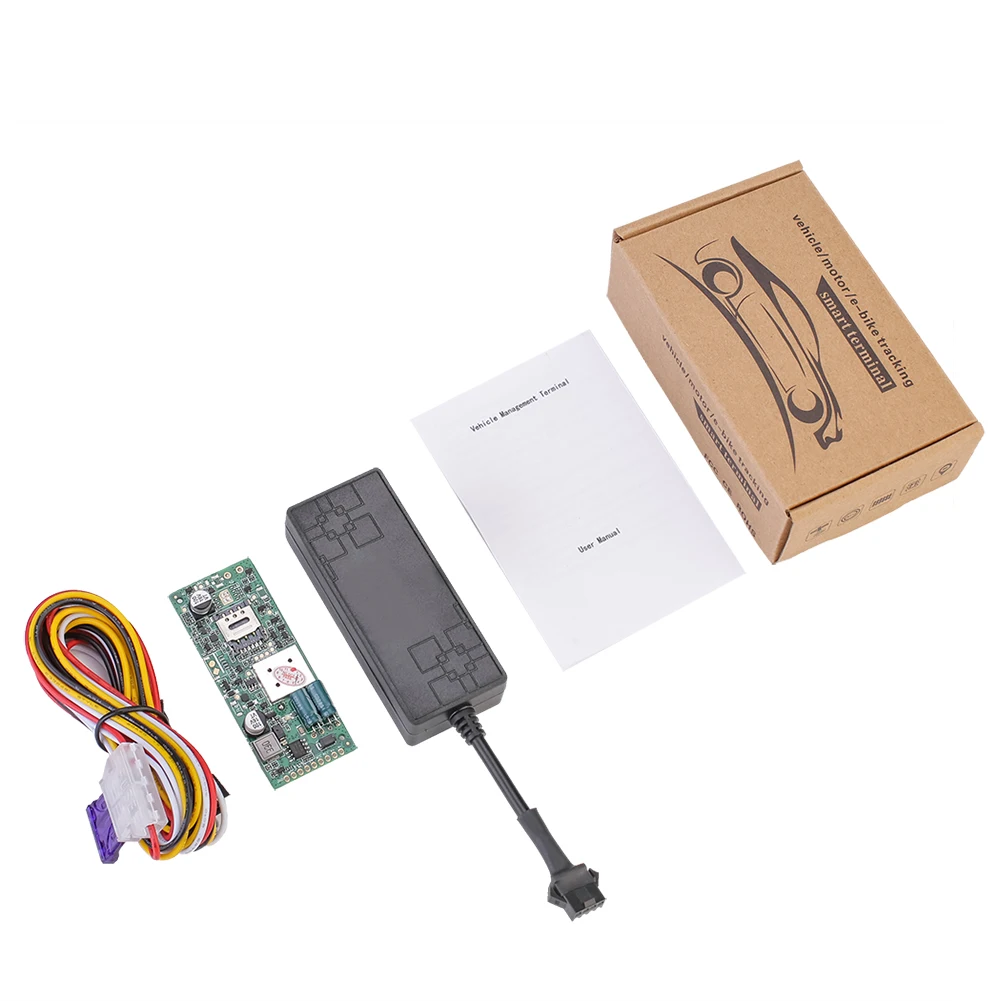

Packaging
Why Choose Us
14 YEARS R&D experience in GPS Tracking Industry
ORIGINAL DEVELOPER and Patent Owner of TK003 Series
TOP R&D TEAM and Ability in GPS Tracking Industry in Shenzhen, China
A PROFESSIONAL GPS SOLUTION PROVIDER
Company Profile
FAQ
1,Q: Are you the manufacturer?
A:Yes, we are manufacturer of GPS Tracker with more than 14 years GPS product development experience. We have a professional hardware and software engineer team to achieve customers' requirements.
2,Q:How long is the product warranty?
A:We stand behind our products. All products are covered by 12- Months replacement warranty.
3,Q:Do you support OEM order with my own Logo?
A: Yes, we could put your logo on item when order quantity above 100 pieces.
4,Q: Do you support ODM order to customize item hardware or software?
A: Yes, we do! Please kindly message your requirements and we'll bring up a solution for you.
5,Q: What is your Payment Term?
A: 1.We accept T/T Bank Transfer, Western Union, Paypal and Alibaba online transaction.
2.For general order, we accept 100% full payment before shipping. For OEM/ODM order, 30% advance payment and 70% left payment before shipment.
2.For general order, we accept 100% full payment before shipping. For OEM/ODM order, 30% advance payment and 70% left payment before shipment.
