eg4 ll lithium battery 48v 100ah 5kwh home backup lithium solar battery 48v 100ah bms control lifepo4 battery wholesale for PV
- Category: >>>
- Supplier: Shenzhen Smartpropel Energy System Co. Ltd.
Share on (11000004587393):
Product Overview
Description
48V 100AH Battery Parameter
Nominal Voltage | 48V -15S |
Nominal Capacity | 100AH |
Nominal energy | 4.8kWh |
Operation voltage range | 37.5V-54.75V |
Max. Continuous charge current | 100A |
Max. Continuous discharge current | 100A |
Temperature sensor protection | 65℃ |
Charging temperature | 0~45℃ |
Working Temperature | -20~60℃ |
Over-current Fuse | 120A |
Cycle life | 4000-5000 times(80%DOD) |
Communication | RS485/RS232/CAN |
Size | 442*439.7*165mm (without handle) |
Size | 442*484*165mm (with handle) |
Weight (KGS) | 39.5KGS |
1.House battery backup cycle life more than 5000 times, design service life is more than 20 years. 5 years warranty. Lifetime technical support.
2. The safest high quality LiFePO4 battery, no fire and no explosions.
3. Can & RS485 & RS232, Port Communication.
4. Compact, light and fashionable patented design fits in your sweet home environment.
5. Modular design, easy to stack. Dimension is 442*484*165mm(17.4*19*6.5 inch), weight is Approx.39.5KGS
6.Dual Installation ,accessories included support cabinet-mounted & ground-mounted styles.
7.Practical pulling Ear Design improves operation convenience.

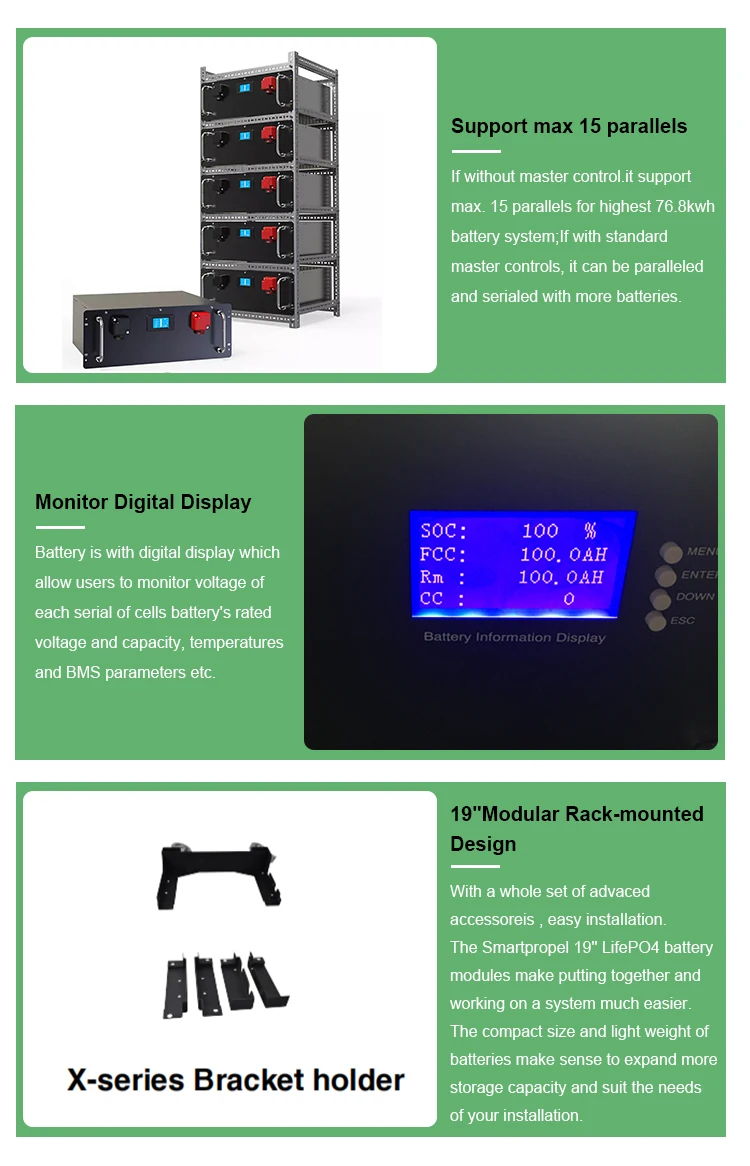

8.Max support 15 units 48v LiFePO4 batteries parallel connection.
9. LiFePO4 48v battery compatible with 99% global inverters on the market, such as SMA, Studer, Victron, Schneider, Growatt, Sofar,Sol-Ark, Deye, Sungrow,Solis, Solax Goodwe,Voltronics,Sorotech, SRNE, and etc
10. Wide temperature range from -20℃ to 55℃. In cold area with temperature less than 20℃, the battery can support optional low temperature heating.
2. The safest high quality LiFePO4 battery, no fire and no explosions.
3. Can & RS485 & RS232, Port Communication.
4. Compact, light and fashionable patented design fits in your sweet home environment.
5. Modular design, easy to stack. Dimension is 442*484*165mm(17.4*19*6.5 inch), weight is Approx.39.5KGS
6.Dual Installation ,accessories included support cabinet-mounted & ground-mounted styles.
7.Practical pulling Ear Design improves operation convenience.
8.Max support 15 units 48v LiFePO4 batteries parallel connection.
9. LiFePO4 48v battery compatible with 99% global inverters on the market, such as SMA, Studer, Victron, Schneider, Growatt, Sofar,Sol-Ark, Deye, Sungrow,Solis, Solax Goodwe,Voltronics,Sorotech, SRNE, and etc
10. Wide temperature range from -20℃ to 55℃. In cold area with temperature less than 20℃, the battery can support optional low temperature heating.

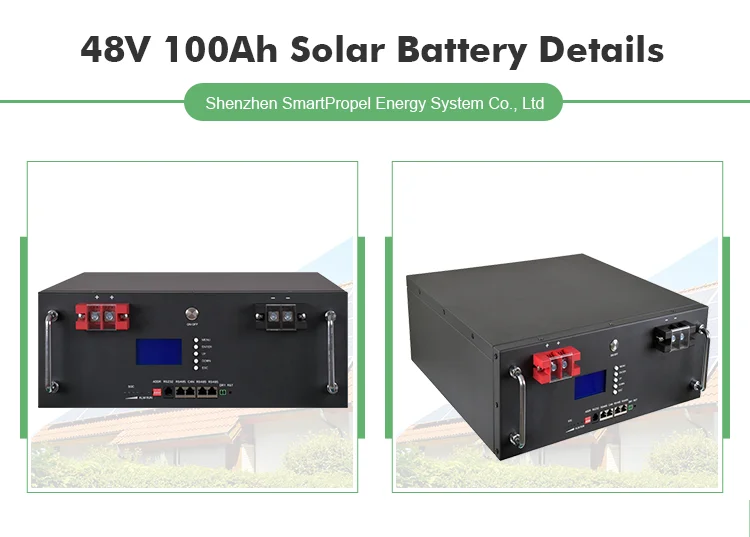

48V 100Ah Solar Battery Details
1.Built-in intelligent BMS automatic protection function can prevent battery overcharging, over discharging, over-current and overheating,etc.
2.High quality battery cells and BMS ensures more than 5000 cycles.
3.Low self discharge
4.Fast & Efficient Charging
5.Very Little Wasted Energy
6.No maintenance requirements
7. Light weight: about 40%~50% of the weight of lead-acid batteries.

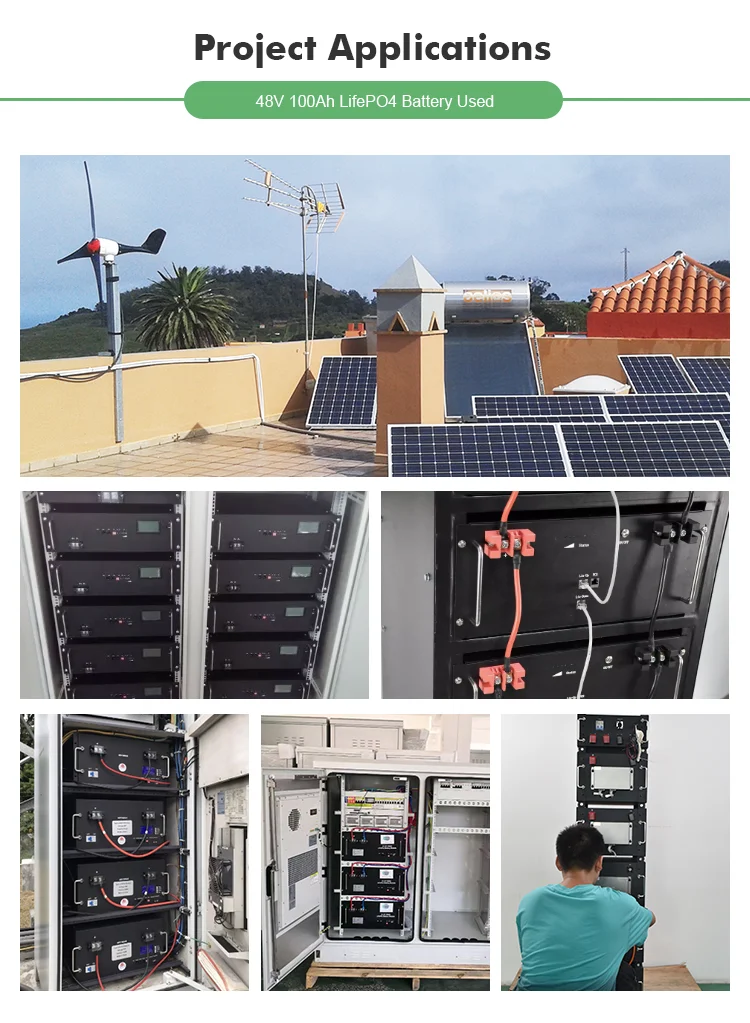

Project Applications

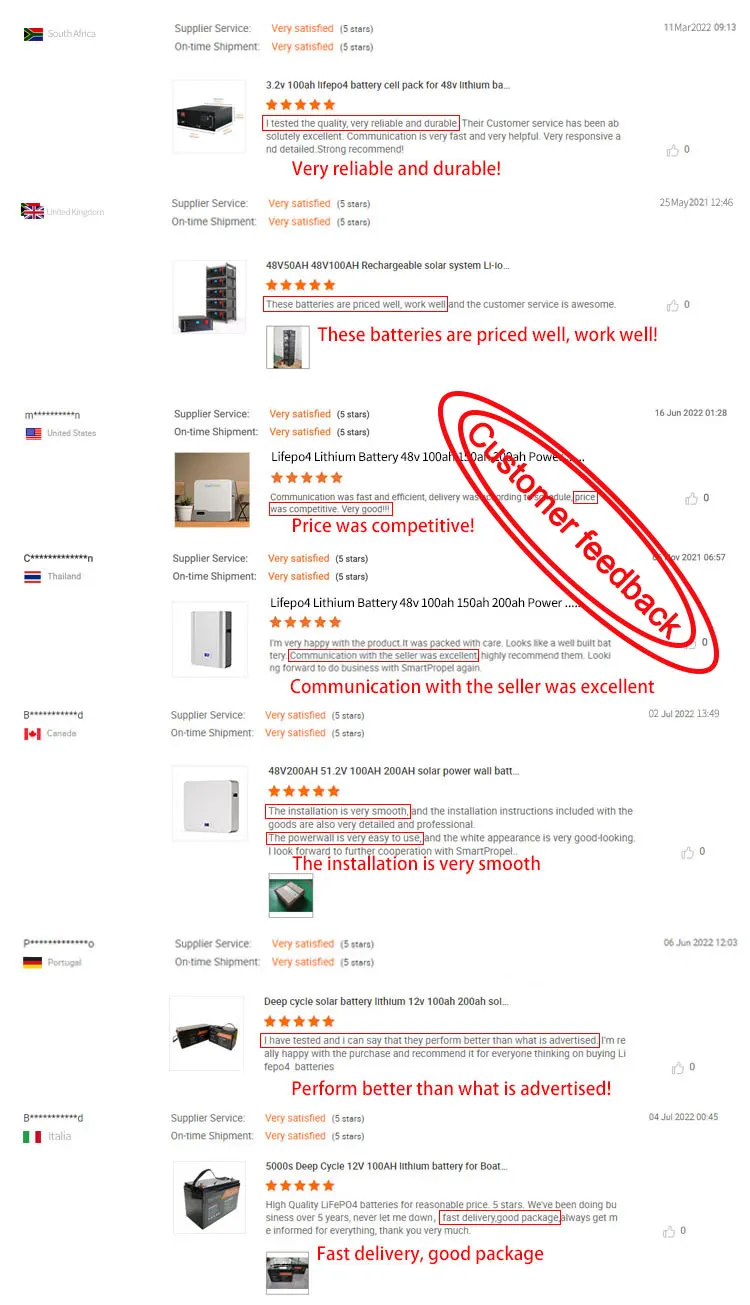

Customer Praise
Application Field

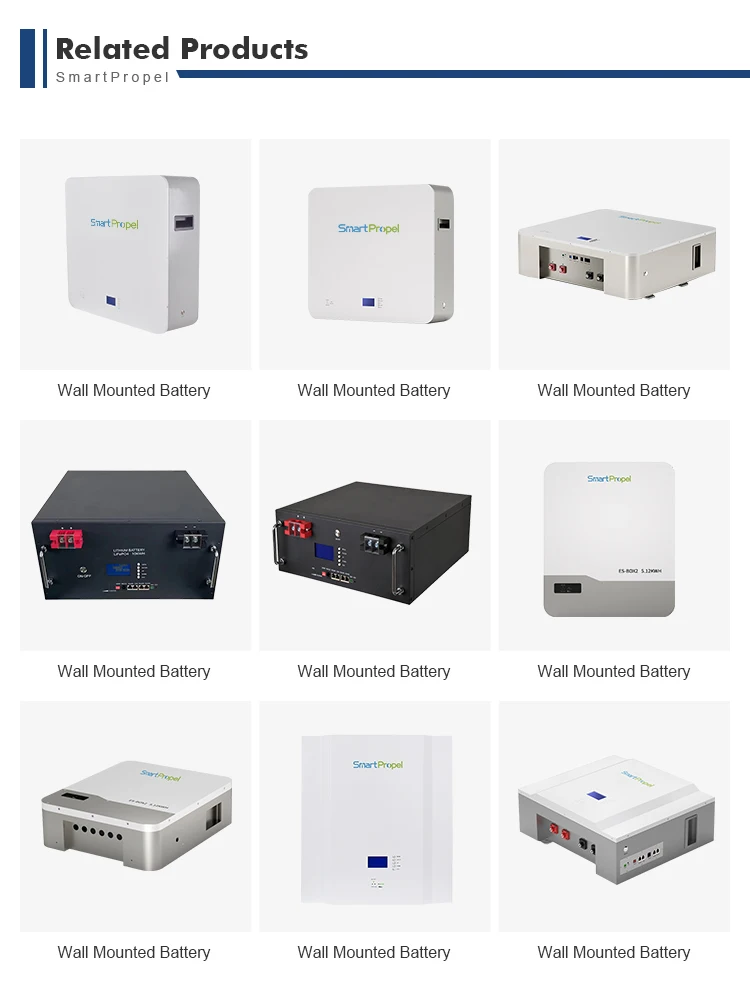

Related 48V LiFePO4 Batteries | ||||||||
Type&Item | 48V 50Ah | 48V 100Ah | 48V 150Ah | 48V 200Ah | ||||
Discharge current | 25A | 100A | 75A | 100A | ||||
Dimension | 442*500*89mm | 442*484*165mm | 482*420*263mm | 474*513*235mm | ||||
Load Power | 1200W | 2400W | 3600W | 4800W | ||||
Energy | 2400Wh | 4800Wh | 7200Wh | 9600Wh | ||||
Working time @ 25A | 2 hours | 4 hours | 6 hours | 8 hours | ||||
Parallel number(Max.15) | 1 | 2 | 3 | 4 | ||||
Weight | 28KG | 39.5KG | 73KG | 80KGS ±0.5kg | ||||
Cycles | 5000+ | |||||||
Warranty | 3Years | |||||||
Cell | TOP A Grade Prismatic Cells | |||||||

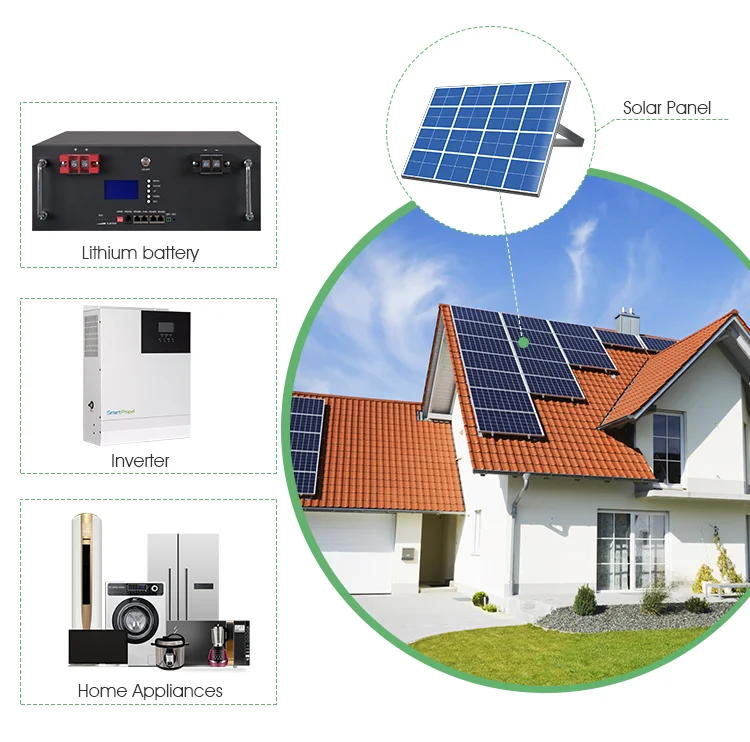

SmartPropel can provide you with a one stop solutions, including solar panel, inverter, battery pack and all necessary accessories, a whole solution of on-grid & off grid energy storage system <--- Click Here
Company Profile
Featured Manufacturer in Renewable Energy
SmartPropel is a high tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products for 15 years.

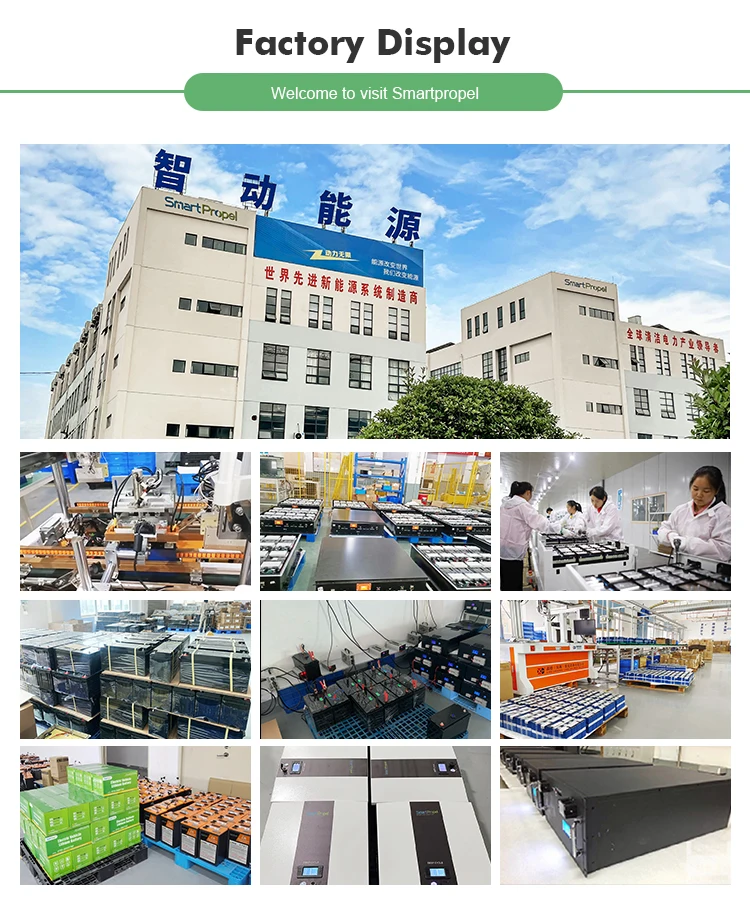

With technical creativity and scientific management, SmartPropel has 4 production bases in Hubei, Shenzhen, Dongguan and Huizhou, complete covers the whole lithium battery industry line, including cylindrical cells production, prismatic cells production, and battery pack production.
With the research team and automatic production support, we master the core battery technology and key accessories of lithium battery pack, which can highly ensure a good production efficiency and battery good excellent performance.
With technical creativity and scientific management, SmartPropel has 4 production bases in Hubei, Shenzhen, Dongguan and Huizhou, complete covers the whole lithium battery industry line, including cylindrical cells production, prismatic cells production, and battery pack production.
With the research team and automatic production support, we master the core battery technology and key accessories of lithium battery pack, which can highly ensure a good production efficiency and battery good excellent performance.
FAQ
Q:Are you a manufacturing factory?
A:Yes,We are a lithium battery manufacturer from China for more than 15 years. You are welcome to visit our factory and production process,We accept OEM/ODM.
Q:What is your product range?
A:We focus on Lithium-ion battery,Lithium iron phosphate (LIFePO4) battery for residential and commercial energy storage system, telecom tower, UPS, AGVs , golf carts,boat,RVs,camping,electric vehicles,etc.
Q:What is the lead time for your lithium battery?
A:The sample delivery time is about 7-15 days.The bulk order delivery time is about25-35 days according to quantity.
A:The sample delivery time is about 7-15 days.The bulk order delivery time is about25-35 days according to quantity.
Q:Can l buy one or two units for the sample first?
A:Yes.Samples are welcome for the LifePO4 battery.Please contact our sales manager to place the order.
A:Yes.Samples are welcome for the LifePO4 battery.Please contact our sales manager to place the order.
Q:How do you guarantee the quality?
A:20 years design life, 5 years warranty for 48V series backup lithium battery pack. Lifetime technical support.
Q:Why we can choose you?
A:Reliable--our certifications like MSDS,CE is commitment to quality and safety for our lithium batteries.Professional--we provide battery solutions and technical support for more than 15 years.Factory--we have factory,so have competitive price.
