gps sim card 4G OBDII Tracking Device Real time gps platform software gps antilost finder
- Category: >>>
- Supplier: Shenzhen Jingwei Xingyun Technology Co. Ltd.
Share on (11000004630439):
Product Overview
Description
Product Description

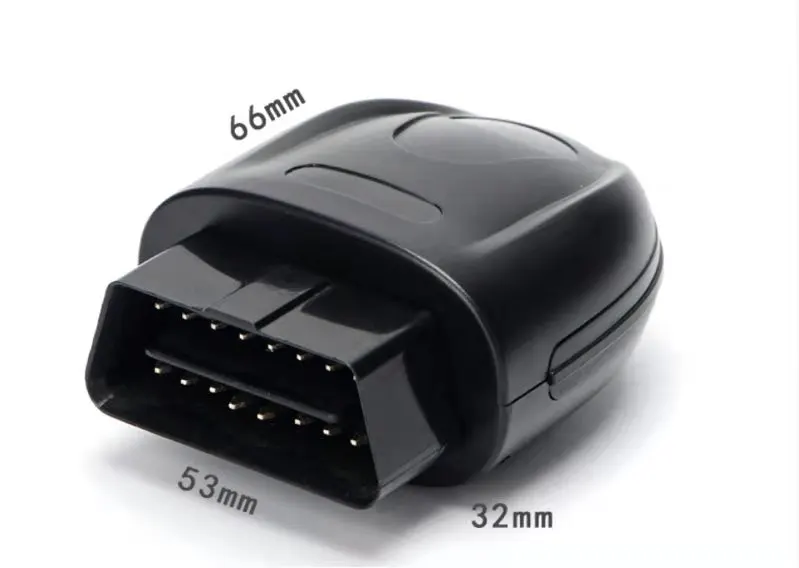

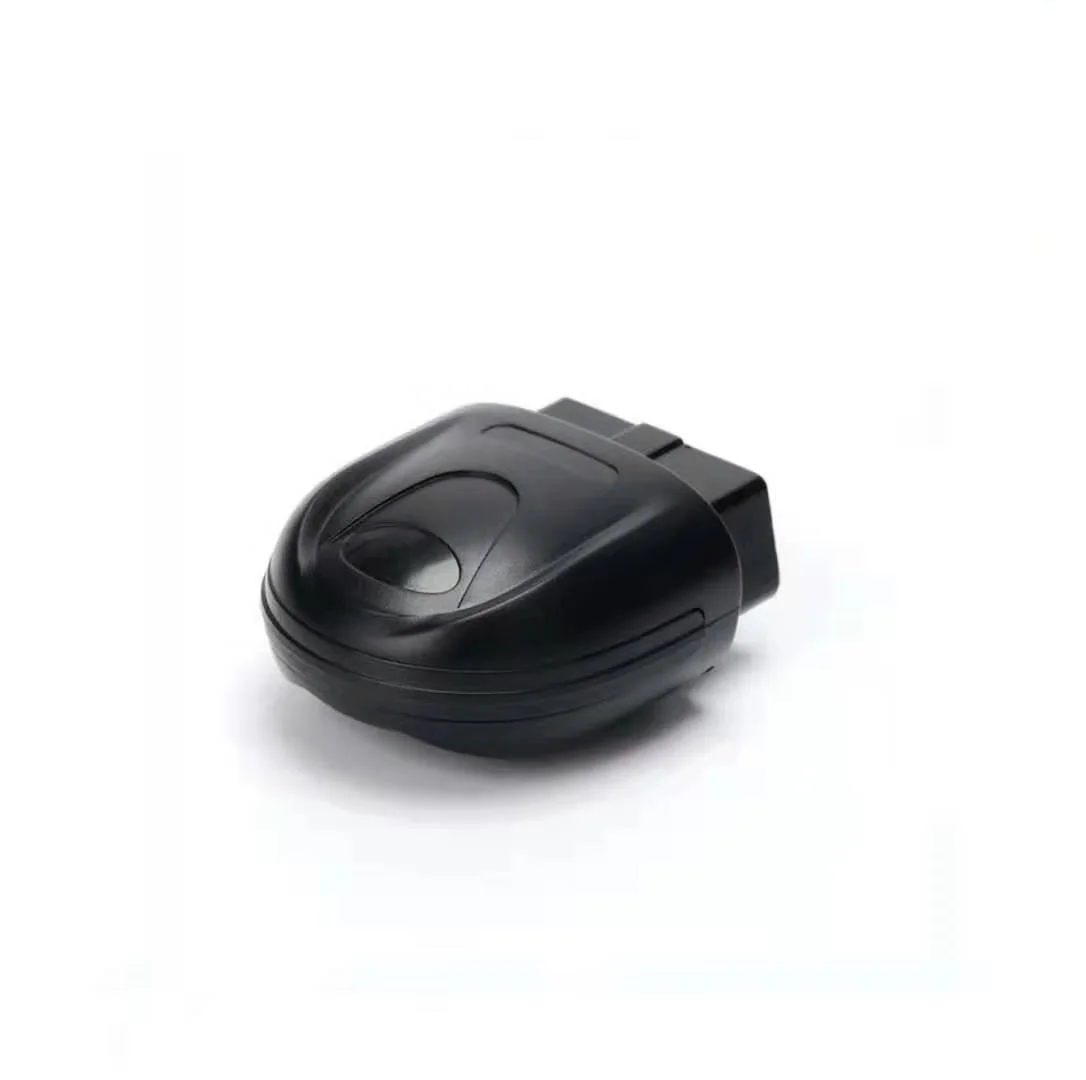

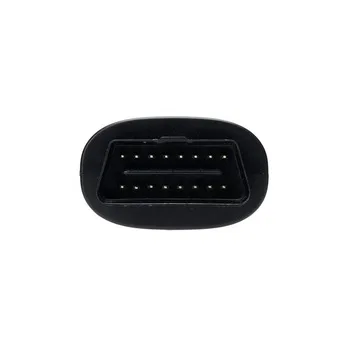

OBD2 Scanner with GPS LBS Vehicle Locator 4G OBD2 Car GPS Tracker

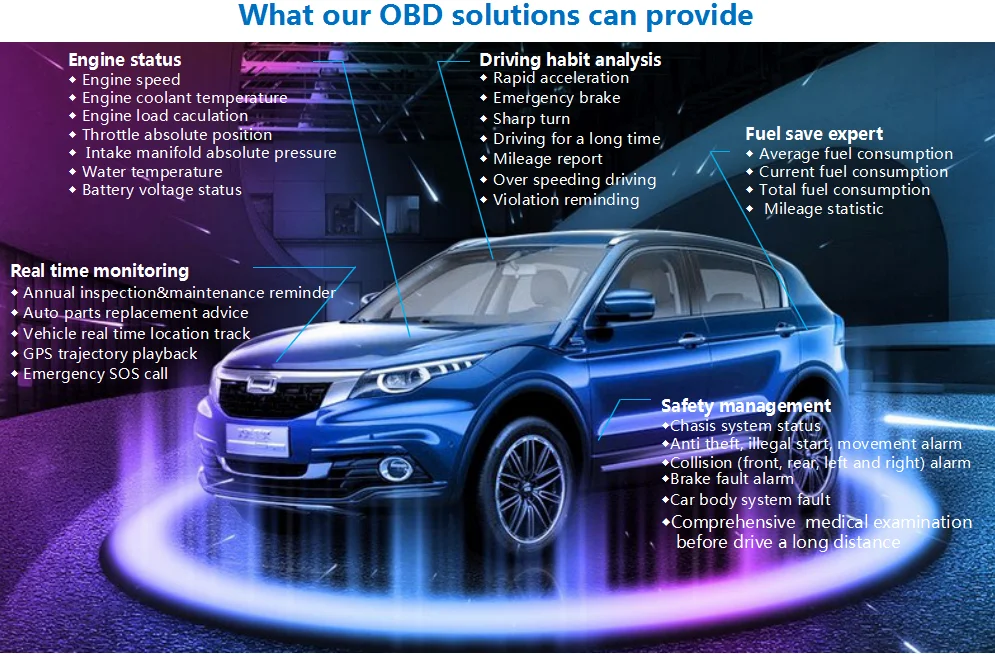

Standard OBD II Diagnosis with remote real time status tracking fucntion;
Easy to install and hind, 9~36V wide voltage input design to match multi-vehicles
Easy to install and hind, 9~36V wide voltage input design to match multi-vehicles
Product Specifications
Product Parameters | |
MCU | STM32F105 |

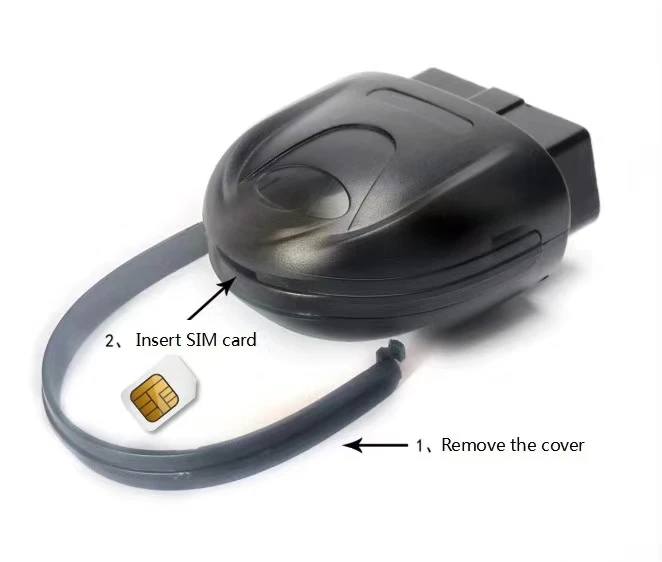

SIM Card Slot | 1pc |
3D G-Sensor | Support |
OBD Protocols | ISO 9141/ISO 14230/ISO 15765 |
Working Temperature | -30~+70℃ |
Storage Temperature | -40~+85℃ |
Average Standby Current | 5~10mA@12V |
Average Working Current | 25~50mA@12V |
Working Humidity | 5% to 95% non-congealable |
Working Voltage | 8~18V DC |
Certification | 3C,CE, FCC ROSH |
Product Material | PC fireproof and environmentally friendly material |
GPS Specifications | |
GPS | Ublox （MTK optional） |
GPS antenna | High sensitive ceramics active antenna |
GPS channel number | 64 channels |
GPS chip receive sensitivity | Tracking sensitivity:-165dBm， Capture sensitivity：-148dBm |
GPS location accuracy | <10m |
LBS location accuracy | 100-1000m |
GPS signal | L1,1575.42MHz C/A |
GSM Specifications | |
LTE FDD Module | Quectel EC21 |
4G/3G/2G Band | LTE-FDD：B1/B3/B5/B8 LTE-TDD：B38/B39/B40/B41 WCDMA：B1/B8 TD-SCDMA：B34/B39 CDMA：BC0 GSM：850/900/1800/1900MHz |
GSM antenna | FPC antenna |
GPRS | Class12 |
Tracking platform
Compatible Protocols | GT06/JT808/HY |
Compatible Public Tracking Platforms | GPS Server, Trackway, Ruhavi |
GPSSKY Platform: //www.18gps.net App:YUNZHIXING | Platform Demo: //www.18gps.net/dealer/?mds=d630165c65834293bb27ac1460d75e68 |
FREE, Accurate, Powerful | 18GPS.net is the first choice platform of car positioning which performs functions: Vehicle Networking Monitoring Center Platform WAP Query Platform Service Provider Value Added Service System Mobile Vehicle Networking Social Account |
Company Profit
Why Choose Us?
14 YEARS R&D experience in GPS Tracking Industry
ORIGINAL DEVELOPER and Patent Owner of TK003 Series
TOP R&D TEAM and Ability in GPS Tracking Industry in Shenzhen, China
A PROFESSIONAL GPS SOLUTION PROVIDER
FAQ
1,Q: Are you the manufacturer?
A:Yes, we are manufacturer of GPS Tracker with more than 14 years GPS product development experience. We have a professional hardware and software engineer team to achieve customers' requirements.
2,Q:How long is the product warranty?
A:We stand behind our products. All products are covered by 12- Months replacement warranty.
3,Q:Do you support OEM order with my own Logo?
A: Yes, we could put your logo on item when order quantity above 100 pieces.
4,Q: Do you support ODM order to customize item hardware or software?
A: Yes, we do! Please kindly message your requirements and we'll bring up a solution for you.
5,Q: What is your Payment Term?
A: 1.We accept T/T Bank Transfer, Western Union, Paypal and Alibaba online transaction.
2.For general order, we accept 100% full payment before shipping. For OEM/ODM order, 30% advance payment and 70% left payment before shipment.
2.For general order, we accept 100% full payment before shipping. For OEM/ODM order, 30% advance payment and 70% left payment before shipment.
