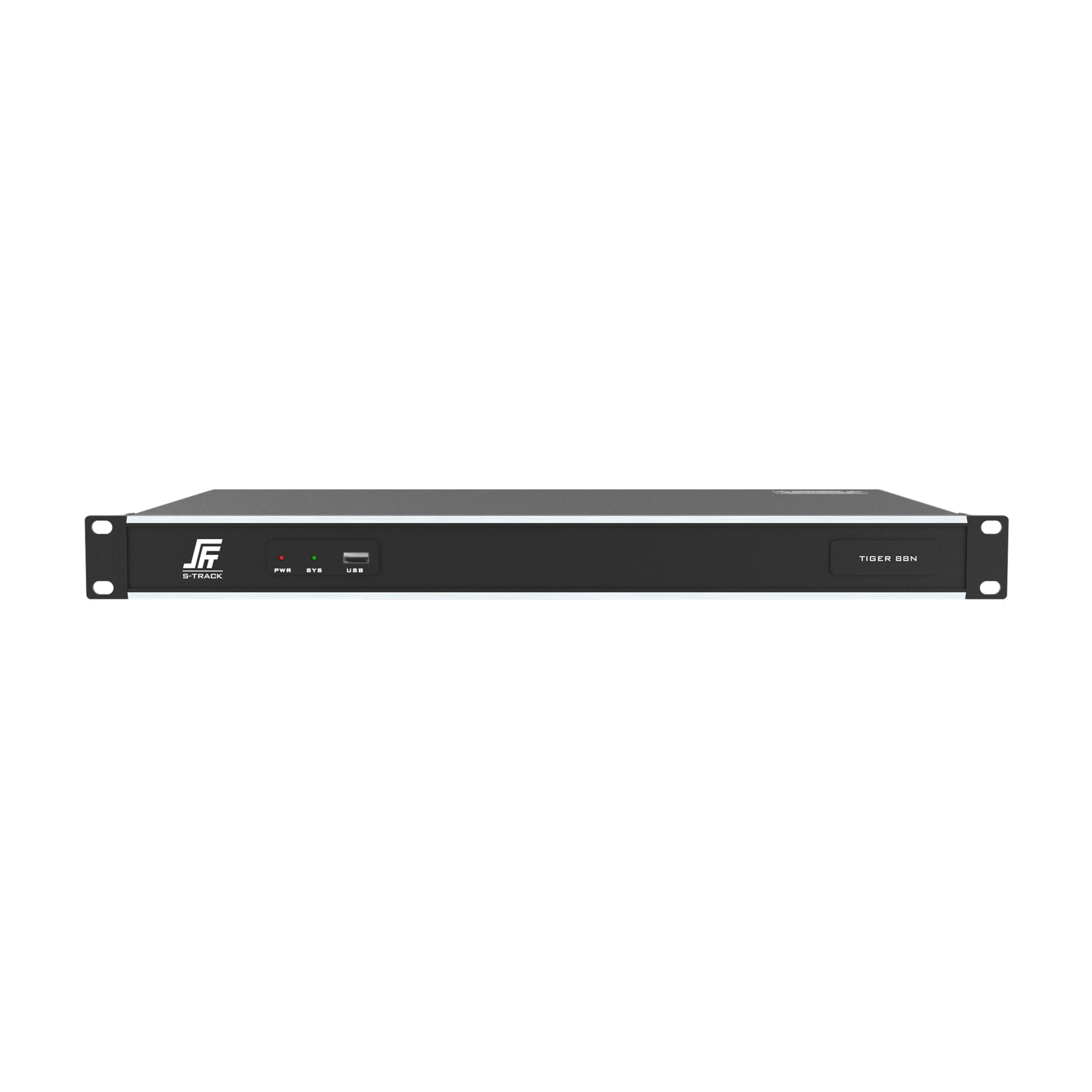

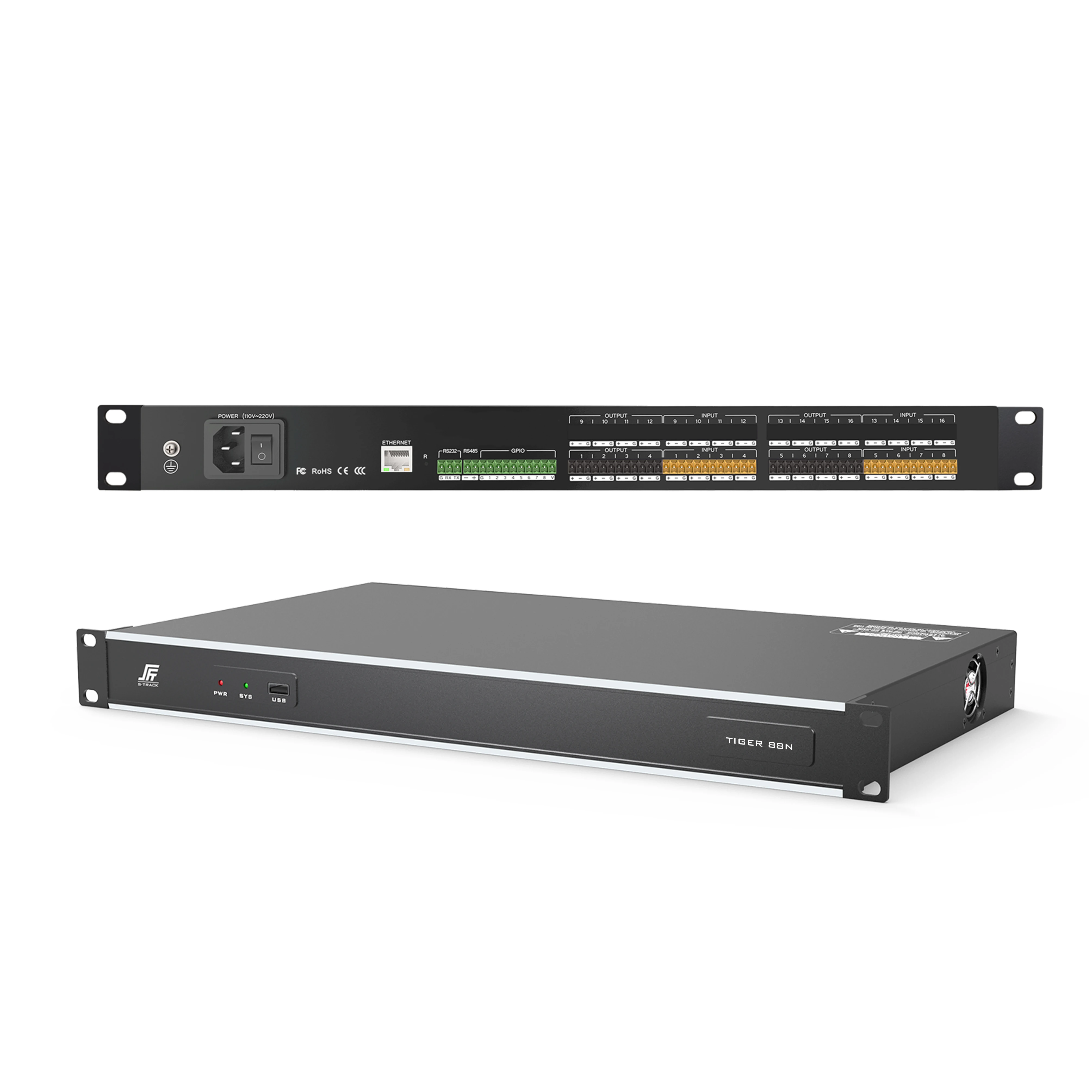

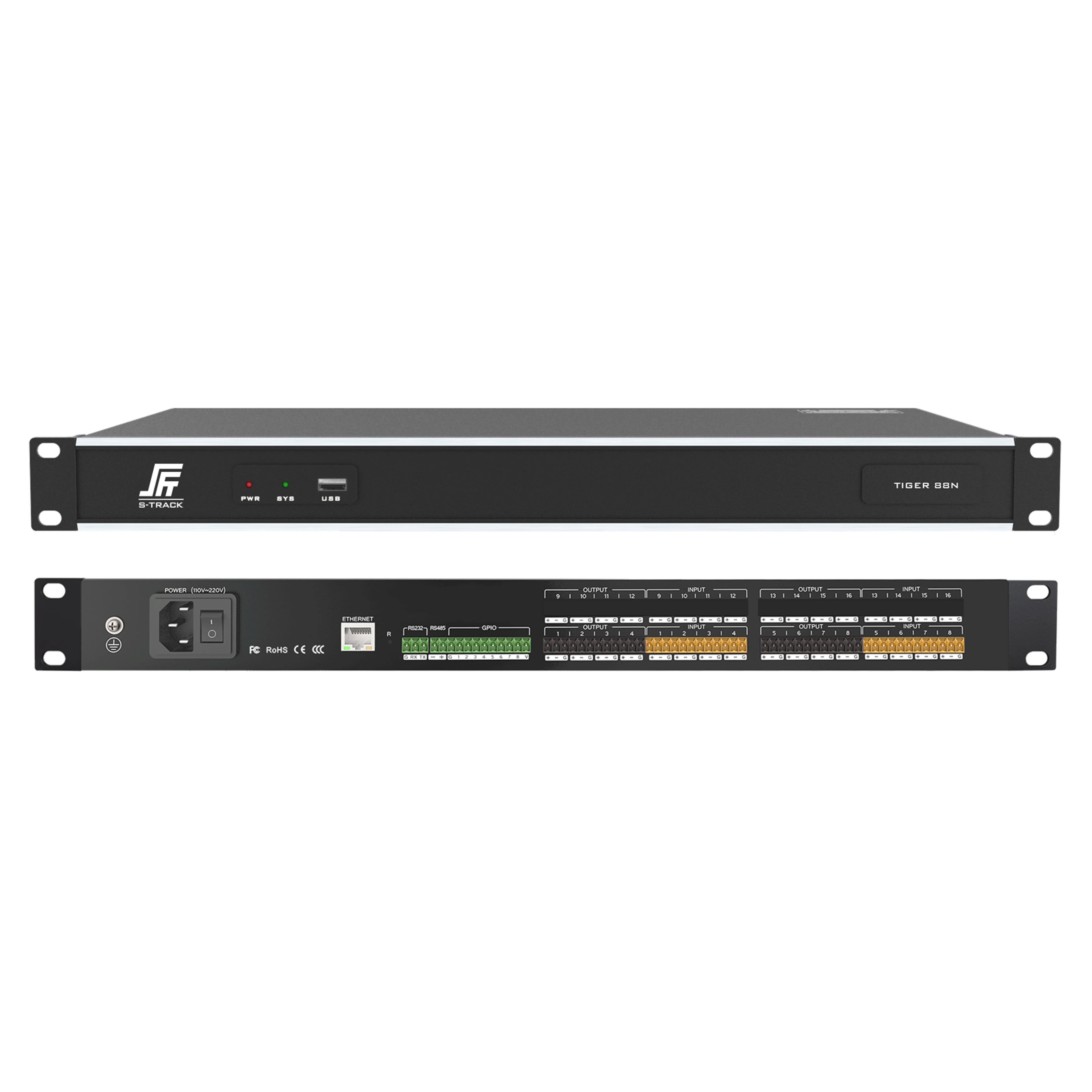

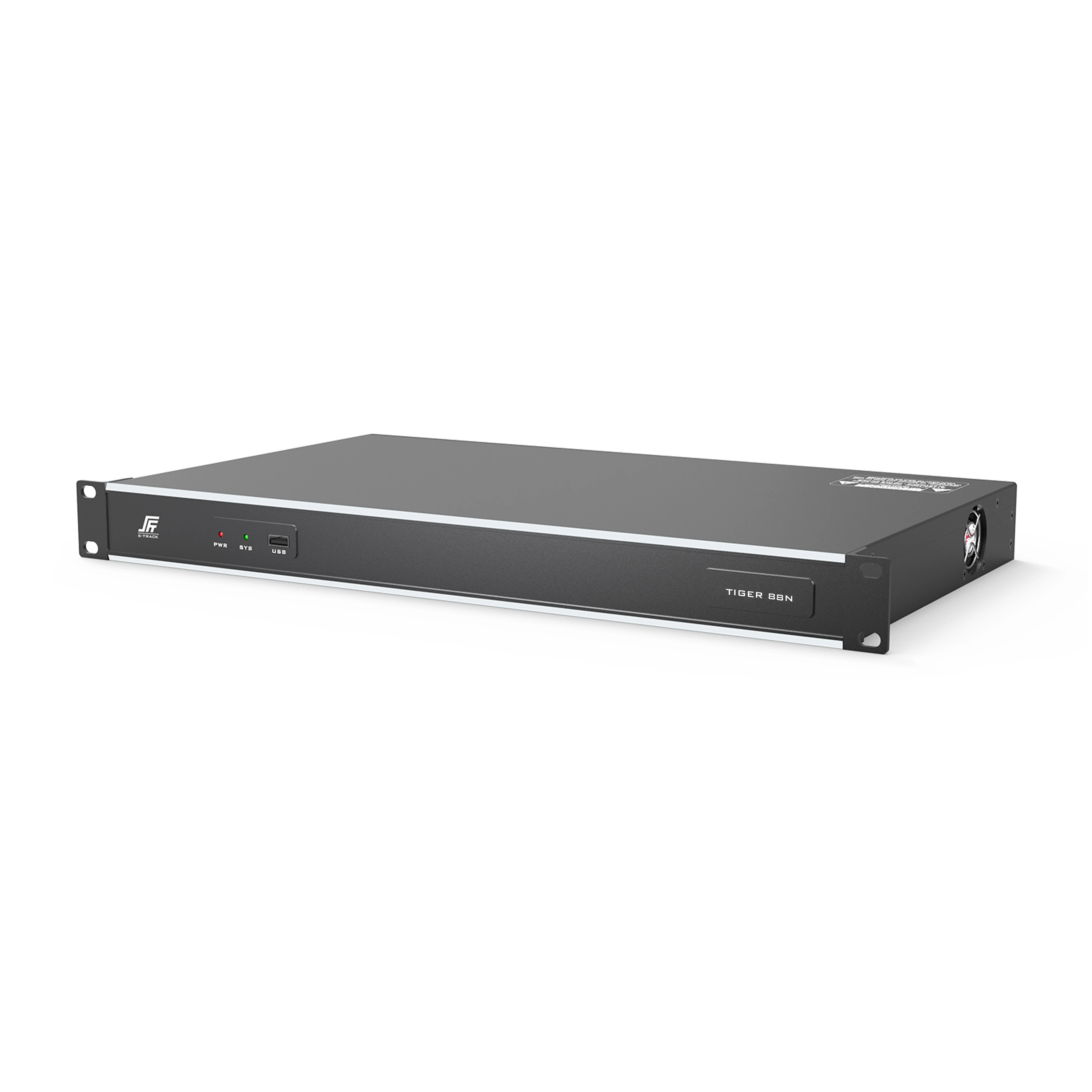

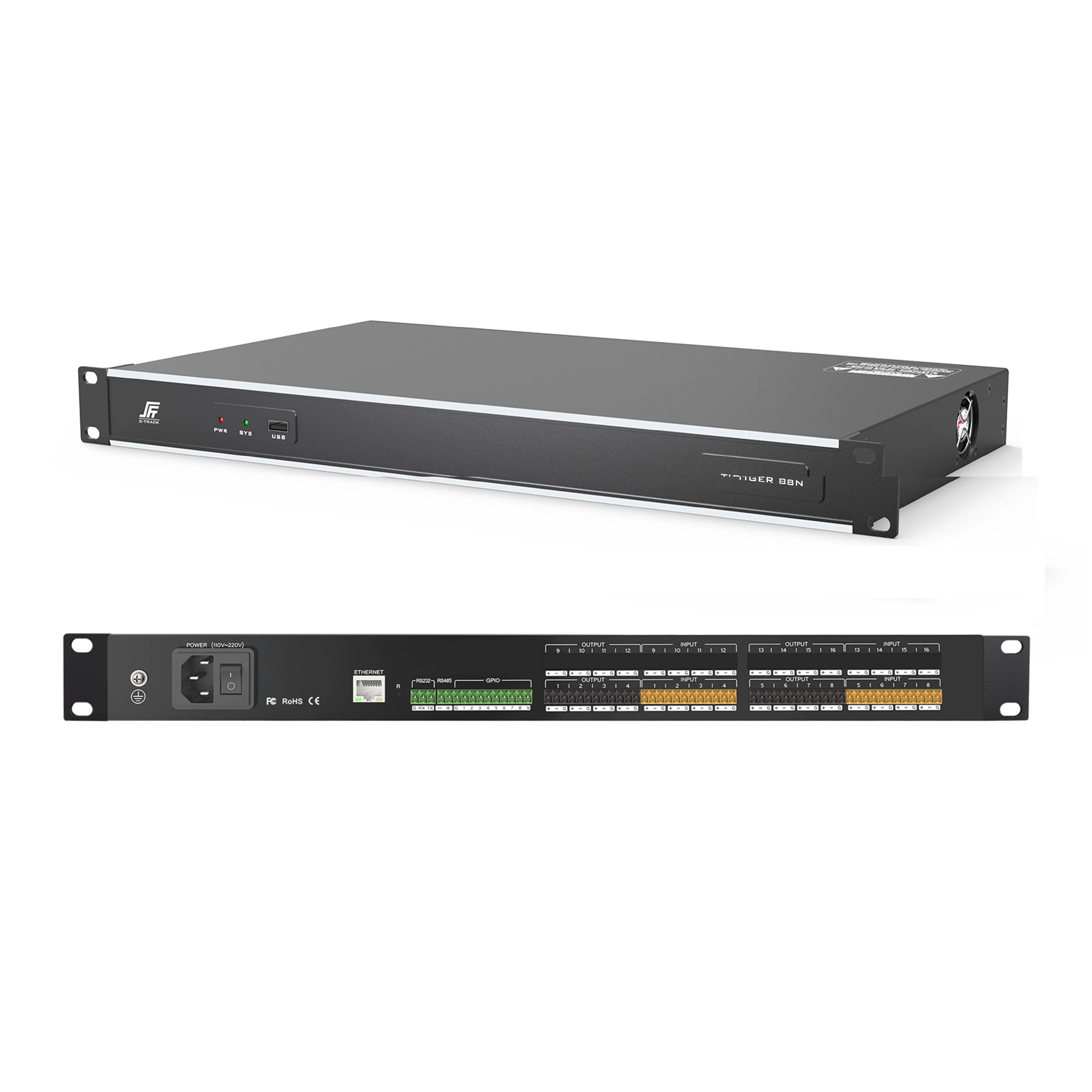

S TRACK TIGER 88N Digital Audio Processor 8 in and 8 out 2022 Hot Sale Product Built in Dante Module Provides a High Bandwidth
- Category: >>>
- Supplier: Shenzhen S-Track Science & Technology Co. Ltd.
Share on (11000004643302):
Product Overview
Description
Product Description
Technical Parameters | ||
Model No. | Tiger 88N | |
DSP Processing | Ti 456MHz FLOPS DSP | |
Number of analog channels | 8 Input +8 Output | |
Core Algorithm | Automatic mixing, feedback elimination, echo elimination, noise elimination | |
GPIO | 8 ( Including input and output) | |
RS232/RS485 | 1 | |
Simulated maximum gain | 51dB | |
Digitizing bit | 24bit | |
Sampling Rate | 48k | |
Audio Processing | AEC、ANC、AGC、De-reverb、BF、DoA | |
Frequency Response（20~20KHz） | ±0.2dB | |
Total harmonic distortion + noise | ＜0.003% @1KHz ,4dBu | |
Dimensions (W*D*H) | 482*258*45(mm) | |
Power Consumption | <40W | |
Equivalent input noise EIN（20-20kHz，A-weighted）. | ≤-131dBU | |
Phantom power (per input) | 48V | |
Input common mode rejection，60Hz | 70dB | |
Channel Isolation，1kHz | 104dB | |
Weight | 3Kg | |
Product Introduction
TIGER 88N audio processor is a freely designed audio processing and control system.It adopts advanced DSP processing technology, has a new automatic mixing, Feedback elimination, etc, targeted to solve various practical problems in the application scene.
The built-in Dante module provides a high bandwidth, low latency, high compatibility and low cost solution for network audio transmission. Because most of the controls are handled by software, It looks much simpler. The operators only need to click the mouse gently, no longer like before, that adjust the complex large mixer in the field to complete the function conversion. The TIGER 88N simplify the operation difficulty greatly.
The built-in Dante module provides a high bandwidth, low latency, high compatibility and low cost solution for network audio transmission. Because most of the controls are handled by software, It looks much simpler. The operators only need to click the mouse gently, no longer like before, that adjust the complex large mixer in the field to complete the function conversion. The TIGER 88N simplify the operation difficulty greatly.
Product Feature：
Compact and chic shape, portable, convenient for travel, suitable for a variety of applications to meet the needs of the scene.
1. Digital array microphone, including conversion box★2. Pickup distance > 5M
★3. Built-in algorithm: AFC, AES, reverb
★4. 360° pickup
★5. Positioning accuracy: ± 10 °
★6. Built-in algorithm: AGC, ANC, BF
The Software Experience:
Our designed PC version control software is the best tool for you to monitor and operate the digital audio processor, which can be used to edit and store scenes (such as meeting mode, artistic performance mode, concert mode, etc.) according to the acoustic characteristics of different functions. The system built-in lock screen function, It can effectively avoid the occurrence of wrong operation.
Our designed PC version control software is the best tool for you to monitor and operate the digital audio processor, which can be used to edit and store scenes (such as meeting mode, artistic performance mode, concert mode, etc.) according to the acoustic characteristics of different functions. The system built-in lock screen function, It can effectively avoid the occurrence of wrong operation.
The digital audio processor comes with B/S architecture server, which is accessed through web browser, not only realizing channel control and scene selection, but also directly providing download links of PC client and platform components.
Application Scenario
Company Profile
• S-Track was founded in 2013,who is a pioneer in the audio field in China;
• With core audio processing technology, it is a national high-tech enterprise with independent research and development，production，sales of audio products;
• The earliest manufacturer to launch a network audio system in China,It is also the enterprise with the most complete production line of Dante network audio in China;
• It is committed to digitizing, networking and intelligentizing audio and video products, actively building AI intelligent audio and video ecosystem, and providing users with comfortable audio experience.
• With core audio processing technology, it is a national high-tech enterprise with independent research and development，production，sales of audio products;
• The earliest manufacturer to launch a network audio system in China,It is also the enterprise with the most complete production line of Dante network audio in China;
• It is committed to digitizing, networking and intelligentizing audio and video products, actively building AI intelligent audio and video ecosystem, and providing users with comfortable audio experience.

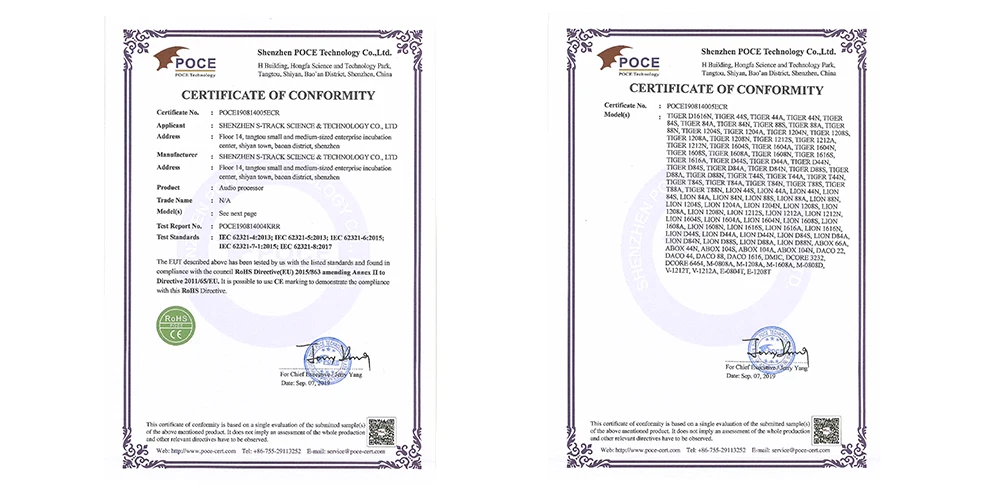

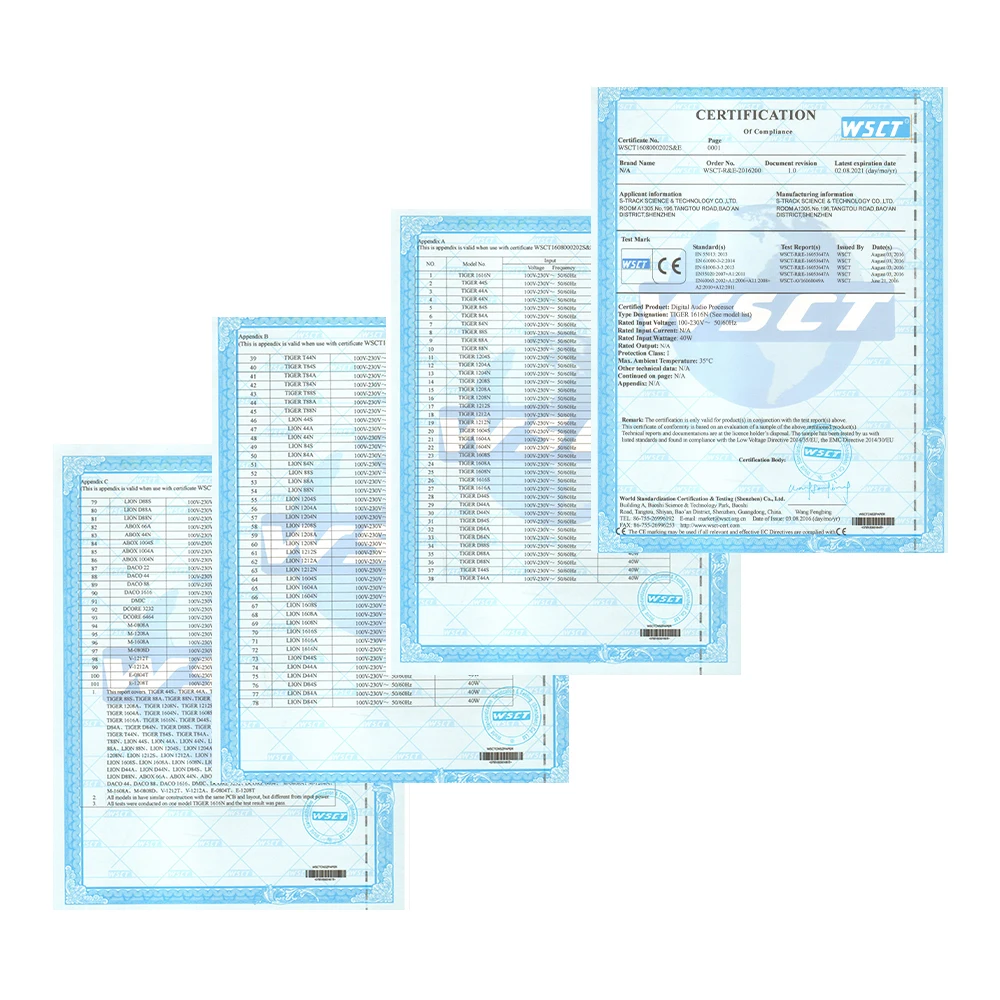

Certifications
