Product Overview
Description

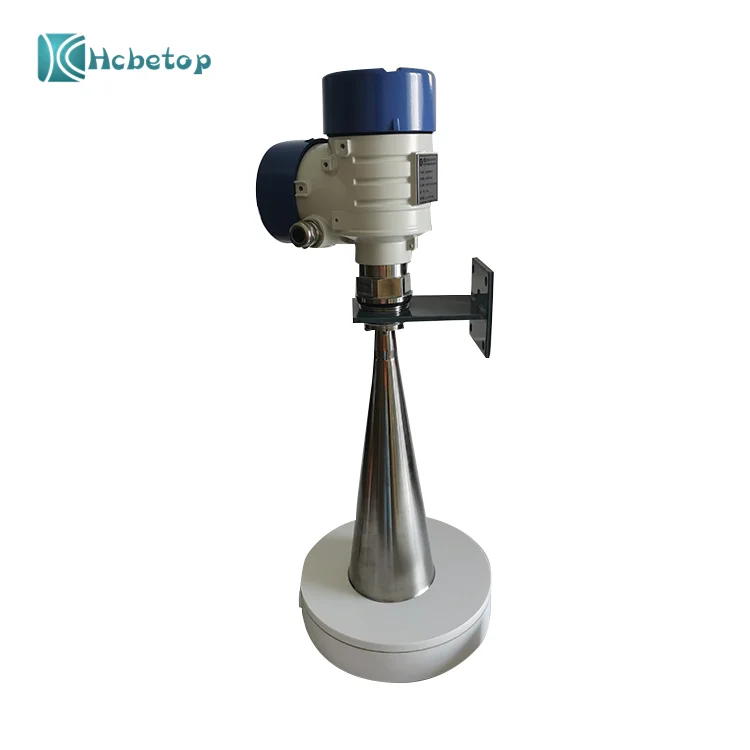

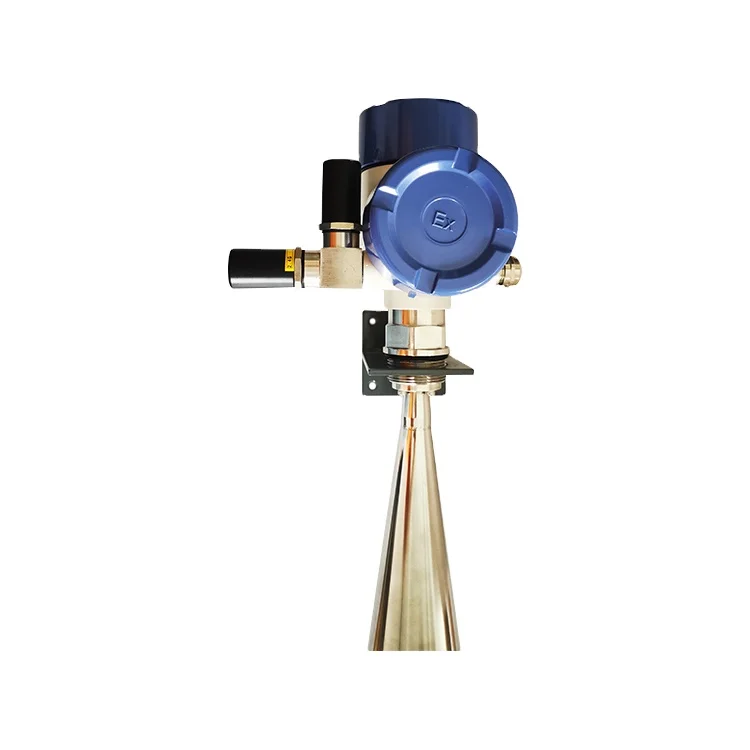

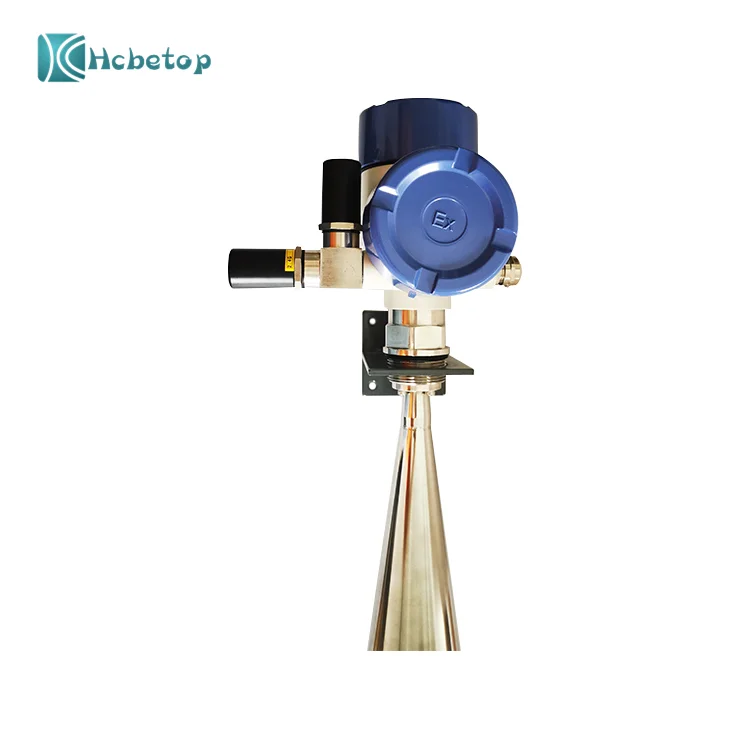

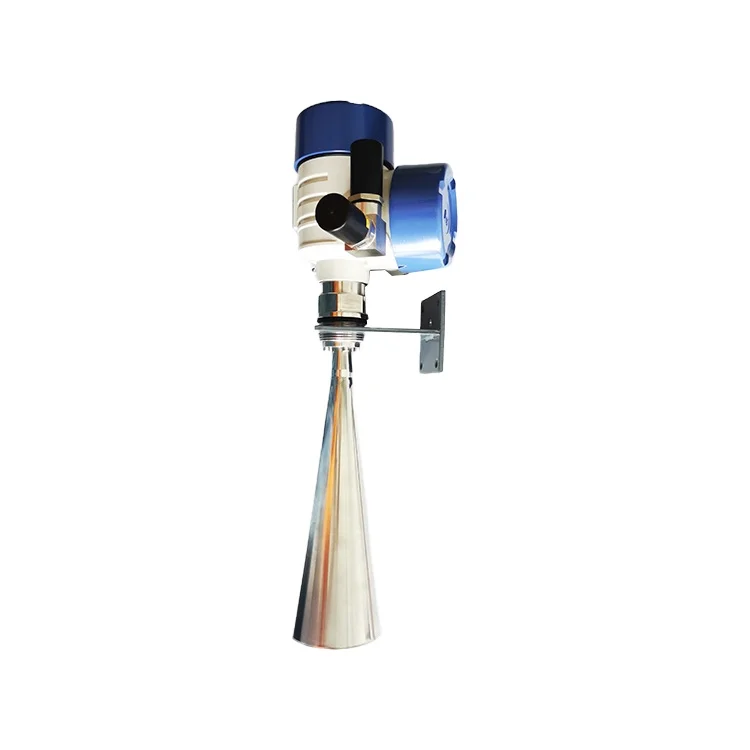

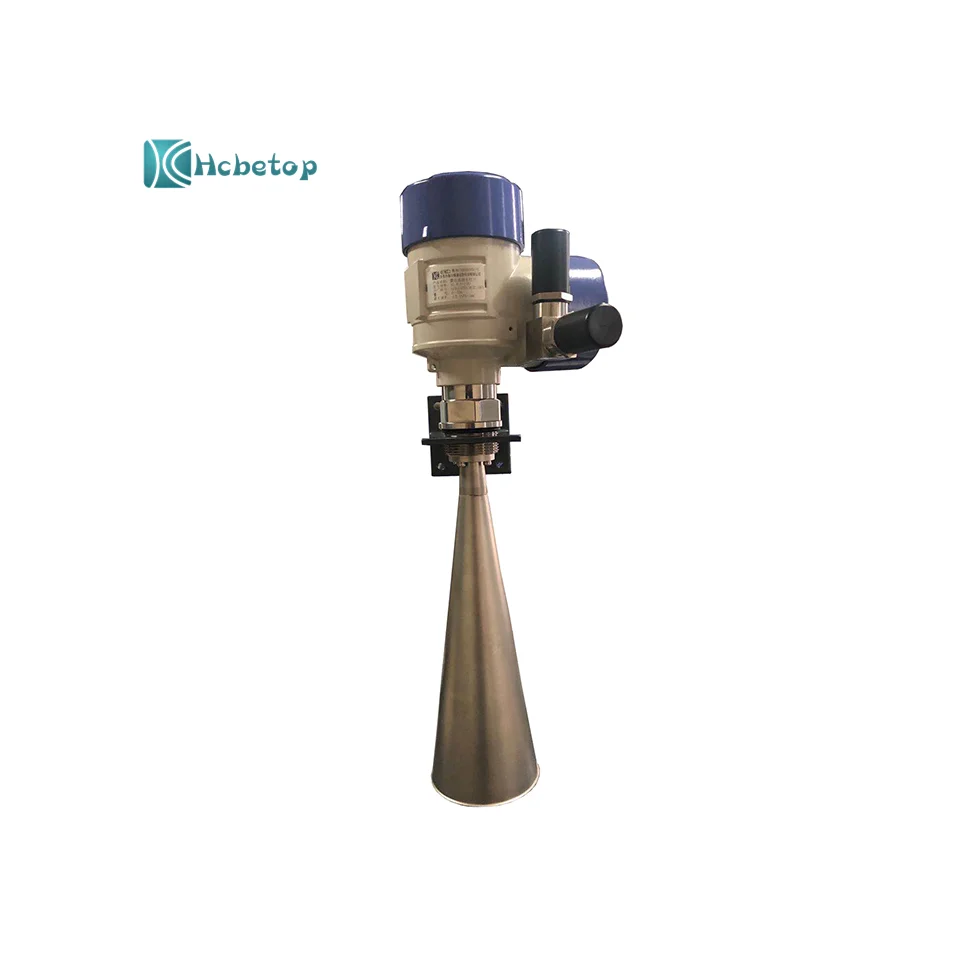

Radar water level indicator
(26G Radar sensor with RTU/datalogger)
Model: HC.WLX-1(R)
HC.WLX-1(R）is level detection instrument adopting microwave technology, which is mainly used for the water level detection of natural sources water such as river and lake, also can be used for the open channel,like large reservoir,cistern and foul sewer.
As a kind of detecting terminal,radar water level indicator can provide a auxiliary monitor to care the water level change
effectively, showing the accurate water level data for monitoring institutions. The RTU/datalogger function is integrated
internally to facilitate wireless data upload; the PC or mobile phone APP can be used to adjust and set parameters through
Bluetooth on site, which improves the efficiency of project implementation.
As a kind of detecting terminal,radar water level indicator can provide a auxiliary monitor to care the water level change
effectively, showing the accurate water level data for monitoring institutions. The RTU/datalogger function is integrated
internally to facilitate wireless data upload; the PC or mobile phone APP can be used to adjust and set parameters through
Bluetooth on site, which improves the efficiency of project implementation.
Feature:
1. High-frequency emission up to 26GHZ adopted. Easy to install, less civil works;
3. Built-in RTU/datalogger reduces the complexity of system integration;
4. High precision, up to millimeter level;
5. Low power consumption less than 10mA;
6.Fully waterproof design, suitable for outdoor use
2. Non-contact measurement，no need stop water; not affected by temperature, humidity, water vapor, pollutants and sediments in the water;
3. Built-in RTU/datalogger reduces the complexity of system integration;
4. High precision, up to millimeter level;
5. Low power consumption less than 10mA;
6.Fully waterproof design, suitable for outdoor use
Application range
♦ Water level monitoring for natural source water,like river,lake,tidal,reservoir and underground water etc
♦ Water level monitoring for city flood and waterlogging in flood season,like lowland and waterspout.
♦ Auxiliary water treatment working,like urban water supply and drainage monitoring.
♦ Water level monitoring for city flood and waterlogging in flood season,like lowland and waterspout.
♦ Auxiliary water treatment working,like urban water supply and drainage monitoring.
Specification
Item | Description | |||||
Measuring range | 0~30m; 70m; | |||||
Accuracy tolerance | 1cm | |||||
Resolution | 1mm | |||||
Measuring temp. | .- 40 degree to 100 degree | |||||
Emission frequency | 26GHz | |||||
Emission power input (EIRP) | 20dBm | |||||
Signal interface | RS-485 (Modbus protocol,SDI12 is optional,and compatiable all kinds of RTU) | |||||
Data format | 9600 (default),8,n,1; (baud rate can be adjusted) | |||||
Wireless transmission | 4G/NB-IoT/433MHZ (optional) | |||||
Working voltage | 6 ~ 24V DC | |||||
Working currency | 10mA | |||||
Antenna | 316 Stainless steel | |||||
Protection grade | IP67 | |||||
Pressure | Max.4MPa | |||||
Lighting protection | Lightning protection level 6KV | |||||
Shockproof | 10m/s2 (10~150)Hz | |||||
1:Are you factory or only company?
We have factory to produce water monitoring product, such as bubble water level sensor, radar water level sensor, radar velocity sensor, radar flow meter, water-rain one-stop monitoring site, turbidimeter，urban prevent water-logging monitoring site etc.
2:Why we can choose you?
1)Reliable---we are the real company, we dedicate in win-win
2) Professional--We have been developing and manufacturing for more than 10 years.
3) Factory.---we have factory,so have compective price.
3:How about the price?Can you make it cheaper?
The price depends on the item your demand(Shape,size quantity)
Final quotation accoring to receving full description of the item you want.
We have factory to produce water monitoring product, such as bubble water level sensor, radar water level sensor, radar velocity sensor, radar flow meter, water-rain one-stop monitoring site, turbidimeter，urban prevent water-logging monitoring site etc.
2:Why we can choose you?
1)Reliable---we are the real company, we dedicate in win-win
2) Professional--We have been developing and manufacturing for more than 10 years.
3) Factory.---we have factory,so have compective price.
3:How about the price?Can you make it cheaper?
The price depends on the item your demand(Shape,size quantity)
Final quotation accoring to receving full description of the item you want.
