alibaba china supplier ATV tyre bladder type vulcanizing machinery for sale
Contact information
Product Description

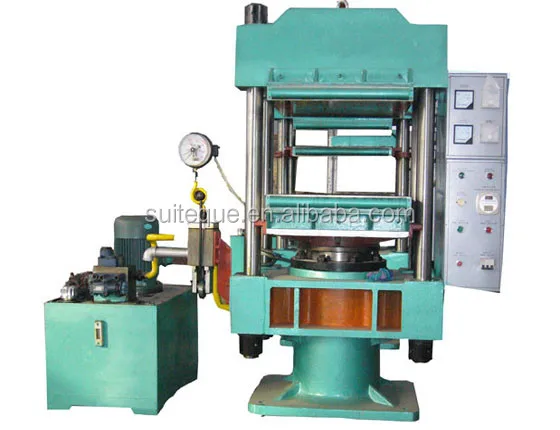

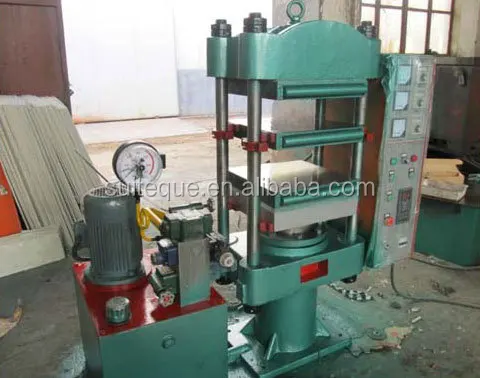

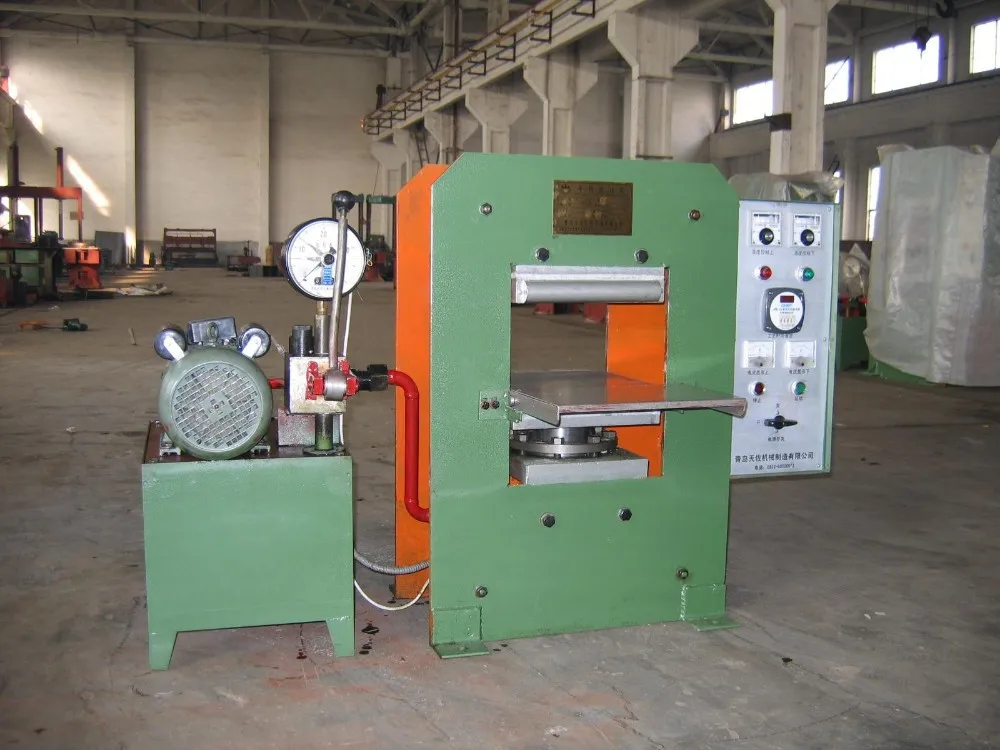

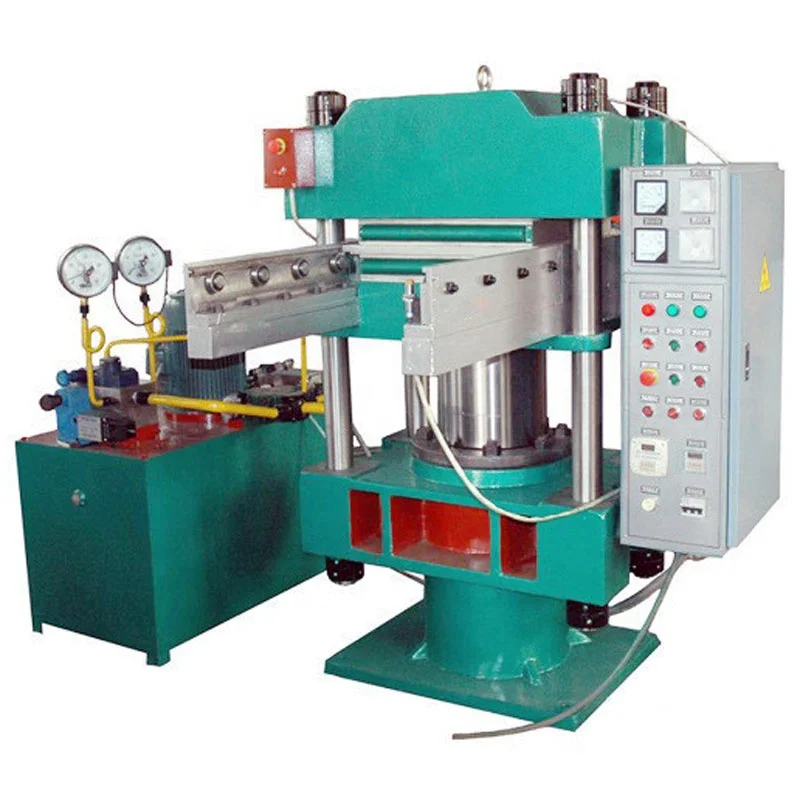

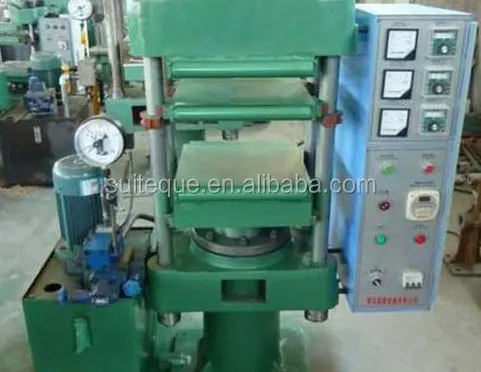

alibaba china supplier ATV tyre bladder type vulcanizing machinery for sale
Structure features:
1.Dual-mold automatic hydraulic tire curing press ,the hydraulic system is driven by a hydraulic station one to five vulcanzing machine ,and can realize the process control function.
2.The control system adopts PLC programmable controller as the real time control core ,the industrial computer as the main machine operation interface ,that can realize vulcanizing process parameter setting .
3.The press is suitable for the production of electric motorcycle tires and bias tires with nitrogen gas or steam vulcanizing process.
Main technical parameters:
Applicable types of tyres | Motorcycle tyres | Motorcycle tyres |
Specification | 8″-21″ | 4”-12” |
No. of molds | 2-4 | 2-4 |
Total pressure (each mold) (Mpa) | 100 | 60 |
Hydraulic system pressure setting (Mpa) | ≤21 | ≤21 |
Hydraulic working pressure setting (Mpa) | ≤19.5 | ≤19.5 |
Dia. of hot plate (mm) | 950 | 650 |
Inner dia. of insulation cover (mm) | Φ975 | Φ700 |
Max. clearance between plates (mm) | 1000 | 1000 |
Applicable mold height (mm) | 120-300 | 120-300 |
Max. thickness of green tyre (mm) | 450 | 450 |
Demolding force (k) | 750 | 750 |
Max. height of the top tire (mm) | 200 | 200 |
Open (close) mold speed (mm/s) | 60 | 60 |
Hot plate heating steam pressure (Mpa) | Max.1.0 | Max.1.0 |
Inner pressure steam or compressed air pressure(Mpa) | 1.5-2.3 | 1.5-2.3 |
Shaping steam or compressed air pressure (Mpa) | 0.1-0.2 | 0.1-0.2 |
Water (gas) cylinder use pressure (Mpa) | 1.5-2 | 1.5-2 |
Controlling use compressed air pressure (Mpa) | 0.35 | 0.35 |
Vacuum (Mpa) | 0.013-0.026 | 0.013-0.026 |
Hydraulic oil | 46#anti-wear hydraulic oil | 46#anti-wear hydraulic oil |
Pump motor (kw) | Y180L-4-22 | Y180L-4-22 |
Total weight (kg) | 11500 | 9500 |
Packaging & Shipping
Our packing way : Export standard (wooden package ) or according to your requirement
Shipping:Within 20~40 workdays
Our Services
Our Services :
1. We will design,manufacture,install and test the machines according to customers' requirement .Relevant personnel training for customers,ensure that customers fully grasp the use and maintenance of technology.
2 .Our service department listen to customers' feedback at any time and provide spare parts timely.
FAQ
1.Q: Are you a factory or trading company?
A: We are the factory.We have our own plant,worker and techniques research developing department.
2.Q: Where is your factory located?How can Ivisit there?
A: Our factory add is Tieshan industrial Park,Jiaonan,Qingdao,Shandong province,China.
3.Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market.And main products are the mtorcycle,electric bike and bicycle tyre making machine.
4.Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department.We win make a strick inspectin before the machines leave the factory.
5.Q: Are the technical parameter is fixed?
A: Basicall,each model correspondin to the related machine.But we can design different type machine according to the clients requirement.
