Product Overview

Description



Product Description

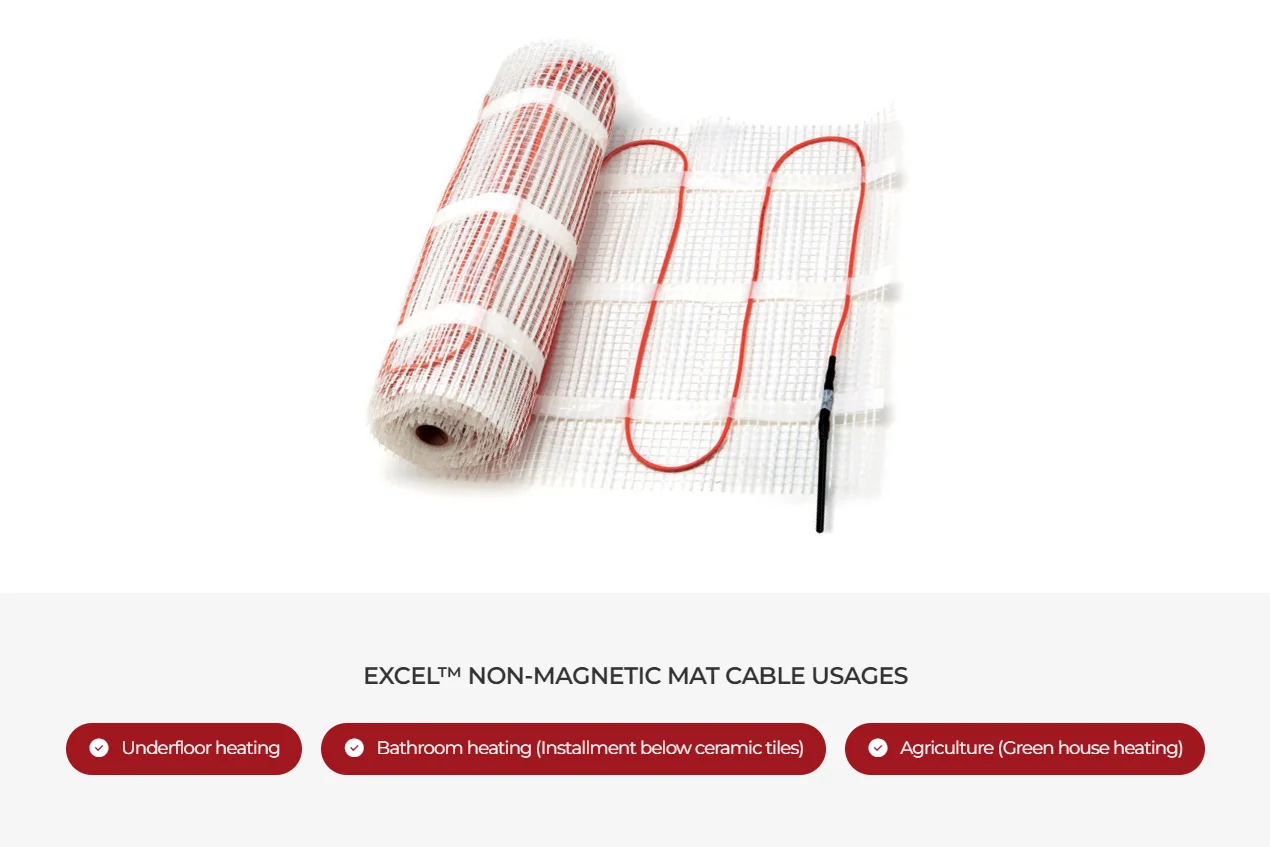

EXCEL™ MAT-TYPE NON-MAGNETIC CABLE
EXCEL™ NON-MAGNETIC MAT CABLE

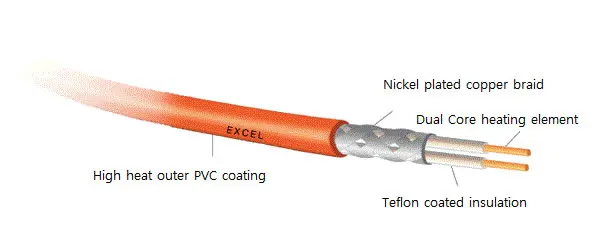

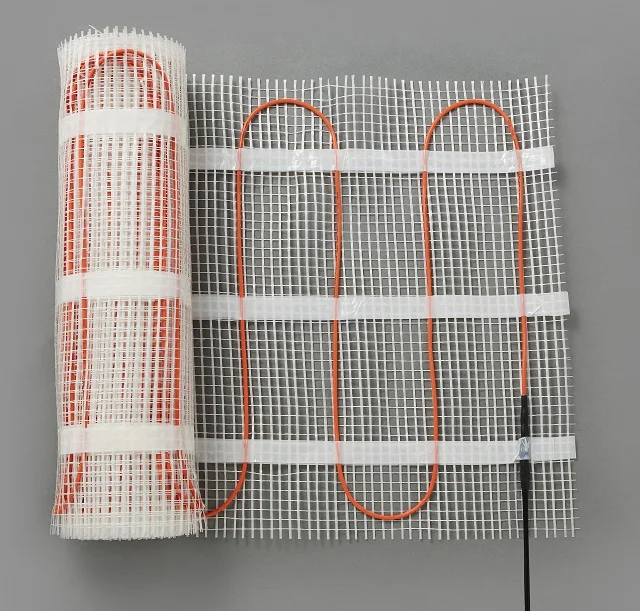

EXCEL Features of the non-magnetic heating cable: Made in a mat type using Fiber Glass MESH,
Workability is a good that can be construction without extra work mesh. Cable for DIY.





Models


Model
name
Mat length
(m)
Length of heating wire(m)
Area
(㎡)
Resistance
(ohm)
Watt
(w/m)
Output
(W/R)
Current(A)
Voltage
(V)
Diameter
(mm)
ENCM16-1
2
10
1
303
16
160
0.7
220
4 / 5
ENCM16-2
4
20
2
151
16
320
1.5
220
4 / 5
ENCM16-3
6
30
3
101
16
480
2.2
220
4 / 5
ENCM16-4
8
40
4
76
16
640
2.9
220
4 / 5
ENCM16-5
10
50
5
61
16
800
3.6
220
4 / 5
ENCM16-6
12
60
6
50
16
960
4.4
220
4 / 5
ENCM16-8
16
80
8
38
16
1,280
5.8
220
4 / 5
ENCM16-9
18
90
9
34
16
1,440
6.5
220
4 / 5
ENCM16-10
20
110
10
30
16
1,600
7.3
220
4 / 5
ENCM16-12
24
120
12
25
16
1,920
8.7
220
4 / 5
ENCM16-14
28
140
14
22
16
2,240
10.2
220
4 / 5


[Ø4, 16w/m] or [Ø5, 16w/m] *Can produce AC 110V and non-model products


Specification


Power
AC 220V, 50~60hz
Cable Distance
90mm~100mm
Max. Continuous Use Temp
80°C
Consumption Rate
160W/㎡
Temp Range
-30°C / +110°C
Thickness
4mm~5mm
Withstand Voltage
3000V / 1min
