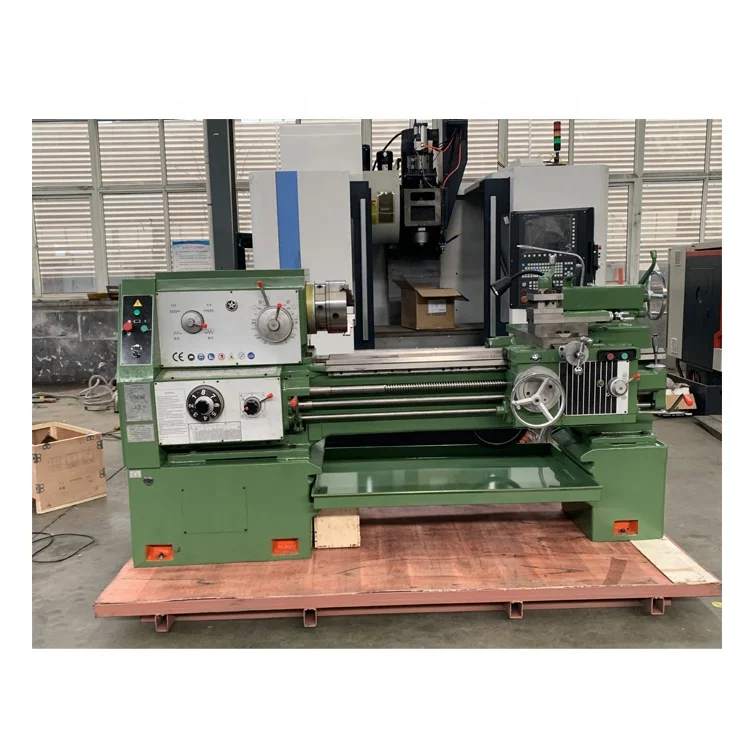

Manufacturer Lath Machine CA6140 Chinese Flat Bed Manual Lathe Machine Price CA6140 *2000 Manual Lathe Lathe Machine 66c 2000
- Category: >>>
- Supplier: Taian Yuzhuo Machinery Co. Ltd.
Share on (11000004736175):
Product Overview
Description
Details Display
Product Characteristics
Specifications
Specifications | CA6140 CA6240 CA6140B CA6240B | CA6150 CA6250 CA6150B CA6250B CA6150C CA6250C | CA6161 CA6261 CA6161B CA626B1 CA6161C CA6261C | CA6166 CA6266 CA6161B CA6261B CA6161C CA6261C | CA6180 CA6280 CA6180B CA6280B CA6180C CA6280C | |||||||||||||
Max. Swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm | |||||||||||||
Max. Swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm | |||||||||||||
Max. swing in gap | B-630mm | 630mm | B/C-720mm | B/C-830mm | B/C-880mm | B/C1020mm | ||||||||||||
Effective gap length | B-210mm | 210mm | B/C-210mm | B/C-210mm | B/C-210mm | B/C-210mm | ||||||||||||
Max. length of work piece | 750/1000/1500/2000/2200/3000/4000mm | |||||||||||||||||
Width of bed | 400mm | |||||||||||||||||
Section of turning tool | 25X25mm | |||||||||||||||||
Spindle | Spindle speeds | 16-1400rpm（24steps） | ||||||||||||||||
Hole through spindle | 52mm. （80mm）. [105mm] | |||||||||||||||||
Spindle taper | NO.6（MT6）（Φ90 1：20）[Φ113 1：20] | |||||||||||||||||
Feed | Number of feeds | 64 kinds（for each） | ||||||||||||||||
Range of metric threads（kinds） | （1-96mm）44 kinds | |||||||||||||||||
Range of inch threads （kinds) | （2-24tpi）21 kinds | |||||||||||||||||
Range of module threads (kinds） | 0.25-48 (Moduie39kinds) | |||||||||||||||||
Range of pitch threads (kinds） | 1-96DP（37kinds） | |||||||||||||||||
Tailstock | Max. tail stock spindle travel | 150mm | ||||||||||||||||
Tail stock spindle diameter | 75mm | |||||||||||||||||
Taper of tail stock spindle center hole | NO.5(MT5) | |||||||||||||||||
Main motor | 7.5kw | |||||||||||||||||
Packing dimensions (L*W*H)mm | ||||||||||||||||||
Overall dimensions for750mm | 2550x1140x1750 | |||||||||||||||||
Overall dimensions for1000mm | 2700x1140x1750 | |||||||||||||||||
Overall dimensions for1500mm | 3200x1140x1750 | |||||||||||||||||
Overall dimensions for2000mm | 3700x1140x1750 | |||||||||||||||||
Overall dimensions for2200mm | 4030x1140x1750 | |||||||||||||||||
Overall dimensions for3000mm | 4850x1140x1750 | |||||||||||||||||
Overall dimensions for4000mm | 5800x1140x1750 | |||||||||||||||||
Length | Weight (kg) G.W N.W. | |||||||||||||||||
Weight for 750mm | 2300 2180 | |||||||||||||||||
Weight for 1000mm | 2380 2250 | |||||||||||||||||
Weight for 1500mm | 2577 2437 | |||||||||||||||||
Weight for 2000mm | 2940 2787 | |||||||||||||||||
Weight for 2200mm | 3120 2970 | |||||||||||||||||
Weight for 3000mm | 3600 3450 | |||||||||||||||||
Weight for 4000mm | 3950 3800 | |||||||||||||||||
The main performance characteristics：
1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to
undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching
depth up to 4mm, effectively improves the abradability and stability of the machine.

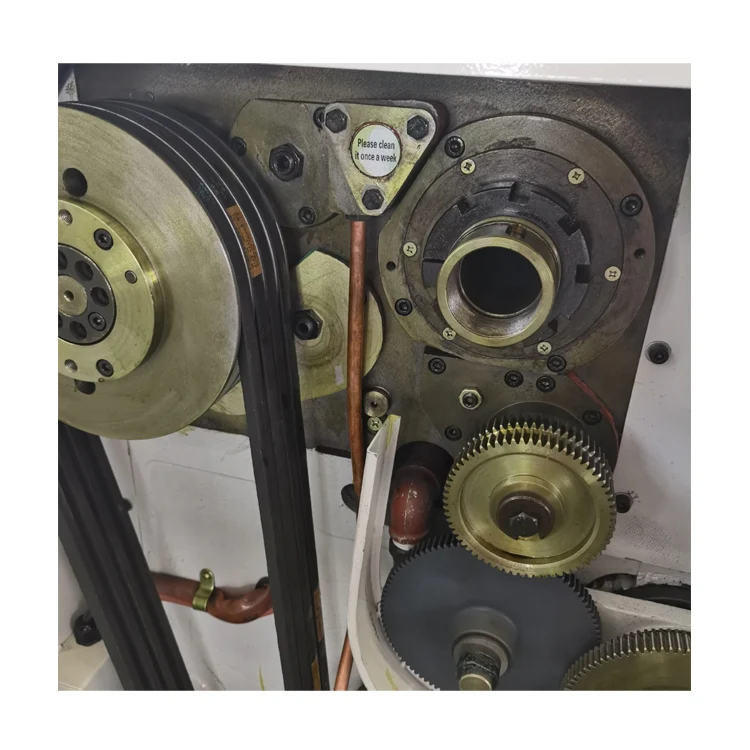

3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot
weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing
and gear's service life.
4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision
grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the
wear-resisting property and the precision maintenance.

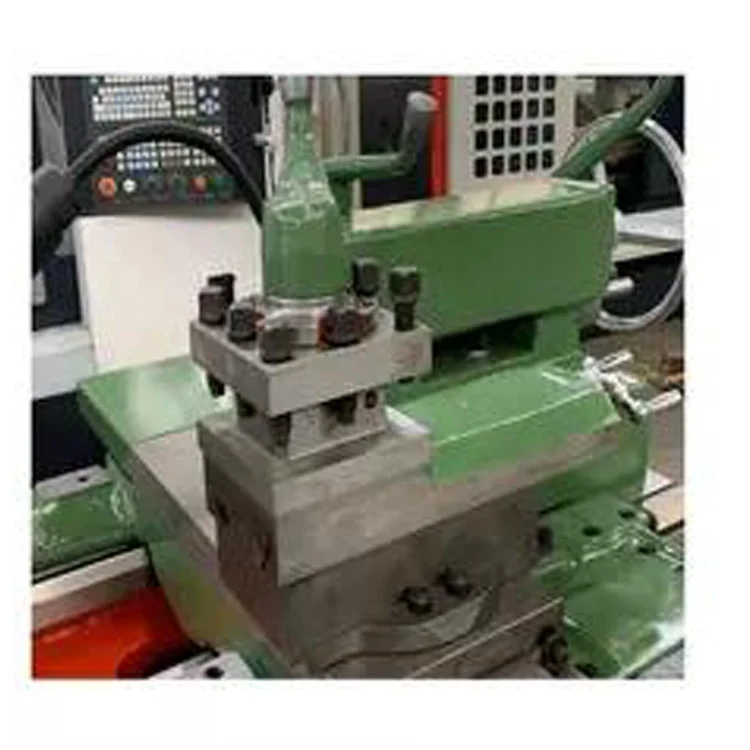

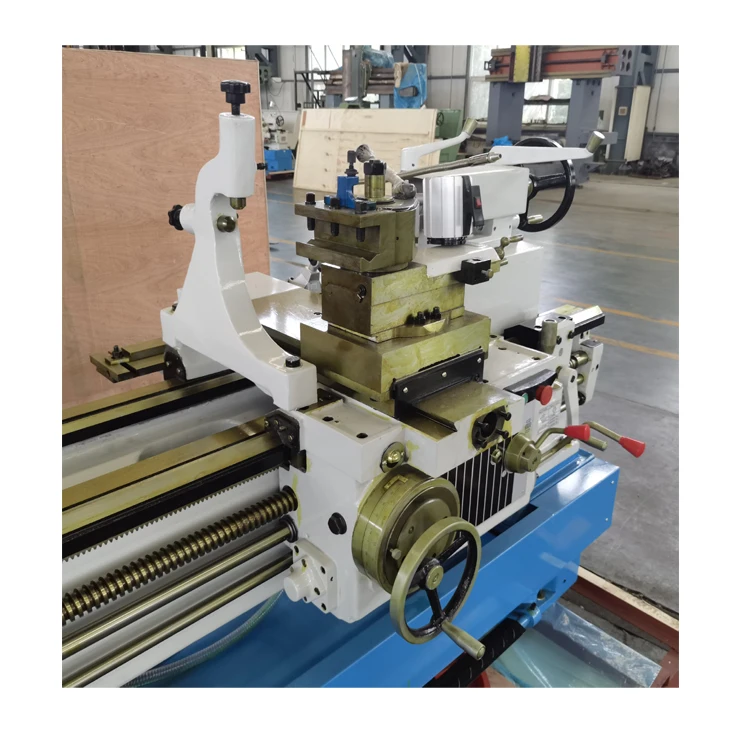

6 The machine adopts high strength four station turret shank size: 25x25mm.
undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.
2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching
depth up to 4mm, effectively improves the abradability and stability of the machine.
3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot
weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing
and gear's service life.
4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision
grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.
5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the
wear-resisting property and the precision maintenance.
6 The machine adopts high strength four station turret shank size: 25x25mm.
Application：
1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other
rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the
drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc
parts.
2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency
quenching, wear-resistant durable.

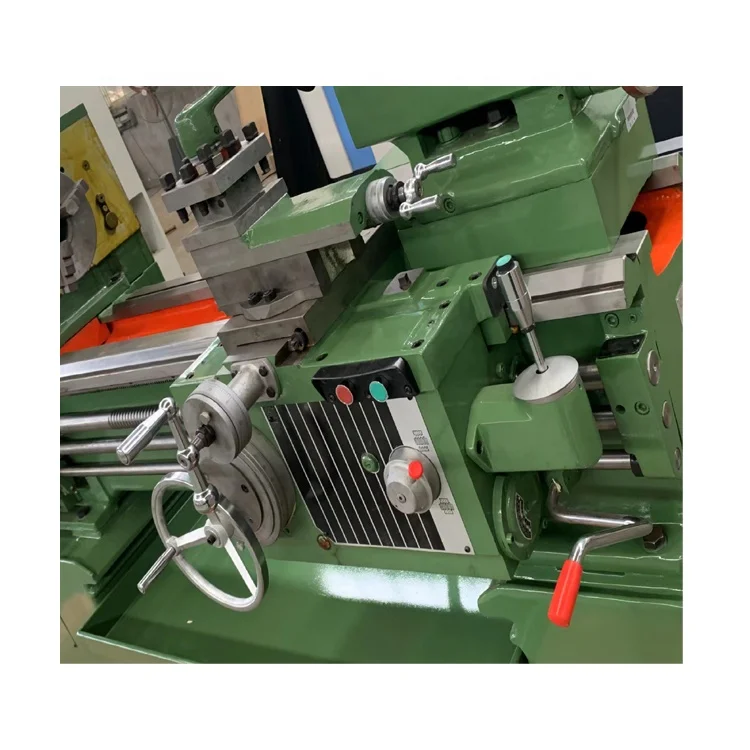

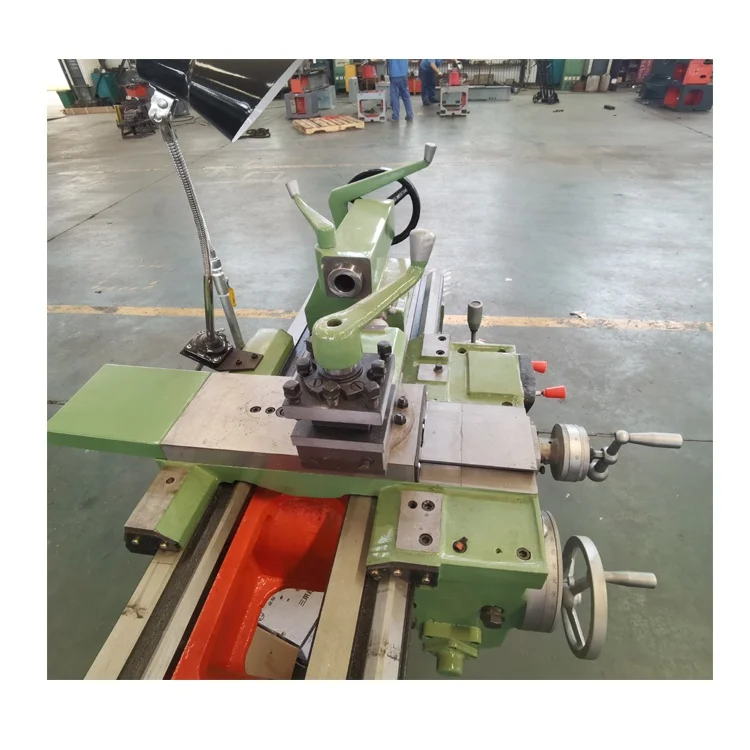

3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation,
humanization.
4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power
utilization rate is high, which is suitable for the strong cutting.
5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the
machine tool is tested to ensure that the machine tool has good stability and reliability.
rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the
drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc
parts.
2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency
quenching, wear-resistant durable.
3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation,
humanization.
4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power
utilization rate is high, which is suitable for the strong cutting.
5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the
machine tool is tested to ensure that the machine tool has good stability and reliability.
