15 ton hydraulic hoist cylinder for dump truck dump trailer hydraulic scissor hoist lift kit
- Category: Truck Parts & Accessories >>>
- Supplier: Liuzhou Shuangji Machinery Co. Ltd.
Share on (11000004749269):
Product Overview
Description
Product Overview

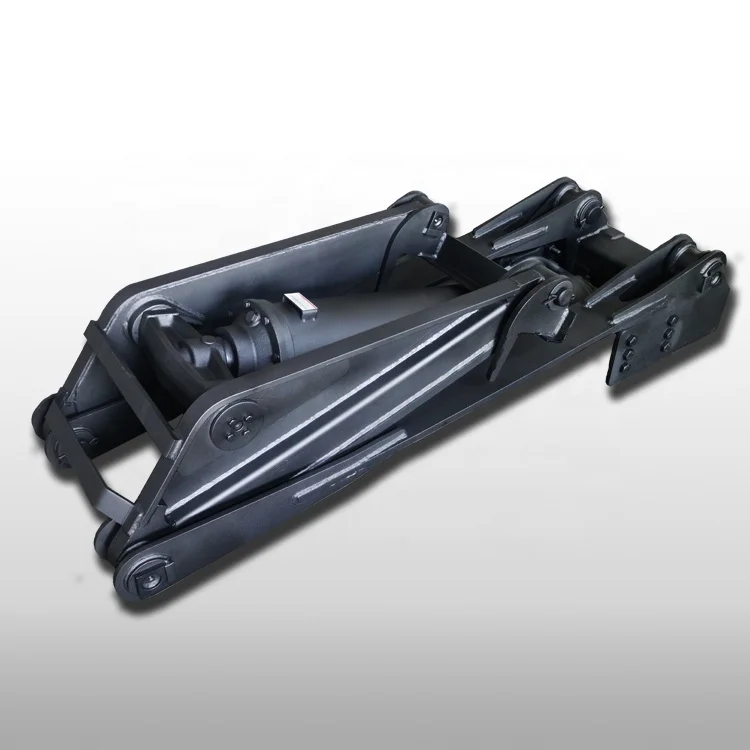

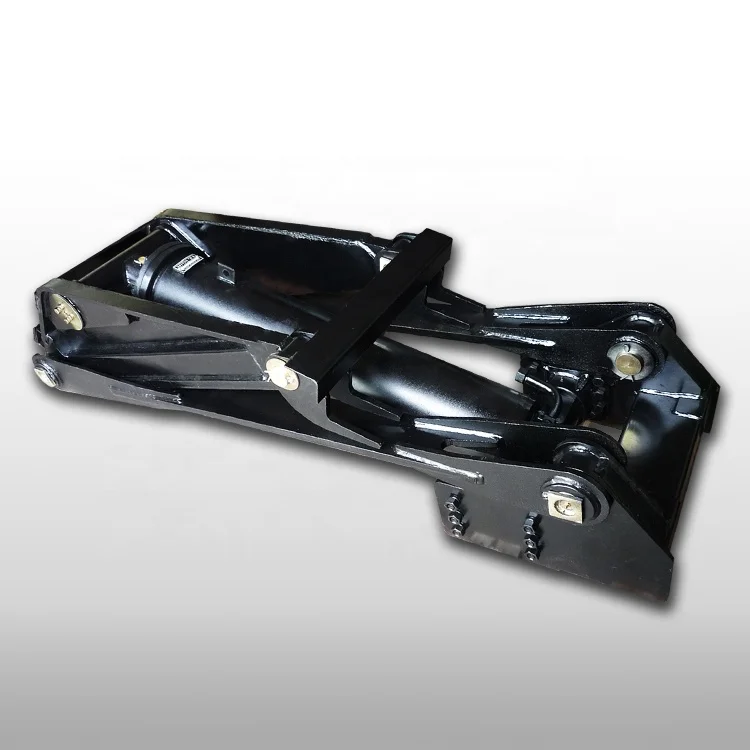

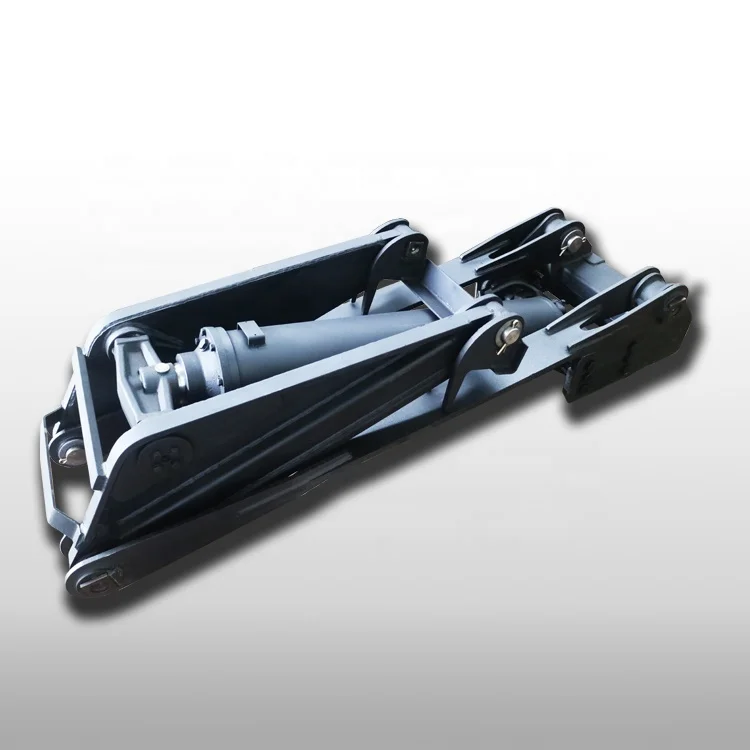

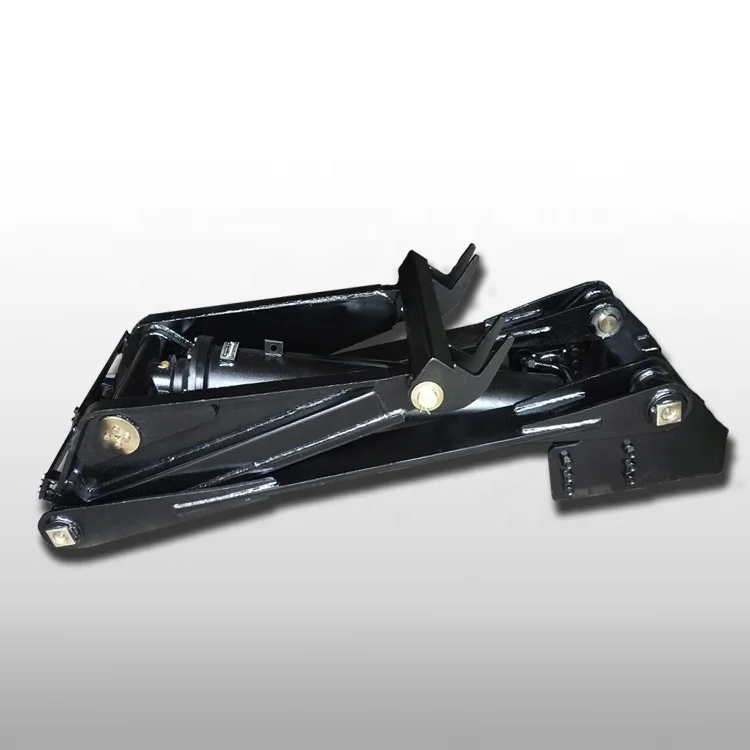

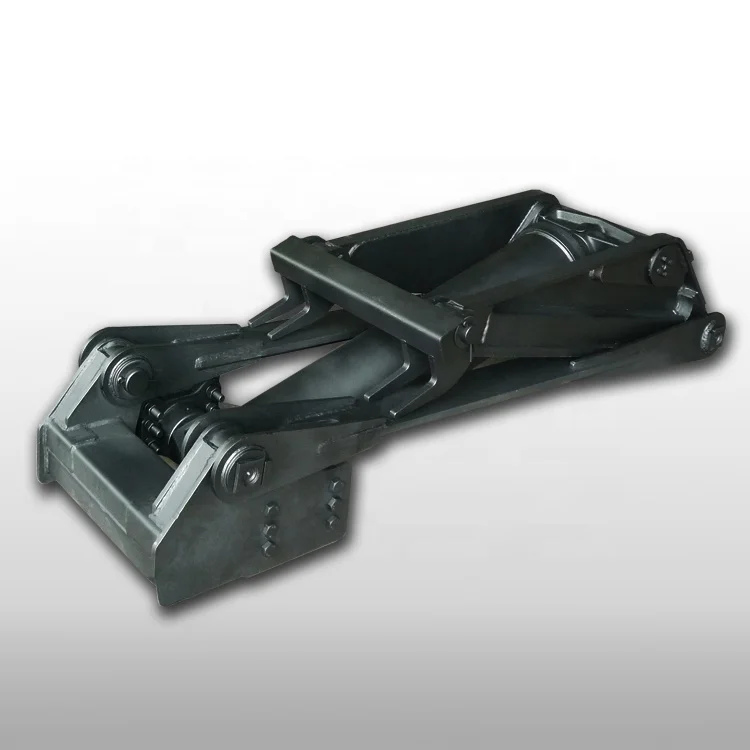

15 ton hydraulic hoist cylinder for dump truck dump trailer hydraulic scissor hoist lift kit
1. Cylinder products from purchased materials, processing, assembly, have strict quality control. ( we passed the certification of ISO/ TS 16949: 2009)
2. Automated cleaning equipment to ensure the cleanliness of fuel tank assembly.
3. Welding using CO2 arc welding and automatic girth welding, which ensure the welding Quality of the seal parts
2. Automated cleaning equipment to ensure the cleanliness of fuel tank assembly.
3. Welding using CO2 arc welding and automatic girth welding, which ensure the welding Quality of the seal parts
Product Details
The Main Datas For KRM-201 krm hydraulic cylinder: Hoist Mechanism, Dimensions and Weight (approx.)
Length(mm) | Width(mm) | Height(mm) | Min. Mounting Distance(mm) | Weight(kg) |
1886 | 590 | 476 | 1275 | 515 |
Hoist Cylinder and Wheel Pump Combination Specification (approx.).
KRM201 | Working Pressure (MPa) (Kgf/cm2) | 10.3 /105 | KP 1405A | Rotating Speed | 800 |
Inner Diameter (mm) | 200 | Discharge Volume (ml/rev.) | 136 | ||
Stroke (mm) | 878 | Max. Testing Pressure (MPa) (kgf/cm2) | 20.6 | ||
Min. Close Distance (mm) | 1211 | 210 | |||
Piston Rod Diameter | 100 | Weight(kg) | 37 | ||
Max. pressure (MPa) (Kgf/cm2) | 20.6 /210 |
Recommend Truck G.W.(kg) | Body Length (mm) | Rear Overhang length (mm) | Distance between Load Center and Hinge (mm) | Distance between trunnion and the hinge (mm | Rated Lifting Capacity (kg) | Designed Max . lifting Capacity (kg) (including load |
25000-32000 | 6000 | 1000 | 2000 | 2630 | 15000-30000 | 50200/48 |
Product Paramenters
Name | Inner Diameter(mm) | Stroke(mm) | Piston Rod Diameter | Gear pump | Rated lifting capacity (kg) |
KRM92 | 160 | 405 | 45 | KP35B | 3000-5000 |
KRM143 | 140 | 504 | 60 | KP55A | 5000-10000 |
KRM160C | 160 | 747 | 70 | KP75A/B | 10000-20000 |
KRM160S | 160 | 561 | 70 | KP75A/B | 10000-20000 |
KRM183 | 180 | 832 | 80 | KP1405A | 15000-25000 |
KRM200A | 200 | 866 | 90 | KP1405A | 15000-30000 |
KRM201 | 200 | 878 | 100 | KP1405A | 15000-30000 |
KRM220 42'' | 220 | 865 | 100 | KP1505A | 25000-45000 |
KRM20 48'' | 220 | 1060 | 100 | KP1505A | 25000-45000 |
KRM220 52'' | 220 | 1125 | 100 | KP1505A | 25000-45000 |
KRM220 62'' | 220 | 1338 | 100 | KP1505A | 25000-45000 |
KRM220 68'' | 220 | 1510 | 100 | KP1505A | 25000-45000 |

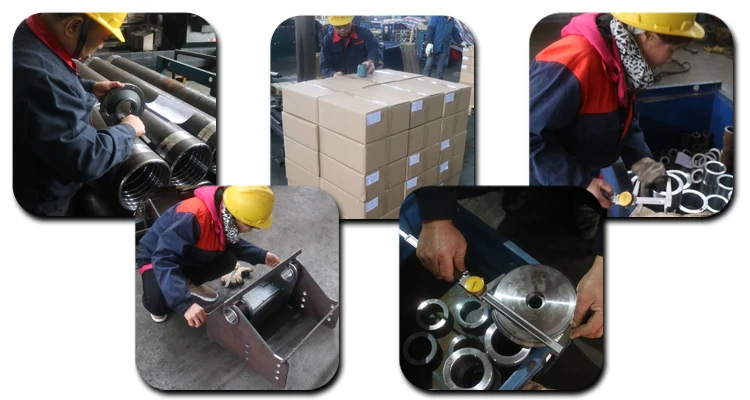

Quality Testing

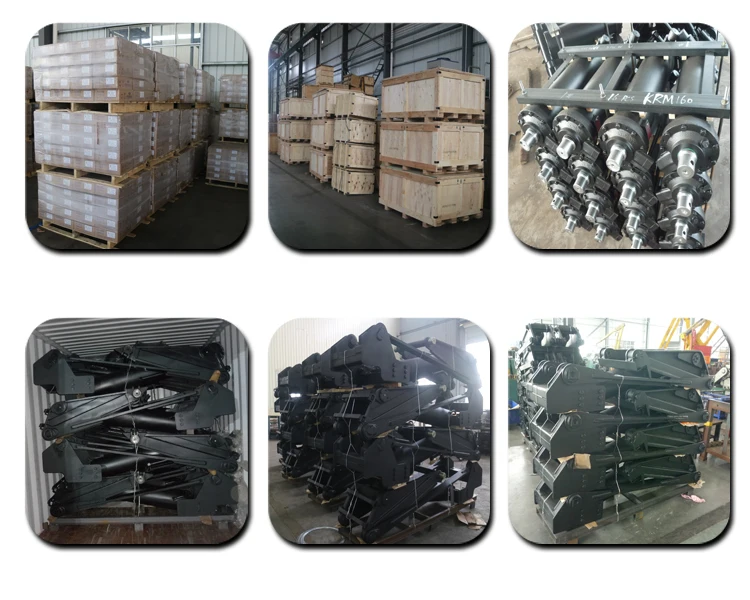

Packing & Delivery
Company Information
Certification & Exhibition
FAQ
Q1:Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage :Overload,polishing is not well controlled,bad seal kits. our products all designed to bear the overload power.We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.
Q2:Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q3:Is your design reasonable? What about your product safe coefficient?
A:We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities . Rest assured.
Q4:What about the quality feedback of your products?
A: Guarantee the quality from the raw material. We have cold drawing production line and nickel-chrome electroplating production
line , so we can produce cold-drawing pipe and hard-chrome pipe used for hydraulic cylinder.
Q5:How about the delivery time?
A: Over 200 sets advanced equipment to meet customer's large demand in short delivery time.Generally ,it's 15-20 days.
Q6:What 's the after-service?
A:If there is any quality issue, please send us photo or video. Our engineer team will give solution within 24 hours.
A: There are 3 main reasons causing internal leakage :Overload,polishing is not well controlled,bad seal kits. our products all designed to bear the overload power.We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.
Q2:Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q3:Is your design reasonable? What about your product safe coefficient?
A:We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities . Rest assured.
Q4:What about the quality feedback of your products?
A: Guarantee the quality from the raw material. We have cold drawing production line and nickel-chrome electroplating production
line , so we can produce cold-drawing pipe and hard-chrome pipe used for hydraulic cylinder.
Q5:How about the delivery time?
A: Over 200 sets advanced equipment to meet customer's large demand in short delivery time.Generally ,it's 15-20 days.
Q6:What 's the after-service?
A:If there is any quality issue, please send us photo or video. Our engineer team will give solution within 24 hours.
