Heavy duty Conveyor Primary Belt Cleaners system Installed on Conveyor Head Pulley Customized
Primary belt cleaners or Pre-Cleaners are an essential part of any conveyor system, which are installed on the head pulley to provide effective cleaning.
Wear-resistant polyurethane blade doesn't damage the belt and extend belt life.
Self-adjusting spring tensioners make sure consistent pressure and effective cleaning. When the blade wears or the belt jumps,the scraper will follow up automatically to ensure good contact.
Wear-resistant polyurethane blade doesn't damage the belt and extend belt life.
Self-adjusting spring tensioners make sure consistent pressure and effective cleaning. When the blade wears or the belt jumps,the scraper will follow up automatically to ensure good contact.

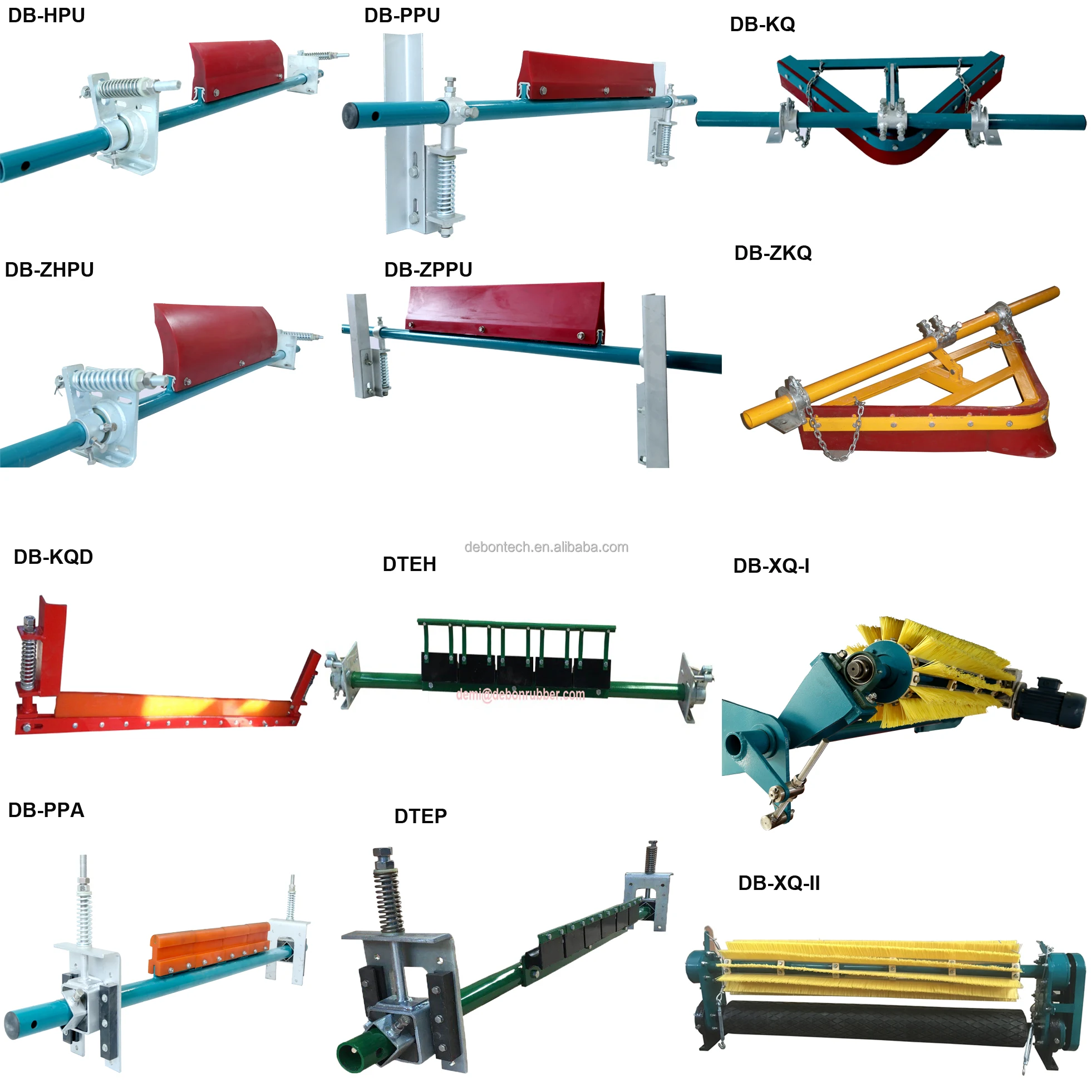

Types of belt cleaners:
1.Primary belt scraper to remove big stuff.
2.Secondary belt scraper to remove sticky fines.
3.V-plough scraper to cleaner inside of belt.
4.H and P alloy belt cleaner
5.Brush belt cleaner
6.Reversing belt cleaner
2.Secondary belt scraper to remove sticky fines.
3.V-plough scraper to cleaner inside of belt.
4.H and P alloy belt cleaner
5.Brush belt cleaner
6.Reversing belt cleaner
Why Choose Us
1. Factory dedicated to producing conveyor belt cleaner and other conveyor accessories.
2. SG audited supplier.
3. Proven quality in real applications.
2. SG audited supplier.
3. Proven quality in real applications.
Application
1.Primary belt cleaner to remove big stuff / eliminated carryback.
2.Secondary belt cleaner for conveyor belt to remove sticky fines.
3.V-plow belt cleaner for conveyor belt to cleaner inside of belt.
2.Secondary belt cleaner for conveyor belt to remove sticky fines.
3.V-plow belt cleaner for conveyor belt to cleaner inside of belt.
FEATURES AT A GLANCE

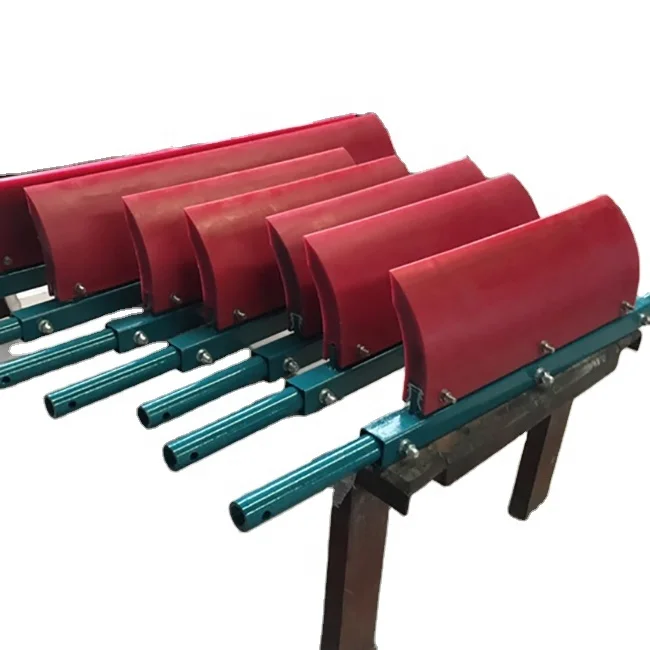

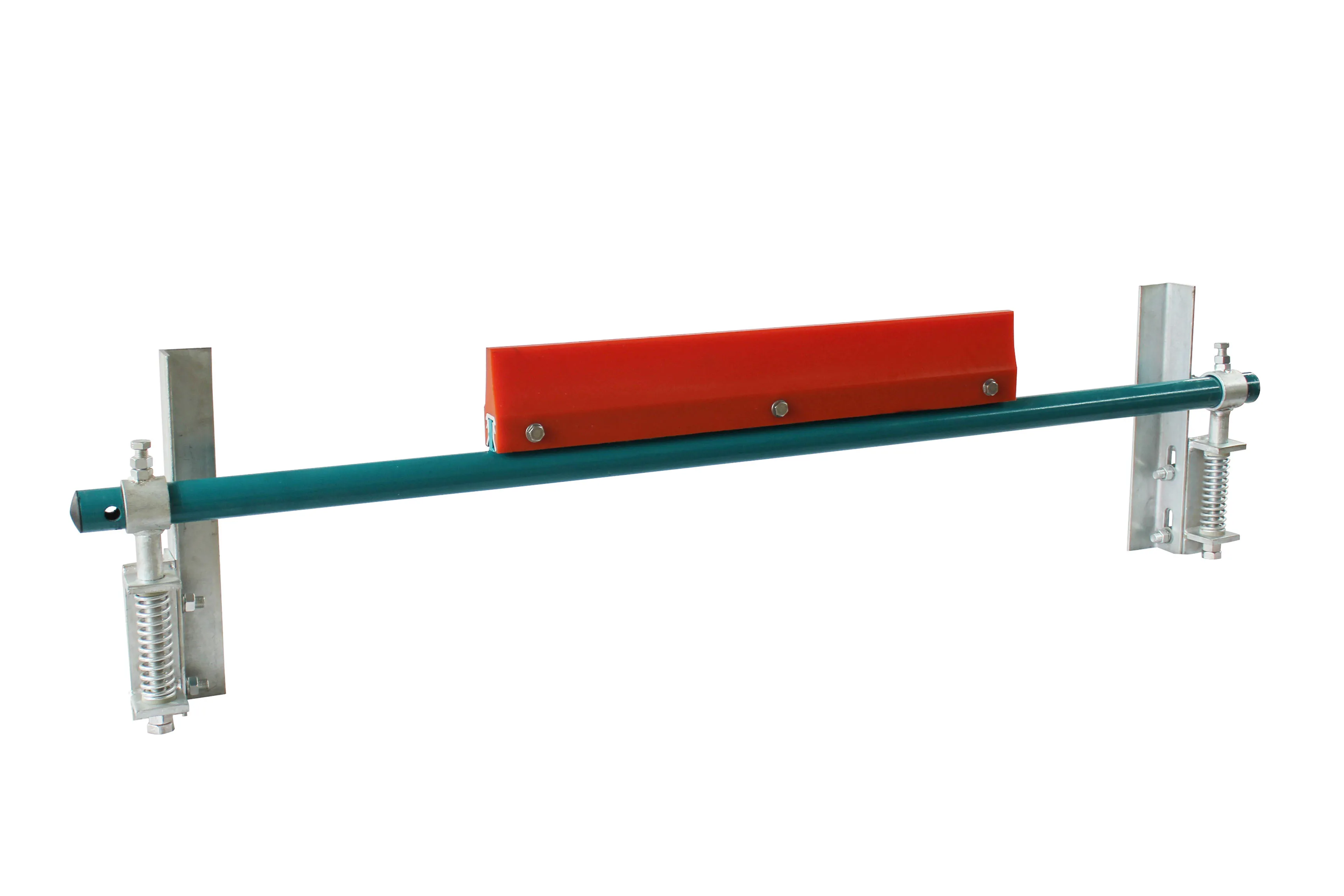

Features of Primary belt cleaner

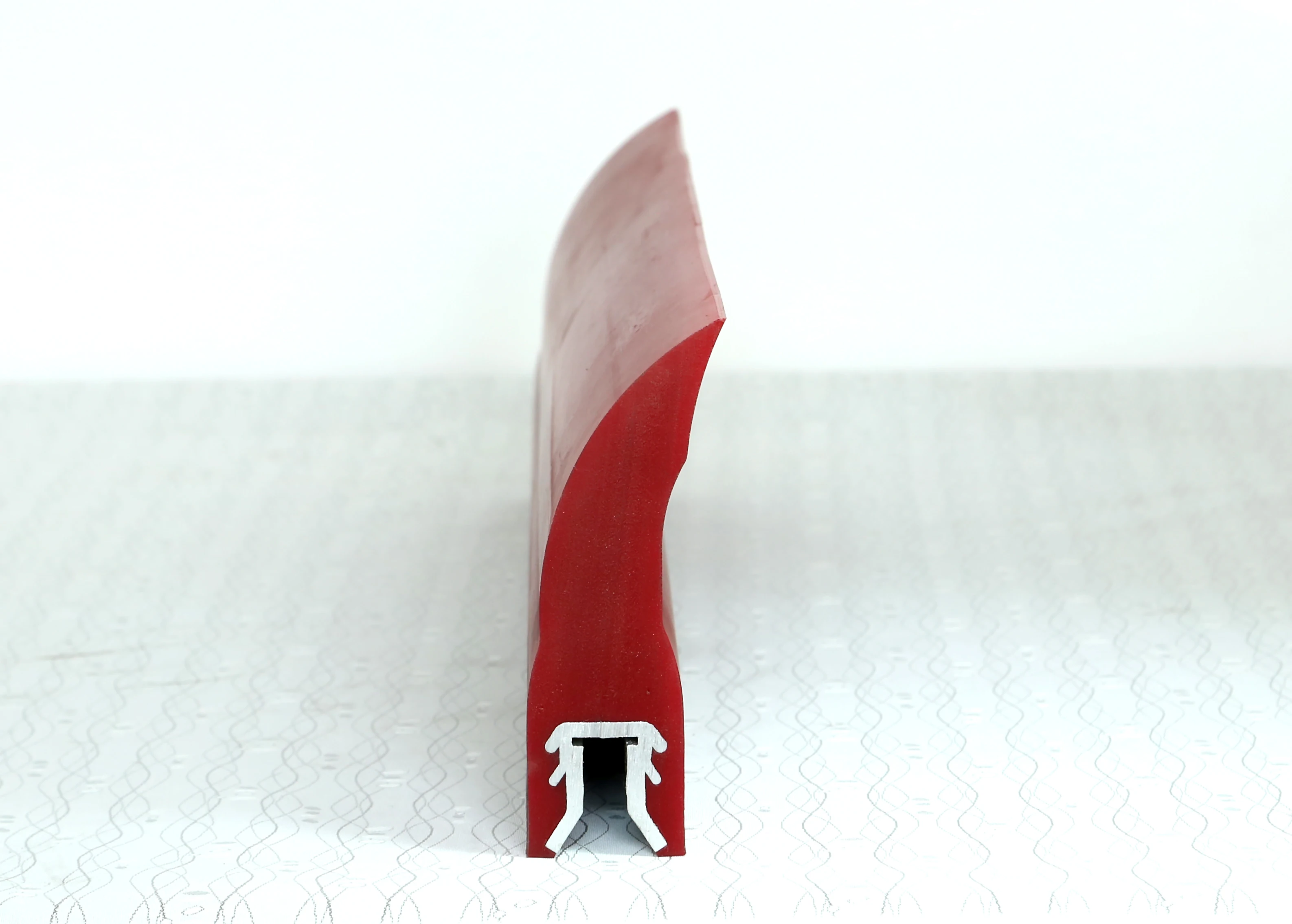

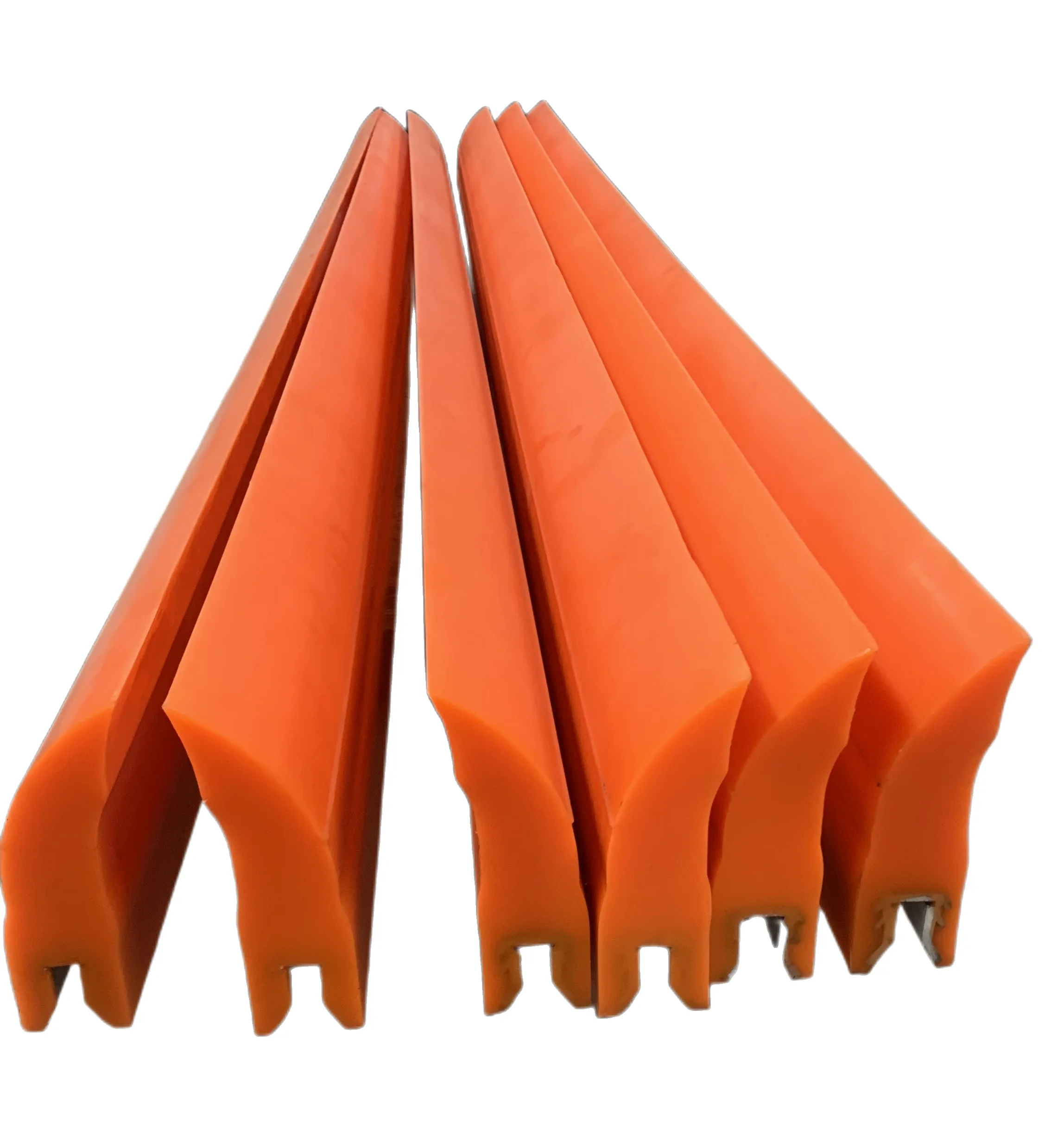

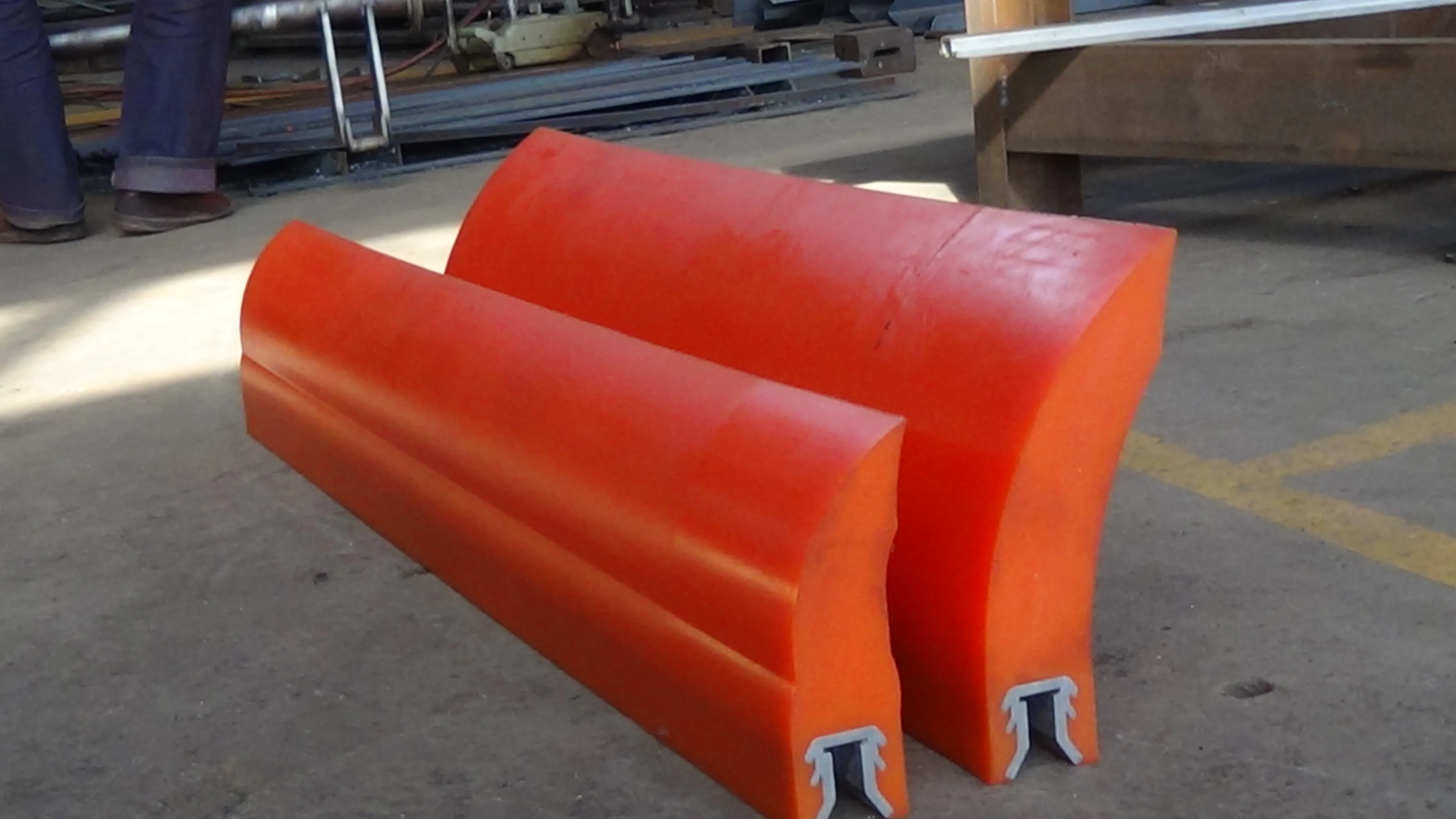

* one-piece polyurethane blade scraper, better cleaning
* belt width: 450-2400mm
* Self-adjusting left and right spring tensioners
* easy maintenance and replacement
* reduce downtime and maintenance cost
* high wear resistant,protect belt and prolong service life
* belt width: 450-2400mm
* Self-adjusting left and right spring tensioners
* easy maintenance and replacement
* reduce downtime and maintenance cost
* high wear resistant,protect belt and prolong service life
Features of Secondary belt cleaner
* one-piece urethane blade, better cleaning
* belt width: 450-2200mm
* left and right spring tensions
* easy maintenance and replacement
* belt width: 450-2200mm
* left and right spring tensions
* easy maintenance and replacement

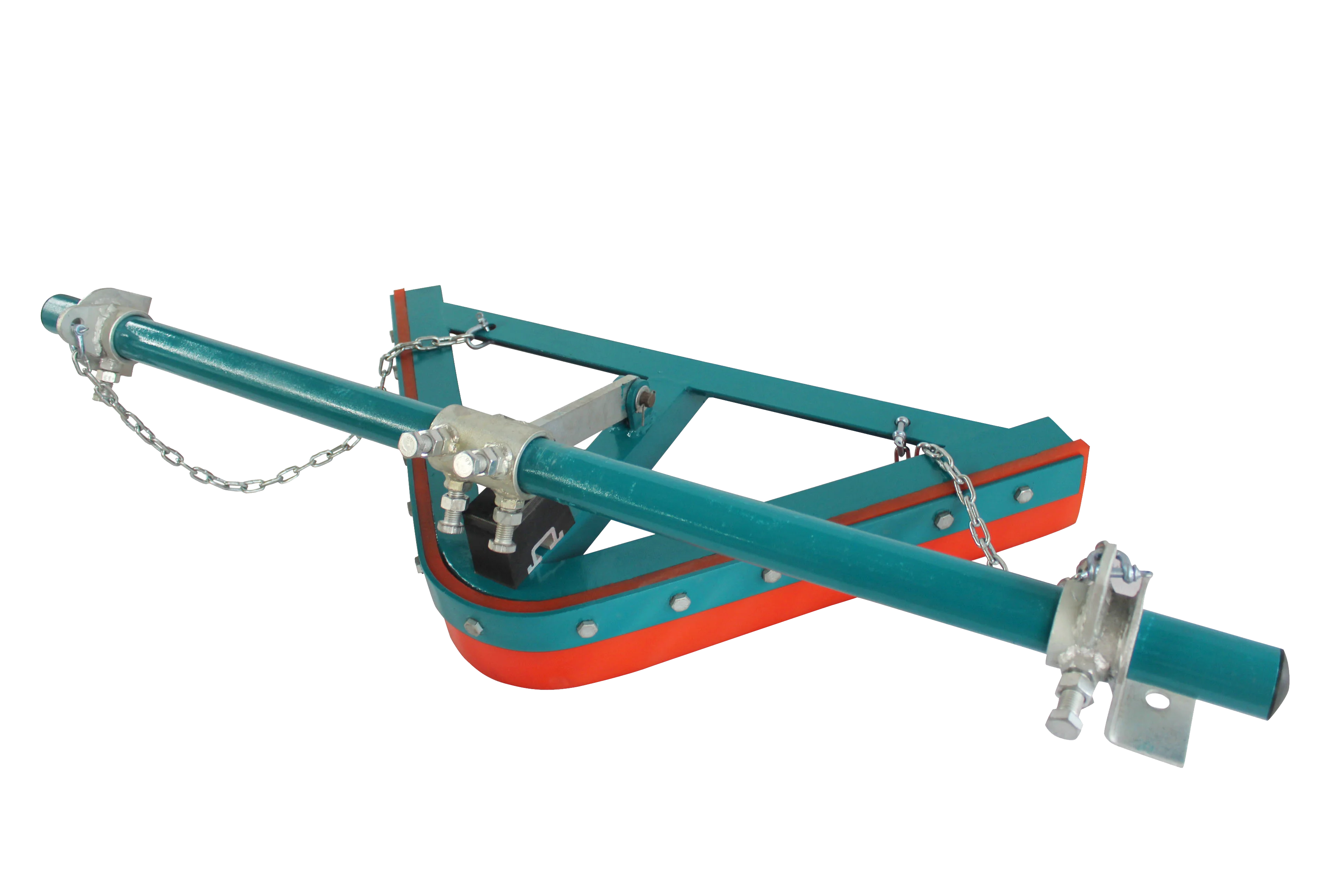

Feature of v plow return belt cleaner
Blade: one-piece urethane blade, better cleaning
Belt Width: 450-2200mm
Spring Tension: left and right spring tensions
After Sale: easy maintenance and replacement
Belt Width: 450-2200mm
Spring Tension: left and right spring tensions
After Sale: easy maintenance and replacement

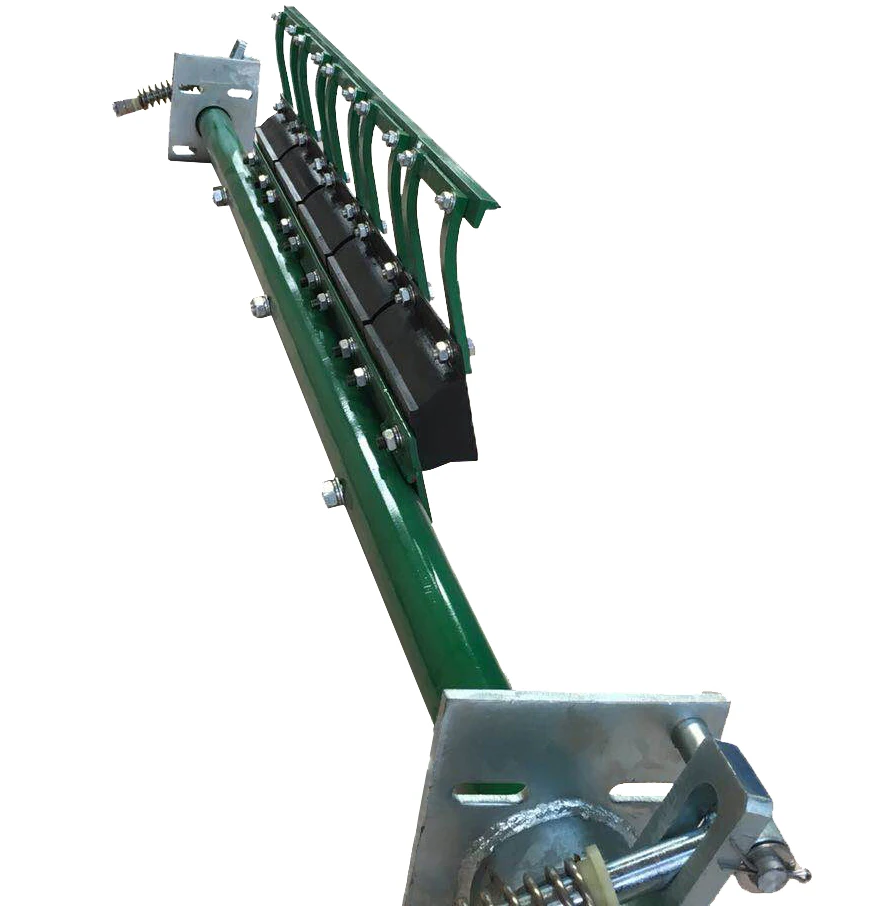

Feature of H type alloy belt cleaner
*Durable tungsten carbide tips
*Segmented blades ensure proper wear throughout the life of the blade
*Segmented cushions allow each blade to self-adjust and maintain blade-to-belt contact.
*Impact resistant steel base
*Spring tensioner could be matched as your request. To make sure consistent pressure the effective cleaning
*Segmented blades ensure proper wear throughout the life of the blade
*Segmented cushions allow each blade to self-adjust and maintain blade-to-belt contact.
*Impact resistant steel base
*Spring tensioner could be matched as your request. To make sure consistent pressure the effective cleaning

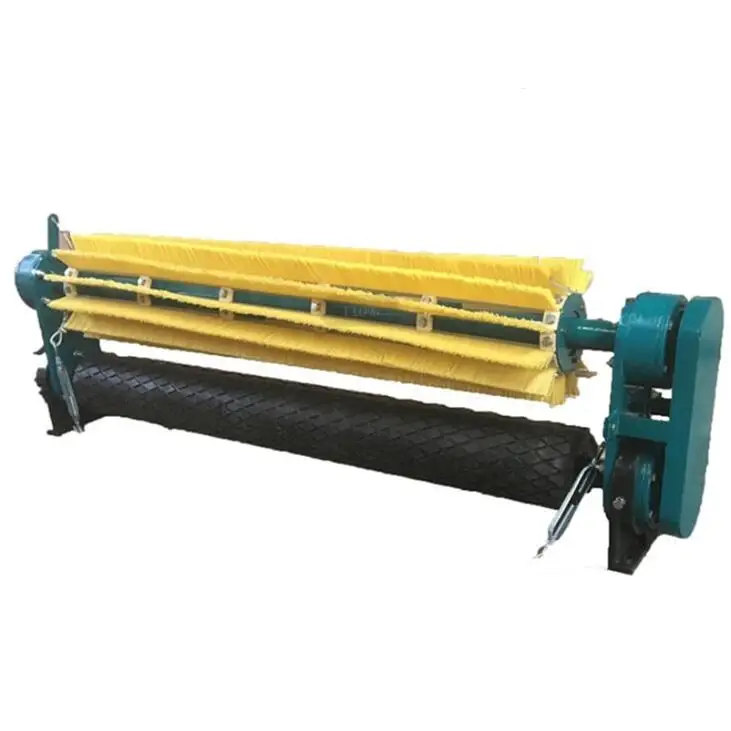

Features of Brush rotary belt cleaner
*Brush bristles are replaceable, just replace brush bristles not whole brush rollers when they're worn out.
*Adjustable device to easily adjust brush-to-belt as bristles wear.
*Custom voltage and power of motor and reducer.
*Uniquely nylon66 brush bristles-aids in reducing material buidup and clogging
*Works on mechanically spliced or vulcanized belts
*Maximum cleaning- spins opposite the belt direction for optimal cleaning
*Adjustable device to easily adjust brush-to-belt as bristles wear.
*Custom voltage and power of motor and reducer.
*Uniquely nylon66 brush bristles-aids in reducing material buidup and clogging
*Works on mechanically spliced or vulcanized belts
*Maximum cleaning- spins opposite the belt direction for optimal cleaning
PRODUCT SPECIFICATIONS
Model Number(DB-HPU) | Belt Width(mm) | L1(Scraper Length) | L2(Total Length) | Height(mm) |
DB-HPU-45 | 450 | 400 | 1400 | 182(242) |
DB-HPU-50 | 500 | 400 | 1400 | 182(242) |
DB-HPU-65 | 650 | 500 | 1600 | 182(242) |
DB-HPU-80 | 800 | 600 | 1800 | 182(242) |
DB-HPU-100 | 1000 | 800 | 2000 | 182(242) |
DB-HPU-120 | 1200 | 1000 | 2200 | 182(242) |
DB-HPU-140 | 1400 | 1200 | 2400 | 182(242) |
DB-HPU-160 | 1600 | 1400 | 2600 | 182(242) |
DB-HPU-180 | 1800 | 1600 | 2800 | 182(242) |
DB-HPU-200 | 2000 | 1800 | 3000 | 182(242) |
DB-HPU-240 | 2400 | 2200 | 3000 | 182(242) |
Company Information

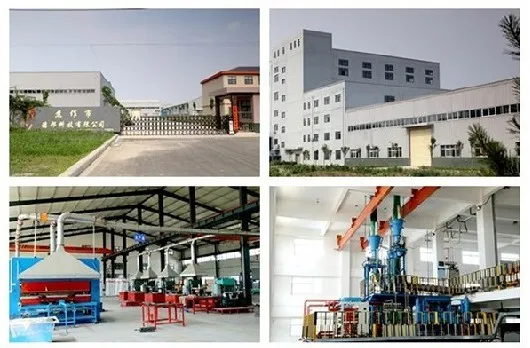

Jiaozuo Debon Technology Co., Ltd. is a factory dedicated to the production, development and application of wear liners for mining facilities since 2001. The company has advanced production lines and testing apparatuses for rubber, polyurethane and ceramic and can provide wear solutions for various requirements for wear protection by using different wear-resistant materials.
Main products include:
pulley lagging, impact bed, conveyor belt cleaner, conveyor skirting, ceramic rubber composite liner, conveyor belt repair materials, etc. We could develop and produce different wear-resistant products according to customer requirements.
Our products are widely exported to the UK, France, the United States, Australia, Russia, Kazakhstan, Southeast Asia and other countries and regions, and we also have large market shares and good reputations in China. Over the years, we have been winning good feedback from customers with high quality and consistency.
Main products include:
pulley lagging, impact bed, conveyor belt cleaner, conveyor skirting, ceramic rubber composite liner, conveyor belt repair materials, etc. We could develop and produce different wear-resistant products according to customer requirements.
Our products are widely exported to the UK, France, the United States, Australia, Russia, Kazakhstan, Southeast Asia and other countries and regions, and we also have large market shares and good reputations in China. Over the years, we have been winning good feedback from customers with high quality and consistency.
