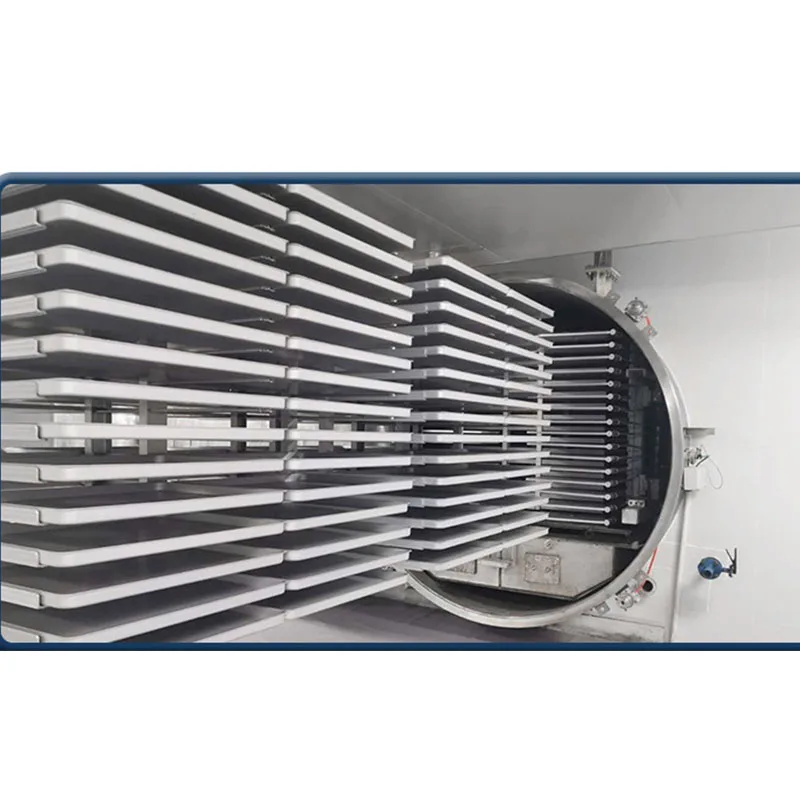

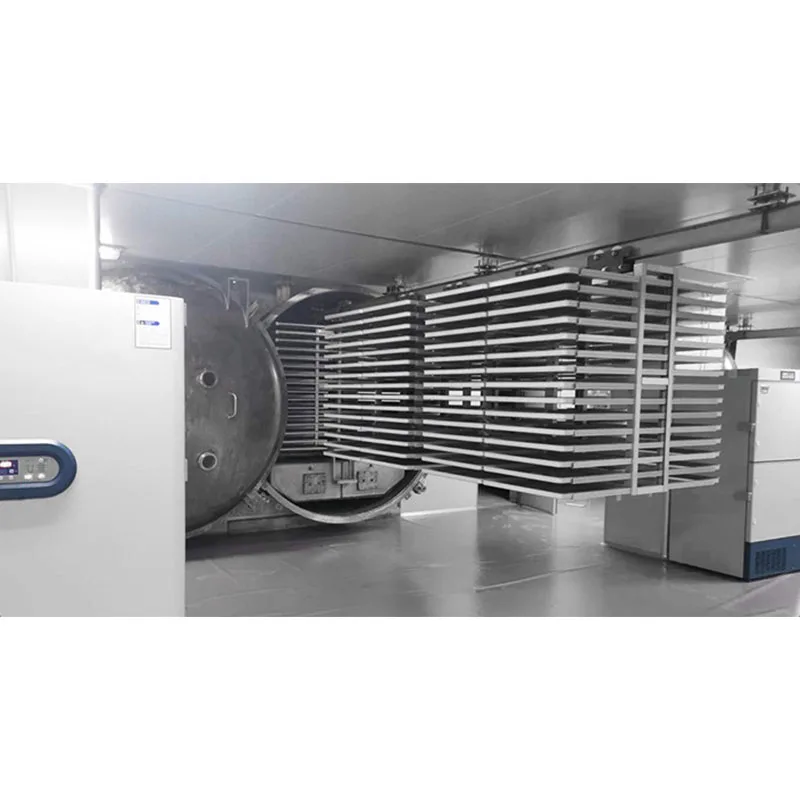

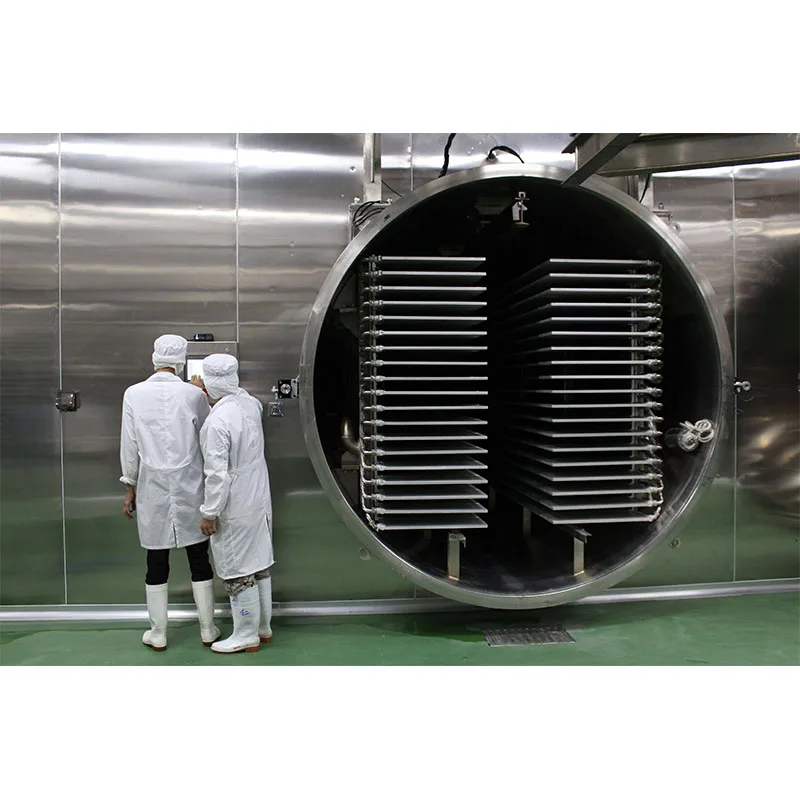

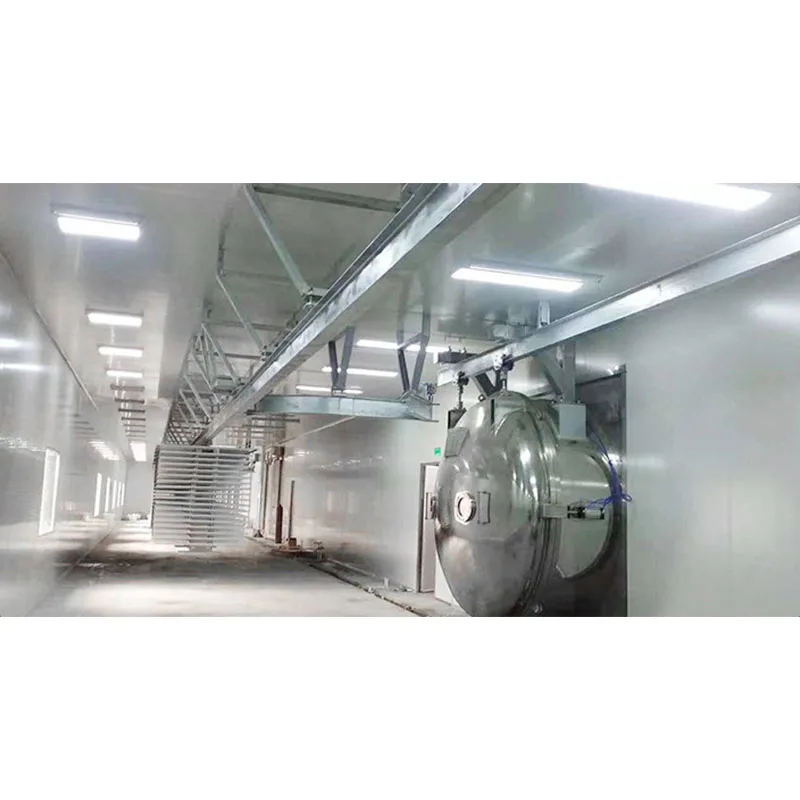

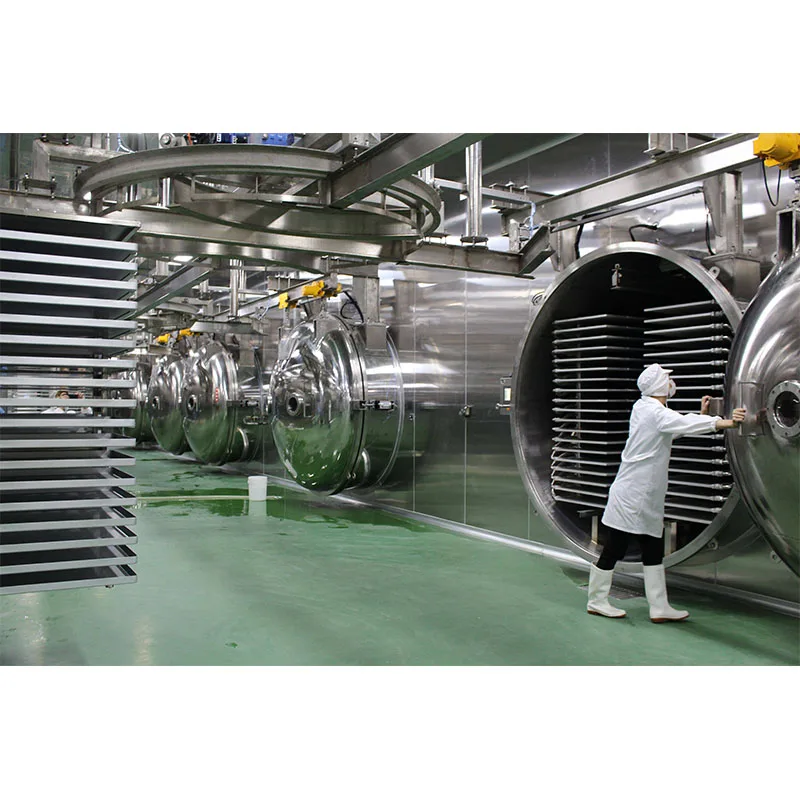

Versatile Multifunctional Lyophilizer For Vegetable And Fruit Industrial Freeze Dryer
- Category: >>>
- Supplier: Hangzhou Ouhui Machinery Co. Ltd.
Share on (11000004765303):
Product Overview
Description
Freeze Drying Introduction
Parameters | FD-10 | FD-15 | FD-20 | FD-35 | FD-50 | FD-75 |
Shelf usable area (m2) | 10 | 15 | 20 | 35 | 50 | 75 |
Condenser capacity (Kg/B) | 200 | 300 | 400 | 700 | 1000 | 1500 |
Cylinder(Diameter*Length)(mm) | 1300*2230 | 1300*3010 | 2000*2350 | 2000*3300 | 2200*3650 | 2200*4950 |
Shelf size(Width*Length) (mm) | 600*1520 | 600*2300 | 1000*1250 | 1000*2200 | 1000*2500 | 1000*3750 |
Shelf number (No) | 11+1 | 11+1 | 16+1 | 16+1 | 20+1 | 20+1 |
Shelf temperature range (℃) | -140 | -140 | -140 | -140 | -140 | -140 |
Cooling water qty:≤30℃,0.15-0.2MPa (m3/hr) | 12 | 17 | 21 | 25 | 36 | 52 |
Compressed air consumption:0.6-1.0MPa (l/min) | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 | 0.45 |
Vacuum defrost water(m3/b) | 0.035 | 0.053 | 0.071 | 0.125 | 0.178 | 0.267 |
Water consumption for deicing:≈50℃,0.1-0.2MPa (m3/hr) | 0.5 | 0.7 | 1 | 1.6 | 2.3 | 3.5 |
Installed power:400V,3P5W,50Hz(±5%) (kw) | 40 | 50 | 70 | 120 | 140 | 160 |
Dimension (mm) | 2300*2000*2000 | 3100*2000*2000 | 2400*2700*2500 | 3300*3000*2500 | 3700*3400*2500 | 5000*3400*2500 |
Valid Area | 10 | 15 | 20 | 35 | 50 | 75 |
Machine details Introduction
Freeze-drying covers extensive application range from fruits, vegetables, meat, aquatic products, to health care products, Chinese herbal medicine, etc.
Ouhui has more than 20 years of experience in vacuum freeze drying machine. We provide customers with one-stop solution for the most reasonable freeze-drying design through continuous study and improvement.
We are capable of providing a comprehensive range of sizes of freeze-drying machine from pilot models to large capacity industrial freeze drying machines.
Raw materials are pre-frozen to below - 18 degrees by an external special quick-freezing device.
Small FD freeze dryer and test machine (FD1, 2, 3, 5, 10, 20, 30, 50) adopt single cold trap water impingement ice melting system.Freeze-drying covers extensive application range from fruits, vegetables, meat, aquatic products, to health care products, Chinese herbal medicine, etc.
Ouhui has more than 20 years of experience in freeze drying. We provide customers with one-stop solution for the most reasonable freeze-drying design through continuous study and improvement.
We are capable of providing a comprehensive range of sizes of freeze-drying machine from pilot models to large capacity industrial freeze drying machines.
Raw materials are pre-frozen to below - 18 degrees by an external special quick-freezing device.
Small FD freeze dryer and test machine (FD1, 2, 3, 5, 10, 20, 30, 50) adopt single cold trap water impingement ice melting system.
Ouhui has more than 20 years of experience in vacuum freeze drying machine. We provide customers with one-stop solution for the most reasonable freeze-drying design through continuous study and improvement.
We are capable of providing a comprehensive range of sizes of freeze-drying machine from pilot models to large capacity industrial freeze drying machines.
Raw materials are pre-frozen to below - 18 degrees by an external special quick-freezing device.
Small FD freeze dryer and test machine (FD1, 2, 3, 5, 10, 20, 30, 50) adopt single cold trap water impingement ice melting system.Freeze-drying covers extensive application range from fruits, vegetables, meat, aquatic products, to health care products, Chinese herbal medicine, etc.
Ouhui has more than 20 years of experience in freeze drying. We provide customers with one-stop solution for the most reasonable freeze-drying design through continuous study and improvement.
We are capable of providing a comprehensive range of sizes of freeze-drying machine from pilot models to large capacity industrial freeze drying machines.
Raw materials are pre-frozen to below - 18 degrees by an external special quick-freezing device.
Small FD freeze dryer and test machine (FD1, 2, 3, 5, 10, 20, 30, 50) adopt single cold trap water impingement ice melting system.
SIMILAR PRODUCTS
Company Profile
Hangzhou Ouhui Machinery Co.,Ltd.,is one step solution of vacuum freeze drying machines.
We locate in Hangzhou, the beautiful city in China, near to Shanghai within one hour of fast train. We have over 12 years of experience in the field of freeze dryer machines.
These years ,we put more emphasis on the machines applied in the field of food ,fruit, vegetables, and herbal medicine. We also supply the pretreat machines if necessary.
The key advantage is, we keep flexible design, low cost ,and fast manufacture.
We already have exported over 600 sets machines to 30 countries.
Welcome contact us and start cooperation.
We locate in Hangzhou, the beautiful city in China, near to Shanghai within one hour of fast train. We have over 12 years of experience in the field of freeze dryer machines.
These years ,we put more emphasis on the machines applied in the field of food ,fruit, vegetables, and herbal medicine. We also supply the pretreat machines if necessary.
The key advantage is, we keep flexible design, low cost ,and fast manufacture.
We already have exported over 600 sets machines to 30 countries.
Welcome contact us and start cooperation.

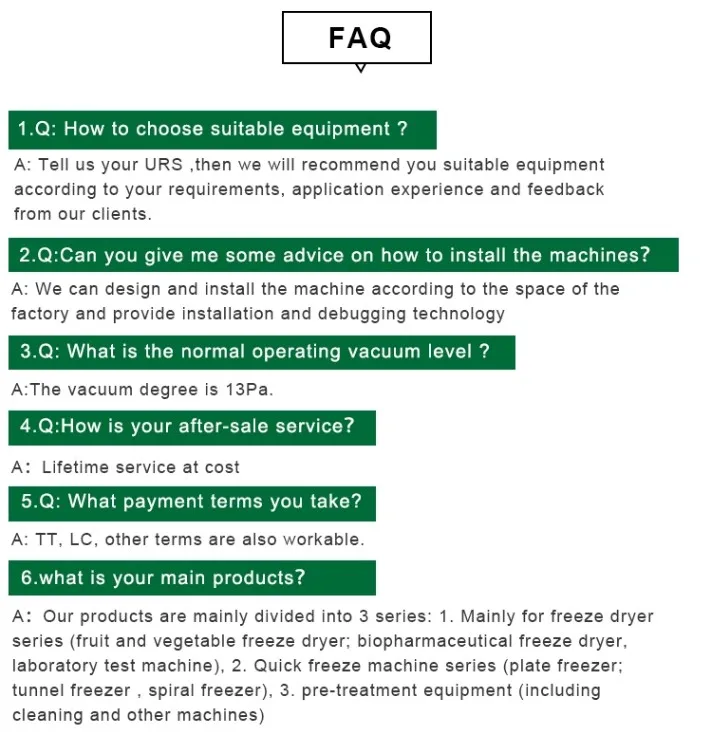

FAQ
