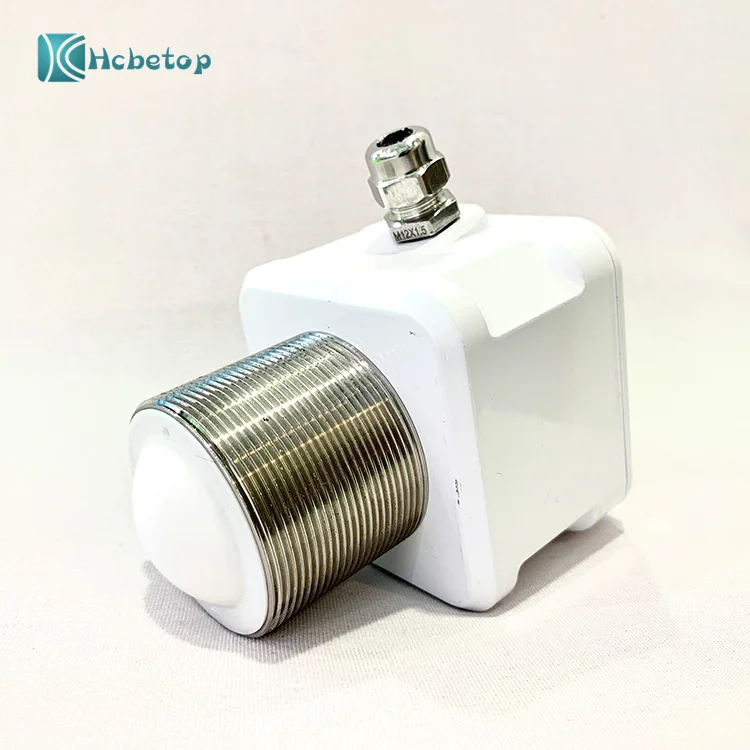

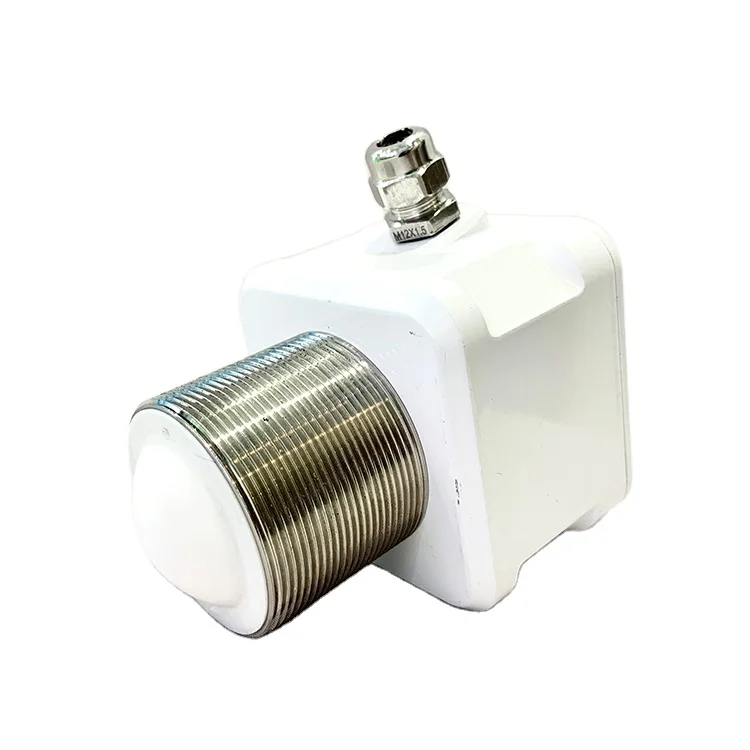

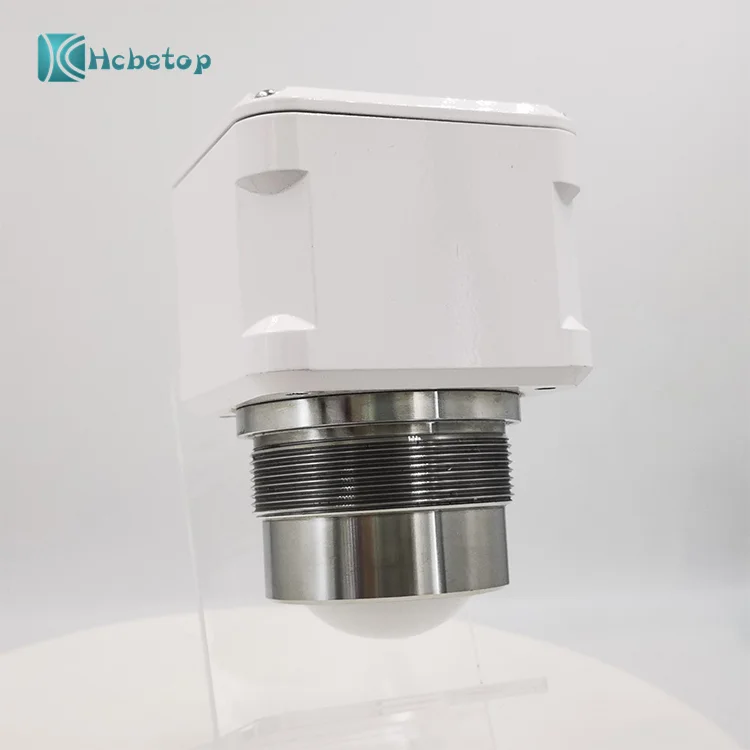

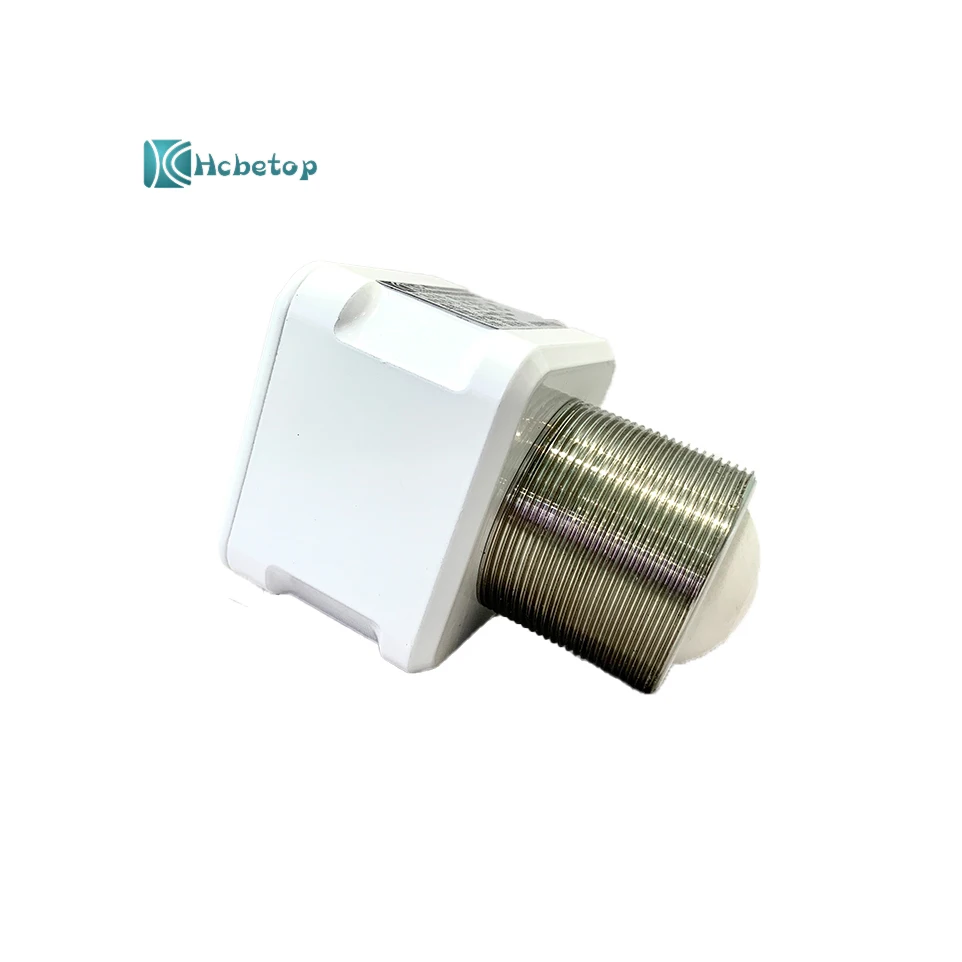

The New High Frequency Radar Explosion Proof Radar Water Level Measuring Sensor Small Range
- Category: >>>
- Supplier: Dongguan Hcbetop Technology Co. Ltd.
Share on (11000004766575):
Product Overview
Description
60G Radar Water Level Gauge
(High-frequency radar)
Introduction
HC.WLX(60Ghz) is a high-precision, low-power radar level gauge, which can be used for non-contact level measurement of surface water and underground pipe networks. It uses pulse coherent radar (PCR) technology and 60G the millimeter radar wave is used as the carrier signal, and the millimeter-level measurement accuracy is realized through the optimized signal recognition algorithm.The optimized wave elimination filter design makes the measurement result more accurate and stable.
HC.WLX(60Ghz) is a high-precision, low-power radar level gauge, which can be used for non-contact level measurement of surface water and underground pipe networks. It uses pulse coherent radar (PCR) technology and 60G the millimeter radar wave is used as the carrier signal, and the millimeter-level measurement accuracy is realized through the optimized signal recognition algorithm.The optimized wave elimination filter design makes the measurement result more accurate and stable.
Feature:
1. High-frequency emission up to 60GHZ adopted. Small size and easy to install, less civil works;
2. Non-contact measurement，no need stop water; not affected by temperature, humidity, water vapor, pollutants and sediments in
the water;
3. High precision, up to millimeter level;
4. Short measuring cycle. ultra-low blind zone less than 20cm.
5. Low system power consumption. suitable for various dataloggers and PLC equipment.
2. Non-contact measurement，no need stop water; not affected by temperature, humidity, water vapor, pollutants and sediments in
the water;
3. High precision, up to millimeter level;
4. Short measuring cycle. ultra-low blind zone less than 20cm.
5. Low system power consumption. suitable for various dataloggers and PLC equipment.
Application
♦ Urban flooding or water logging flood monitoring, such as low-lying land, drain monitoring.
♦ Secondary water treatment operations, such as urban water supply, sewage monitoring.
Specification
Item | Description | |||
Measuring range | 0~3m；5m；7m | |||
1cmAccuracy tolerance | 3mm | |||
Resolution | 1mm | |||
Respond Time | 2s, changeable | |||
8Antenna | 8°(Angle can customize) | |||
Measuring temp. | .- 40 degree to 70degree | |||
Emission frequency | 60GHz | |||
Emission power input (EIRP) | 20dBm | |||
Signal port | RS-485 | |||
Data format | 9600 (default),8,n,1; (baud rate can be adjusted) | |||
Working voltage | 6 ~ 24V DC | |||
Working currency | Max.22.5mA | |||
Level of Protection | IP67/68 |
1:Are you factory or only company?
We have factory to produce water monitoring product, such as bubble water level sensor, radar water level sensor, radar velocity sensor, radar flow meter, water-rain one-stop monitoring site, turbidimeter，urban prevent water-logging monitoring site etc.
2:Why we can choose you?
1)Reliable---we are the real company, we dedicate in win-win
2) Professional--We have been developing and manufacturing for more than 10 years.
3) Factory.---we have factory,so have compective price.
3:How about the price?Can you make it cheaper?
The price depends on the item your demand(Shape,size quantity)
Final quotation accoring to receving full description of the item you want.
We have factory to produce water monitoring product, such as bubble water level sensor, radar water level sensor, radar velocity sensor, radar flow meter, water-rain one-stop monitoring site, turbidimeter，urban prevent water-logging monitoring site etc.
2:Why we can choose you?
1)Reliable---we are the real company, we dedicate in win-win
2) Professional--We have been developing and manufacturing for more than 10 years.
3) Factory.---we have factory,so have compective price.
3:How about the price?Can you make it cheaper?
The price depends on the item your demand(Shape,size quantity)
Final quotation accoring to receving full description of the item you want.
