Product Overview
Description
Detail Images
Gobel stock is This is the latest version---LF280K, with 6000 cycles

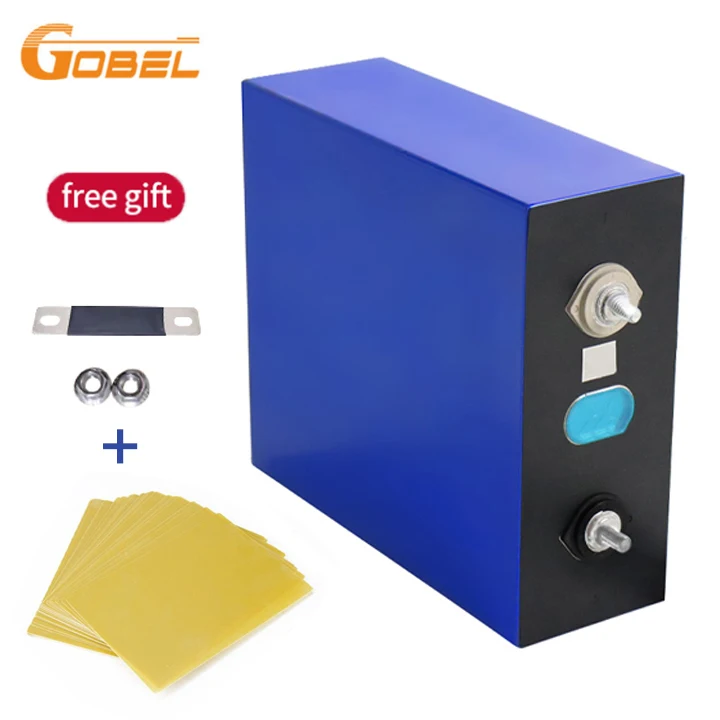

Matched Grade A 3.2V 280Ah Lifepo4 battery cells EVE LF280K
Trackable intact QR Codes by QR DECODER
The real discharge capacity is 280ah-300ah
Free Gifts:
1. The price come with Laser Welding Studs, Busbars and Bolts, epoxy sheet, one battery will come with 1 set busbar and bolt and 1pc fiberglass sheet
2. The stud is 11-15.5MM, if you have special requirements about it, please let us know
3. The busbars size:90*20*2mm(cooper busbars ), Screw size:M6, can make customized size
Our Guarantee:
1. All our LiFePO4 cells are brand new with Intact original QR CODES
3. All cells capacity are tested and matched capacity
4. All cell are balanced voltage
5. 5 years warranty, free replacement or refund if have quality problem. (Except damage by misuse)
Our Guarantee:
1. All our LiFePO4 cells are brand new with Intact original QR CODES
3. All cells capacity are tested and matched capacity
4. All cell are balanced voltage
5. 5 years warranty, free replacement or refund if have quality problem. (Except damage by misuse)
Manufacture | EVE |
Distributor | Gobel Power |
Country of Origin | China |
Model Name | LF280K |
Typical Voltage | 3.2V |
Typical Capacity | 280Ah |
Cycle Life | 6000 |
AC Impedance Resistance | ≤0.25mΩ |
Standard Charge Current/ | 0.5C |
Discharge Current | 0.5C |
Standard Charge Cut-off Voltage | 3.65V |
Standard Discharge Cut-off Voltage | 2.5V |
Continuous ChargeCurrent | 1C |
Continuous Discharge Current | 1C |
Pulse Charge Current（60s） | 1C |
Pulse Discharge Current（60s） | 2C |
Recommended SOC Window | 10%～90% |
Charging Working Temperature | 0℃～60℃ |
Discharging Working Temperature | -30℃～60℃ |
Short Term Storage Temperature (≤ 1 Month) | -20℃～45℃ |
Long Term Storage Temperature (≤ 1 Year) | 0℃～35℃ |
Storage Moisture | <95% |
Self Discharging Rate | ≤3% per Month |
Screw Size | M6 |
Copper Bar Size | 86*15*2mm |
Cell Dimension | 207.5*72*173.7mm |
Cell Weight | 5.42kg |
Certification | MSDS, UN38.3, CE |
