Widely Welcomed Portable Wired Usb 1D 2D Bar Qr Code Reader Omnidirectional Barcode Scanner Syble AK 9608H
- Category: Computer Hardware & Software >>>
- Supplier: GUANGZHOU,SYBLE,CO.,LTD
Share on:
Product Overview
Description

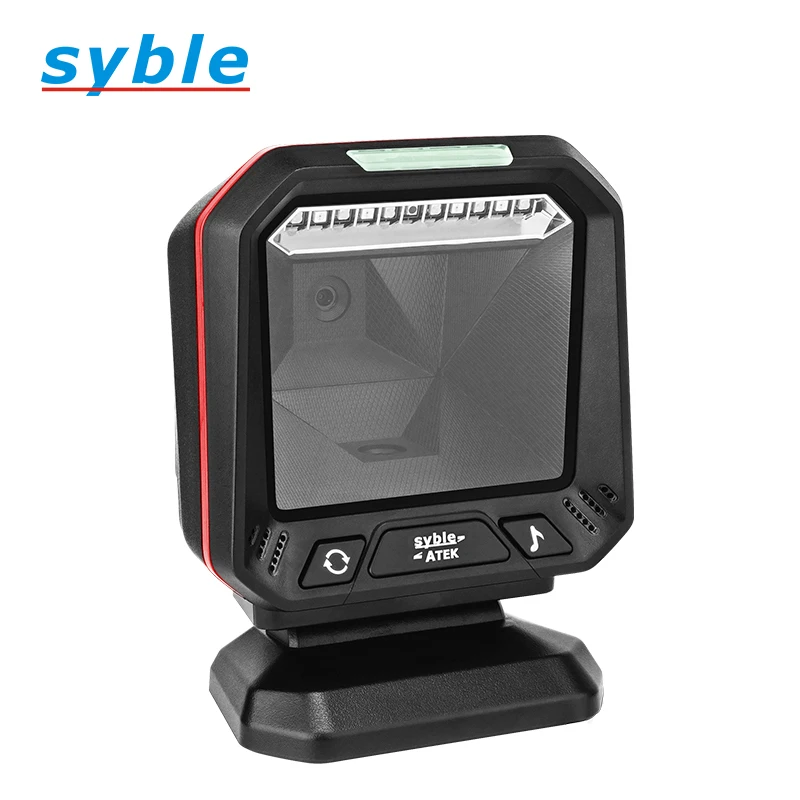

Widely Welcomed Portable Wired Usb 1D 2D Bar Qr Code Reader Omnidirectional Barcode Scanner Syble AK-9608H
Product Description
Specification
Performance Parameters | |
Resolutions | 640*480 |
Supported Symbologies | 1D:EAN-8,EAN-13,EAN-13 2 add-on,EAN-13 5 add-on,ISSN,ISBN,UPC-A,UPC-E,Code11,Code 32,Code 39,Code 93,Code 128,Codabar,Industrial 2 of 5,Interleaved 2 of 5,Matrix 2 of 5,ISBT-128,GS1-128,GS1 DataBar(RSS14),GS1 DataBar Limited,GS1 DataBar Expanded. 2D:PDF417,MicroPDF417,QR-code,MicroQR, Data Matrix,QR,Aztec. |
Scan Range | 0mm-180mm (EAN 13 13mil PCS90%) |

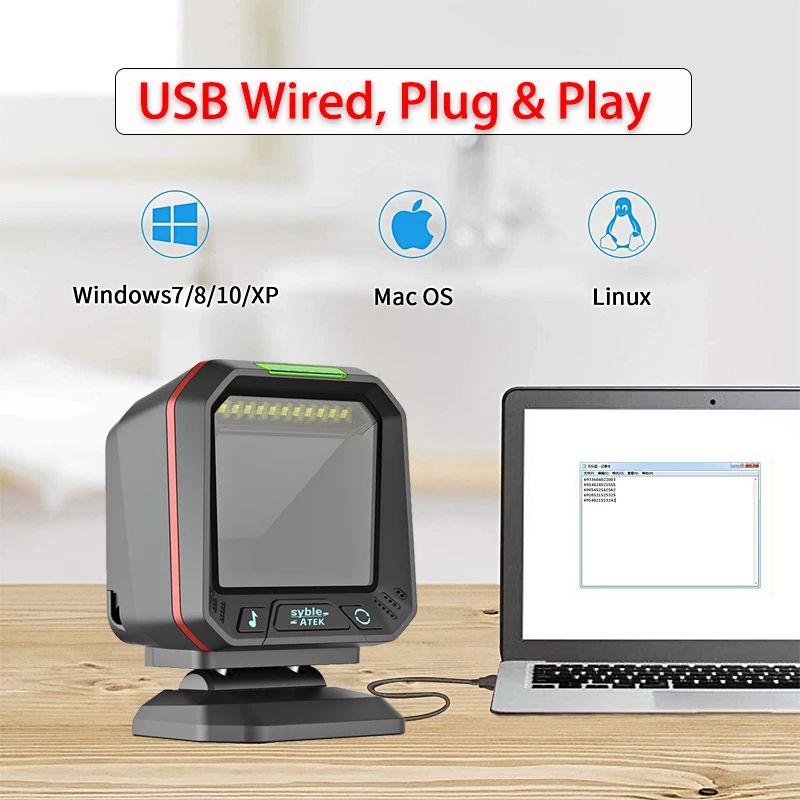

System compatibility | Linux,Android,Windows XP,7,8,10,MAC |
Barcode Type | 1d or 2d barcodes for Paper or Film;1d and 2d for screen ,like Phone tablets |
Scan Mode | Continuous scanning |
Print contrast | 20% |
Recognition angle range | Turn angle ±360°, elevation angle ±60°, declination angle ±70° |
Mutual Move | Led: Red and blue bi-color indicator: red light reading code, blue light power indicator. Beeper: Startup prompts, reading tips. Keys (touch keys): Key Switch and 2d barcodes. |
Interfaces | USB(Drive - Free),RS232,USB-COM |
Physical Parameters | |
Dimensions |
124mm*83.6mm*158mm
|
Weight | 442g |
Material | ABS+PC |
Cable Length | 1.8M |
Environmental Parameters | |
Operating Temperature | -20℃~55℃ |
Storage Temperature | -20℃~60℃ |
Relative Humidity | 5%~95% RH(non-condensing) |
Shock Resistance: | Withstands three times 1.5 meters drops to concrete |
Voltage | DC5V±5% |
Current | Standby current 180mA;Working current 210mA |
Application Area
Hot sales item
Please click here for more detail
Company Information
Our Services
1. Punctual. Have your OEM durable wireless CCD barcode scanner met with late delivery? We are a manufacturer, and it ensures we have the ability to carry out the production schedule for punctual delivery.
2. We have over 7-year experience. We have full range of barcode scanner products and our own R&D department and technician group.
3. Strict QC. For each order, strict inspection will be carried out by the QC department before shipping, and the bad quality and situation will be avoided in door.
4. Certificates.CE,FCC, ROSH and more,will guarantee the production process in good orders and products in high quality.
5. Fast Reply. Our team will respond your requests within 8-working hours.
Certifications
Trade Shows
FAQ
Q1:Do you have CE FCC certificates for this 2D Imager Presentation Scanner ?
Yes ,we applied CE,FCC,Rohs etc certificates for all our Barcode Scanners
Q2:What is your quality policy about this 2D Omni Scanner ?
the warranty on the Barcode Scanner is 2years and cable 6months
Q3:Can we OEM this 2d Omnidirectional Barcode Scanner ?
Yes ,OEM service is available with MOQ 200units
Q4:Are you a trading company ?
No ,we are professional Barcode Scanner Manufacturer from China
Q5:Can you do ODM?
A:Yes, we can. ODM is our advantage.All the hardware and software are 100% designed by us, so we are very flexible to offer the ODM service.
Q6: Is the price reasonable?
A:Syble is the original factory, and we are offering the factory prices.For big quantity, please contact with the sales accordingly.
