Lab pharmaceutical stability Mini ,temperature and humidity medcine test chamber,medicine stability test chamber
- Category: >>>
- Supplier: Dongguan Xinbao Instrument Co. Ltd.
Share on (11000004865836):
Product Overview
Description
Product Description
Automatic residual indentation tester
Introduction

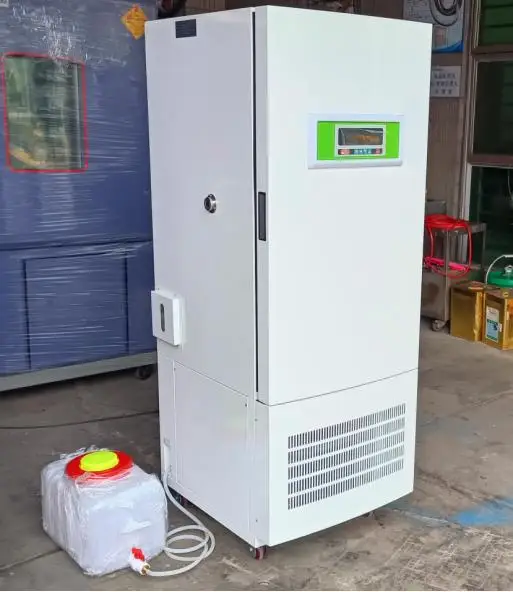

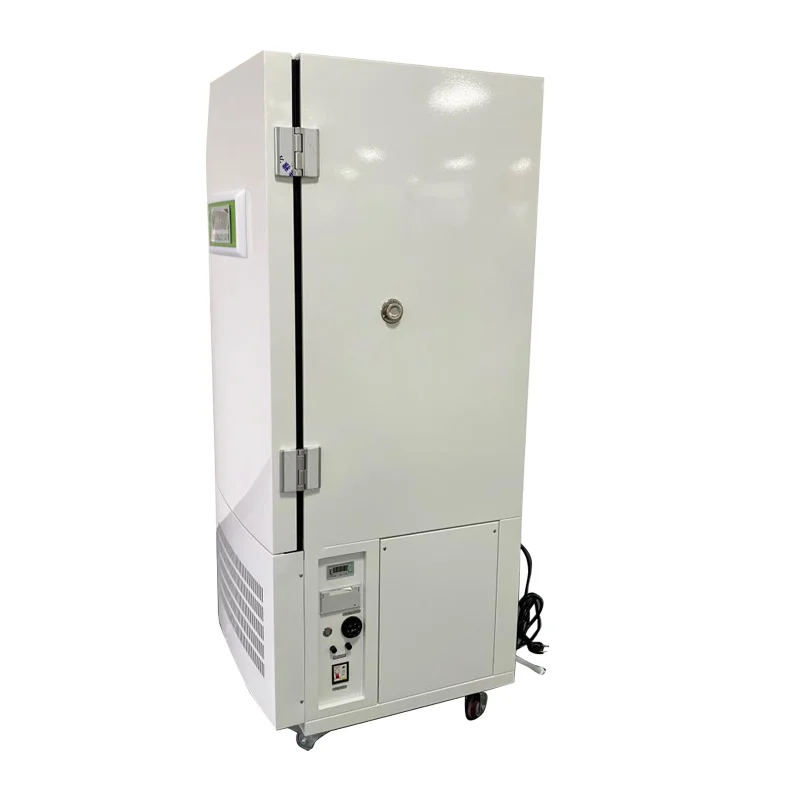

The medicine stability test chamber is a scientific method to create a temperature, humidity environment and light environment that need to be stable for a long time for drug failure evaluation. The test is the best choice for pharmaceutical companies to conduct medicine stability tests.
Features
▲Auxiliary thermostat is installed to ensure that the product can still work normally (for heating) when the main temperature control is out of control.
▲ The operation display screen is installed on the door, which is convenient for operators to observe and operate.
▲ Adopt LCD large-screen liquid crystal display. Multiple sets of data are displayed on one screen, menu-type operation interface, and touch-type operation, making the operation more simple and clear.
▲ The temperature and humidity control adopts the latest digital display multi-segment program control technology, with high precision and no overshoot. Programs with multiple programs and multiple cycles, each cycle is divided into 30 segments, each segment is 99 hours and 99 minutes of cycle steps, which can meet almost all complex experimental procedures.
▲ Adopt imported brand humidity sensor and self-designed electric heating tube humidification system to effectively ensure humidity deviation.
▲ PID control mode, precise temperature and humidity control with small fluctuations, menu-type operation page, simple and easy to understand and easy to operate.
▲ When the temperature exceeds the limit, the operation will be automatically interrupted, and the operator will be reminded by sound and light alarm. To ensure the safe operation of the experiment without accidents.
▲ Equipped with a miniature needle-type printer as standard, which can record and print the current operating parameters of the equipment at any time according to customer requirements.
▲ The cabinet and studio are designed with a circular arc structure, made of high-quality antibacterial stainless steel and a smooth surface made of rounded edges. Easy to clean and maintains perfect cleanliness.
▲ The studio is made of mirror stainless steel plate, and the shelf can be adjusted in height and assembled freely.
▲ Sterilization lamps are installed in the working room, which is convenient for sterilization in the working room.
▲ The surface of the outer chamber is sprayed with plastic, the whole machine is beautiful and reasonable, and it is easy to use and maintain.

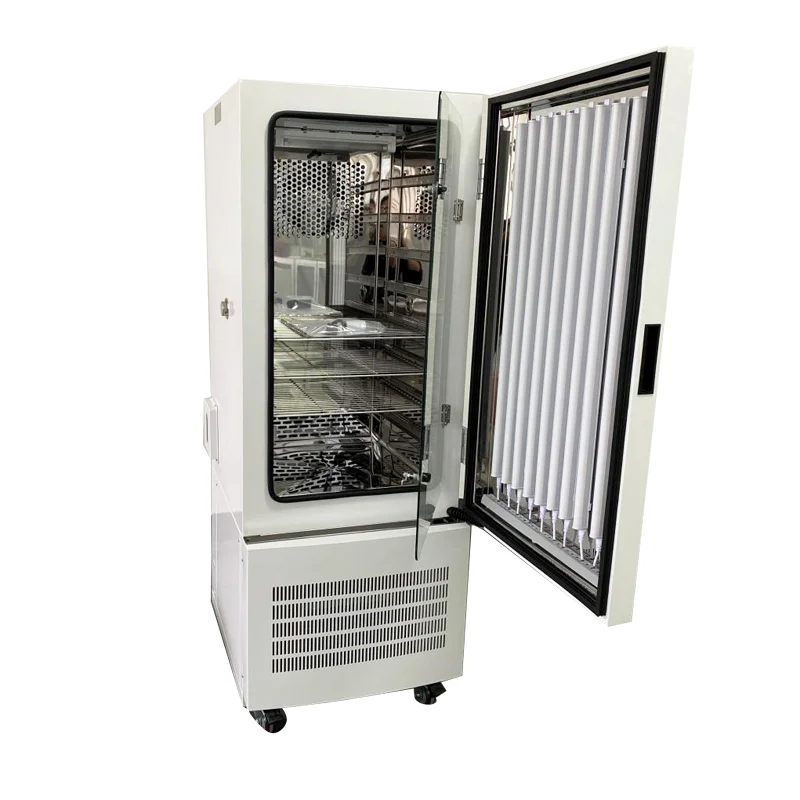

▲ The door of the incubator is a double door design, the inner door is tempered glass, which can directly observe the culture condition in the studio, and the outer door is sealed with a magnetic door, which has good sealing performance.
▲ Adopt international brand (Danfoss) compressor and dual refrigeration system.
▲ Using JAKEL pipe flow circulation fan, coupled with a uniquely designed air duct structure, creates a good air circulation system, effectively ensuring the temperature uniformity in the chamber.
▲ This product complies with the relevant provisions of the following standard pharmacopoeia drug stability test guidelines.
▲ Safety device: inner chamber temperature protection, compressor overcurrent protection, compressor overpressure protection, water shortage protection, heater overheating protection, sound and light alarm when a fault occurs.
▲ With a USB interface, it can be connected to a printer or computer, and can record changes in parameters.
▲ The operation display screen is installed on the door, which is convenient for operators to observe and operate.
▲ Adopt LCD large-screen liquid crystal display. Multiple sets of data are displayed on one screen, menu-type operation interface, and touch-type operation, making the operation more simple and clear.
▲ The temperature and humidity control adopts the latest digital display multi-segment program control technology, with high precision and no overshoot. Programs with multiple programs and multiple cycles, each cycle is divided into 30 segments, each segment is 99 hours and 99 minutes of cycle steps, which can meet almost all complex experimental procedures.
▲ Adopt imported brand humidity sensor and self-designed electric heating tube humidification system to effectively ensure humidity deviation.
▲ PID control mode, precise temperature and humidity control with small fluctuations, menu-type operation page, simple and easy to understand and easy to operate.
▲ When the temperature exceeds the limit, the operation will be automatically interrupted, and the operator will be reminded by sound and light alarm. To ensure the safe operation of the experiment without accidents.
▲ Equipped with a miniature needle-type printer as standard, which can record and print the current operating parameters of the equipment at any time according to customer requirements.
▲ The cabinet and studio are designed with a circular arc structure, made of high-quality antibacterial stainless steel and a smooth surface made of rounded edges. Easy to clean and maintains perfect cleanliness.
▲ The studio is made of mirror stainless steel plate, and the shelf can be adjusted in height and assembled freely.
▲ Sterilization lamps are installed in the working room, which is convenient for sterilization in the working room.
▲ The surface of the outer chamber is sprayed with plastic, the whole machine is beautiful and reasonable, and it is easy to use and maintain.
▲ The door of the incubator is a double door design, the inner door is tempered glass, which can directly observe the culture condition in the studio, and the outer door is sealed with a magnetic door, which has good sealing performance.
▲ Adopt international brand (Danfoss) compressor and dual refrigeration system.
▲ Using JAKEL pipe flow circulation fan, coupled with a uniquely designed air duct structure, creates a good air circulation system, effectively ensuring the temperature uniformity in the chamber.
▲ This product complies with the relevant provisions of the following standard pharmacopoeia drug stability test guidelines.
▲ Safety device: inner chamber temperature protection, compressor overcurrent protection, compressor overpressure protection, water shortage protection, heater overheating protection, sound and light alarm when a fault occurs.
▲ With a USB interface, it can be connected to a printer or computer, and can record changes in parameters.
Specification
Model parameters | XB-OTS-S475 |
Temperature control range | Without light 0~60℃ With light 10~50℃ |
Temperature fluctuation/uniformity | ±0.5/±2 |
Humidity range/deviation | 30~95%R.H/±3%R.H |
Temperature Resolution | 0.1℃ |
Light intensity/deviation | 0~6000LUX adjustable≤±500LUX |
Timing range | 1~99 hours per segment |
Temperature and humidity control method | Balanced temperature and humidity control |
Cooling System | Original imported fully hermetic compressor |
Controller | GY: Programmable LCD Controller |
Sensor | PT100 platinum resistance capacitive humidity sensor |
Working temperature | RT+5~30℃ |
Power supply | AC220V±10% 50HZ |
Power (W) | 1650 |
Volume (L) | 175 |
iner size (mm) W×D×H | 750*550*1160 |
Load tray (standard) / max | 3/8 |
Embedded printer | Standard configuration |
Safety equipment：Compressor overheat protection, fan overheat protection, over temperature protection, compressor over pressure protection, overload protection, water shortage protection
Packing & Delivery
Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
