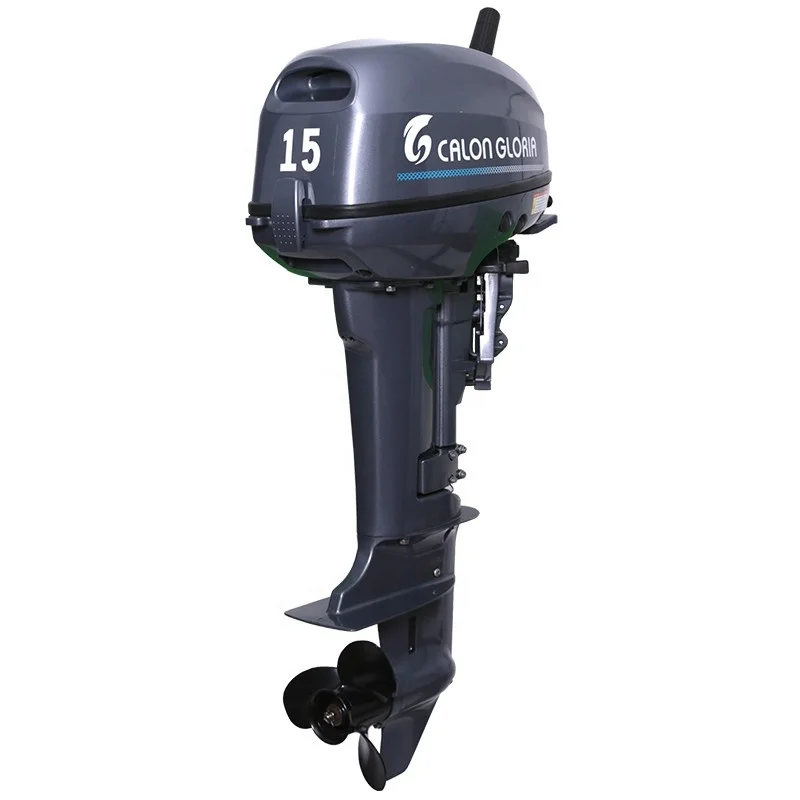

Chinese supplier Outboard Motor 2 Stroke outboard motor 10 hp for Fishman outboard engine fishing vessel

Product Overview

Description

Chinese supplier Outboard Motor 2-Stroke outboard motor 10 hp for Fishman outboard engine fishing vessel





SPECIFICATION

Model	T9.9	T15
Type	2 Stroke
Maximum output	9.9hp (7.3kw)	15hp (11kw)
Dimensions	S:873×332×1040mm L:873×332×1167mm
Weight	S: 36kg  L:38kg
Maximum operating range	5000-6000 rpm
Number of cylinder	2
Bore x Stroke	56 x 50
Displacement	246 cc
Engine lubrication system	Premixed Fuel
Cooling system	Water/Thermostatic Control
Starting system	Manual Start
Ignition	CDI
Fuel tank capacity	24L
Speed control	Twist grip type
Gear ratio	2.08 (13:27)
Gear Shift	F-N-R









Features

> Overspeed protection
If the machine is running, the engine speed exceeds the specified speed value, the machine speed limit protection device will automatically
limit the speed, to prevent engine overheating caused by engine damage

> Low oil pressure warning
When the oil pressure drops below the specified pressure, the engine speed drops automatically

> Overheating protection
If the inlet is blocked, the machine is hot. The cylinder head is equipped with a temperature-controlled sensor. If the temperature is too high,
the automatic speed limit will not work properly and the machine will not be damaged.

> Carburetor improvement
Anti corrosion for carburetor, and improvement on the idle jet to main jet, engines will be more stable.

>5 layers paintdw
5 layers paint for anti corrosion, with electrophoretic coating ensuring the best protection.

> Anti-noise system
New improvement on the anti-noise system for exhaust control, it's a quiet engine

> New design for exhaust system
More preciously temperature control with the new design on exhaust radiator.

> Upgraded oil piper
Anti-aging upgraded oil piper, pressure test over 0/4kg,tensile strength over 8MPA and the elongation at break is over 200%

> Automatic positioning system
Automatic positioning system tilt through the elastic locker, much easier for operation

> Hour metering
New added the hour metering, ensure the right time for maintenance.

ALL THE MOTOR PARTS ARE AVAILABLE FOR SALE!













PACKING DETAILS



CERTIFICATE







Warranty
1 year for commercial usage;
2 years for recreation use;
1% free spare parts for container order

Our Service

1. OEM Manufacturing welcome: Product, Package...
2. We will reply you for your inquiry in 24 hours.
3. After sending, we will track the products for you once every two days, until you get the products. When you got
the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we
will offer the solve way for you.

We have a mature after-sale service team which can provide technical support! We sell all the motor parts in order to assure our motors a long time!
